Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
Suspension Fork
Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards
Rear Shock
N/A
Drivetrain

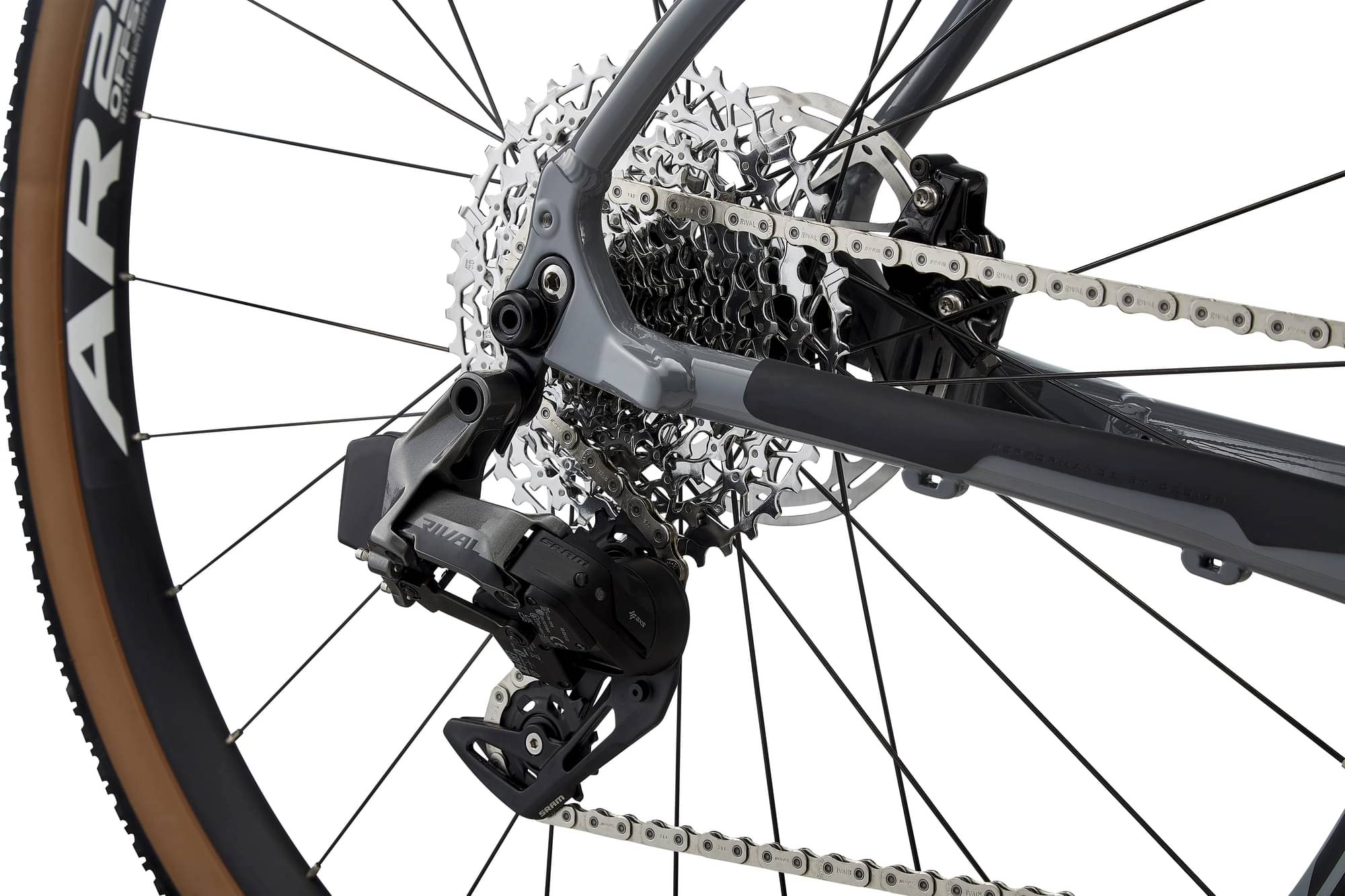

Rear Derailleur
SRAM Rival XPLR eTap AXS
Front Derailleur
N/A
Shift Levers
SRAM Rival eTAP AXS
Cassette
SRAM XG1251, XPLR, 10-44

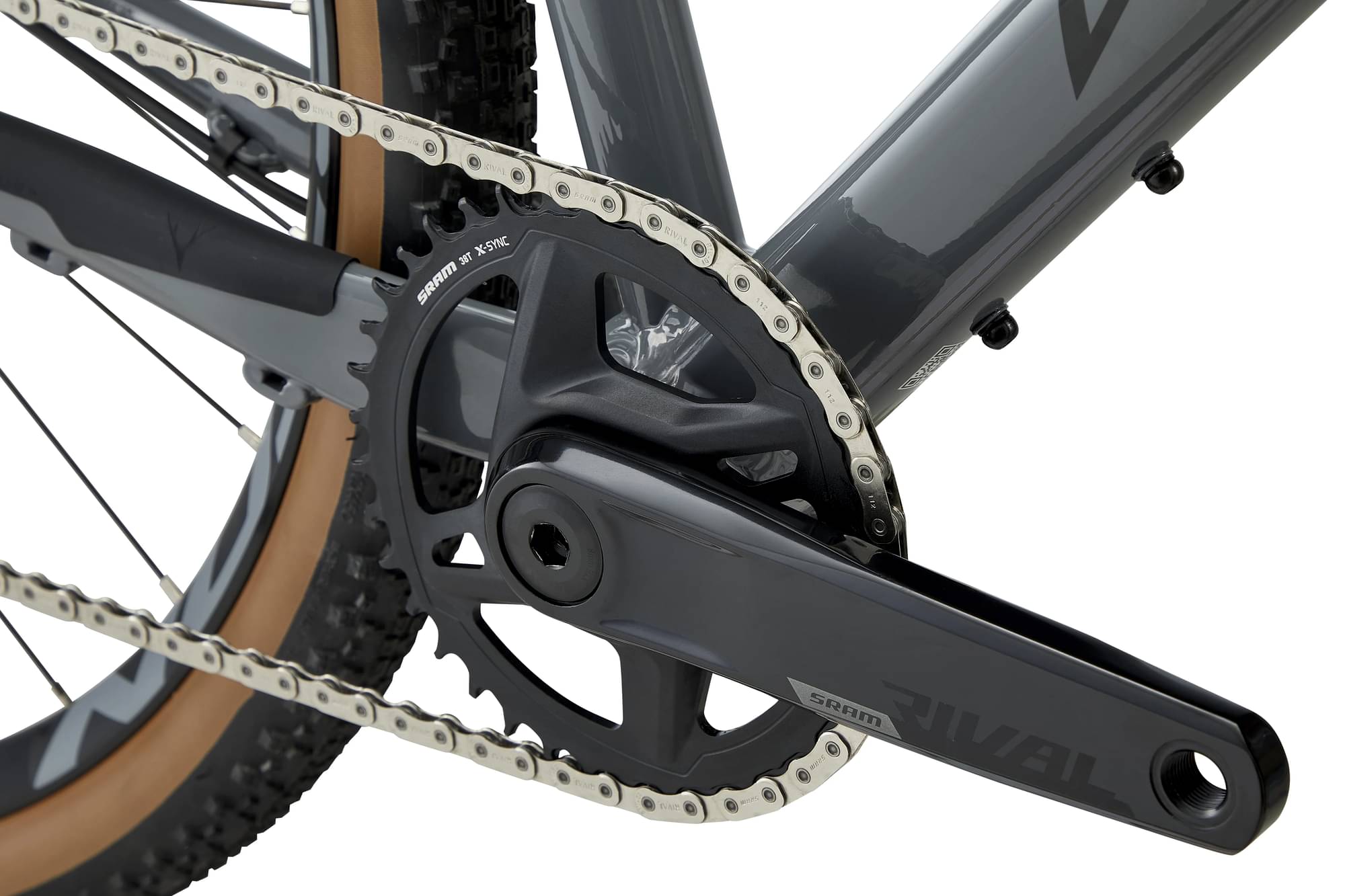

Crank
SRAM Rival 1 Wide, 38T, DUB, 50/52 170mm, 54 172.5mm, 56/58 175mm 12 Speed
Bottom Bracket
SRAM DUB, BSA, 73mm
Chain
SRAM Rival
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 28 Hole, Concealed Hex Key
Rear Hub
Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, 28 Hole
Rims
Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
Spokes
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound
Brakes
Brakes
SRAM Rival, 180mm CentreLine Rotor, Centre Lock
Brake Levers
SRAM Rival
Cockpit
Stem
Whyte Alloy, +-7° Rise, 50/52cm 60mm, 54cm 70mm, 56/58cm 80mm, Extension

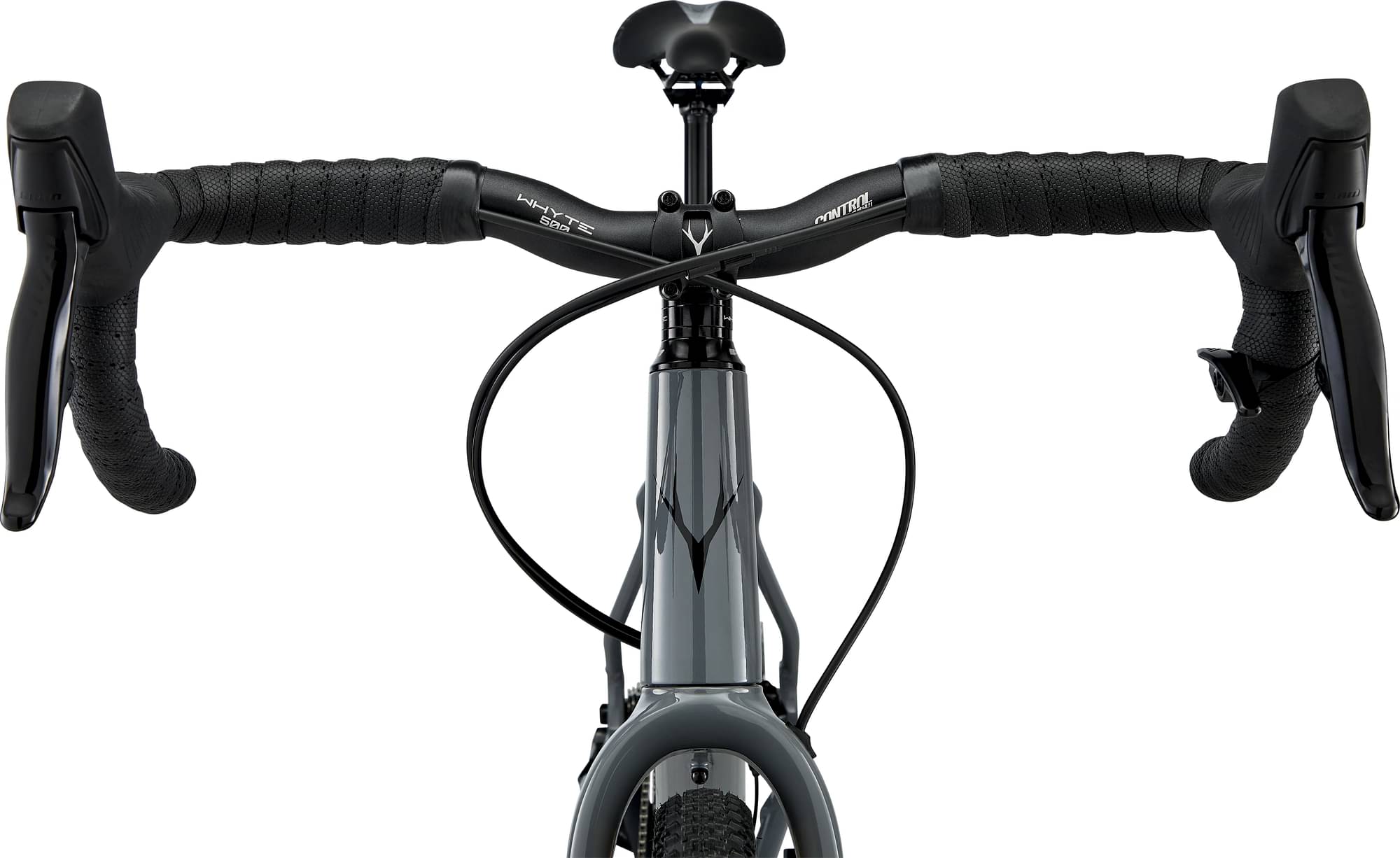

Handlebar
Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm
Grips
Whyte Anti Slip, Cross Bar Tape
Headset
FSA No. 42, Integrated Road, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost
Trans-X YSP38 dropper post, 27.2mm, 50/52/54 70mm Travel, 56 90mm Travel, 58 110mm Travel, Control Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.41 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Stack | 568 mm | 582 mm | 596 mm | 610 mm | 624 mm |
| Reach | 394 mm | 398.4 mm | 423 mm | 428 mm | 443 mm |
| Top Tube Length | 557 mm | 566 mm | 595 mm | 604 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1030 mm | 1040 mm | 1070 mm | 1079 mm | 1100 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 782 mm | 799 mm | 816 mm | 833 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Gisburn Gravel Bike is a Whyte Gisburn model. There are 6 bikes that carry this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3648$. Comparing this to the average Gravel bike price, we see that the price is 48.17% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Gisburn Gravel Bike components

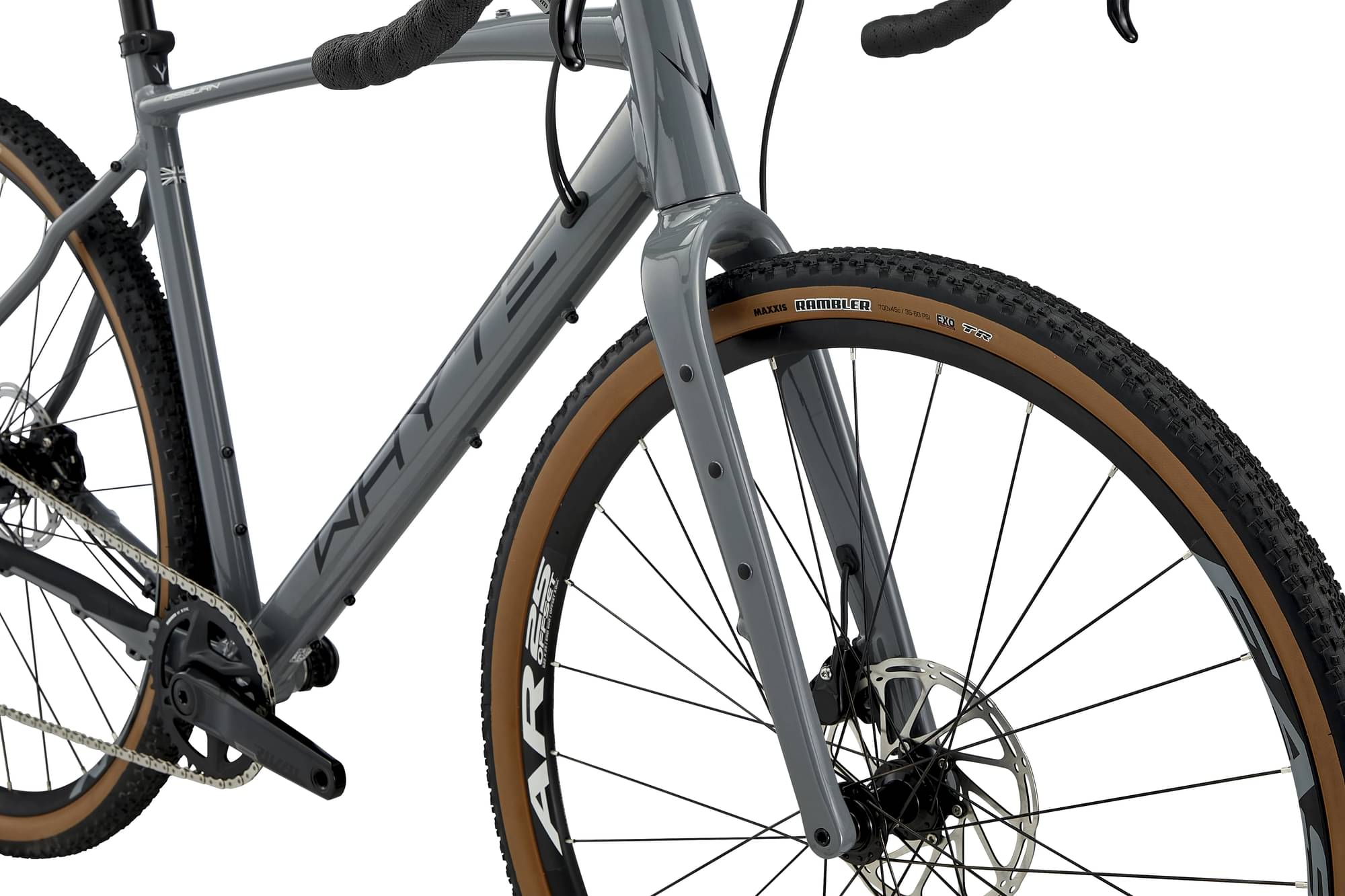

Fork material
Gisburn Gravel Bike has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Gisburn Gravel Bike 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Whyte Gisburn Gravel Bike has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.

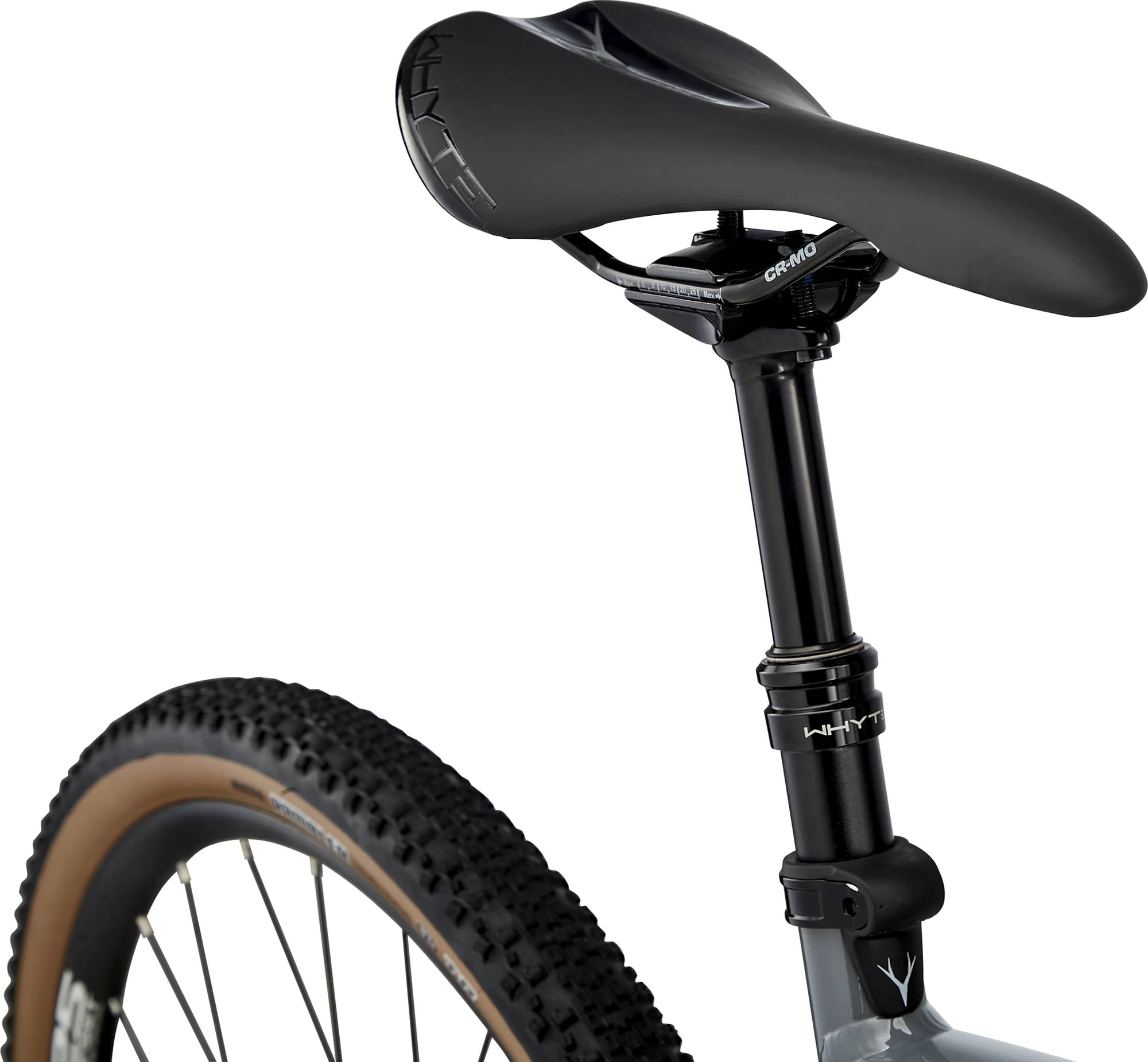

Dropper post
A dropper post is included with the Gisburn Gravel Bike. Therefore, climbing or descending will be a breeze.
