Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing
Suspension Fork
Whyte Straight Bladed full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812, Shadow Plus, 11 Speed
Front Derailleur
N/A
Shift Levers
Shimano GRX ST-RX810, 11 Speed
Cassette
Shimano CS-M7000, 11-42, 11 Speed
Crank
Shimano FC-RX812, Hollowtech II 40T, Alloy 30mm Axle, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed
Bottom Bracket
Shimano SM-BBR60, 68mm
Chain
Shimano CN-HG601-11, 11 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 28 Hole, concealed hex key
Rear Hub
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 28 Hole
Rims
Easton AR-25, Pinned Joint, Tubeless Ready, 28 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
WTB Resolute TCS System 700c x 42c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
Brakes
Brakes
Shimano GRX BR-RX810, 180mm Flat Mount Centre-lock Disc, Internal Routing
Brake Levers
Shimano GRX ST-RX810, Hydraulic
Cockpit
Stem
Whyte Alloy, +-7° Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension
Handlebar
Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm riser bar, 31.8mm x 500mm
Grips
Whyte Anti Slip, Cross Bar Tape
Headset
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Road, Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost
Trans-X YSP18 dropper post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Shimano GRX Left lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.41 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Stack | 568 mm | 582 mm | 596 mm | 610 mm | 624 mm |
| Reach | 394 mm | 398.4 mm | 423 mm | 428 mm | 443 mm |
| Top Tube Length | 557 mm | 566 mm | 595 mm | 604 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1030 mm | 1040 mm | 1070 mm | 1079 mm | 1100 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 782 mm | 799 mm | 816 mm | 833 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

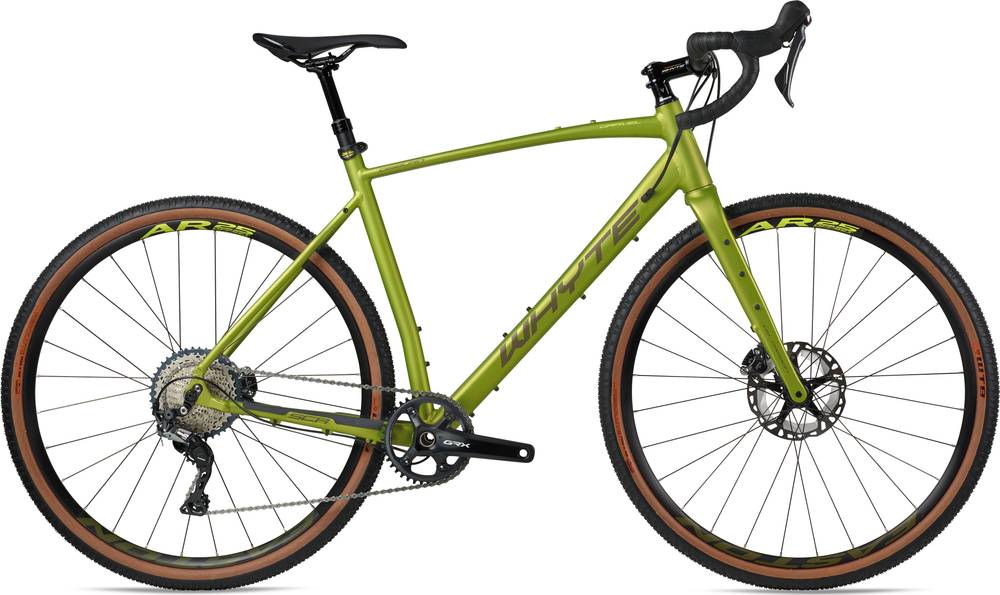

GISBURN v3 completes the Whyte Gisburn model. There are 6 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Whyte released this model in 2021, its price was 2494$. In conclusion, this bike price is 1.3% more expensive than the price of the average Gravel bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
GISBURN v3 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Whyte GISBURN v3 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The GISBURN v3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
The Whyte model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
