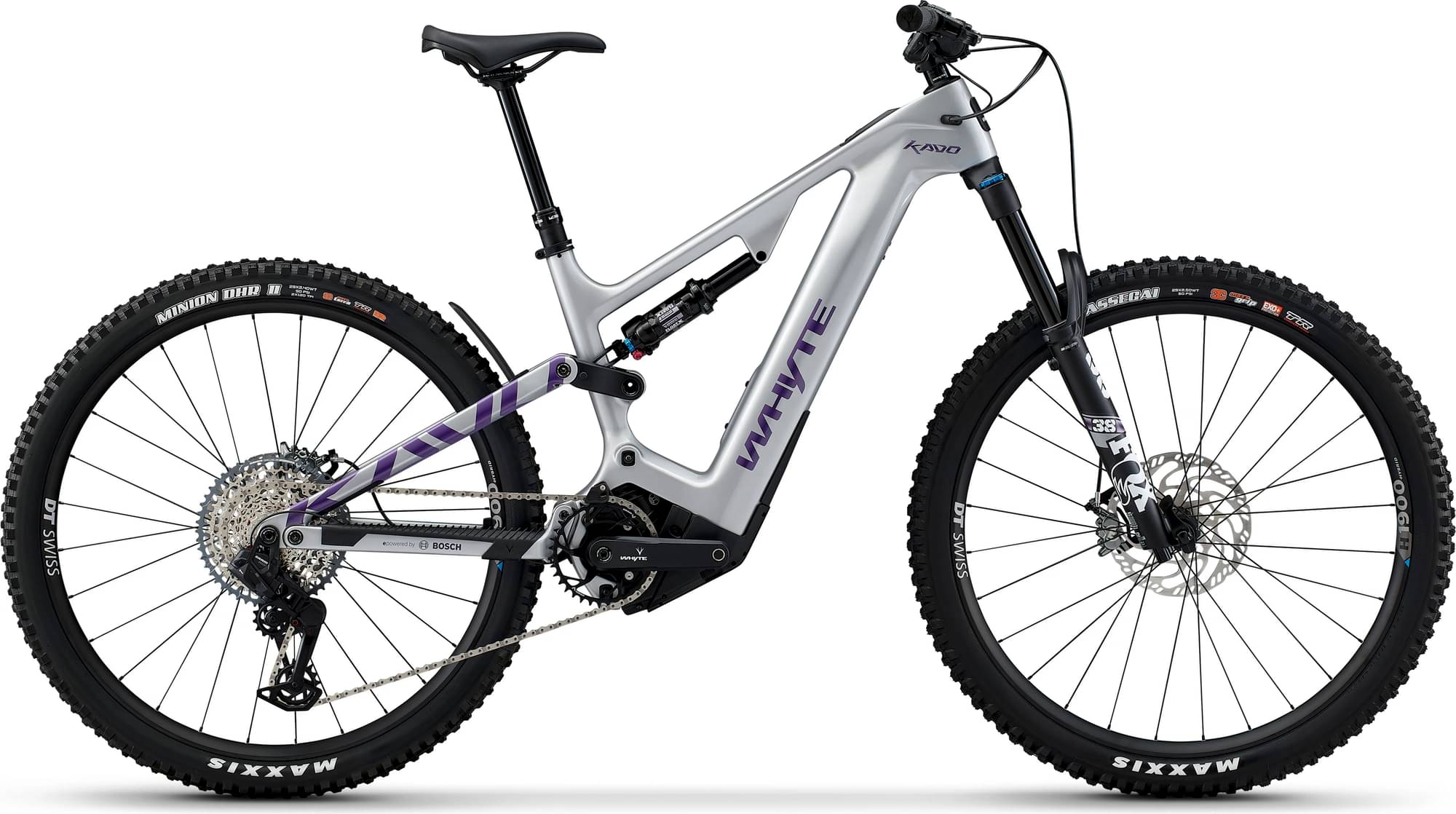

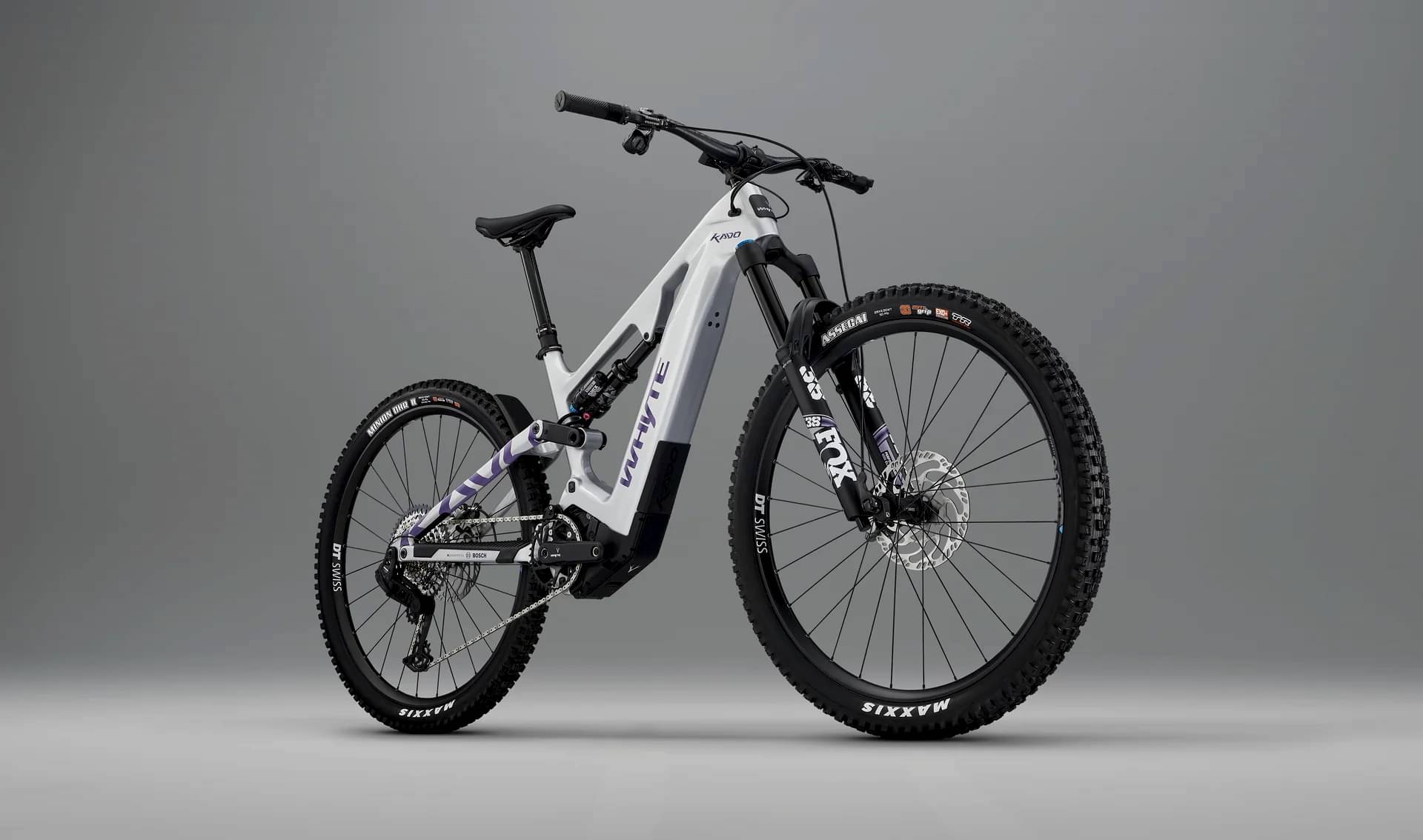

Whyte Kado RSX 2025
2025 E-bike
Estimate price |
10,160$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Fox Performance Elite Float 38
-
Groupset Eagle AXS, S1000 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT7 Pro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Suspension Fork

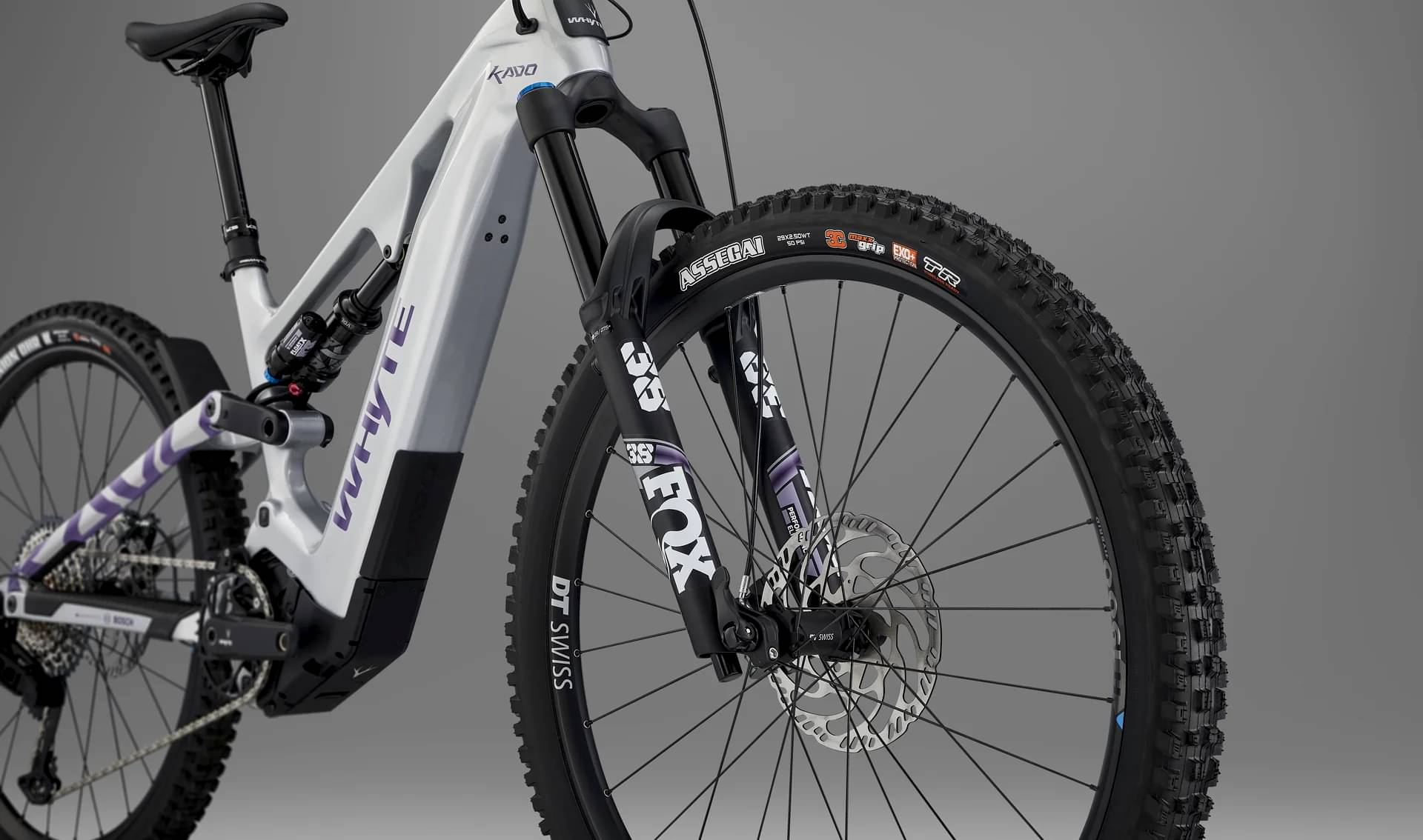

Fox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle
Rear Shock

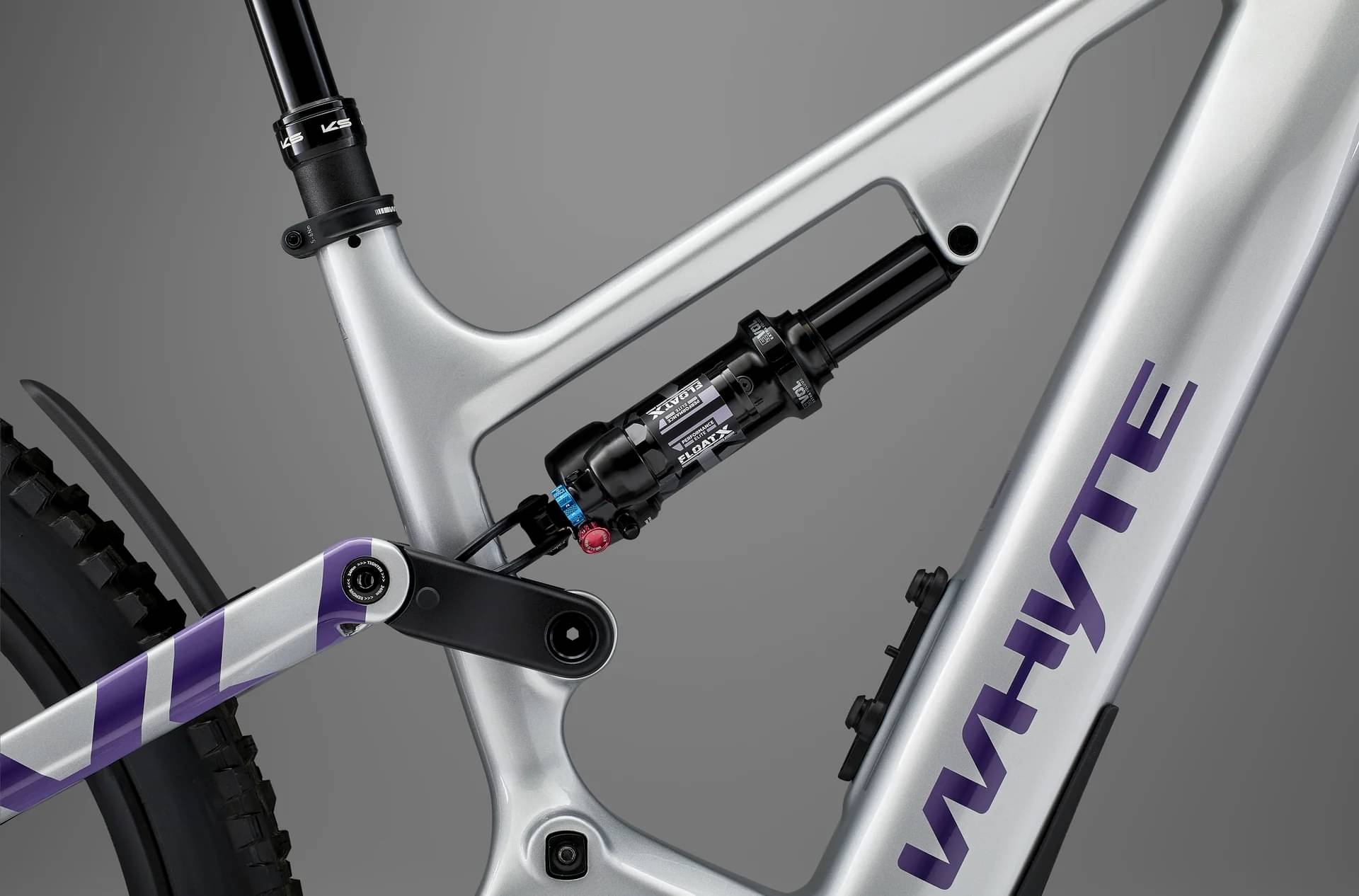

Fox Float X Performance Elite DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte
Drivetrain
Rear Derailleur

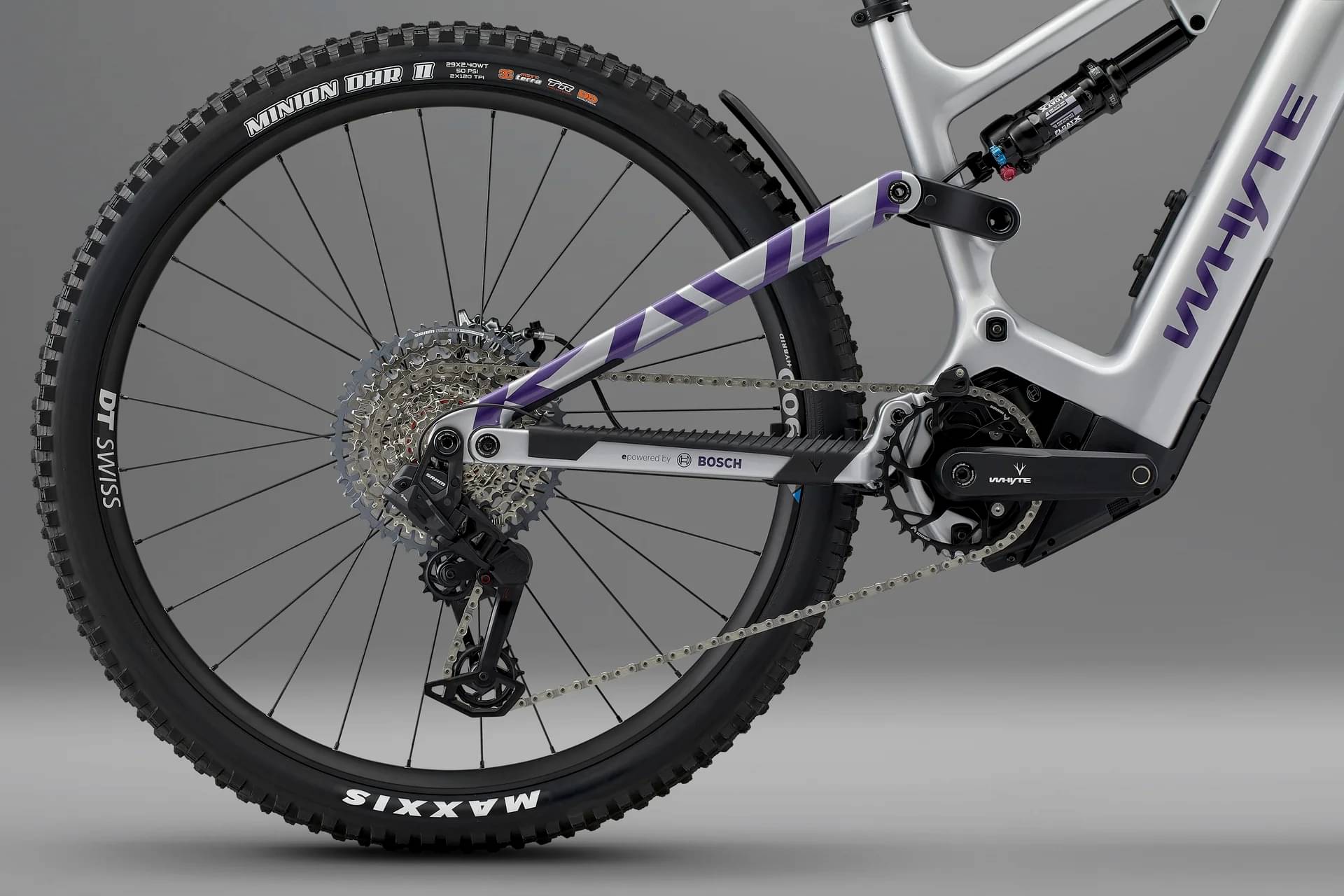

SRAM S1000 AXS Eagle, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, right, MMX, 12 speed
Cassette
SRAM XS 1275, T-Type, 10-52T, 12 speed
Crank
Whyte 155mm ISIS arms, SRAM Direct mount 36T chainring, T-Type
Bottom Bracket
N/A
Chain
SRAM GX T-Type, 12 speed
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
DT Swiss Hybrid H1900, 110mm x 15mm Boost, 6 bolt
Rear Hub
DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, 6 Bolt
Rims
DT Swiss Hybrid H1900
Spokes
DT Swiss elemental
Tires
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear
Brakes
Brakes

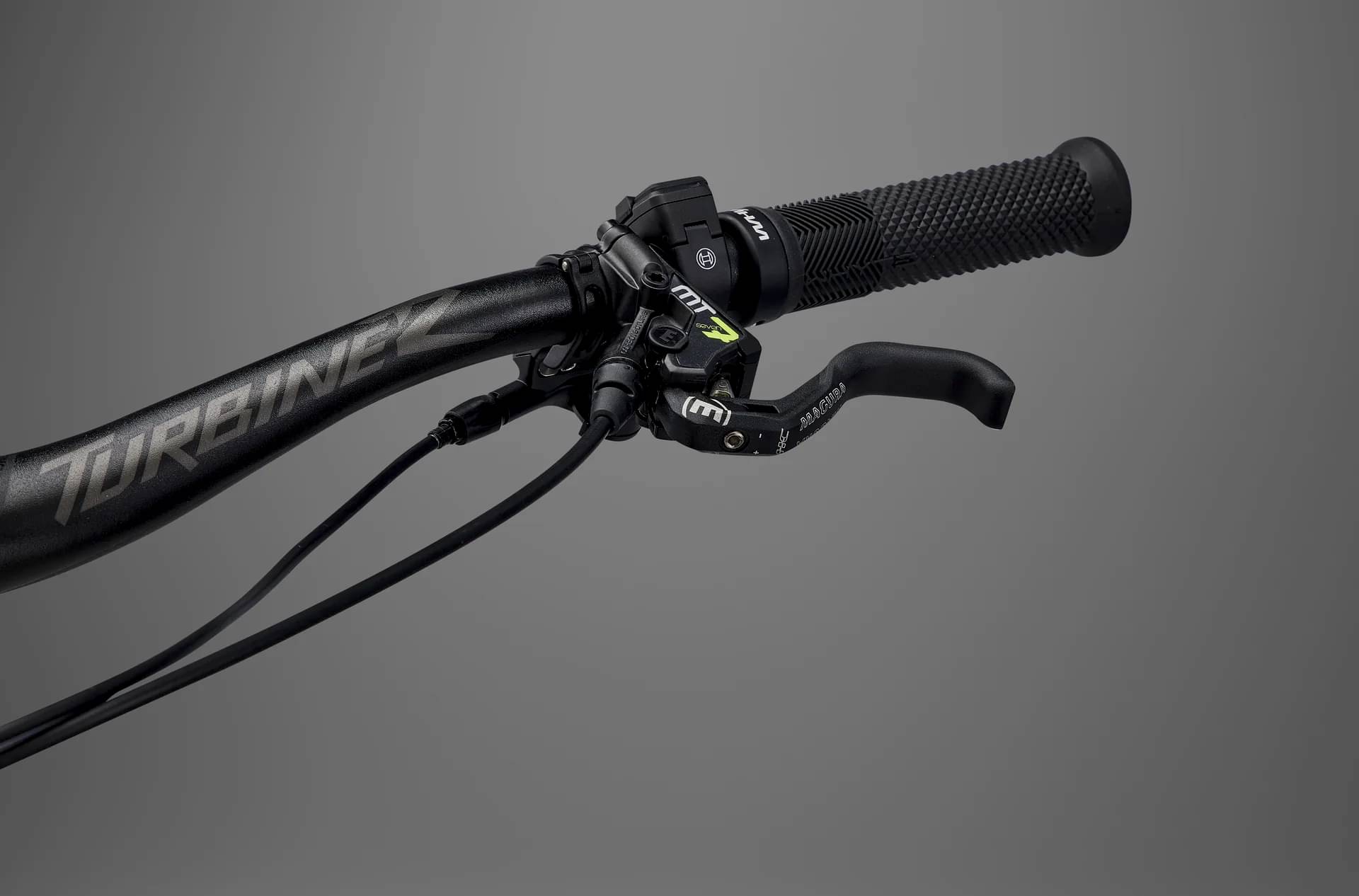

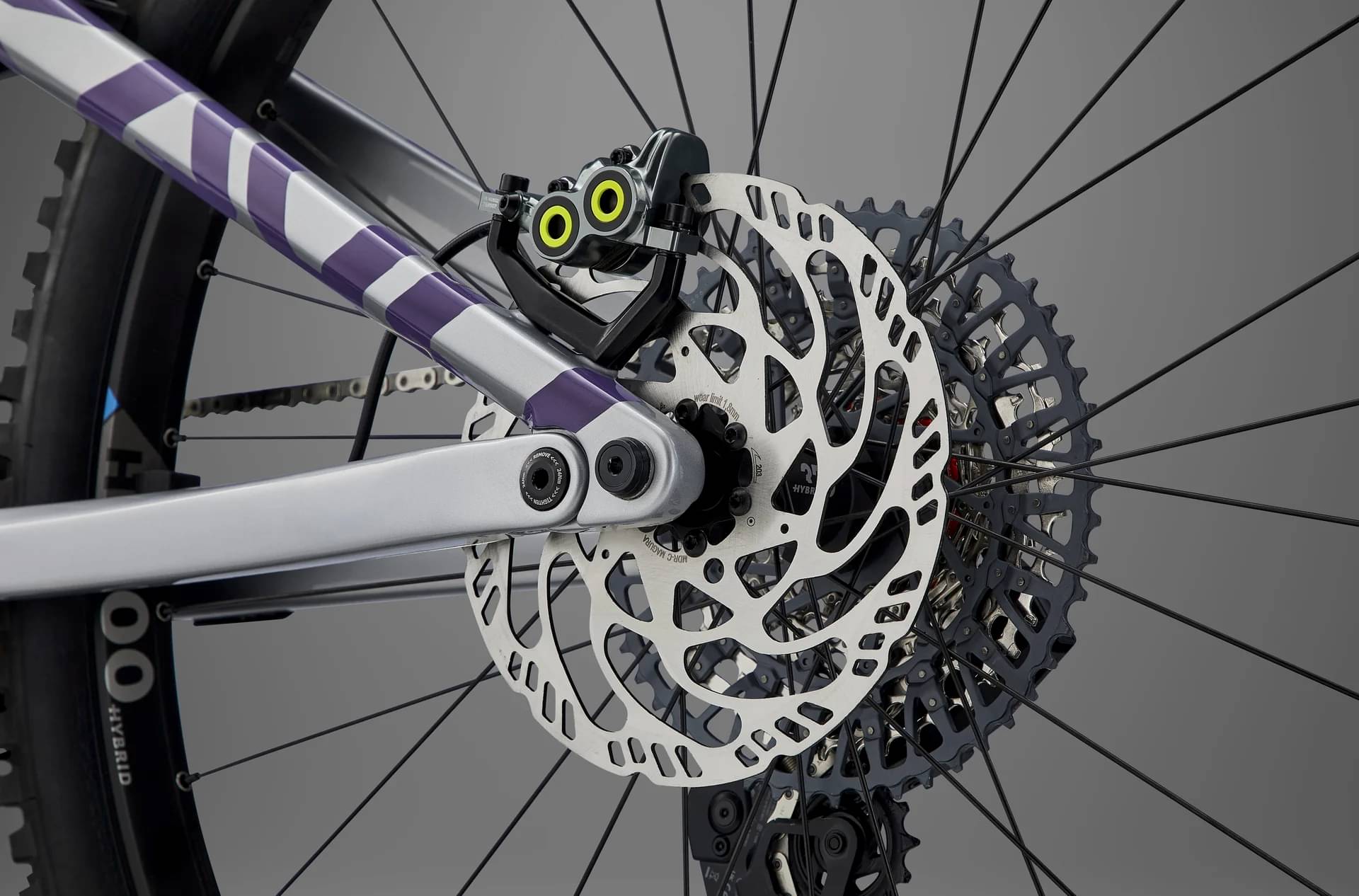

Magura MT7, 1 finger lever, 203mm MDRC 6 bolt rotors
Brake Levers
Magura MT7
Cockpit
Stem
Whyte, 35mm Extension, 35mm Bar Bore
Handlebar
Race Face Turbine Alloy Bar 35mm, 800mm, 35mm rise
Grips
Whyte Enduro lock-on
Headset
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
Seat
Saddle
Whyte Custom
Seatpost

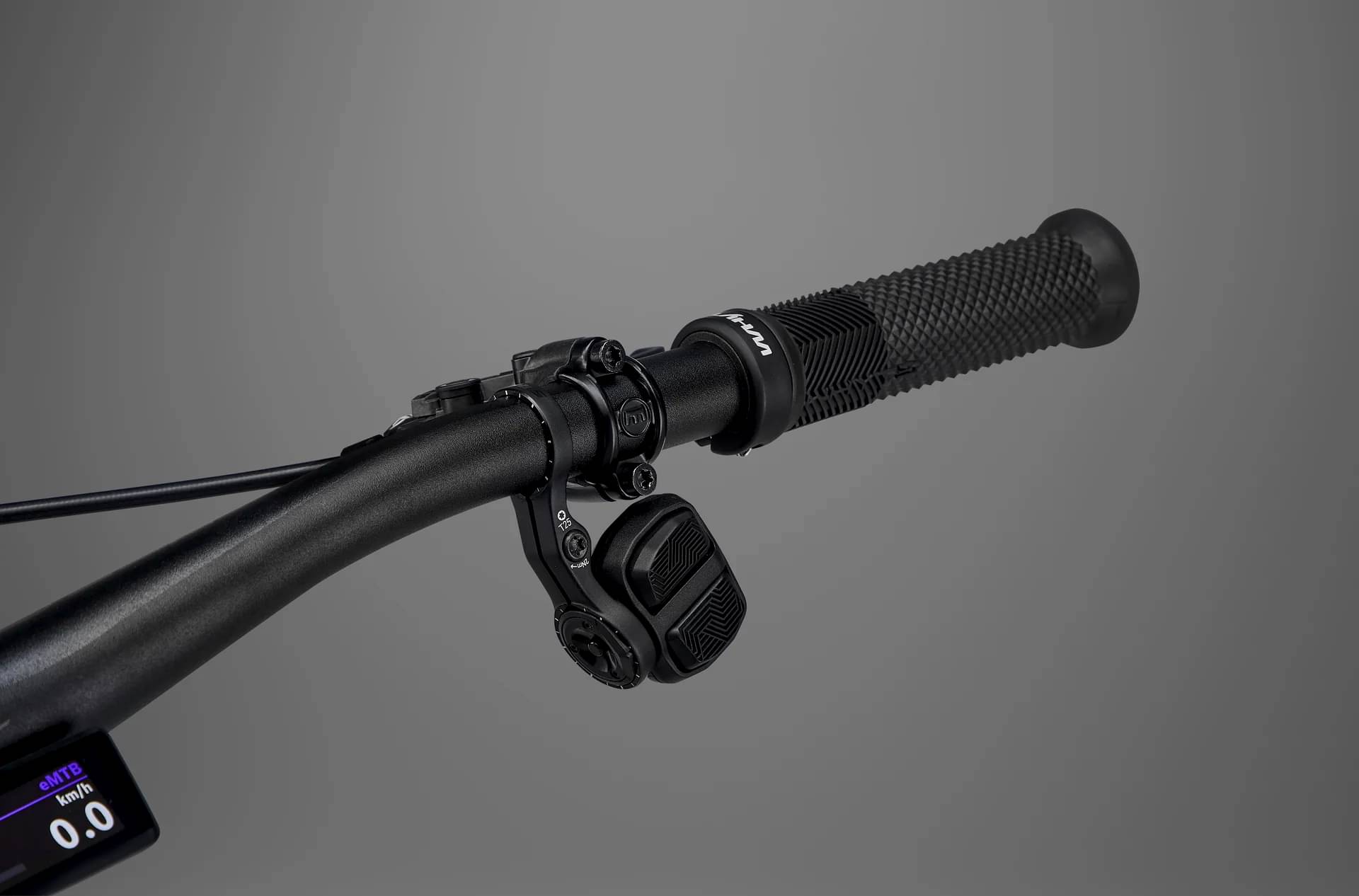

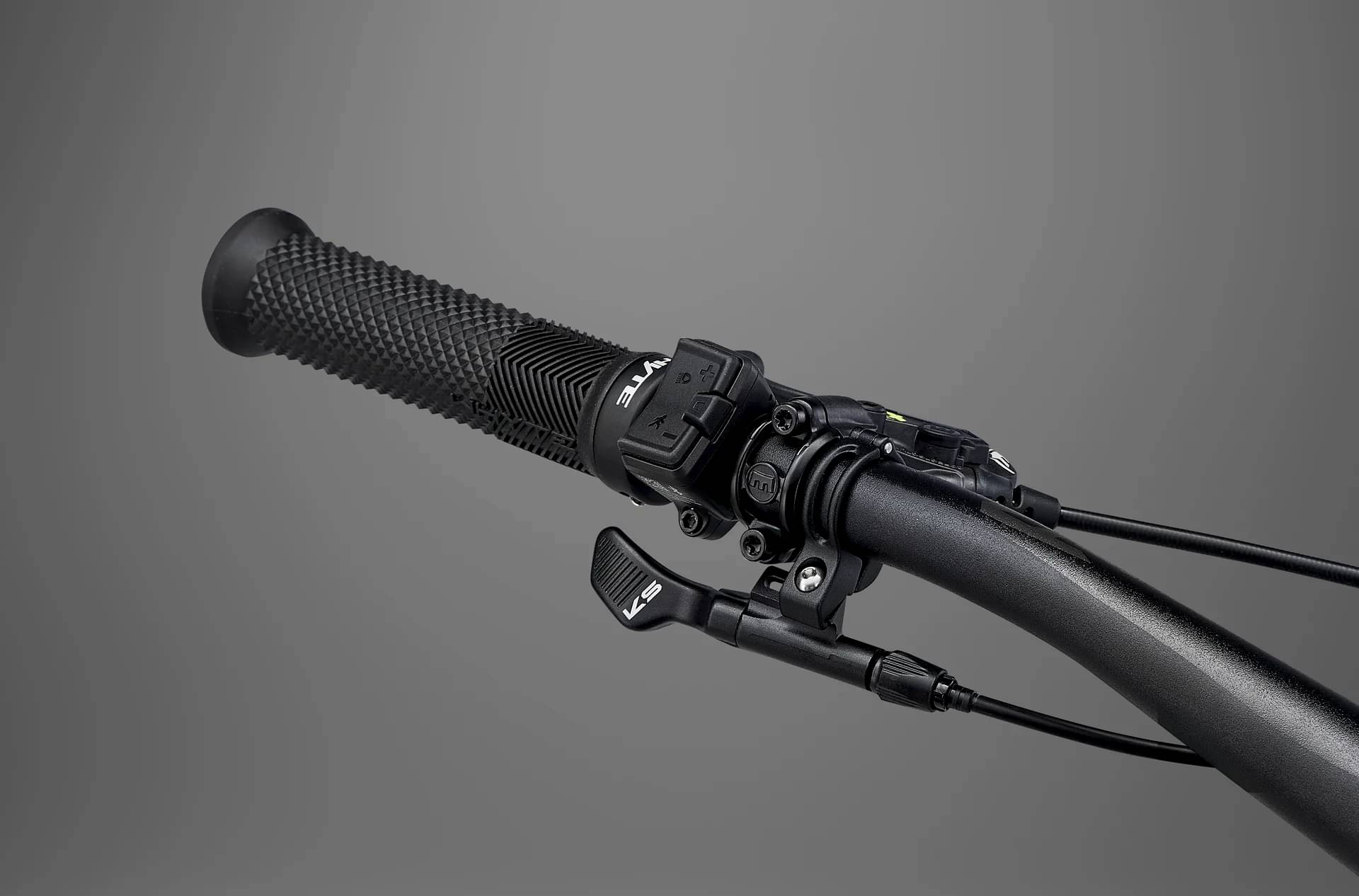

KS Vantage, 34.9mm, external 30mm adjustment, with Southpaw remote lever (150 drop (S), 170mm drop (M), 200mm drop (L&XL))
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.379 mm | 1.332 mm | 1.294 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 764 mm | 794 mm | 825 mm | 856 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 126 mm | 125 mm | 125 mm | 125 mm |
| Stack | 623 mm | 634.4 mm | 646.2 mm | 659.8 mm |
| Reach | 436 mm | 460 mm | 485 mm | 510 mm |
| Seat Tube Angle | 77.9 ° | 77.8 ° | 77.7 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 116 mm | 129 mm | 144 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1213 mm | 1243 mm | 1273 mm | 1305 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 765 mm | 768 mm | 771 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
