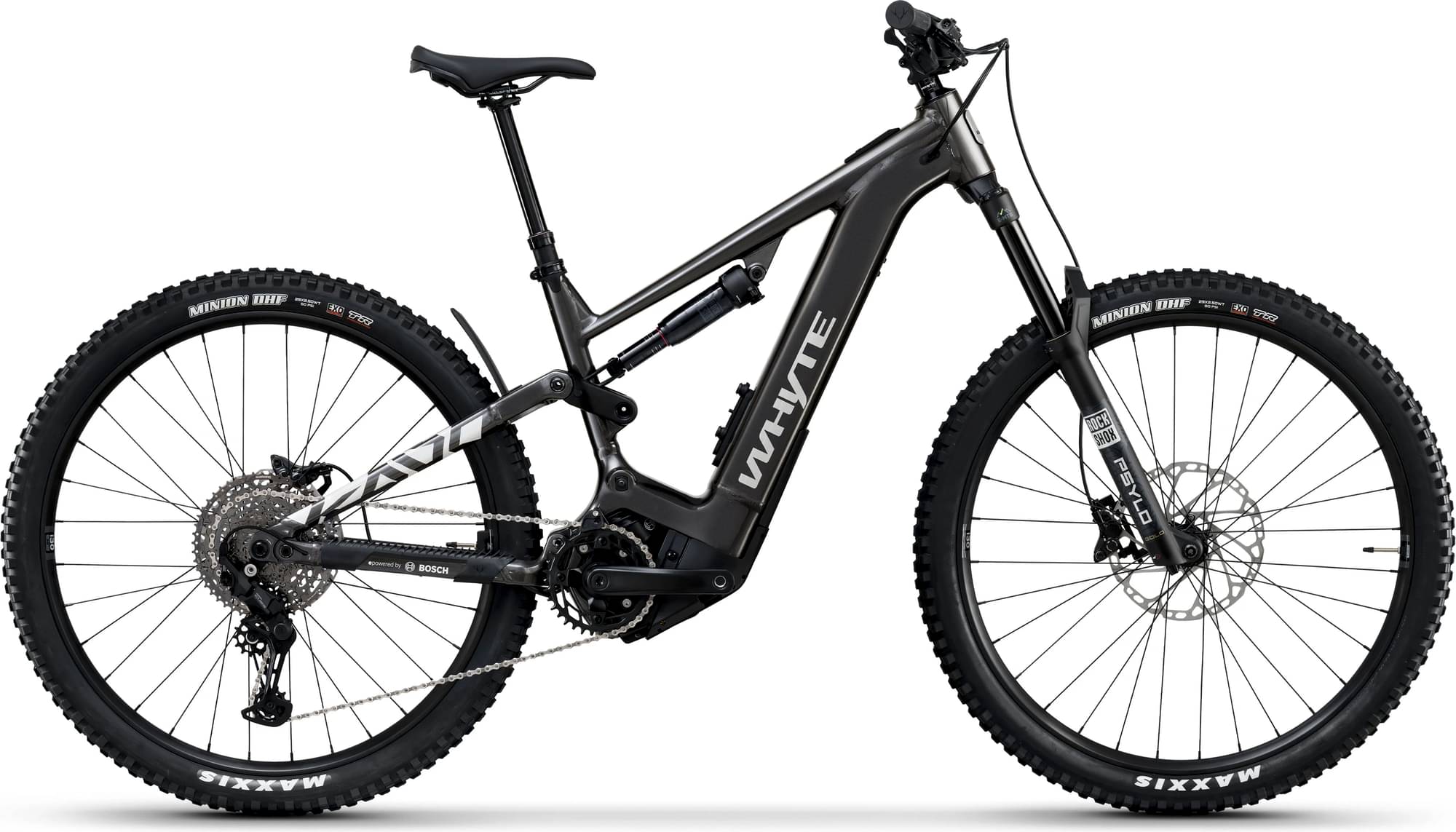

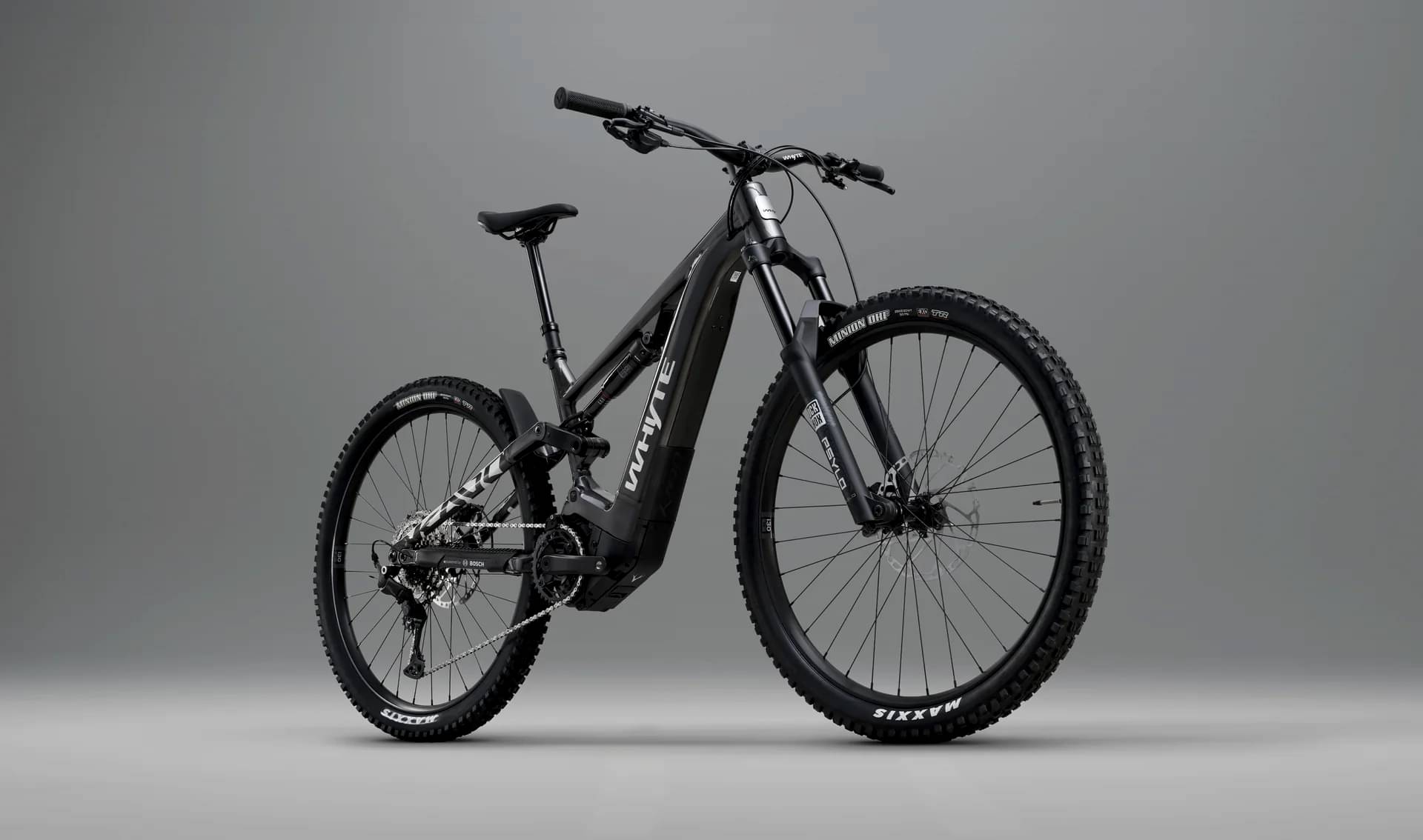

Whyte Kado S 2025
2025 E-bike
Estimate price |
6,096$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox Psylo
-
Groupset CUES -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Suspension Fork

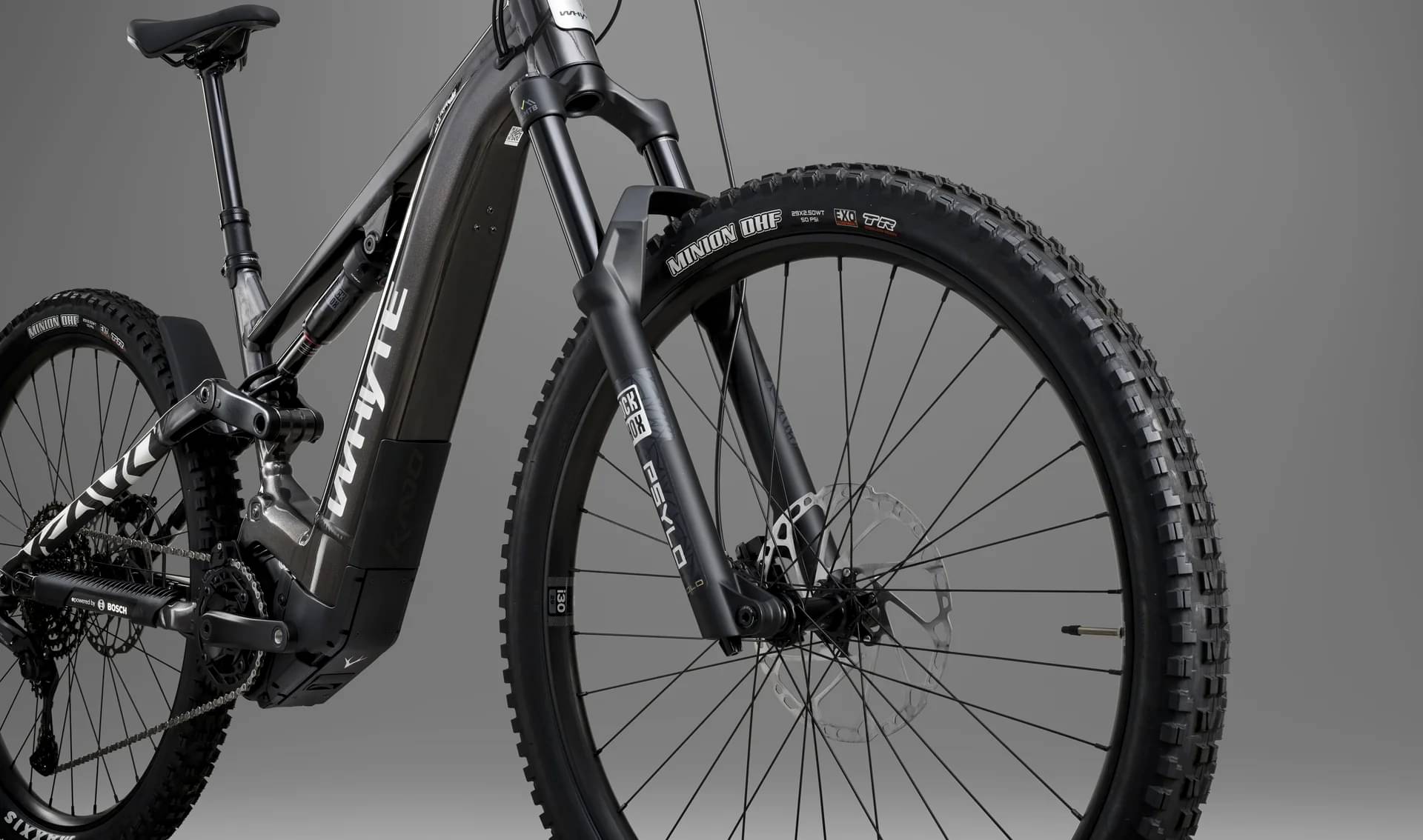

RockShox Psylo Gold, 160mm travel, DebonAir, Isolator RC Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost
Rear Shock

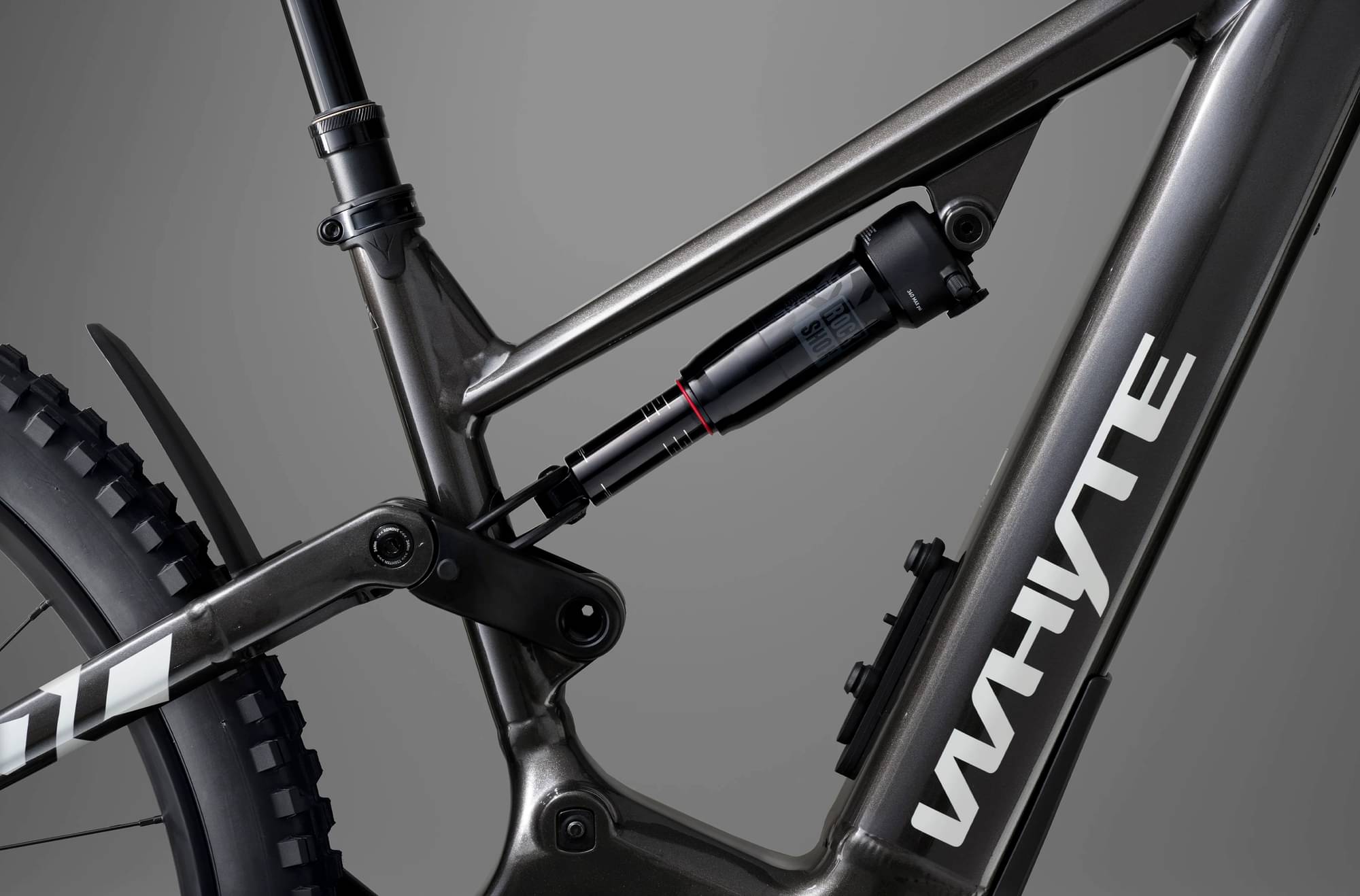

RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte
Drivetrain

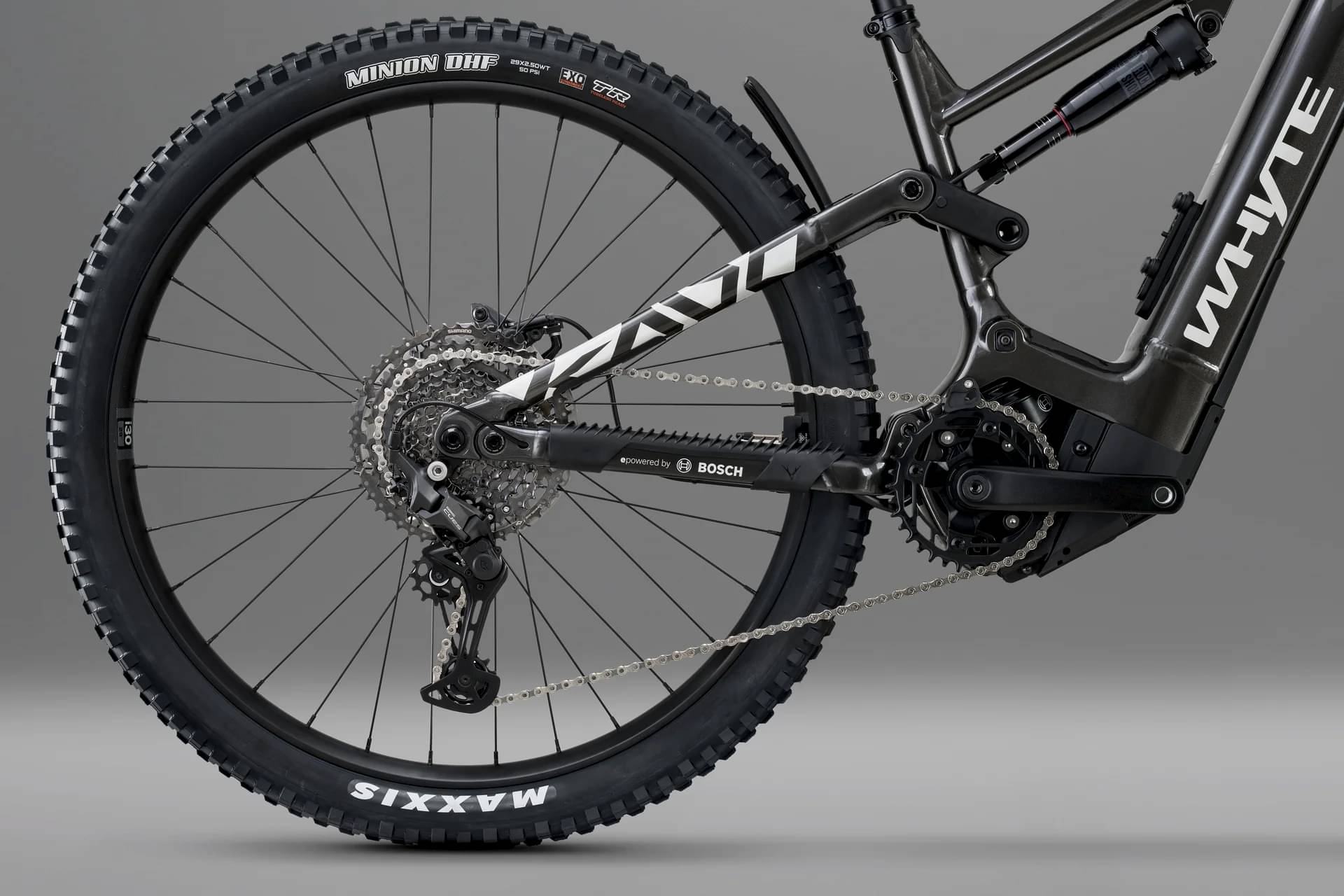

Rear Derailleur
Shimano RD-U6000 GS, 11 speed Cues
Front Derailleur
N/A
Shift Levers
Shimano SL-U6000, 11 speed Cues
Cassette
Shimano CS-LG400, Cues 11 speed, 11-50T
Crank
Whyte 160mm ISIS arms, Direct mount 36T chainring, T-Type
Bottom Bracket
N/A
Chain
KMC eGlide Sport, 11 speed Cues
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
Shimano FH-TC500, Centre Lock, 15mm x 110mm Boost spacing, 32H
Rear Hub
Shimano FH-TC600, Centre Lock, 12mm x 148mm Boost spacing, HG Freehub, 32H
Rims
WTB ST Tough, 30mm internal
Spokes
Xin Da 14g Stainless Black, brass nipples
Tires
Maxxis Minion DHF, EXO Casing, Wire bead 29 x 2.5in
Brakes
Brakes

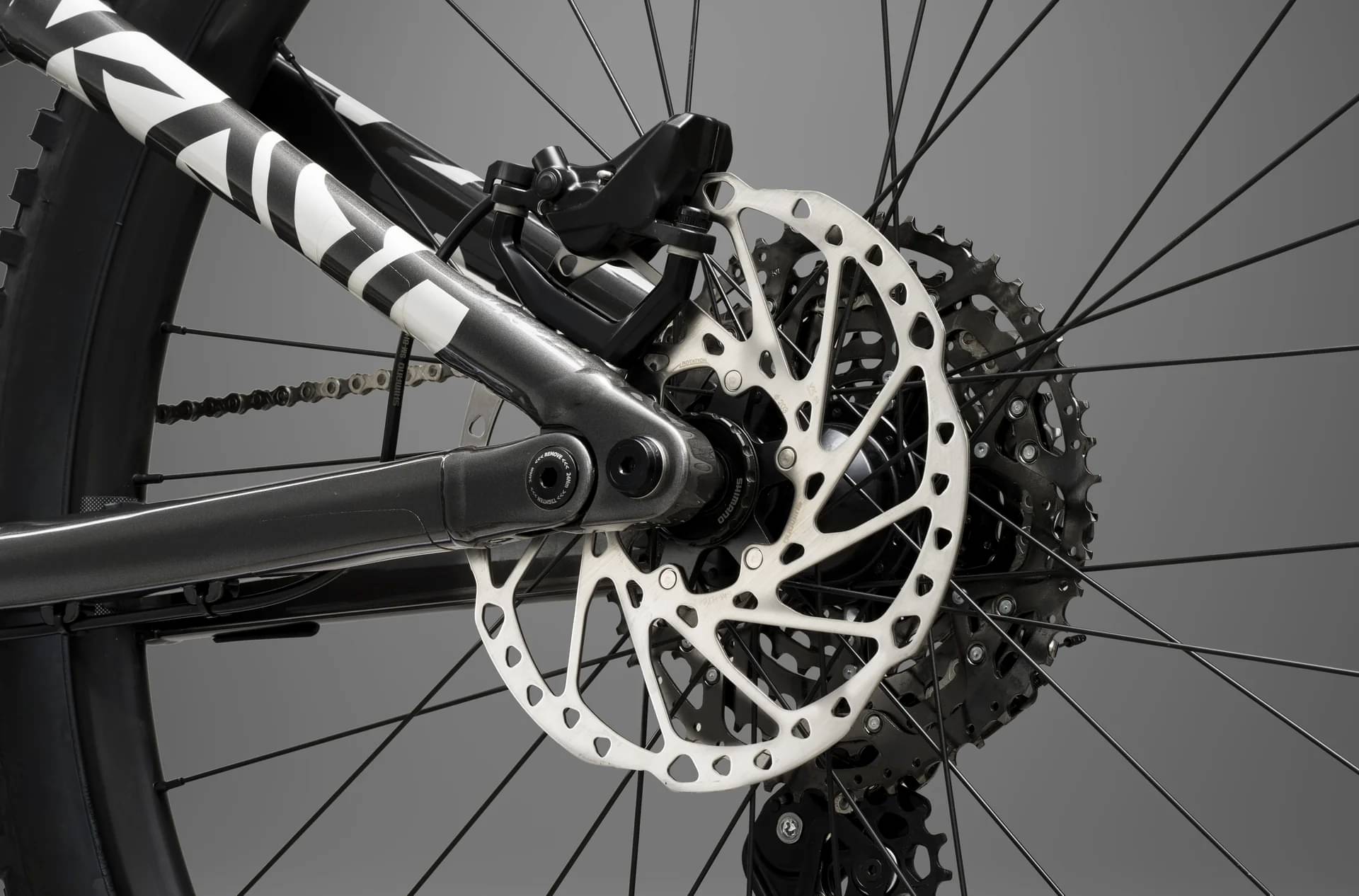

Shimano M4100 four piston with sintered metal pads, 220mm Centre lock rotors
Brake Levers
Shimano M4100
Cockpit
Stem
Whyte, 35mm Extension, 35mm Bar Bore
Handlebar
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Grips
Whyte Enduro lock-on
Headset
Feimin FP-H886J 1-1/8in upper and 1.5in lower with sealed bearings
Seat
Saddle
Whyte Custom
Seatpost
TranzX +RAD 30.9mm, Adjustable, (150 drop (S), 170mm drop (M&L), 200mm drop (XL))
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.379 mm | 1.332 mm | 1.294 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 764 mm | 794 mm | 825 mm | 856 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 126 mm | 125 mm | 125 mm | 125 mm |
| Stack | 623 mm | 634.4 mm | 646.2 mm | 659.8 mm |
| Reach | 436 mm | 460 mm | 485 mm | 510 mm |
| Seat Tube Angle | 77.9 ° | 77.8 ° | 77.7 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 116 mm | 129 mm | 144 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1213 mm | 1243 mm | 1273 mm | 1305 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 765 mm | 768 mm | 771 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
