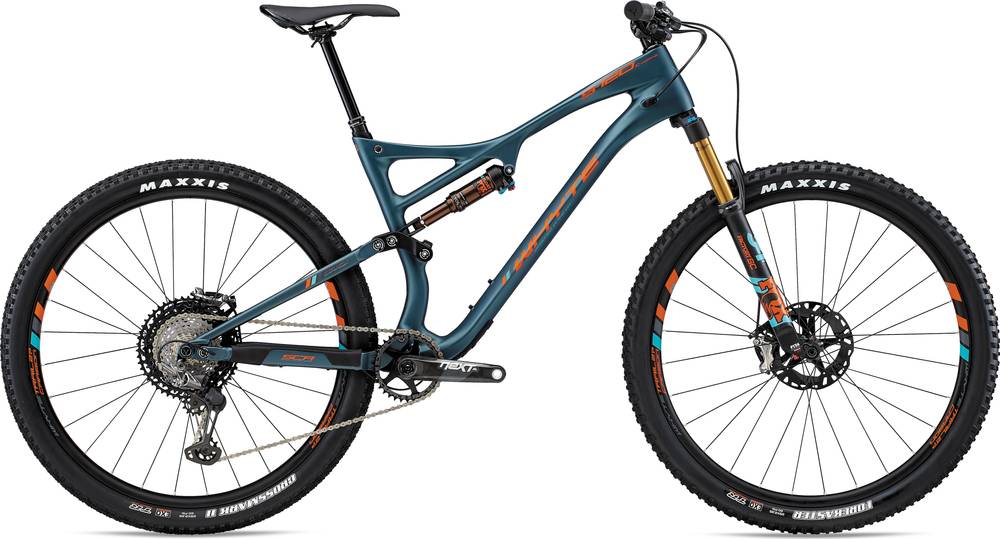

Whyte S-120C WORKS v1 2019
2019 Mountain
Estimate price |
7,026$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, Intergrip Seat Clamp System, 2 hole ISCG Mount, Alloy Symmetrical SCR Rear Triangle and 148mm Boost Dropouts
Suspension Fork
Fox Float Factory SC 34, Step Cast, 29", 120mm Travel, 44mm Offset, 3pos Lever w/ Open Mode Adj, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle
Rear Shock
Fox Float DPS, Factory, Kashima Coating, Rebound Adjustment and 3pos Lever w/ Open Mode Adj, Evol LV
Drivetrain
Rear Derailleur
Shimano XTR M9100, Shadow Plus, 12 Speed
Front Derailleur
N/A
Shift Levers
Shimano XTR M9100, I-Spec EV, 12 Speed
Cassette
Shimano XTR M9100, 10-51, 12 Speed
Crank
RaceFace NEXT R Carbon, Direct Mount 34T, 175mm, Boost, 12 Speed
Bottom Bracket
RaceFace BSA, 73mm, 30mm diameter
Chain
Shimano XTR CN-M9100, 12 Speed
Pedals
None
Wheels
Front Hub
Shimano MT900, centre lock, 15mm x 110mm Boost Through Axle, 28 Hole
Rear Hub
Shimano MT901, centre lock, 12mm x 148mm Boost Through Axle, 28 Hole
Rims
Whyte 27mm Carbon Hookless, Offset, Tubeless Ready, 3M Rim Strip with Tubeless Valves included, 28 Hole
Spokes
DT Swiss Competition Butted 2.0-1.8-2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Forekaster TR 29" x 2.35" 60TPI Dual Compound, EXO Sidewall Protection, Front, Maxxis Crossmark II TR 29" x 2.25" 60TPI Dual Compound, EXO Sidewall Protection, Rear
Brakes
Brakes
Shimano XTR BR-9120, 4 Pot with metal pads and cooling fins, 180mm Rotor
Brake Levers
Shimano XTR, I-Spec EV
Cockpit
Stem
Whyte Gravity Stem, 35mm Bar Bore, 40mm Extension
Handlebar
RaceFace NEXT R Carbon, 20mm Rise, 35mm Bar Bore, 800mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom Team, with Lightweight Foam, CrMo Rails, Triple Panel Design
Seatpost
Bike Yoke Revive, 30.9mm, S 125mm Travel, M/L/XL 160mm Travel, XTR MT800 I-Spec EV Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 610.4 mm | 622.4 mm | 633.4 mm | 645.4 mm |
| Reach | 438.4 mm | 462.4 mm | 486.4 mm | 510.4 mm |
| Top Tube Length | 598.4 mm | 618.4 mm | 646.4 mm | 675.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm | 482.6 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 112 mm | 125 mm | 140 mm | 150 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1174 mm | 1204 mm | 1233 mm | 1262 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 802 mm | 808 mm | 814 mm | 821 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
S-120C WORKS v1 is part of the Whyte S 120c model. 5 bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Whyte S-120C WORKS v1 price was 6386$. Doing a quick comparison, we notice that S-120C WORKS v1 price is 131.21% more expensive than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Whyte S-120C WORKS v1 it’s weighing 12.2 kg (26.9 lbs). At this weight, is a bit lighter than average. In other words, this model is 6.39% lighter than the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
S-120C WORKS v1 components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Whyte S-120C WORKS v1 2019, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Whyte S-120C WORKS v1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
S-120C WORKS v1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Whyte S-120C WORKS v1 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
