Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

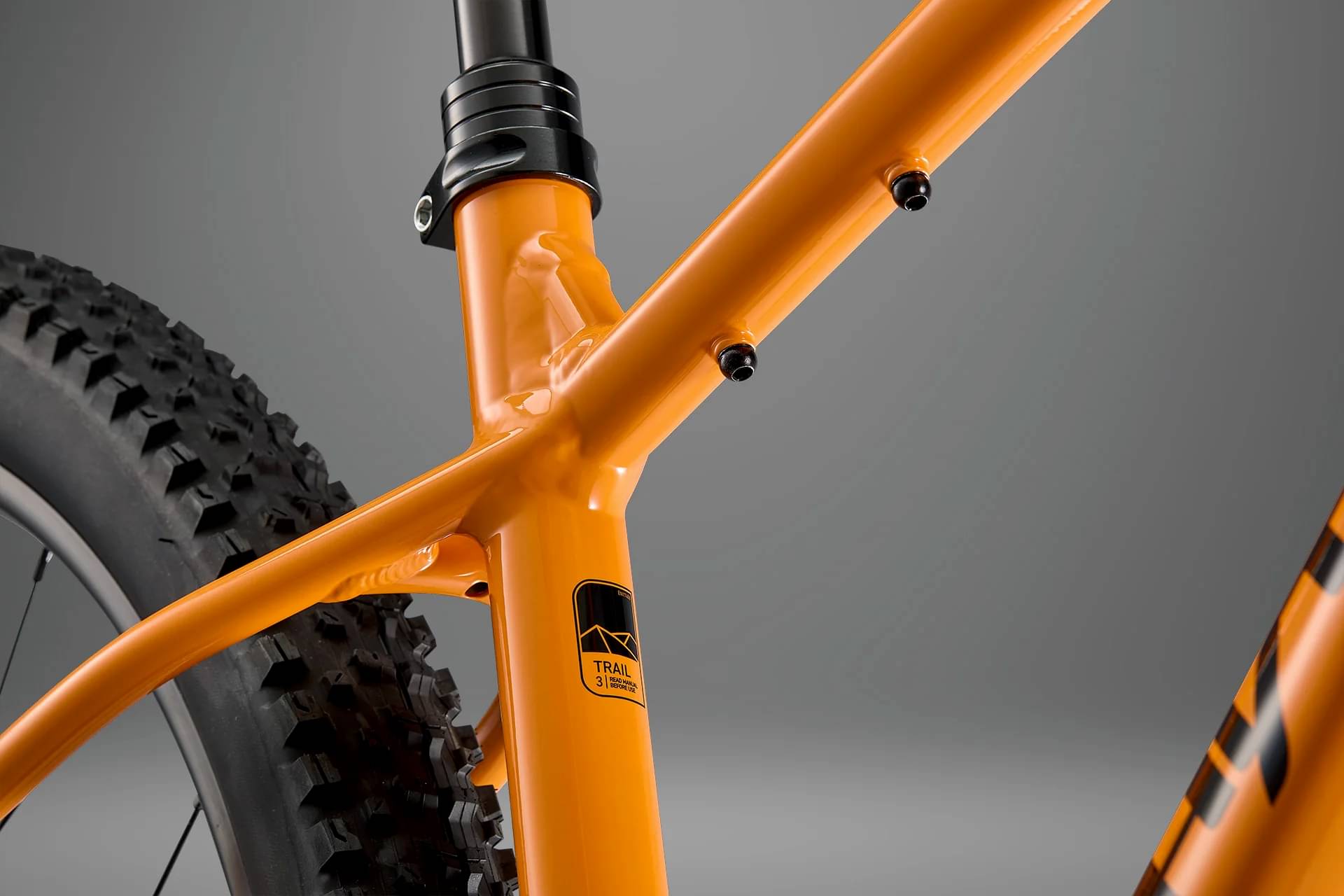

Frame
Frame

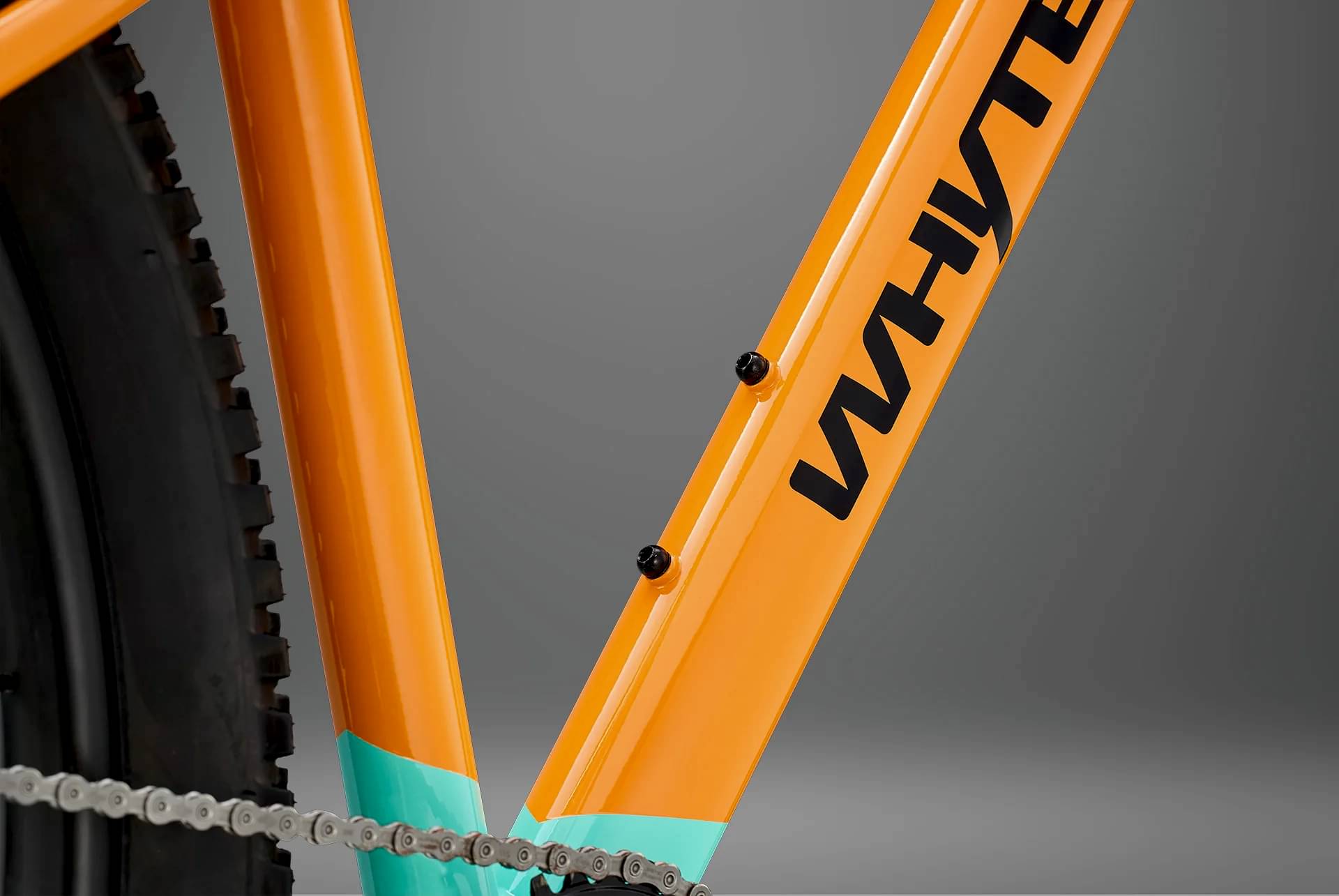

6061-T6 heat treated aluminium, multi-shaped and formed main-frame tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube for maximum dropper seat post insertion; external headset/grommet sealed internal frame cable and brake hose routing; 73mm BSA / BB-X63 dropper seatpost compatible bottom bracket (BB) shell; Post Mount 180mm disc dropout and SRAM UDH spec derailleur hanger; 12mm x 148mm Boost.
Suspension Fork
RockShox Rekon Silver RL 29in, 130mm travel, 44mm offset, DebonAir, Fast Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost, Maxle Stealth
Rear Shock
N/A

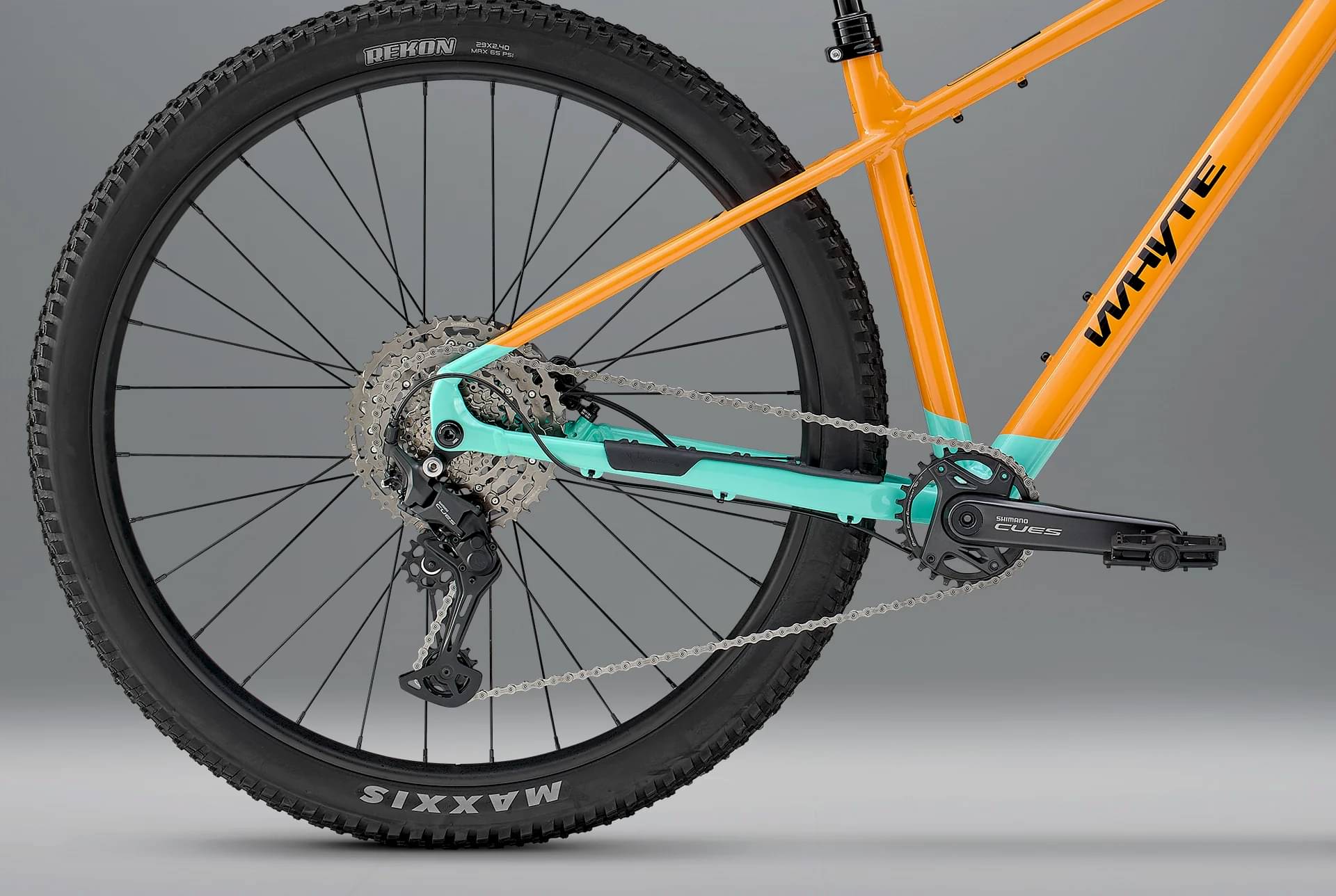

Drivetrain
Rear Derailleur
Shimano CUES U6000, 10 speed
Front Derailleur
N/A
Shift Levers
Shimano CUES U6000, 10 speed, Band On clamp
Cassette
Shimano LG400, 11-48T, 10 speed
Crank

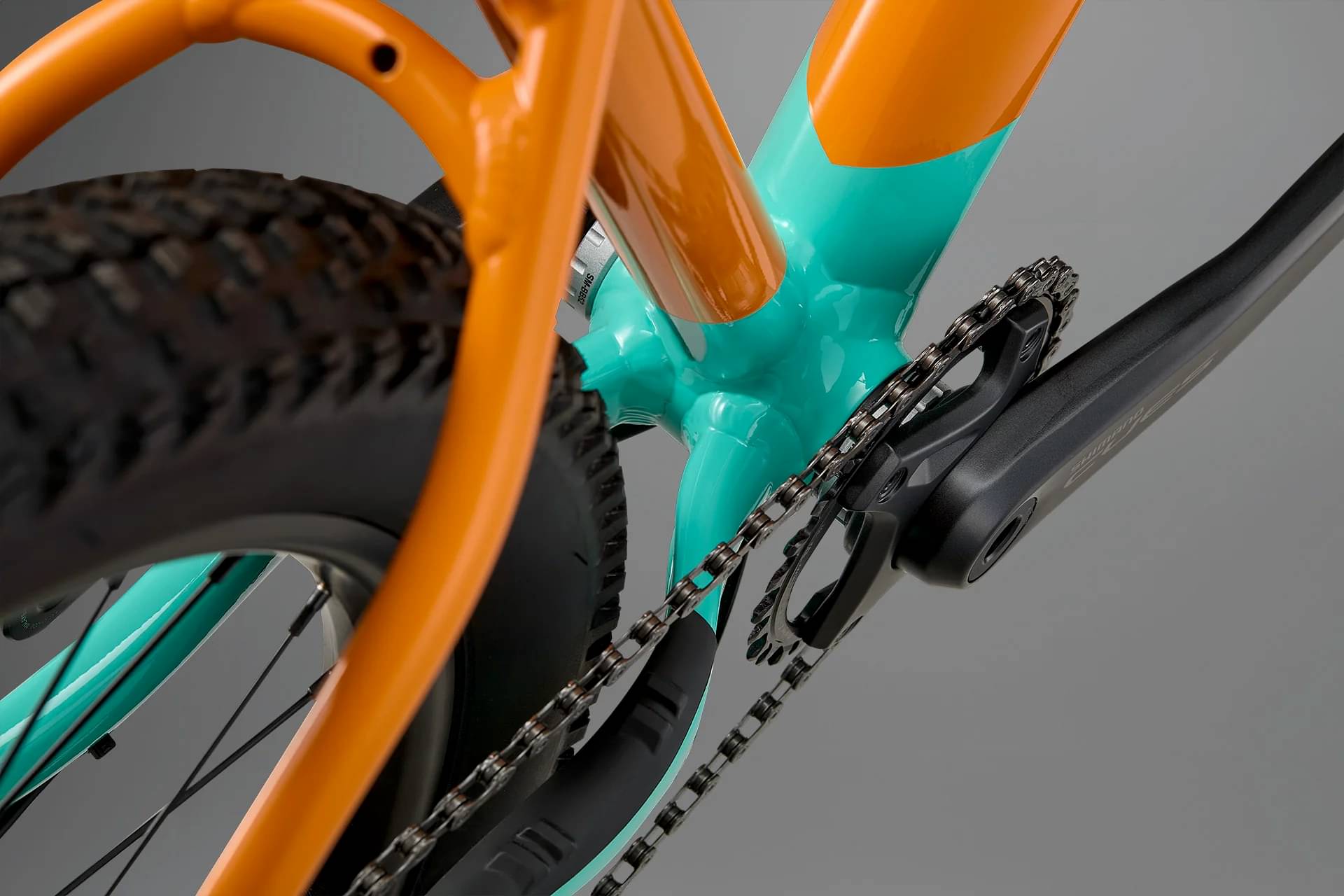

Shimano CUES U6000, 30T chainring, 170mm, 10 speed, 52mm chainline
Bottom Bracket
Shimano BB-MT501, Hollowtech II, 73mm
Chain
Shimano LG500, 118 links
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
Alloy, 15mm x 110mm Boost spacing, 32 hole
Rear Hub
Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub
Rims
Pinned joint, 30mm internal width, tubeless ready, 32 hole
Spokes
2.0mm, black stainless, brass nipples
Tires
Maxxis Rekon 29in x 2.4in front and rear
Brakes
Brakes

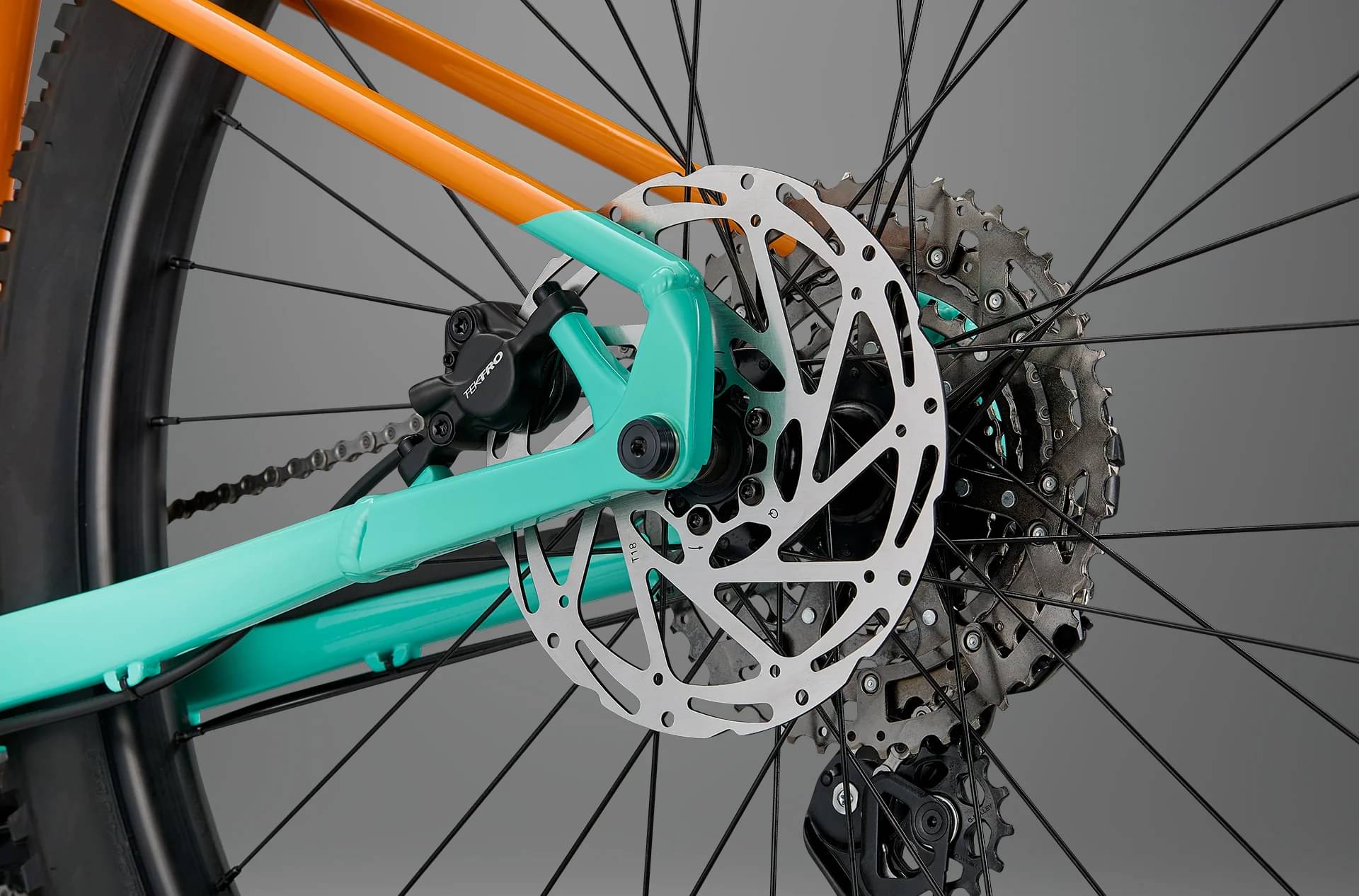

Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor
Brake Levers
Tektro M285

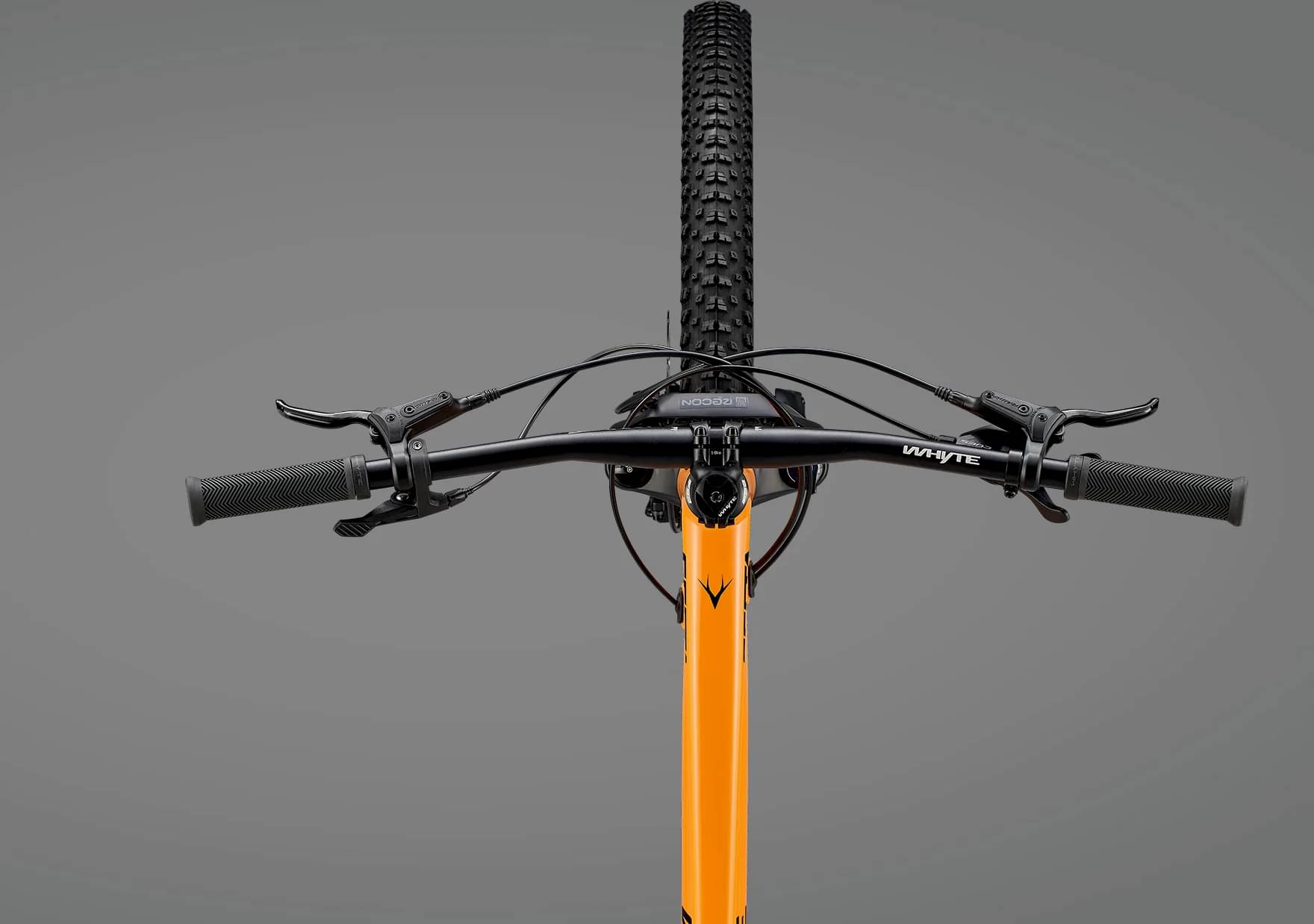

Cockpit
Stem
Whyte alloy, 35mm extension, 31.8mm bar bore
Handlebar
Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide
Grips
Whyte Trail lock-on
Headset
FSA No. 57B Orbit ZS, 1 1/2in lower and 1 1/8in upper caged bearings

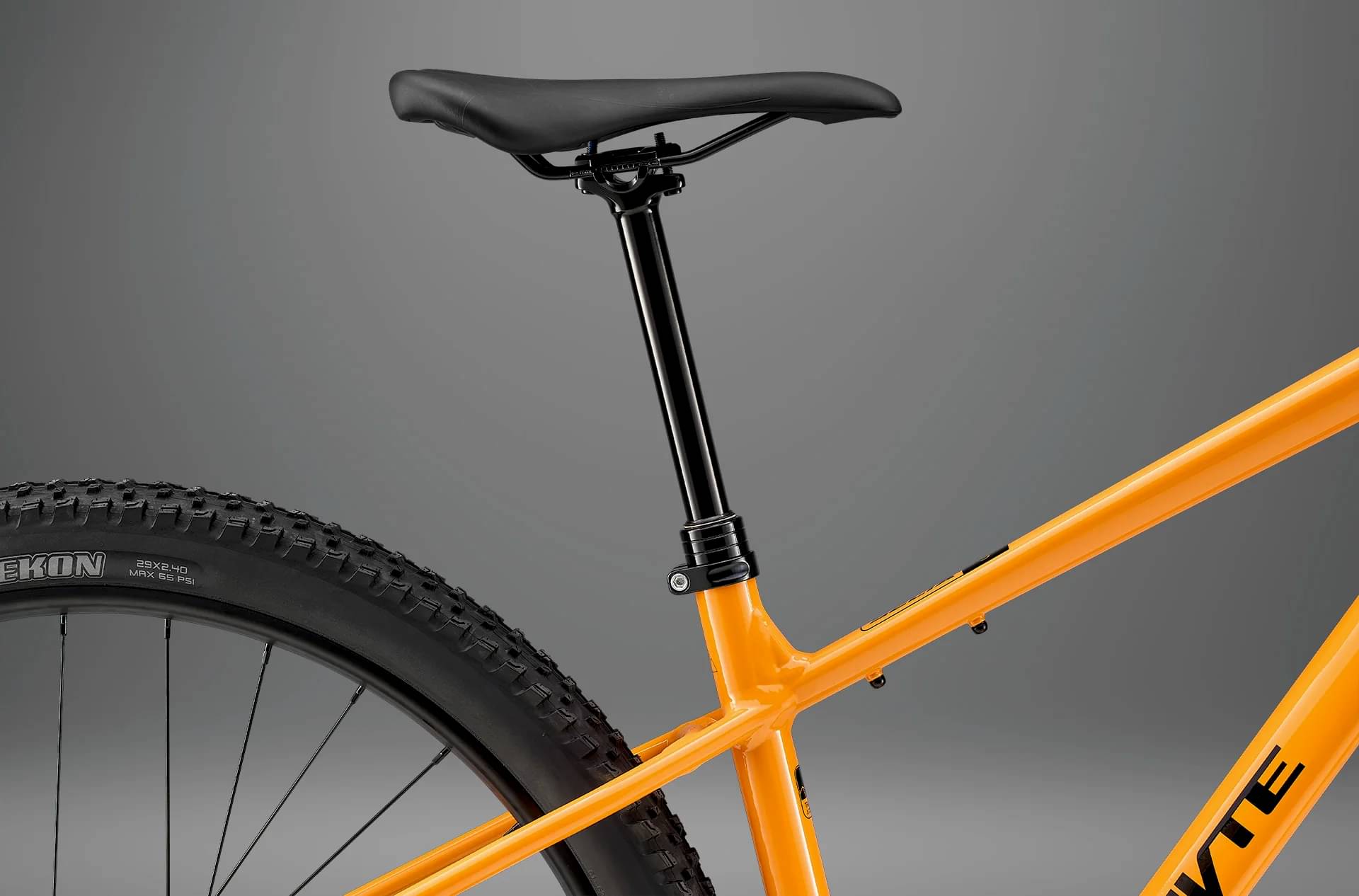

Seat
Saddle
Whyte Custom
Seatpost
TransX size specific dropper post, 30.9mm (size S 150mm travel; sizes M-XL 170mm travel)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.447 mm | 1.409 mm | 1.356 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm | 298 mm |
| Front Center | 754 mm | 782 mm | 813 mm | 842 mm |
| Rake | 40 mm | 45 mm | 42 mm | 42 mm |
| Trail | 142 mm | 136 mm | 140 mm | 140 mm |
| Stack | 649.4 mm | 644 mm | 662 mm | 671 mm |
| Reach | 420 mm | 445 mm | 470 mm | 495 mm |
| Seat Tube Angle | 75.5 ° | 76 ° | 76.5 ° | 77 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 114 mm | 125 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1187 mm | 1215 mm | 1246 mm | 1275 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
