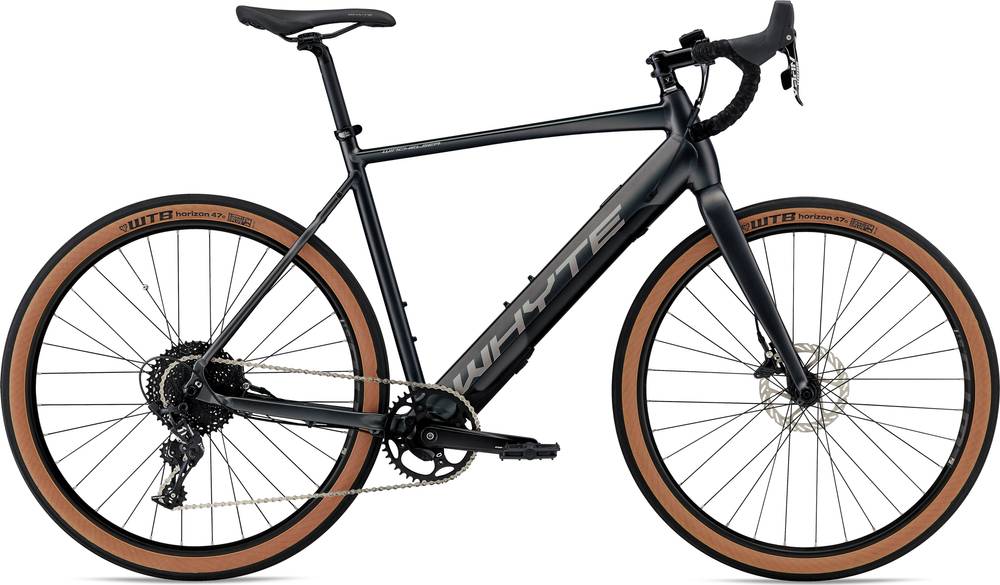

Whyte WINCHELSEA v1 2020
2020 E-bike
Estimate price |
4,470$
Weight | 16.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650c -
Groupset Apex 1 -
Suspension Rigid -
Battery 36 volts, 7Ah, 252Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, Custom Whyte Dropouts
Suspension Fork
Whyte Straight Bladed 6061 Alloy, Alloy Tapered Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Through Axle, Eyelets for Mudguards
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Apex 1, Long Cage, 11 Speed
Front Derailleur
N/A
Shift Levers
SRAM Apex 1, Hydraulic, 11 Speed
Cassette
SunRace CSMS7, 11-42, 11 Speed
Crank
Whyte Alloy cranks, 170mm, ISIS with Narrow Wide 42t Alloy for Fazua, Black
Bottom Bracket
Fazua Evation System
Chain
SunRace CN11, Black, 11 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 100mm Through Axle, 32 Hole
Rear Hub
Alloy, Double Sealed Cartridge Bearings, Centre-lock, 12mm x 142mm Through Axle, 32 Hole
Rims
WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
2.0mm, PG, Black Stainless, Brass Nipples
Tires
WTB Horizon TCS System 650b x 47c, Light/Fast, Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing
Brakes
Brakes
SRAM Apex 1 Hydraulic, 160mm Flat Mount, Internal Routing
Brake Levers
SRAM Apex 1, Alloy
Cockpit
Stem
Whyte Alloy, +-7° Rise, 52cm 70mm, 54cm 80mm, 56cm 90mm Extension
Handlebar
Whyte Road 500, 31.8mm, 500mm Wide
Grips
Whyte Anti Slip, Cross Bar Tape
Headset
FSA No. 42, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Triple Panel Design
Seatpost
Whyte 6061 Alloy, 25mm Offset, 27.2mm 52/54 350mm, 56 400mm, 2 Bolt Clamp
Motor & Battery
Battery
36 volts, 7Ah, 252Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.41 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm |
| Stack | 578 mm | 592 mm | 606 mm |
| Reach | 401 mm | 426 mm | 431 mm |
| Top Tube Length | 567 mm | 596 mm | 605 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1048 mm | 1078 mm | 1088 mm |
| Standover Height | 798 mm | 815 mm | 830 mm |
| Wheels | 650 | 650 | 650 |
About this model
WINCHELSEA v1 is part of the Whyte E Winchelsea model. Whyte launched 1 e-bike of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 4013$. Doing a quick comparison, we notice that WINCHELSEA v1 price is 5.61% more expensive than the average cost of an Endurance e-bike.
Average weight for Endurance e-bikes
On a deeper look, we notice that the average weight of an Endurance e-bike is 13.52 kg (29.81 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 16.3 kg (35.94 lbs), Whyte e-bike is much heavier than average. In conclusion, the average Endurance e-bike weighs 20.56% less than WINCHELSEA v1.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The WINCHELSEA v1 2020 e-bike is equipped with aluminum wheels when leaving the factory. The 650c wheels are smaller in diameter than 700c. However, they are a little lighter than 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The WINCHELSEA v1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
