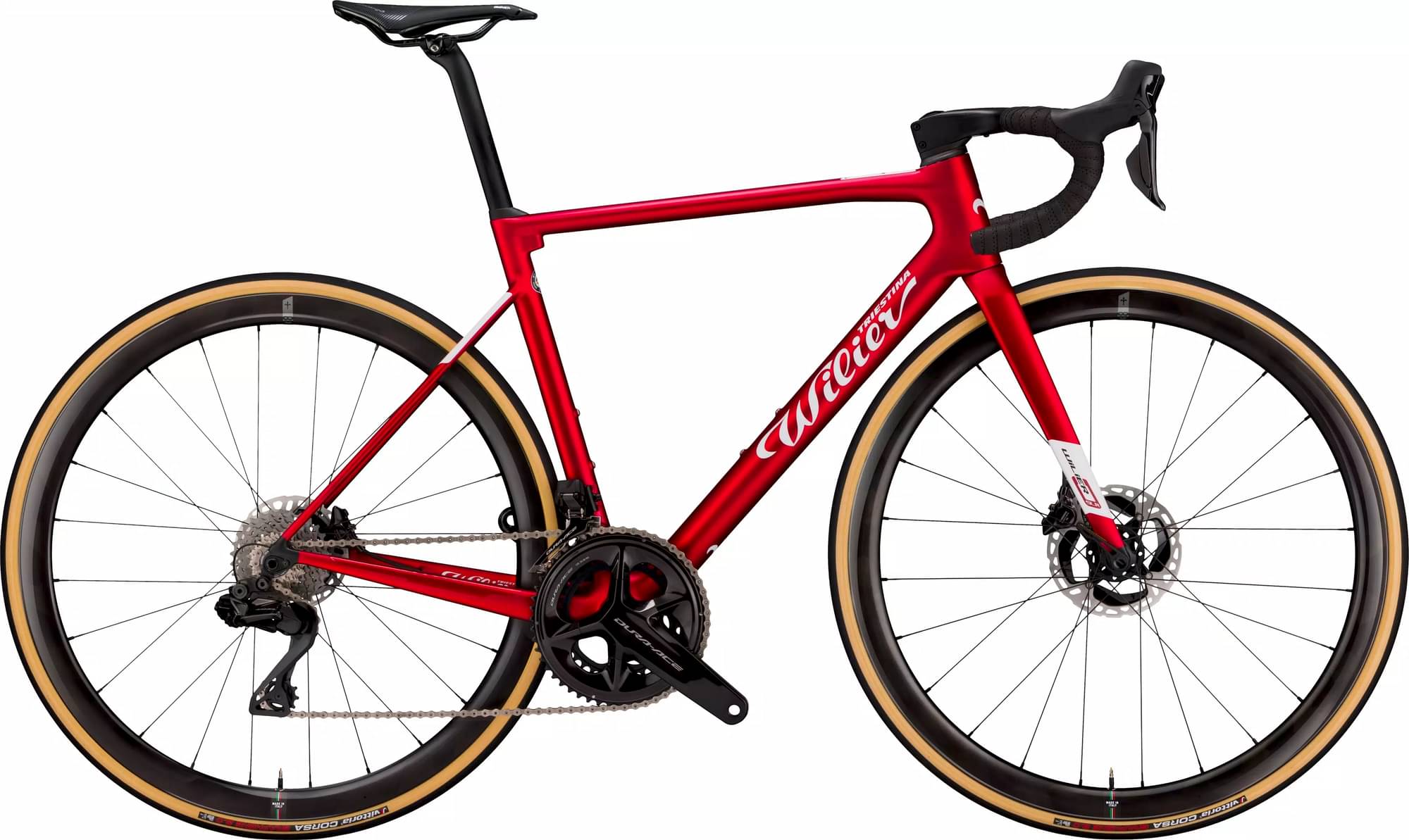

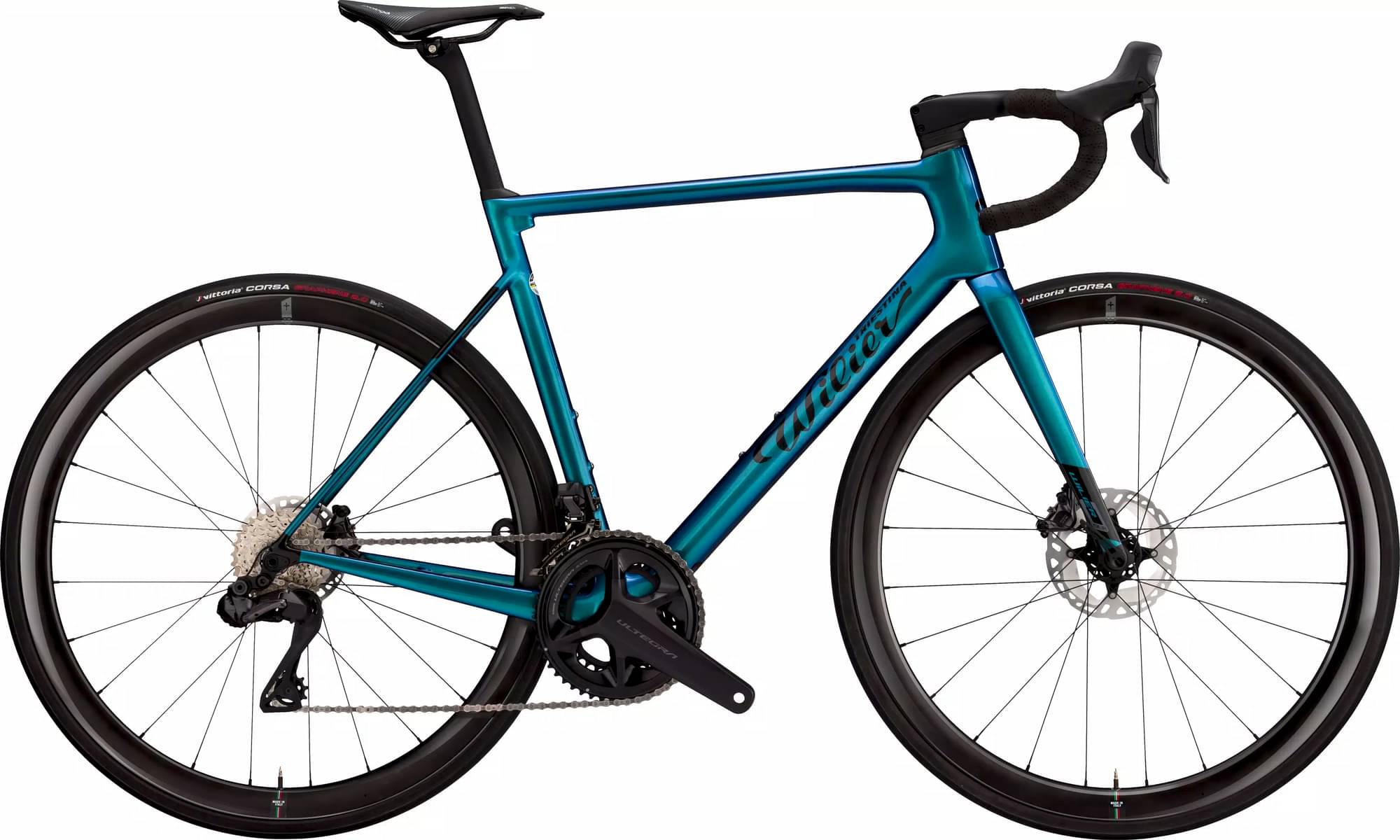

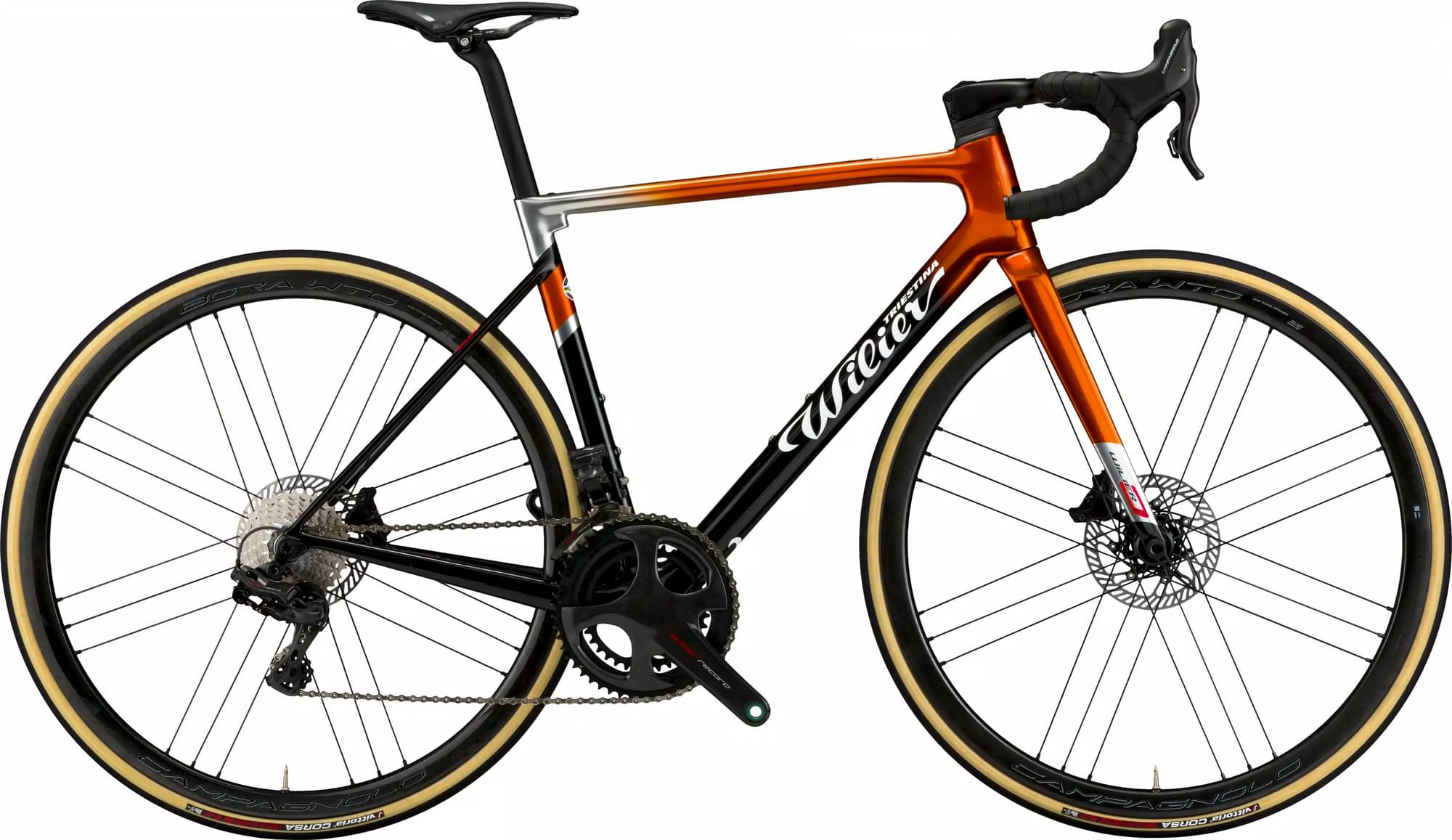

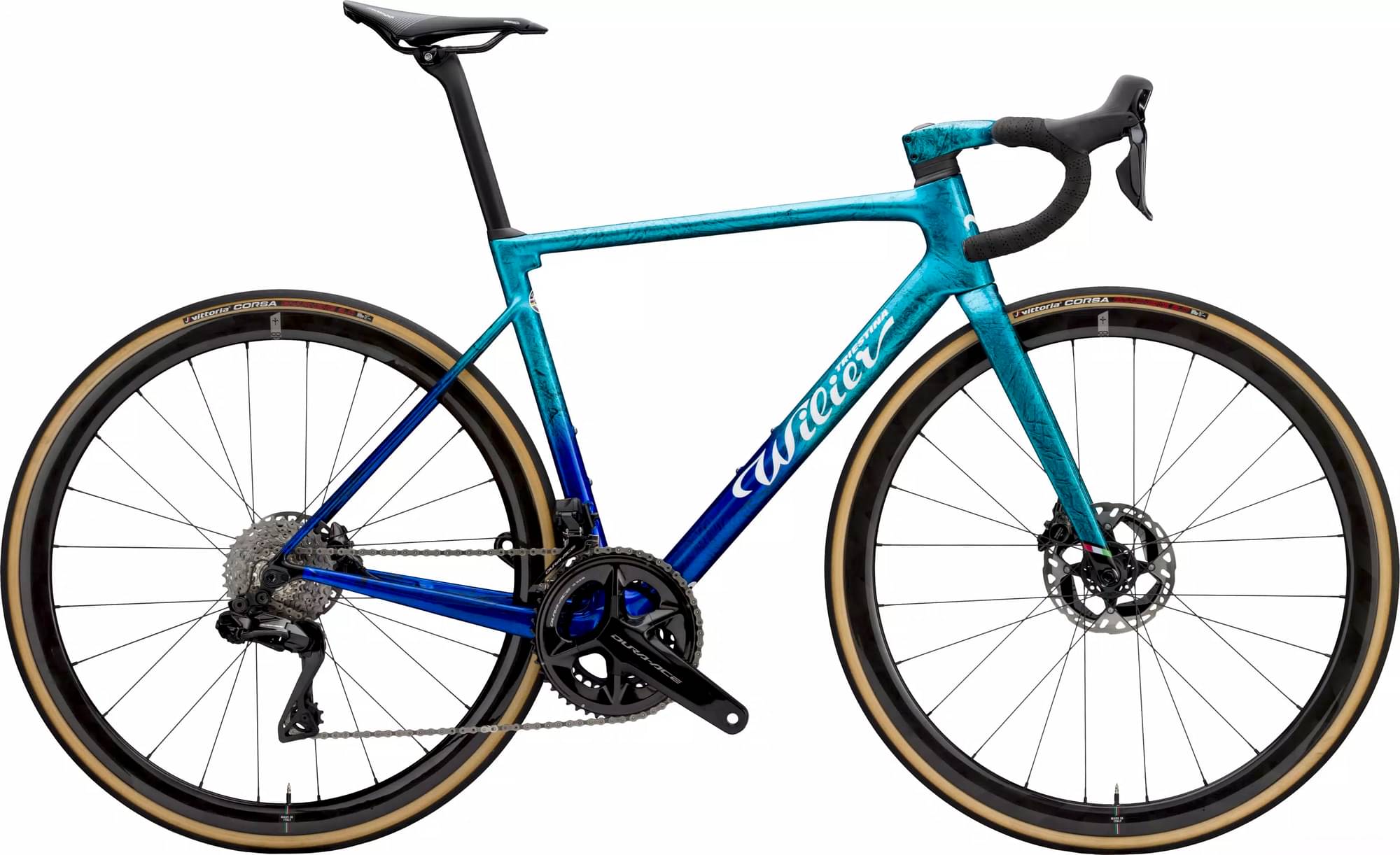

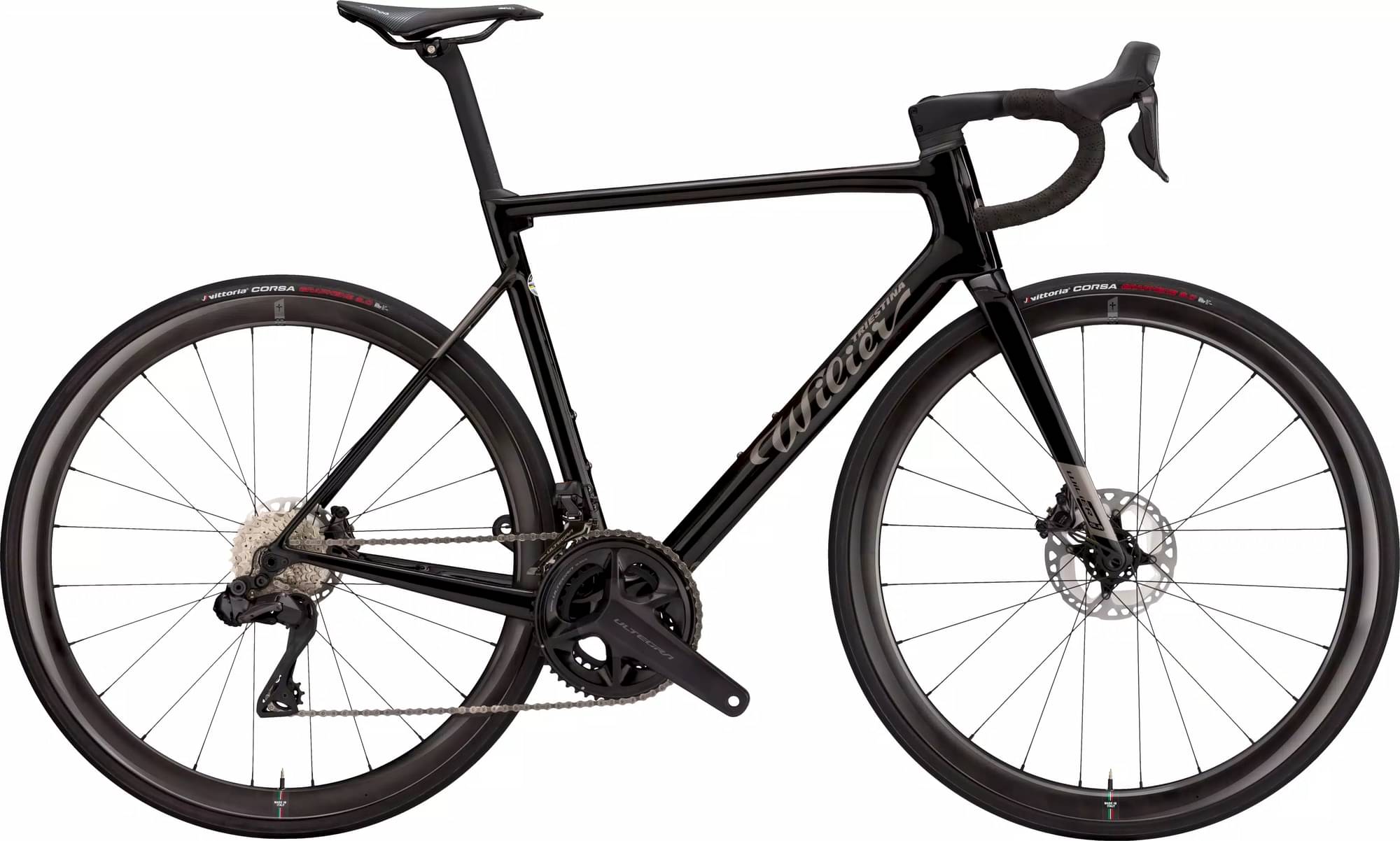

Wilier 0 SLR CAMPAGNOLO SUPER RECORD WRL 12S 2024
2024 Road
Estimate price |
14,542$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WILIER 0 SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Suspension Fork
WILIER 0 SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Drivetrain
Rear Derailleur
CAMPAGNOLO SUPER RECORD WRL 12S RD23-SR12WRL
Front Derailleur
CAMPAGNOLO SUPER RECORD WRL 12S FD23-SR12WRL
Shift Levers
CAMPAGNOLO SUPER RECORD ERGOPOWER SHIFT WRL
Cassette
CAMPAGNOLO SUPER RECORD CS23-SR1209 12S 10-29T
Crank
CAMPAGNOLO SUPER RECORD PRO T CARBON FC23-SR12295 34-50T
Bottom Bracket
CAMPAGNOLO BB CUP PRO-TECH PRESSFIT 86,5X41 IC21-PRBB86
Chain
CAMPAGNOLO SUPER RECORD CN23-SR12ML 12S
Wheels
Rims
WILIER SLR38KC
Tires
VITTORIA CORSA PRO 700x28
Brakes
Brakes
CAMPAGNOLO SUPER RECORD WRL 12S
Cockpit
Handlebar
ZERO BAR INTEGRATED CARBON
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
PROLOGO DIMENSION 143
Seatpost
0 SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.338 mm | 1.362 mm | 1.389 mm | 1.417 mm | 1.441 mm | 1.47 mm |
| Stack | 503 mm | 519 mm | 536 mm | 554 mm | 572 mm | 591 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm | 397 mm | 402 mm |
| Seat Tube Angle | 75.2 ° | 74.6 ° | 74 ° | 73.5 ° | 73 ° | 72.6 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71.7 ° | 72.15 ° | 72.65 ° | 72.8 ° | 73.1 ° |
| Wheelbase | 977 mm | 979 mm | 988 mm | 996 mm | 1008 mm | 1017 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
