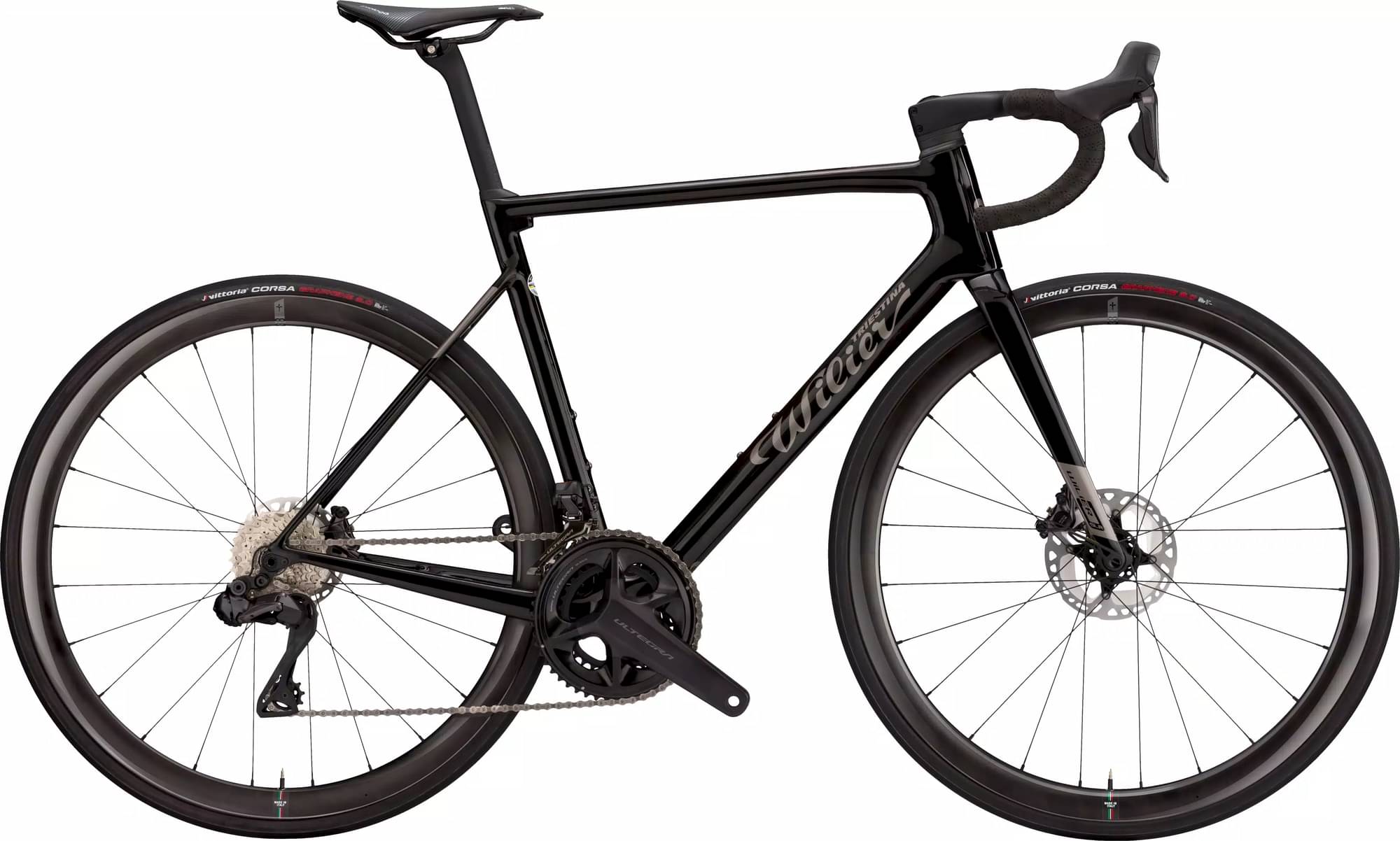

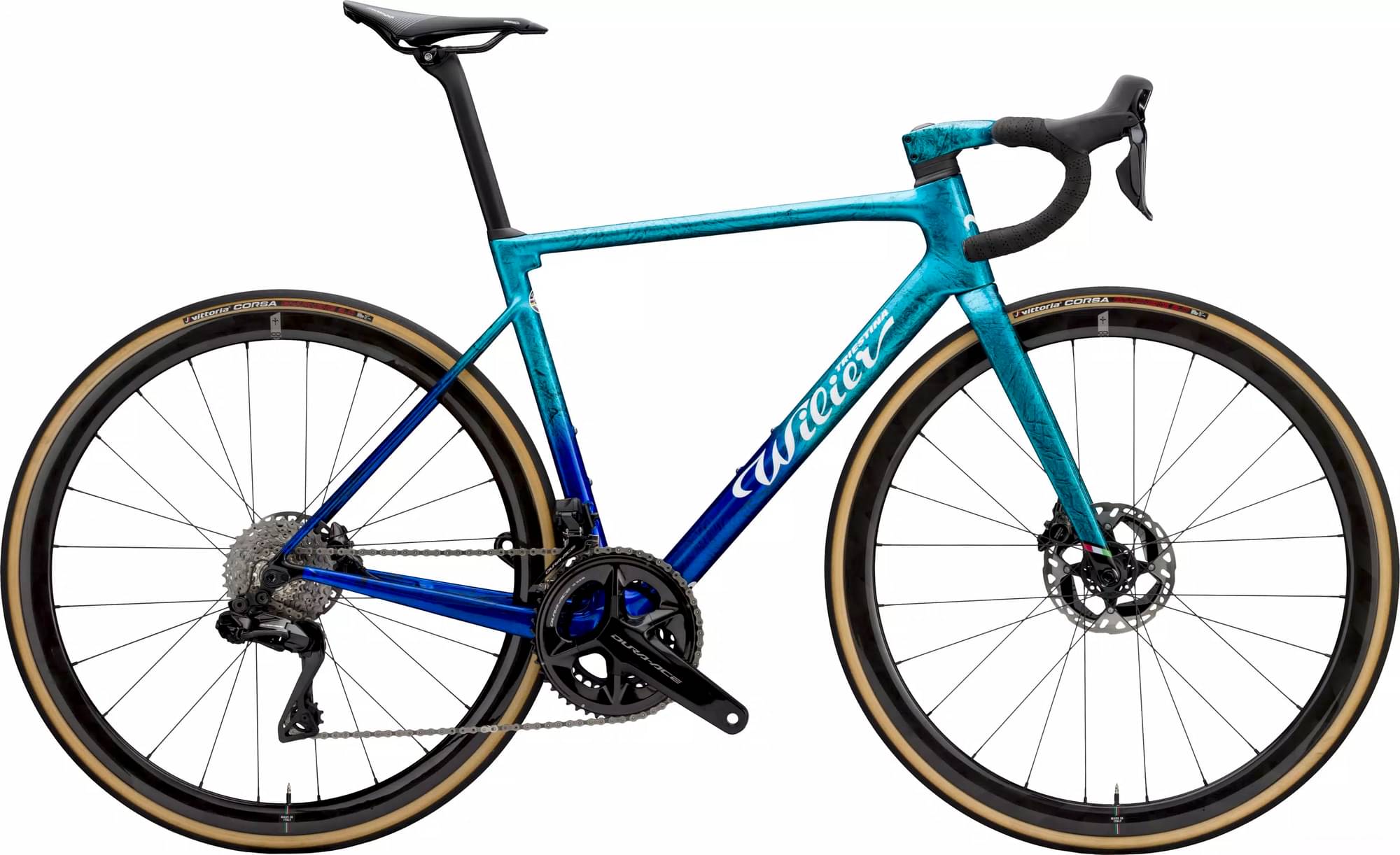

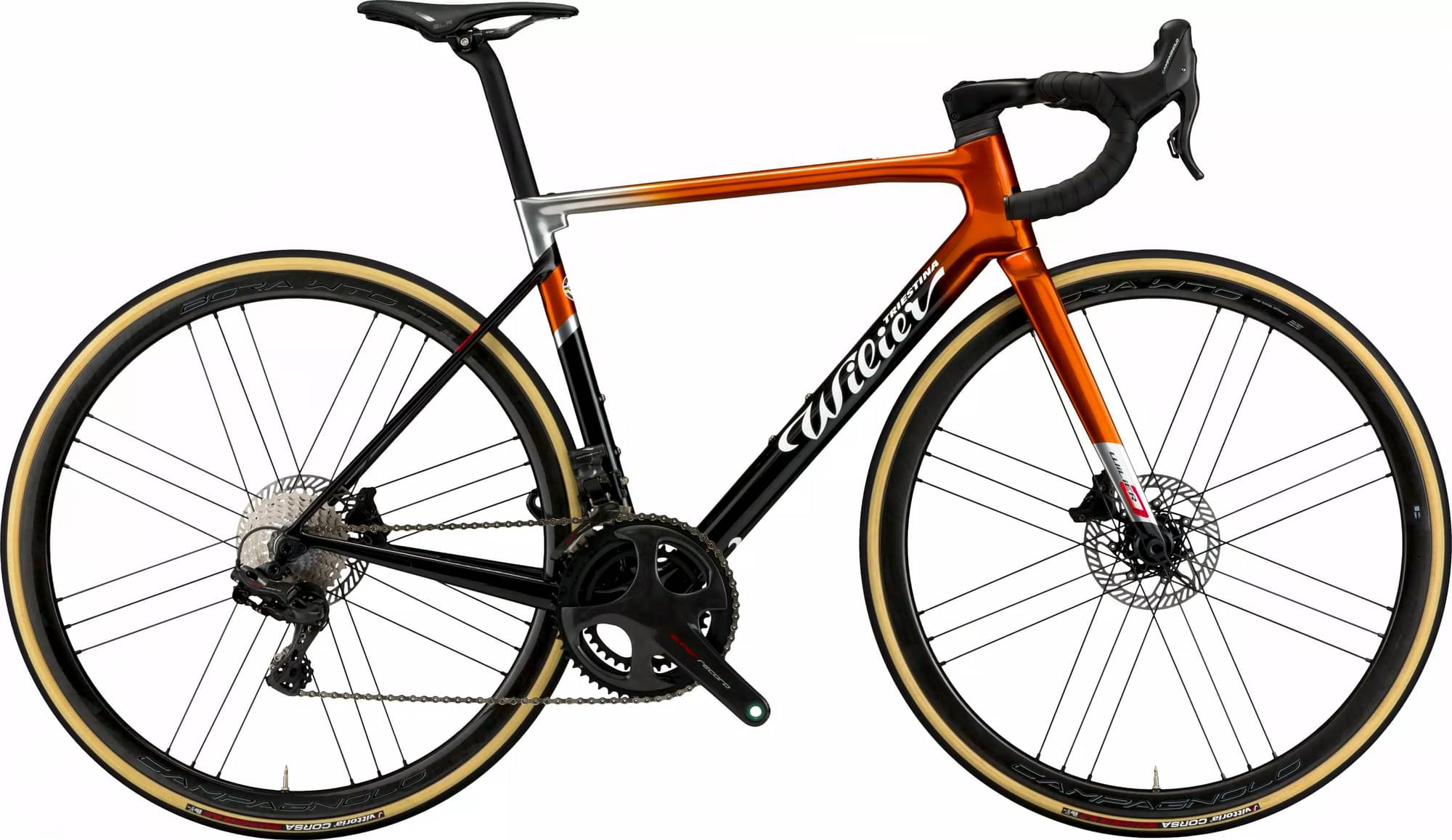

Wilier 0 SLR SRAM RED AXS DISC 2×12 2024
2024 Road
Estimate price |
13,728$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WILIER 0 SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Suspension Fork
WILIER 0 SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Drivetrain
Rear Derailleur
SRAM RED eTAP AXS RD-RED-E-D1
Front Derailleur
SRAM RED eTAP AXS FD-RED-E-D1
Shift Levers
SRAM RED eTAP AXS HRD SHIFT
Cassette
SRAM RED CS-XG-1290-D1 10-33T
Crank
SRAM RED FC-RED-D1 48-35T
Bottom Bracket
SRAM DUB PRESSFIT BB-DUB-PF-A1
Chain
SRAM RED CN-RED-D1 FLAT TOP
Wheels
Rims
WILIER SLR38KC
Tires
VITTORIA CORSA PRO 700x28
Brakes
Brakes
SRAM BRAKE SYSTEM ED-RED-D1 2x12
Cockpit
Handlebar
ZERO BAR INTEGRATED CARBON
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
PROLOGO DIMENSION 143
Seatpost
0 SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.338 mm | 1.362 mm | 1.389 mm | 1.417 mm | 1.441 mm | 1.47 mm |
| Stack | 503 mm | 519 mm | 536 mm | 554 mm | 572 mm | 591 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm | 397 mm | 402 mm |
| Seat Tube Angle | 75.2 ° | 74.6 ° | 74 ° | 73.5 ° | 73 ° | 72.6 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71.7 ° | 72.15 ° | 72.65 ° | 72.8 ° | 73.1 ° |
| Wheelbase | 977 mm | 979 mm | 988 mm | 996 mm | 1008 mm | 1017 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
