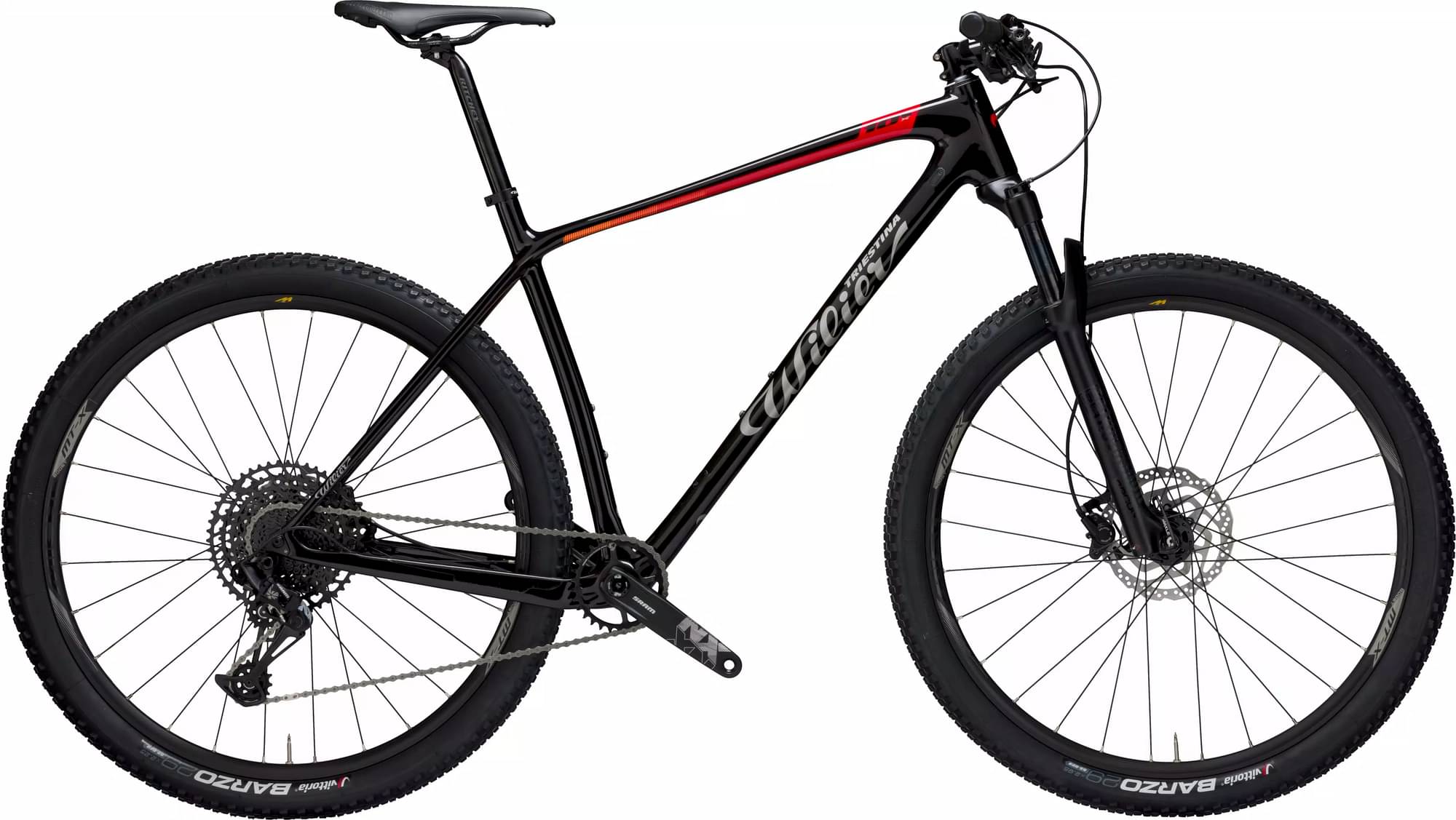

Wilier 101X SRAM NX EAGLE 1X12 2024
2024 Mountain
Estimate price |
2,466$
Weight | 12.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
101X - CARBON MONOCOQUE 46TON
Suspension Fork
ROCK SHOX RECON RL 100 mm, BOOST
Drivetrain
Rear Derailleur
SRAM EAGLE RD-NX
Shift Levers
SRAM NX EAGLE SL-NX1
Cassette
SRAM EAGLE 11-50T PG1230
Crank
SRAM FC EAGLE DUB NX 30T
Bottom Bracket
SRAM DUB PRESSFIT
Chain
SRAM EAGLE NX CN-EAGL-NX
Wheels
Rims
MICHE XM45
Tires
VITTORIA BARZO RIGID 29x2.25"
Brakes
Brakes
SHIMANO BR-MT201
Cockpit
Stem
RITCHEY COMP
Handlebar
RITCHEY MTN ALU
Headset
RITCHEY COMP
Seat
Saddle
SELLE ITALIA MODEL X
Seatpost
RITCHEY CMP 2-BOLT V2 ALLOY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.518 mm | 1.452 mm | 1.441 mm | 1.431 mm |
| Stack | 607 mm | 610 mm | 627 mm | 644 mm |
| Reach | 400 mm | 420 mm | 435 mm | 450 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
