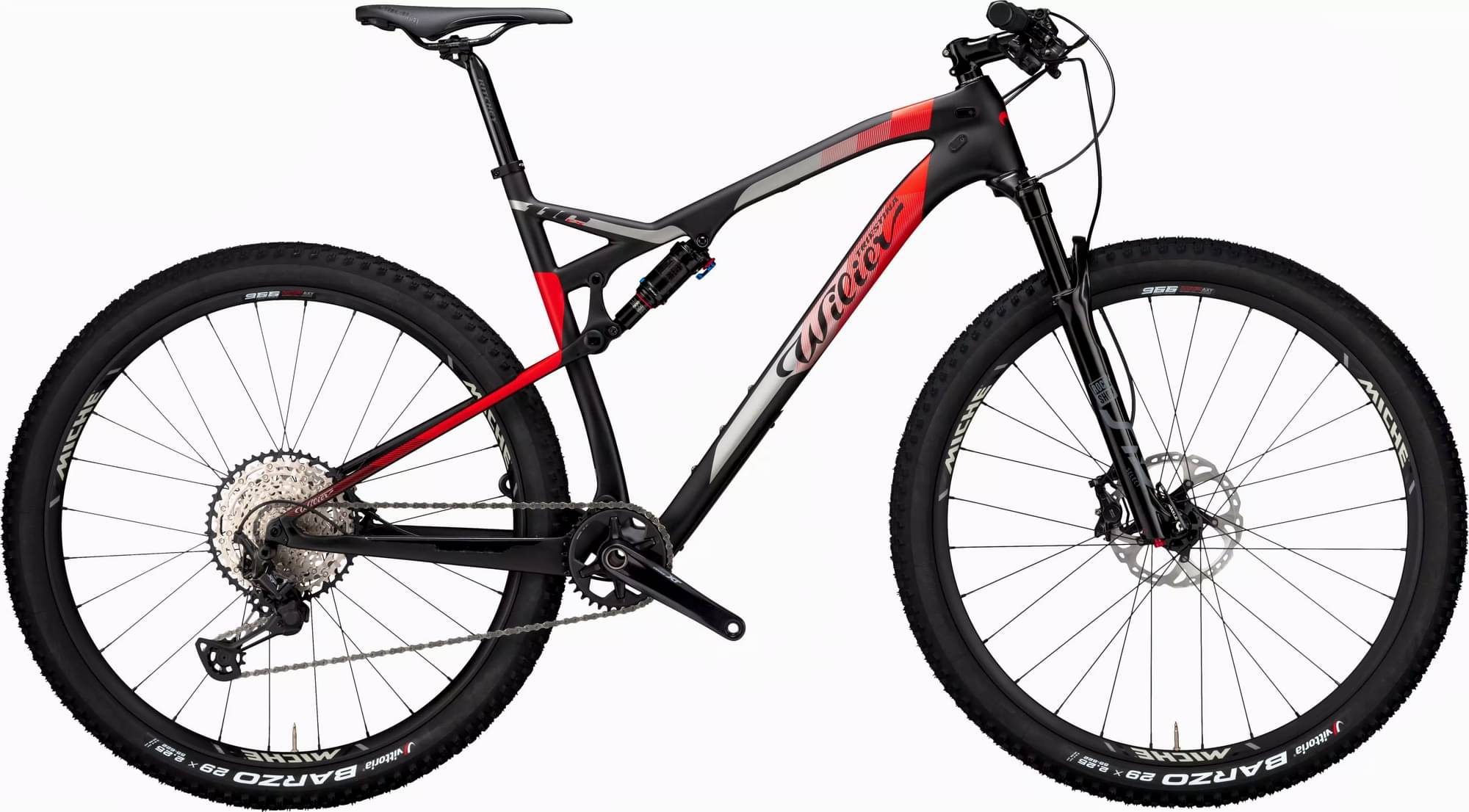

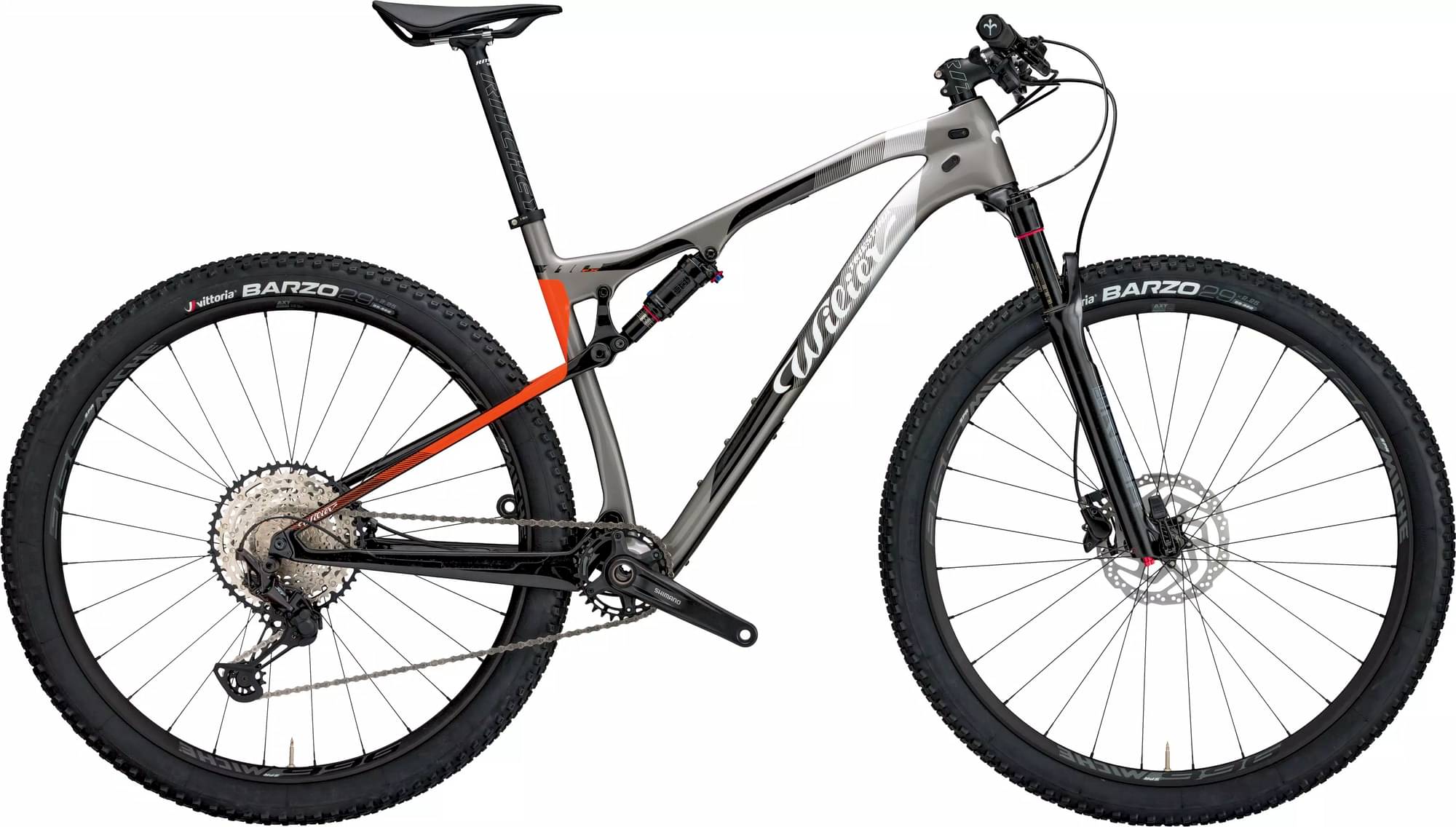

Wilier 110FX SHIMANO XT 2.0 1X12 2024
2024 Mountain
Estimate price |
3,606$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
110FX - CARBON MONOCOQUE 46TON
Suspension Fork
ROCK SHOX SID SL 100 mm, BOOST
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100-SGS
Shift Levers
SHIMANO SLX M7100
Cassette
SHIMANO DEORE 12S CS-M6100-12 10-51T
Crank
SHIMANO MT510 32T
Bottom Bracket
SHIMANO PRESSFIT MT500-PA
Chain
SHIMANO SLX CN-M7100 118 LINK
Wheels
Rims
MICHE XM45
Tires
VITTORIA BARZO RIGID 29x2.25"
Brakes
Brakes
SHIMANO MT401
Cockpit
Stem
RITCHEY COMP
Handlebar
RITCHEY MTN CMP 2X ALU
Headset
RITCHEY COMP
Seat
Saddle
SELLE ITALIA MODEL X
Seatpost
RITCHEY CMP 2-BOLT V2 ALLOY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.429 mm | 1.375 mm | 1.326 mm |
| Stack | 589 mm | 596 mm | 605 mm | 614 mm |
| Reach | 395 mm | 417 mm | 440 mm | 463 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
