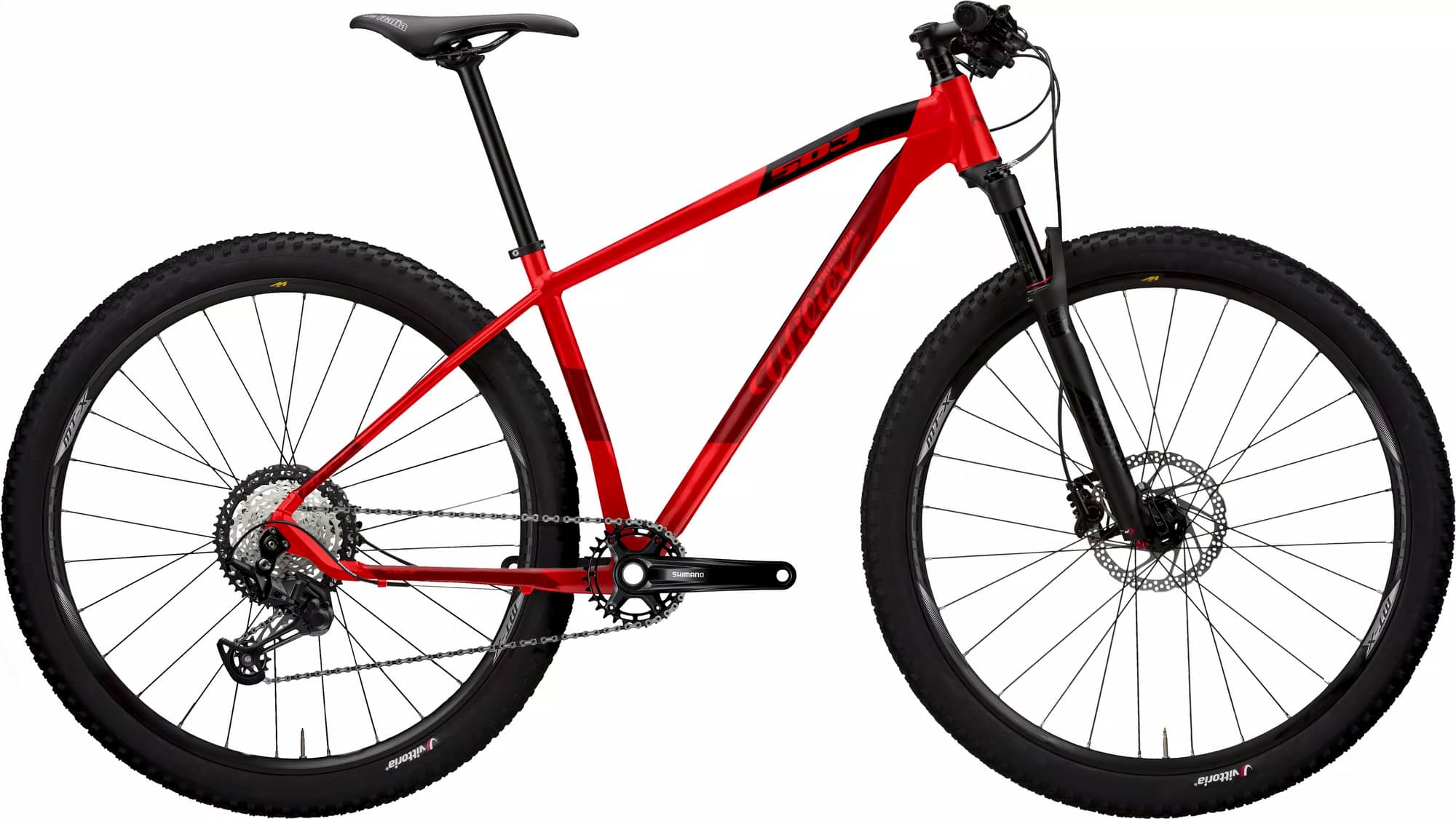

Wilier 503X Race SHIMANO XT 2.0 1X12 2024
2024 Mountain
Estimate price |
1,835$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
503X - ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX REBA 100mm BOOST
Drivetrain
Rear Derailleur
SHIMANO XT 1X12 RD-M8100-SGS
Shift Levers
SHIMANO DEORE M6100-R
Cassette
SHIMANO DEORE 12S CS-M6100-12 10-51T
Crank
SHIMANO FC-MT510 32T
Bottom Bracket
SHIMANO PRESSFIT MT500-PA
Chain
SHIMANO SLX CN-M7100 118 LINK
Wheels
Rims
MICHE XM45
Tires
VITTORIA BARZO 29" X 2.25 RIGID
Brakes
Brakes
SHIMANO BR-MT410
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY COMP PRD15862
Seat
Saddle
SELLE ITALIA MODEL X
Seatpost
PROMAX SP264
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.562 mm | 1.524 mm | 1.493 mm | 1.464 mm |
| Stack | 617 mm | 628 mm | 639 mm | 650 |
| Reach | 395 mm | 412 mm | 428 mm | 444 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
