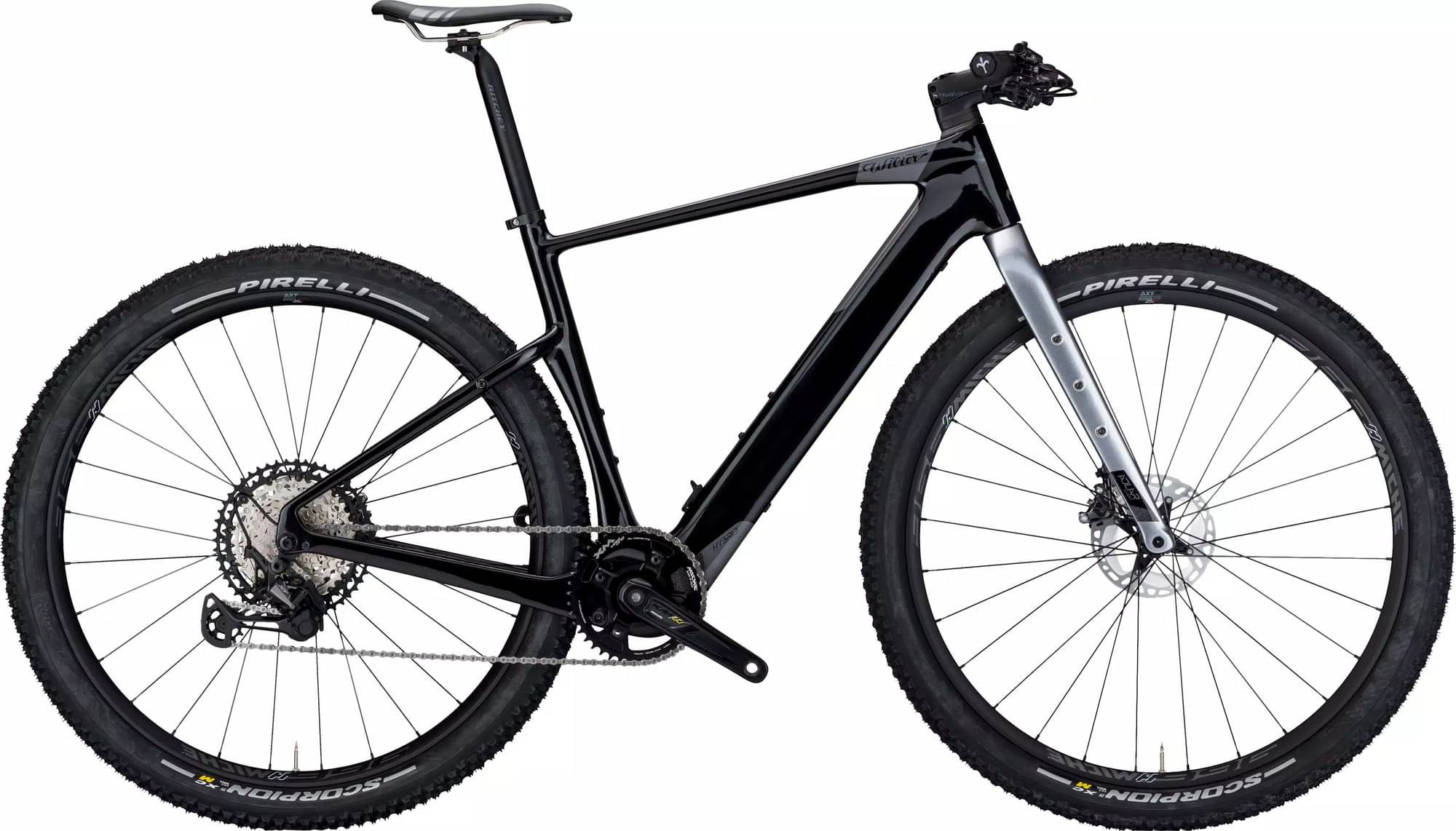

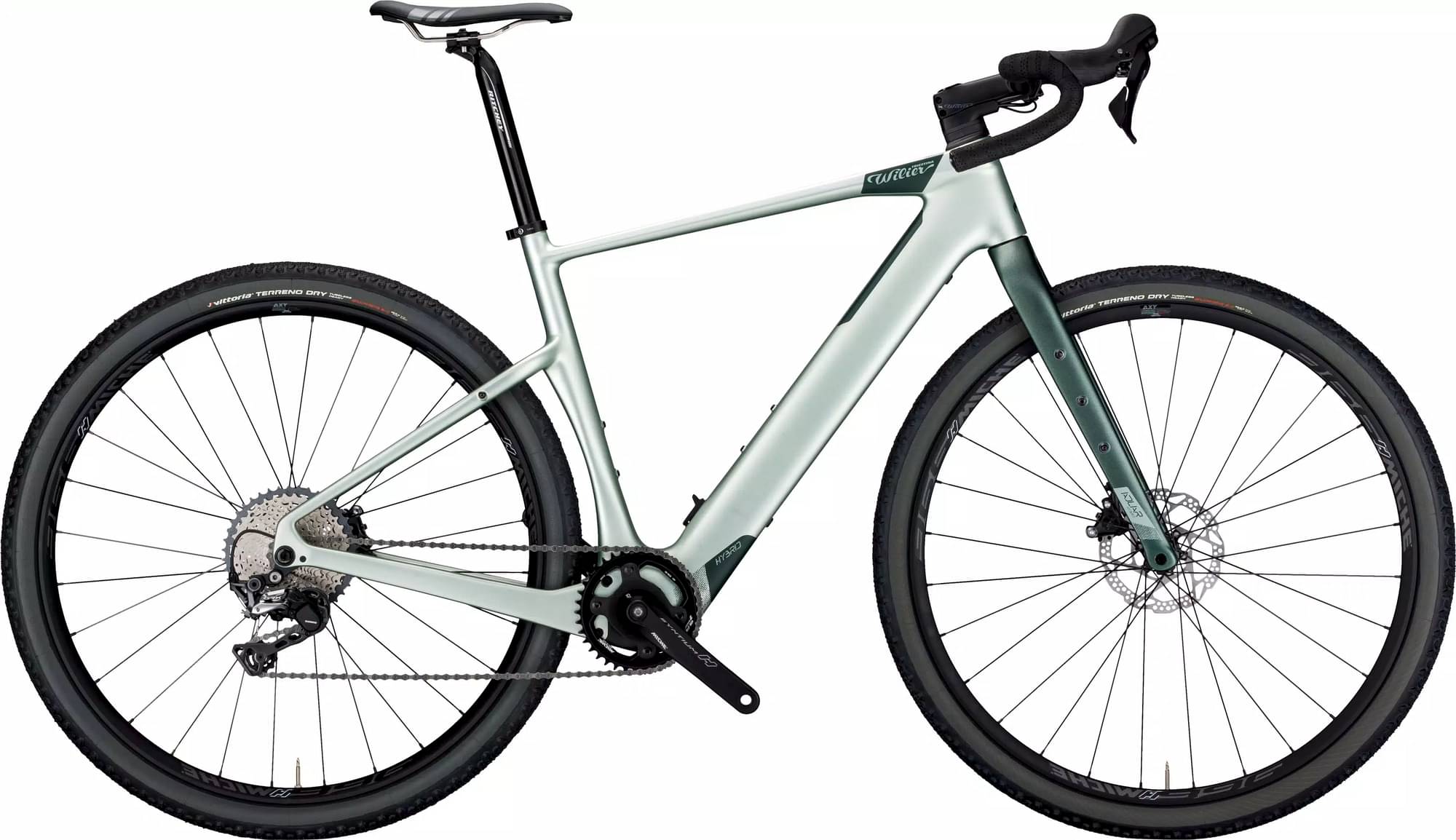

Wilier Adlar Hybrid SHIMANO XT 1×12 + TQ HPR50 2024
2024 E-bike
Estimate price |
8,143$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XT -
Suspension Rigid -
Motor 50Nm mid-drive -
Battery 360Wh, 36V, ANT+ CONNECTIVITY -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADLAR HY - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGTH
Suspension Fork
ADLAR HY - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGTH
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100-SGS
Shift Levers
SHIMANO XT 1X12 SL-M8100
Cassette
SHIMANO XT CS-M8100-12, 10-51T
Crank
MICHE CRANKSET SYNTIUM HYBRID 170 mm BLK
Chain
SHIMANO XT CN-M7100
Wheels
Rims
MICHE 966H
Tires
VITTORIA TERRENO DRY 700x47c TUBELESS READY
Brakes
Brakes
SHIMANO XT BR-M8100
Cockpit
Stem
STEMMA S
Handlebar
RITCHEY WCS ALU
Headset
WILIER CUSTOM BEARINGS SUPERSLIM / RITCHEY
Seat
Saddle
SELLE SAN MARCO SHORTFIT 2.0
Seatpost
RITCHEY COMP 2-BOLT V2 ALU
Motor & Battery
Motor
50Nm
Battery
360Wh, 36V, ANT+ CONNECTIVITY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.391 mm | 1.419 mm | 1.445 mm | 1.471 mm |
| Stack | 538 mm | 562 mm | 586 mm | 610 mm | 634 mm |
| Reach | 395 mm | 404 mm | 413 mm | 422 mm | 431 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Wheelbase | 1060 mm | 1071 mm | 1089 mm | 1107 mm | 1125 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
