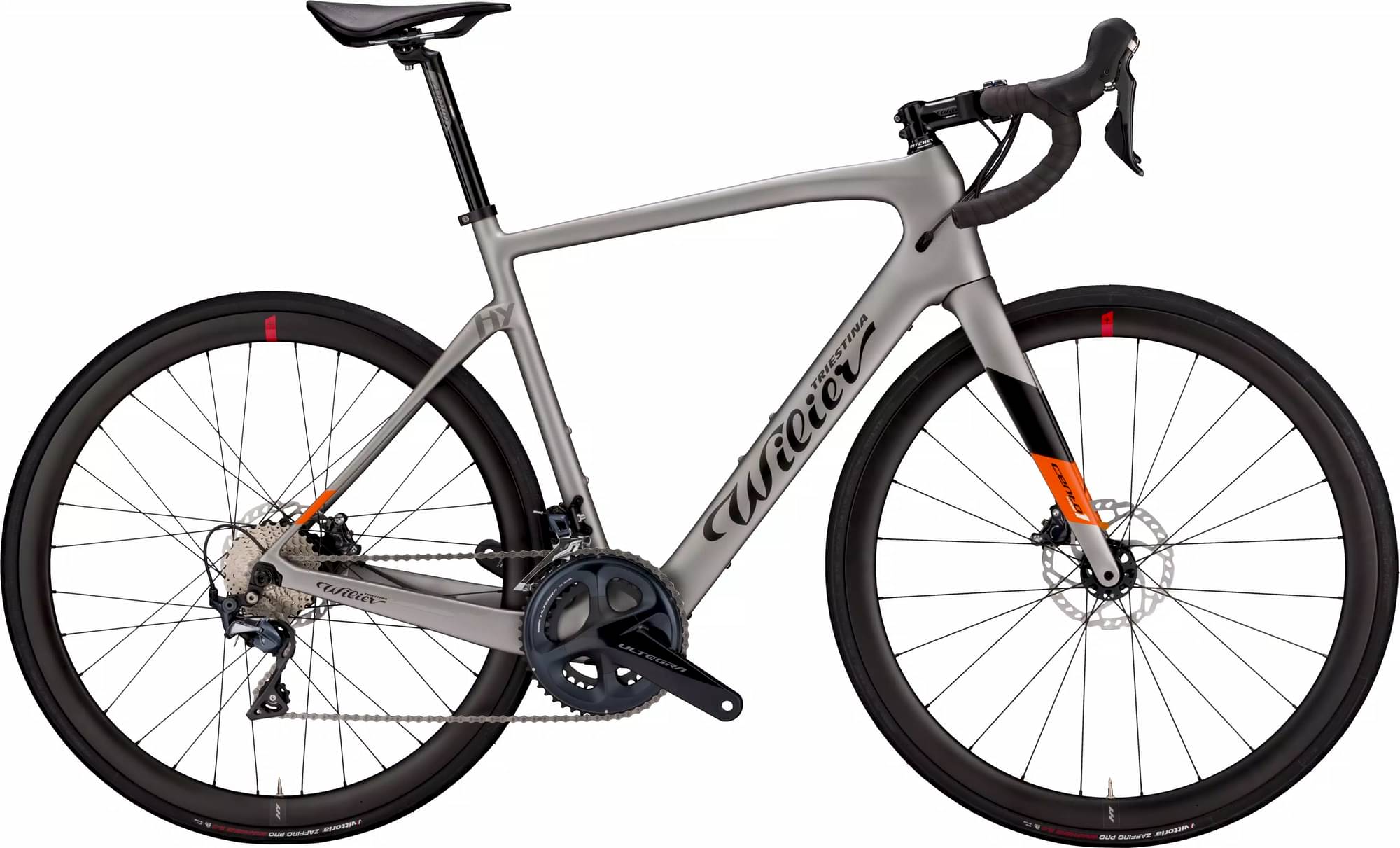

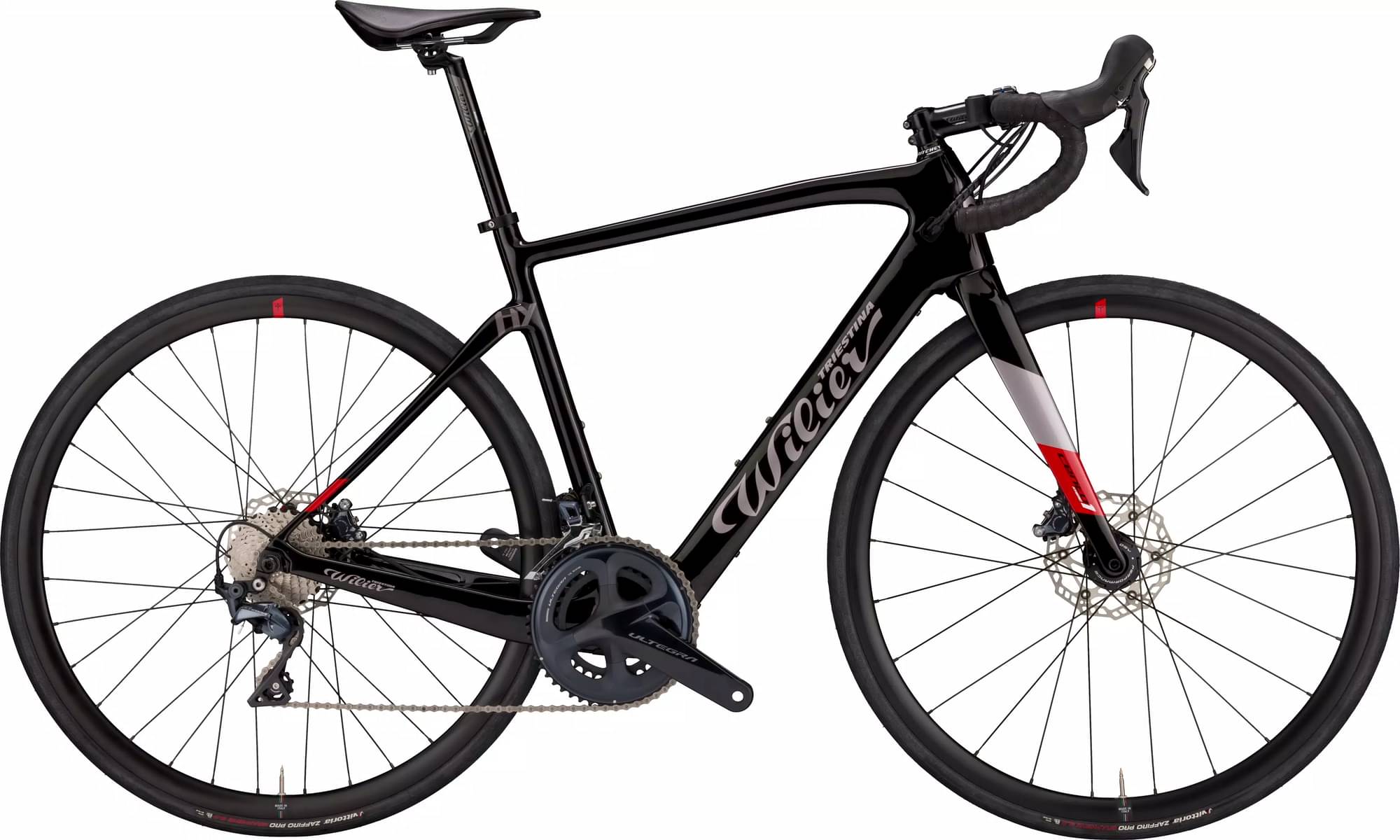

Wilier Cento1 Hybrid SHIMANO 105 2X11 + MAHLE X35+ 2024
2024 E-bike
Estimate price |
5,620$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Motor 40Nm mid-drive -
Battery 250Wh, 36V, ANT+ CONNECTIVITY -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CENTO1 HY - CARBON MONOCOQUE 46TON
Suspension Fork
CENTO1 HY - CARBON MONOCOQUE 46TON
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS
Front Derailleur
SHIMANO 105 FD-R7000
Shift Levers
SHIMANO 105 ST-R7020
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50-34T
Bottom Bracket
SHIMANO PRESSFIT SM-BB71-41
Chain
SHIMANO CN-HG600-11
Wheels
Rims
WILIER HY-NDR28AC
Tires
VITTORIA ZAFFIRO PRO 4 700X28
Brakes
Brakes
SHIMANO 105 BR-R7070
Cockpit
Stem
ZOOM STEMMA TDS-RD507
Handlebar
ZOOM H-BAR DR-AL-210
Headset
RITCHEY PRD15862
Seat
Saddle
PROLOGO KAPPA
Seatpost
FSA GOSSAMER SB20
Motor & Battery
Motor
40Nm
Battery
250Wh, 36V, ANT+ CONNECTIVITY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.415 mm | 1.449 mm | 1.477 mm | 1.506 mm |
| Stack | 515 mm | 532 mm | 555 mm | 576 mm | 595 mm |
| Reach | 365 mm | 376 mm | 383 mm | 390 mm | 395 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm | 530 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Wheelbase | 977 mm | 985 mm | 995 mm | 1002 mm | 1013 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
