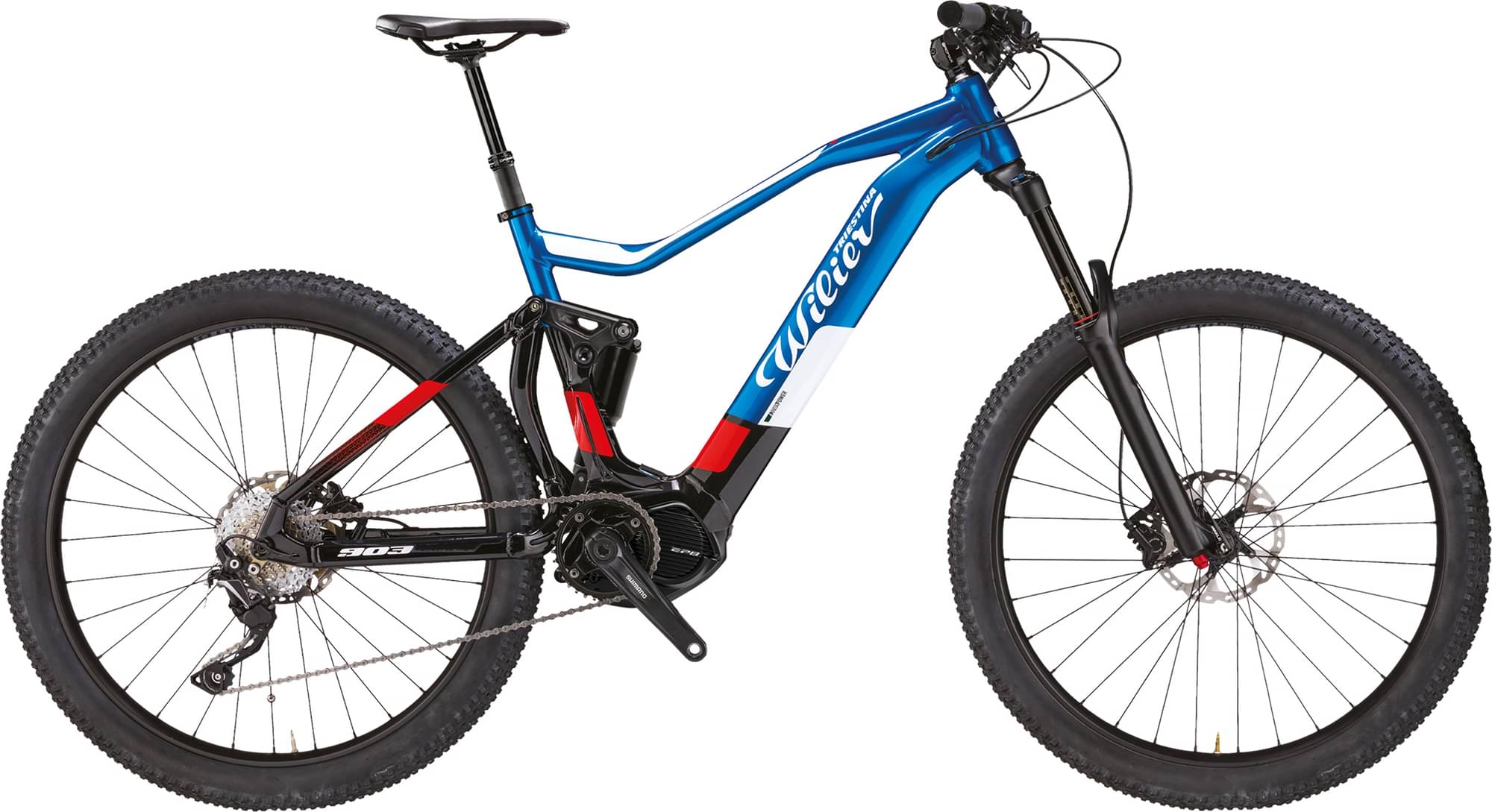

Wilier e903TRN PRO SHIMANO XT 1X12 2023
2023 E-bike
Estimate price |
6,515$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 150mm -
Fork RockShox Revelation RC
-
Groupset Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO EP8 (Shimano Battery BT8036 630WH) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX REVELATION 150 MM
Rear Shock
ROCK SHOX DELUXE SELECT 230 X 65
Drivetrain
Rear Derailleur
SHIMANO RDM8100
Shift Levers
SHIMANO SLM8100 12 SPEED
Cassette
SHIMANO 10-51T
Crank
SHIMANO 34T
Chain
SHIMANO 124 LINKS
Wheels
Rims
SHIMANO MT620
Tires
VITTORIA GOMA 29X2.4"
Brakes
Brakes
SHIMANO BRMT520
Disk Rotors
SHIMANO RTEM600 + SMRT70 W/LOCK RING
Cockpit
Stem
PROMAX DA269
Handlebar
PROMAX HB-3188DB
Headset
FSA NO.57B
Seat
Saddle
SELLE ITALIA MODEL X
Motor & Battery
Motor
SHIMANO EP8 (Shimano Battery BT8036 630WH)
Battery
SHIMANO EP8 (Shimano Battery BT8036 630WH)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.287 mm | 1.252 mm |
| Stack | 592 mm | 592 mm | 601 mm |
| Reach | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 599 mm | 619 mm | 641 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm |
| Rider Max Height | 172 cm | 177 cm | 184 cm |
Model Overview
e903TRN PRO SHIMANO XT 1X12 completes the Wilier E E903trn model. There are 5 e-bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 5946$. If we compare this with the average Enduro e-bike cost we notice that the price is 24.26% higher.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 23.5 kg (51.81 lbs), Wilier e-bike is slightly heavier than average. In short, the average Enduro e-bike weight is 0.34% lower than this one.
e903TRN PRO SHIMANO XT 1X12 components
Fork
Wilier e903TRN PRO SHIMANO XT 1X12 2023 e-bike is equipped with the RockShox Revelation RC fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on e903TRN PRO SHIMANO XT 1X12 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier e903TRN PRO SHIMANO XT 1X12 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 156 cm – 184 cm (5.12 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
