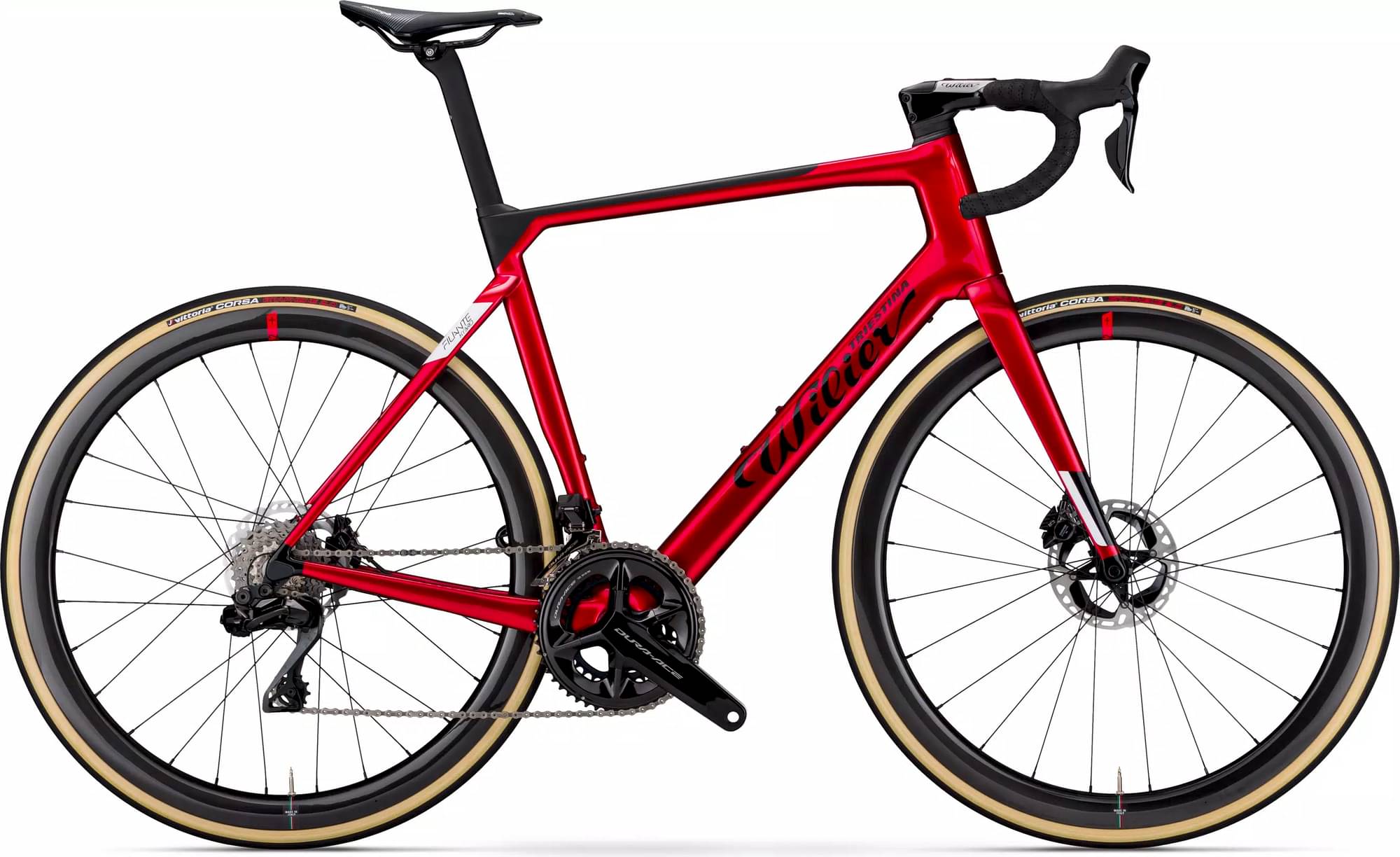

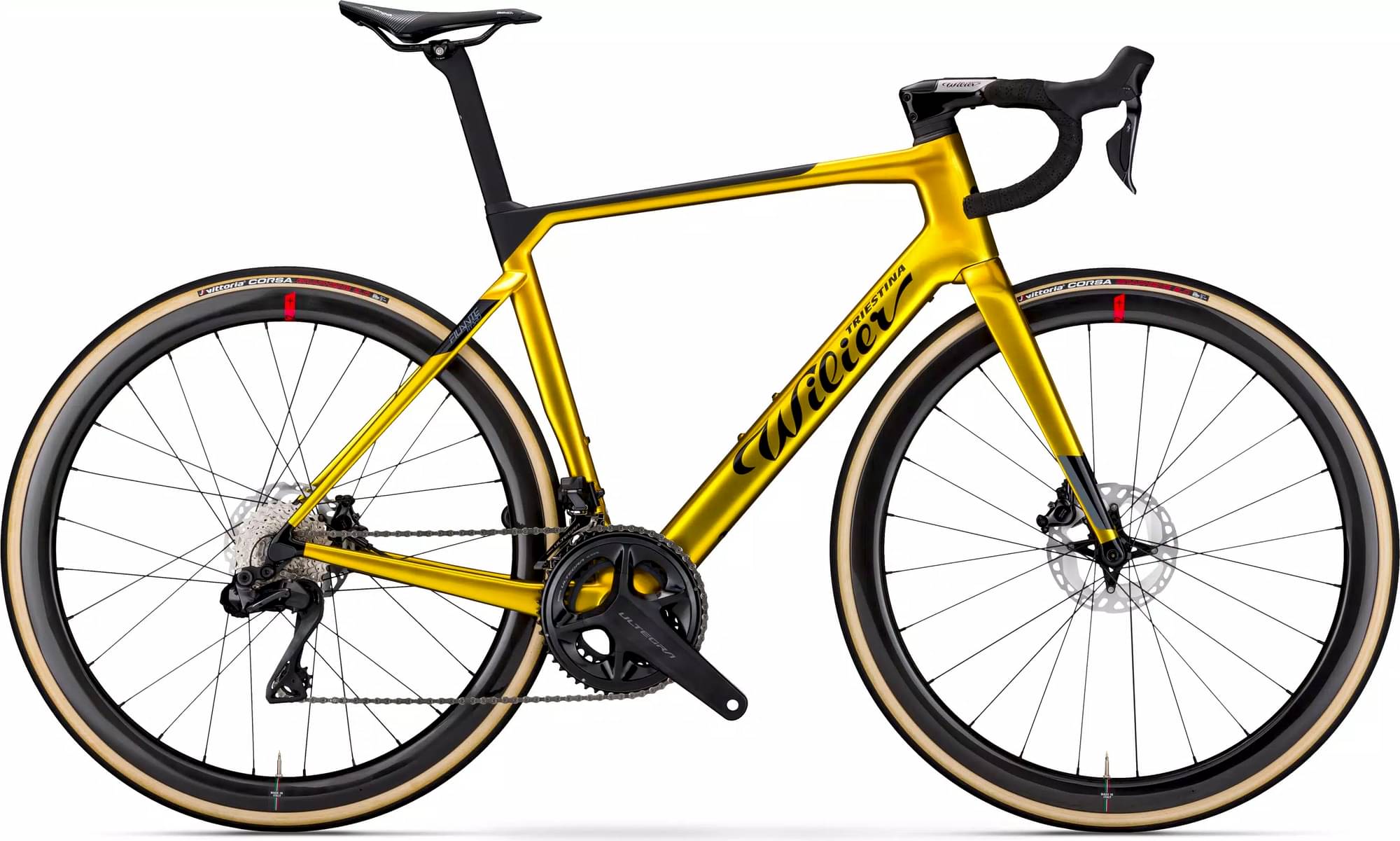

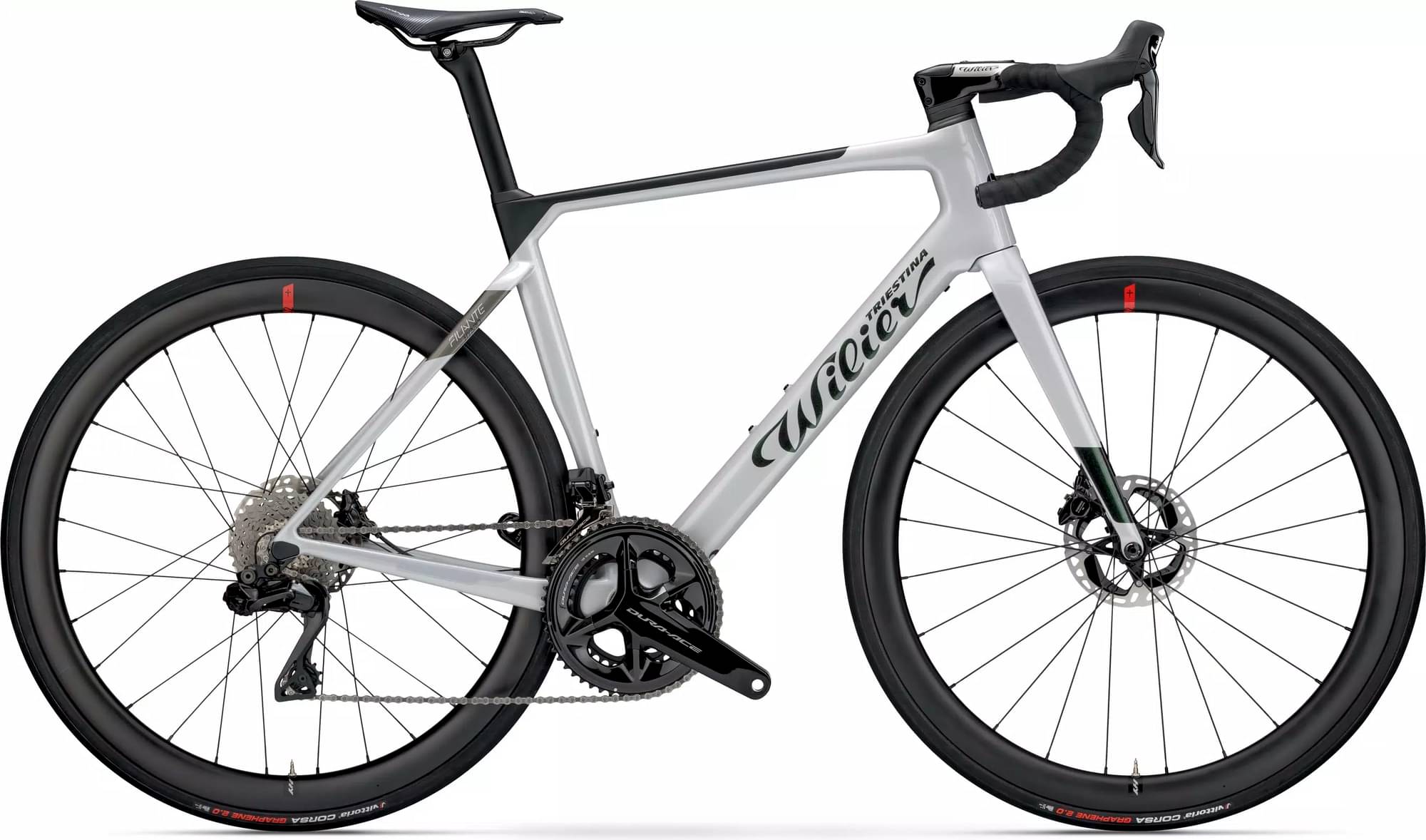

Wilier Filante Hybrid SHIMANO ULTEGRA Di2 R8170 2X12S + MAHLE X20 E-BIKE SYSTEM KIT 2025
2025 E-bike
Estimate price |
10,703$
Weight | 11.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery INNER TUBE MAHLE iX250 | ANT+ CONNECTIVITY | 36 V -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FILANTE HY - CARBON MONOCOQUE HUS-MOD
Suspension Fork
FILANTE HY - CARBON MONOCOQUE HUS-MOD
Drivetrain
Rear Derailleur
SHIMANO ULTEGRA Di2 RD-R8150
Front Derailleur
SHIMANO ULTEGRA Di2 FD-R8150
Shift Levers
SHIMANO ULTEGRA Di2 ST-R8170-L / ST-R8170-R
Cassette
SHIMANO ULTEGRA CS-R8101-12 11-30T
Crank
SHIMANO ULTEGRA FC-R8100 50-34T
Bottom Bracket
MAHLE X20 TQ812_PF46_24 WITH TQ + RPM SENSOR
Chain
SHIMANO ULTEGRA CN-M8100
Wheels
Rims
WILIER HY-NDR28AC ALLOY
Tires
VITTORIA RUBINO PRO IV GRAPHENE 2.0 700x28c
Brakes
Brakes
SHIMANO ULTEGRA Di2 R8170
Cockpit
Handlebar
WILIER FILANTE HY INTEGRATED CARBON CUSTOM MADE WITH GARMIN/WAHOO MOUNT
Headset
CUSTOM SUPERSLIM 1-1/8" UPPER BR | FSA MR137 1-1/4" LOWER BR
Seat
Saddle
PROLOGO NAGO R4 PAS TIROX RAILS 137mm
Seatpost
WILIER FILANTE CARBON CUSTOM MADE -15 mm
Motor & Battery
Motor
MAHLE HUB-DRIVE 55 Nm
Battery
INNER TUBE MAHLE iX250 | ANT+ CONNECTIVITY | 36 V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.46 mm | 1.493 mm | 1.526 mm | 1.553 mm | 1.582 mm |
| Stack | 527 mm | 546 mm | 566 mm | 586 mm | 604 mm | 625 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 389 mm | 395 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Wheelbase | 977 mm | 985 mm | 995 mm | 1002 mm | 1013 mm | 1027 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
