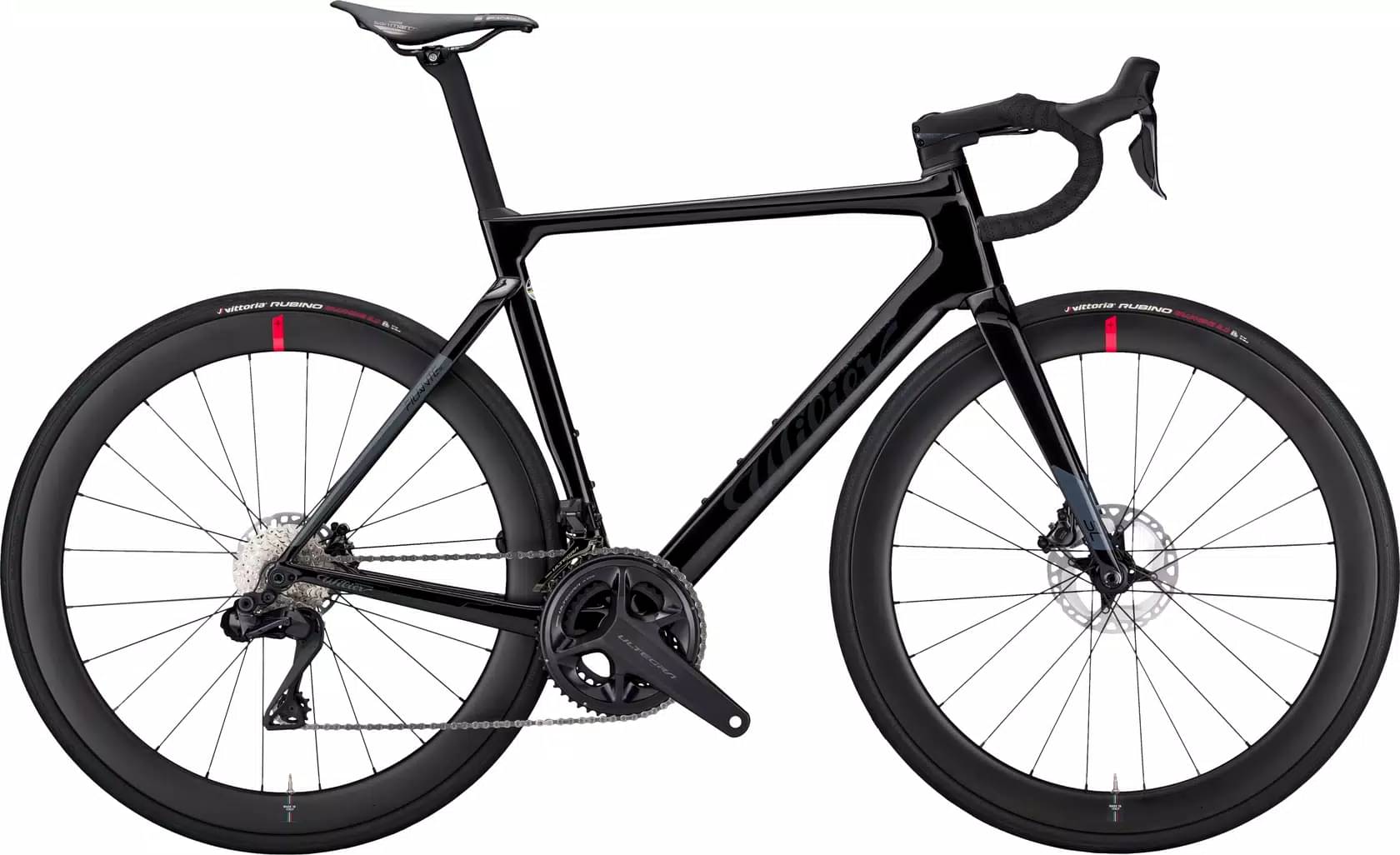

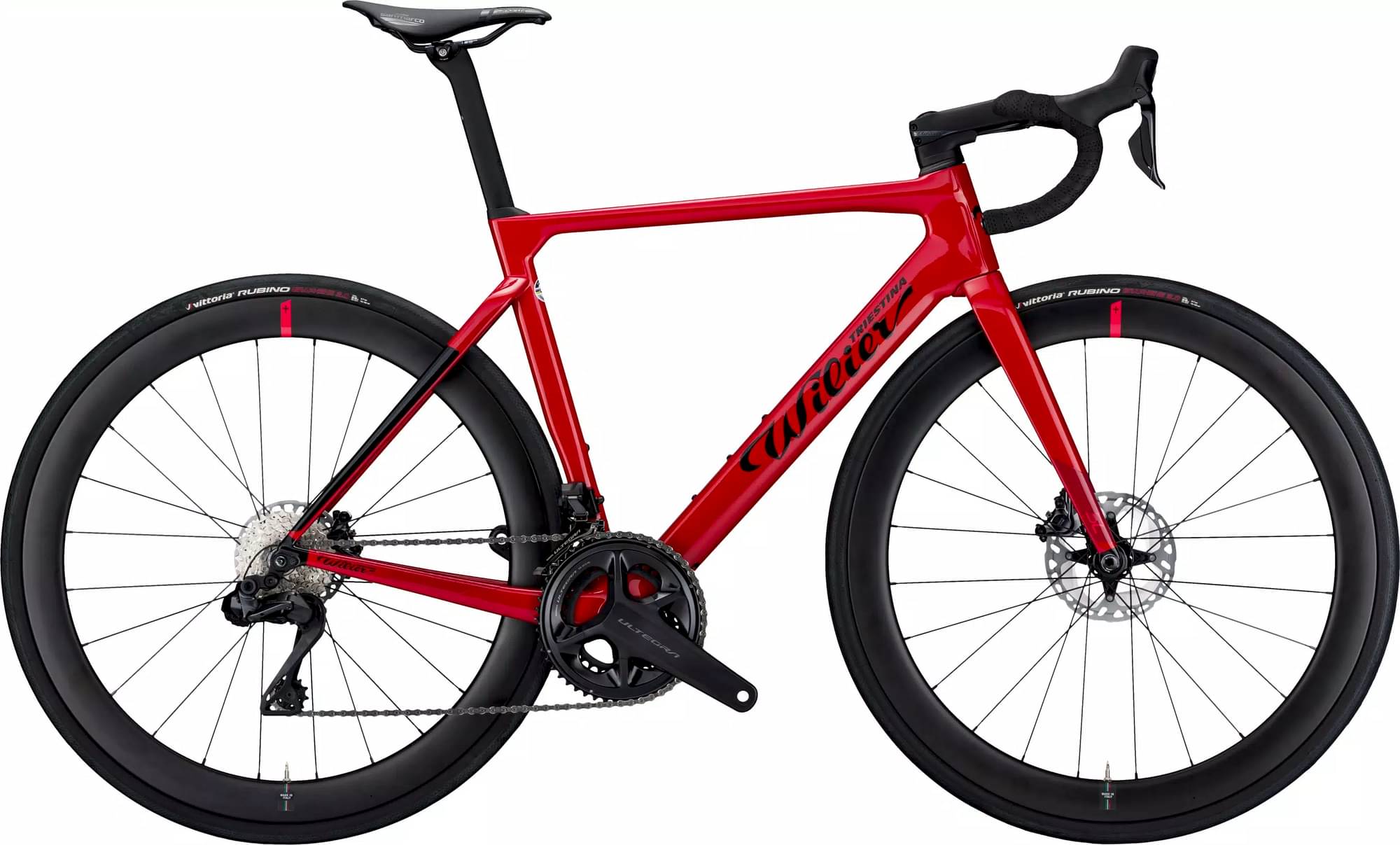

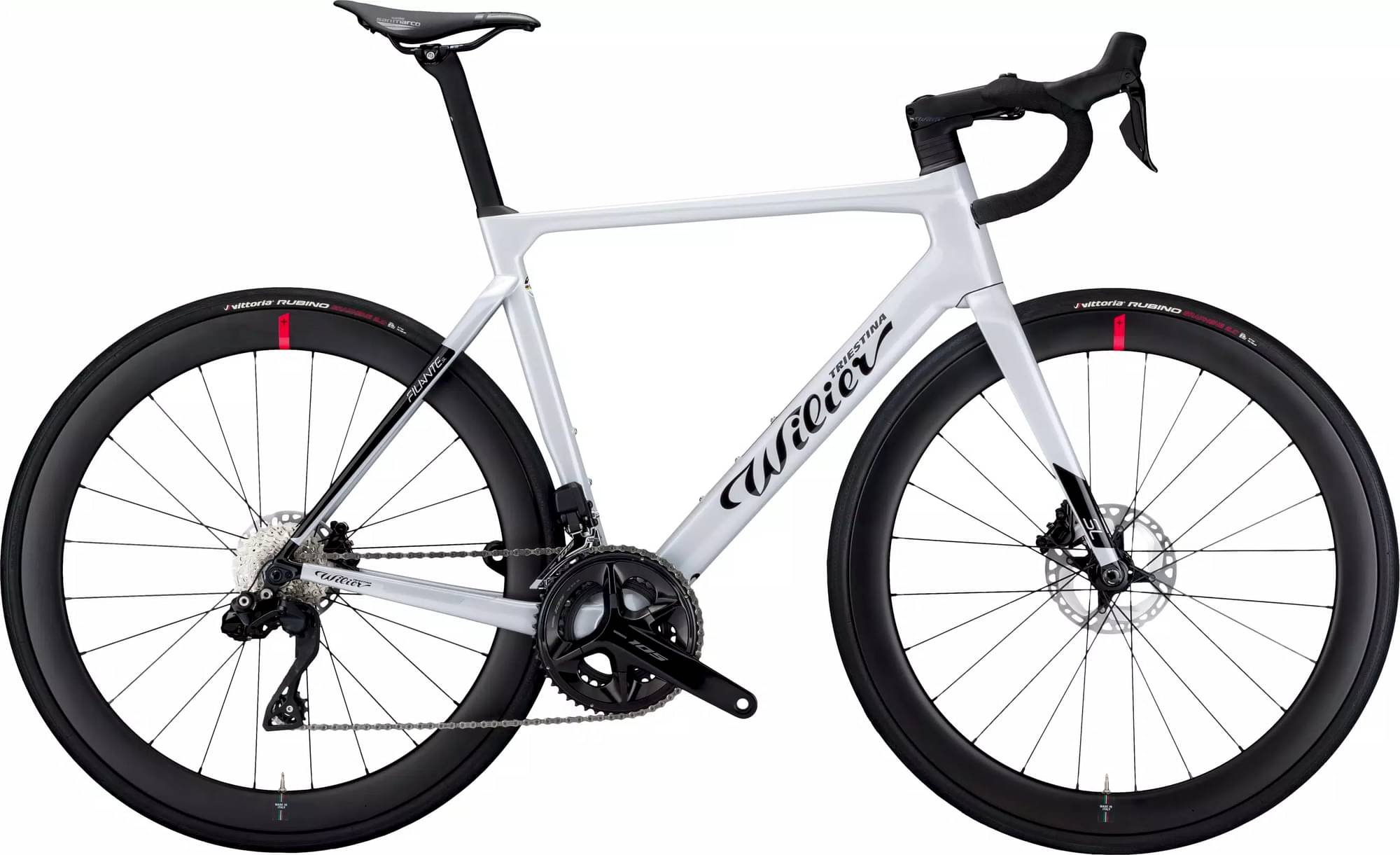

Wilier Filante SL SHIMANO ULTEGRA Di2 R8170 2024
2024 Road
Estimate price |
8,029$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FILANTE SL - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGHT
Suspension Fork
FILANTE SL - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGHT
Drivetrain
Rear Derailleur
SHIMANO ULTEGRA RD-R8150 Di2
Front Derailleur
SHIMANO ULTEGRA FD-R8150 Di2
Shift Levers
SHIMANO ULTEGRA ST-R8170 Di2
Cassette
SHIMANO ULTEGRA CS-R8100 12S
Crank
SHIMANO ULTEGRA FC-R8100
Bottom Bracket
SHIMANO ULTEGRA PRESS FIT SM-BB72
Chain
SHIMANO ULTEGRA CN-M8100 12
Wheels
Rims
WILIER NDR50KC
Tires
VITTORIA RUBINO 700X28
Brakes
Brakes
SHIMANO ULTEGRA BR-R8170
Cockpit
Stem
STEMMA SL
Handlebar
BARRA SL
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
SAN MARCO SHORTFIT STARTUP
Seatpost
FILANTE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.329 mm | 1.357 mm | 1.387 mm | 1.419 mm | 1.446 mm | 1.471 mm |
| Stack | 505 mm | 521 mm | 538 mm | 555 mm | 571 mm | 587 mm |
| Reach | 380 mm | 384 mm | 388 mm | 391 mm | 395 mm | 399 mm |
| Seat Tube Angle | 75.2 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.8 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Wheelbase | 981 mm | 984 mm | 990 mm | 997 mm | 1002 mm | 1006 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
