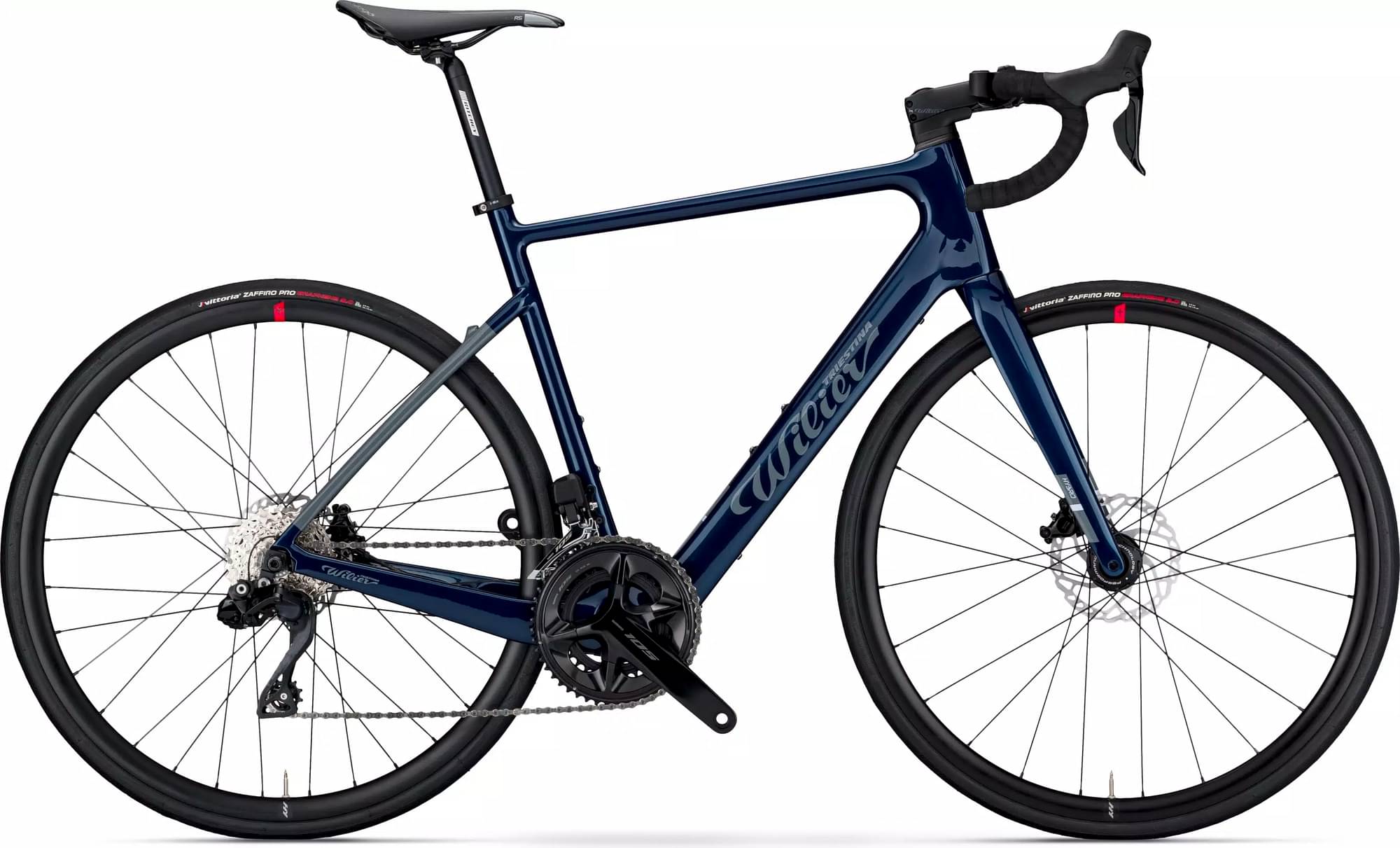

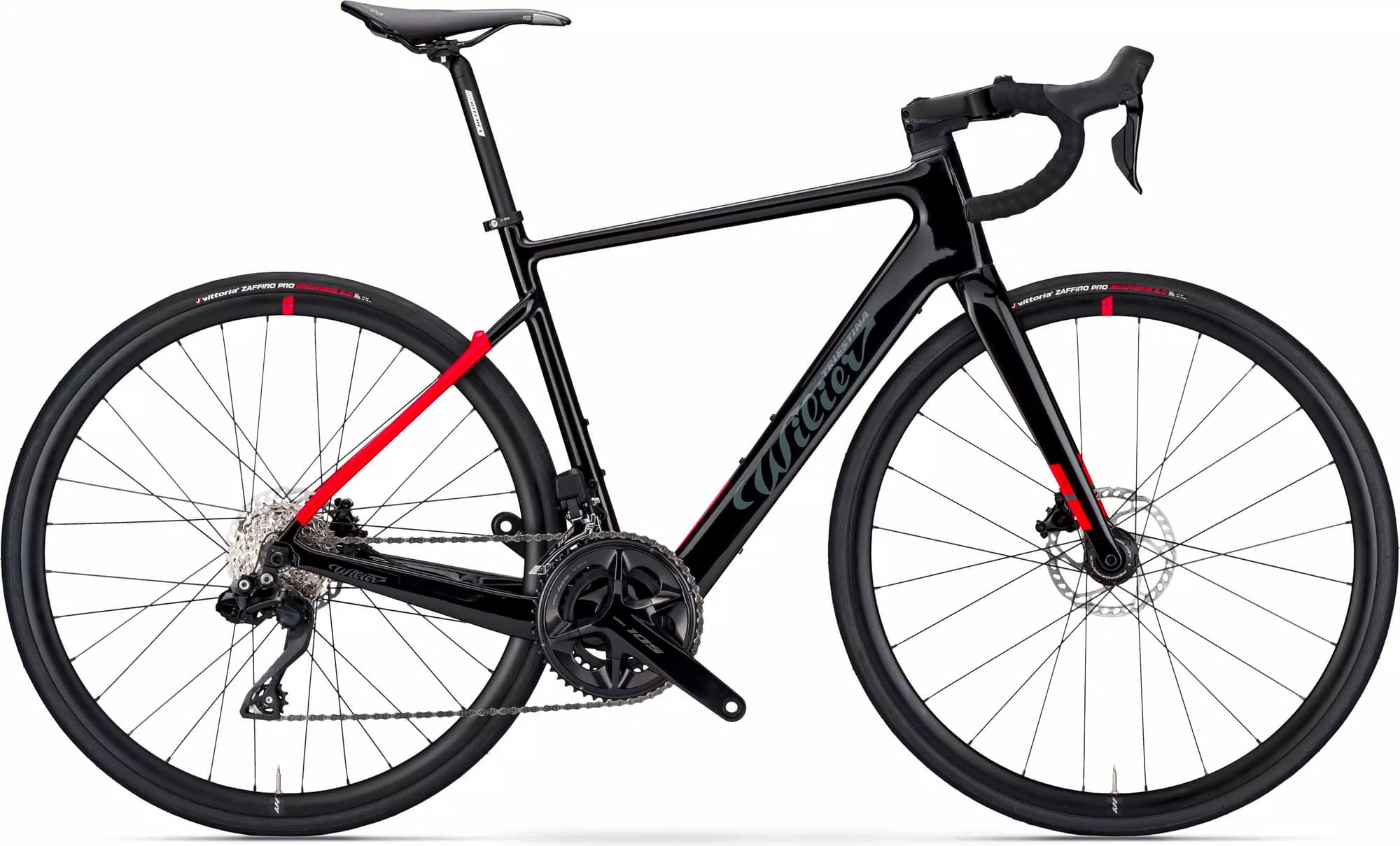

Wilier Garda Hybrid SHIMANO 105 Di2 R7170 2X12S + MAHLE X35 E-BIKE SYSTEM KIT 2025
2025 E-bike
Estimate price |
7,096$
Weight | 12.85 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Motor MAHLE 40Nm hub-drive -
Battery MAHLE 250 Wh / ANT+ CONNECTIVITY | 36 V -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GARDA HY - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGHT
Suspension Fork
GARDA HY - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGHT
Drivetrain
Rear Derailleur
SHIMANO 105 Di2 RD-R7150
Front Derailleur
SHIMANO 105 Di2 FD-R7150
Shift Levers
SHIMANO 105 Di2 ST-R7170
Cassette
SHIMANO 105 CS-R7101-12 11-34T
Crank
SHIMANO 105 FC-R7100 50-34T
Bottom Bracket
MICHE PRESSFIT 86.5X40
Chain
SHIMANO 105 CN-M7100
Wheels
Rims
WILIER HY-NDR28AC ALLOY
Tires
VITTORIA RUBINO PRO IV GRAPHENE 2.0 700x28c
Brakes
Brakes
SHIMANO 105 BR-R7170
Cockpit
Stem
RITCHEY | WILIER STEMMA S ALLOY
Handlebar
RITCHEY | WILIER BARRA S ALLOY DROP BAR
Headset
CUSTOM SUPERSLIM 1-1/8" UPPER BR | FSA MR137 1-1/4" LOWER BR
Seat
Saddle
PROLOGO SADDLE KAPPA RS STN
Seatpost
ALLOY ? 27,2 mm
Motor & Battery
Motor
MAHLE HUB-DRIVE 40 Nm
Battery
MAHLE 250 Wh / ANT+ CONNECTIVITY | 36 V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.415 mm | 1.449 mm | 1.477 mm | 1.506 mm |
| Stack | 515 mm | 532 mm | 555 mm | 576 mm | 595 mm |
| Reach | 365 mm | 376 mm | 383 mm | 390 mm | 395 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm | 530 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
