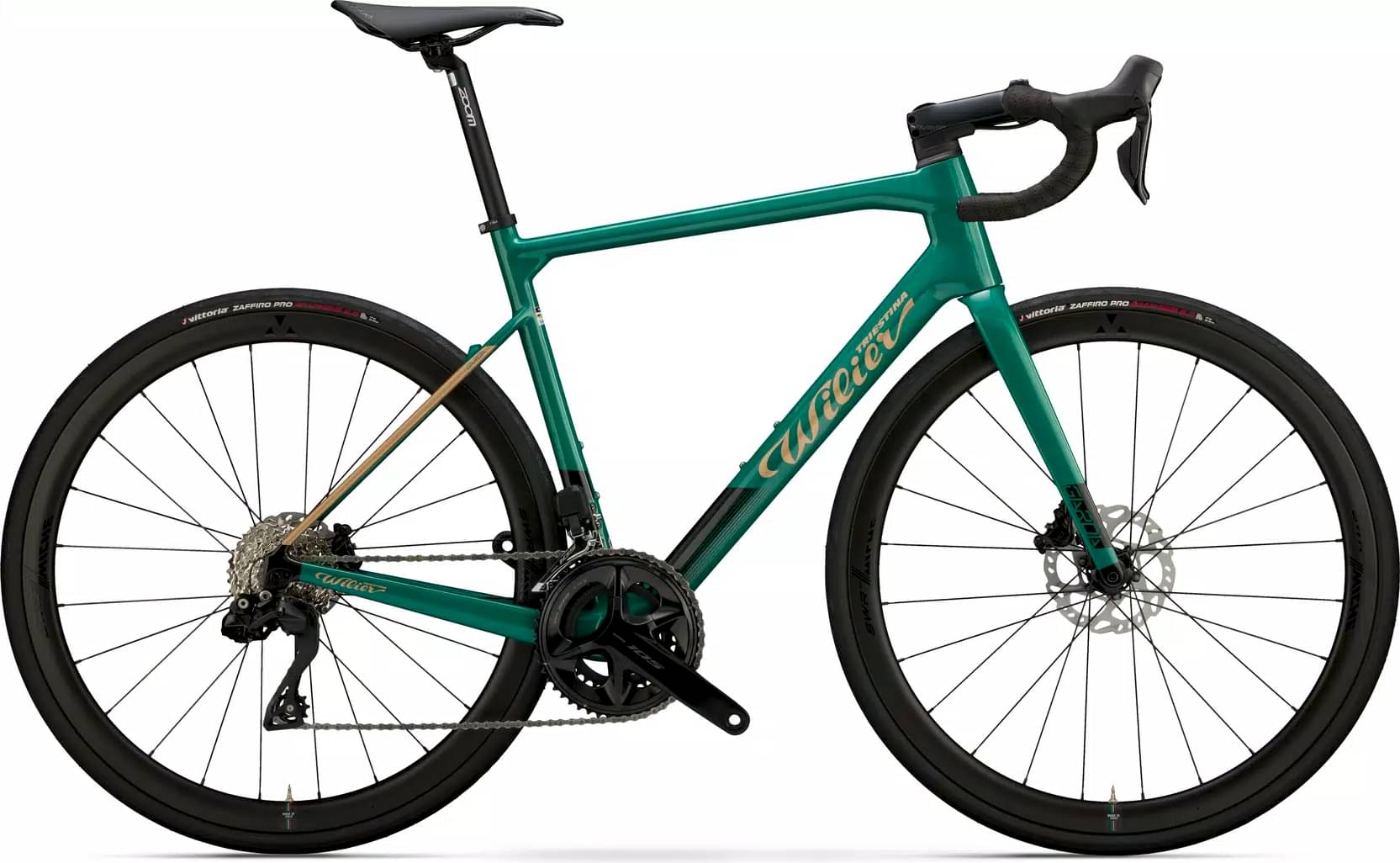

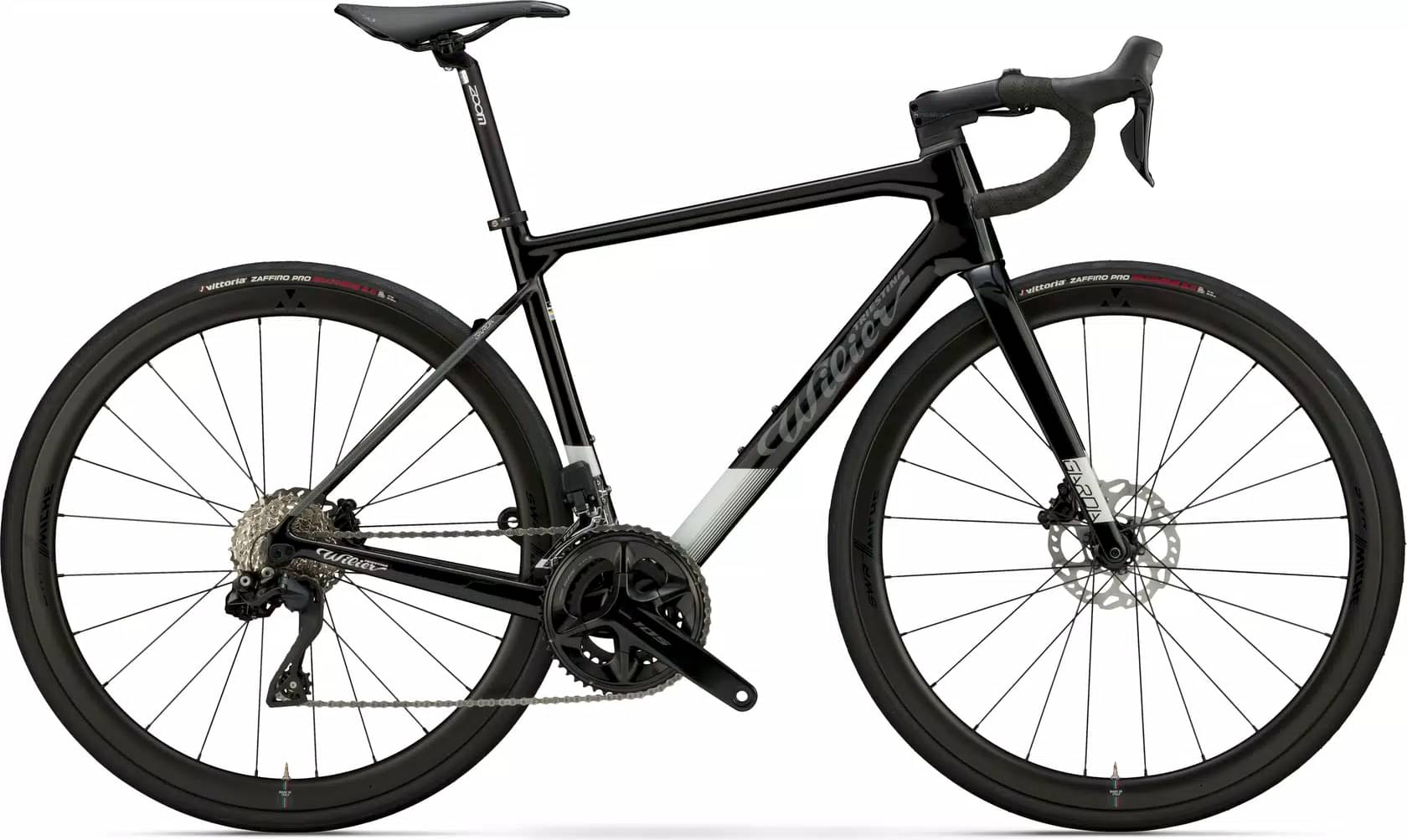

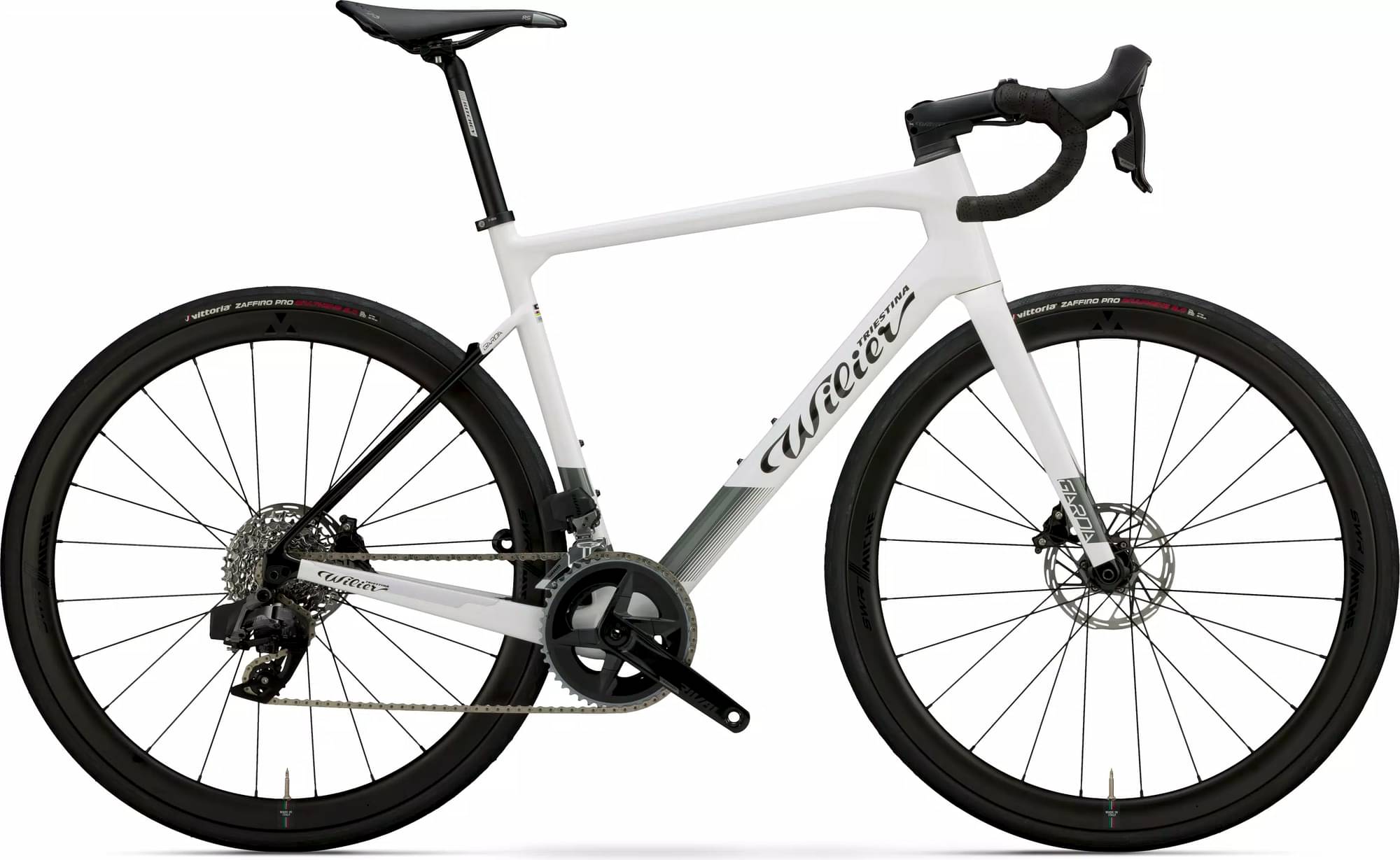

Wilier Garda SHIMANO 105 R7020 2X12S 2025
2025 Road
Estimate price |
3,141$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GARDA DISC - CARBON MONOCOQUE NH-MOD
Suspension Fork
GARDA DISC - CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7100
Front Derailleur
SHIMANO 105 FD-R7100
Shift Levers
SHIMANO 105 ST-7121
Cassette
SHIMANO 105 CS-R7100-12 11-34T
Crank
SHIMANO 105 FC-R7100 50-34T
Bottom Bracket
MICHE PRESSFIT 86.5X41
Chain
SHIMANO 105 CN-M7100
Wheels
Rims
MICHE REFLEX DX
Tires
VITTORIA ZAFFIRO 700x28c
Brakes
Brakes
SHIMANO 105 BR-7170
Cockpit
Stem
RITCHEY | WILIER STEMMA ALLOY
Handlebar
RITCHEY | WILIER BARRA ALLOY
Headset
CUSTOM SUPERSLIM 1-1/8" UPPER BR | FSA MR137 1-1/4" LOWER BR
Seat
Saddle
PROLOGO SADDLE KAPPA RS STN
Seatpost
? 27,2 mm ALLOY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.381 mm | 1.405 mm | 1.431 mm | 1.459 mm | 1.486 mm | 1.513 mm |
| Stack | 515 mm | 531 mm | 548 mm | 566 mm | 584 mm | 602 mm |
| Reach | 373 mm | 378 mm | 383 mm | 388 mm | 393 mm | 398 mm |
| Seat Tube Angle | 75.2 ° | 75 ° | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 465 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71.7 ° | 72.15 ° | 72.65 ° | 72.8 ° | 73.1 ° |
| Wheelbase | 981 mm | 981 mm | 990 mm | 996 mm | 1009 mm | 1016 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
