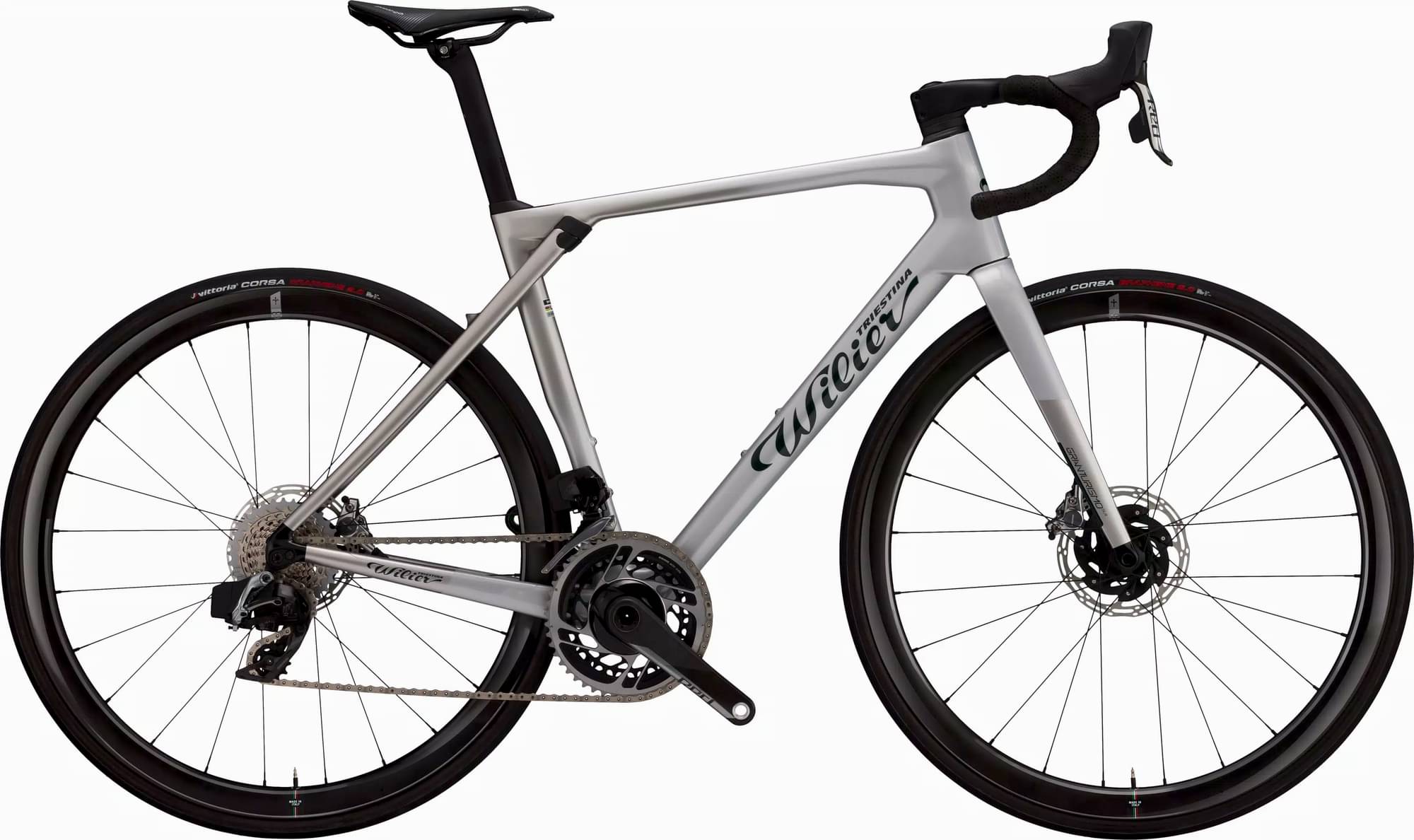

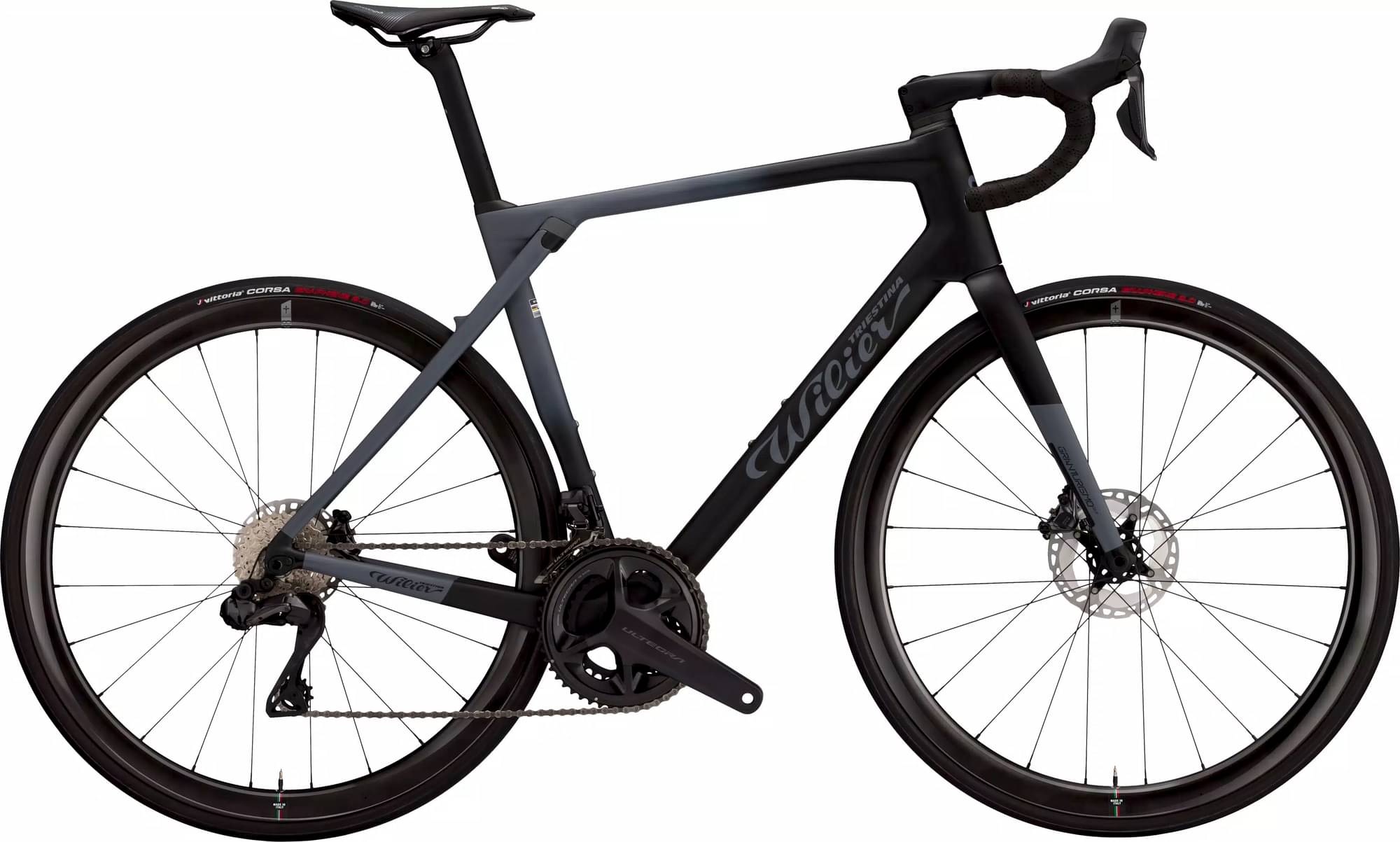

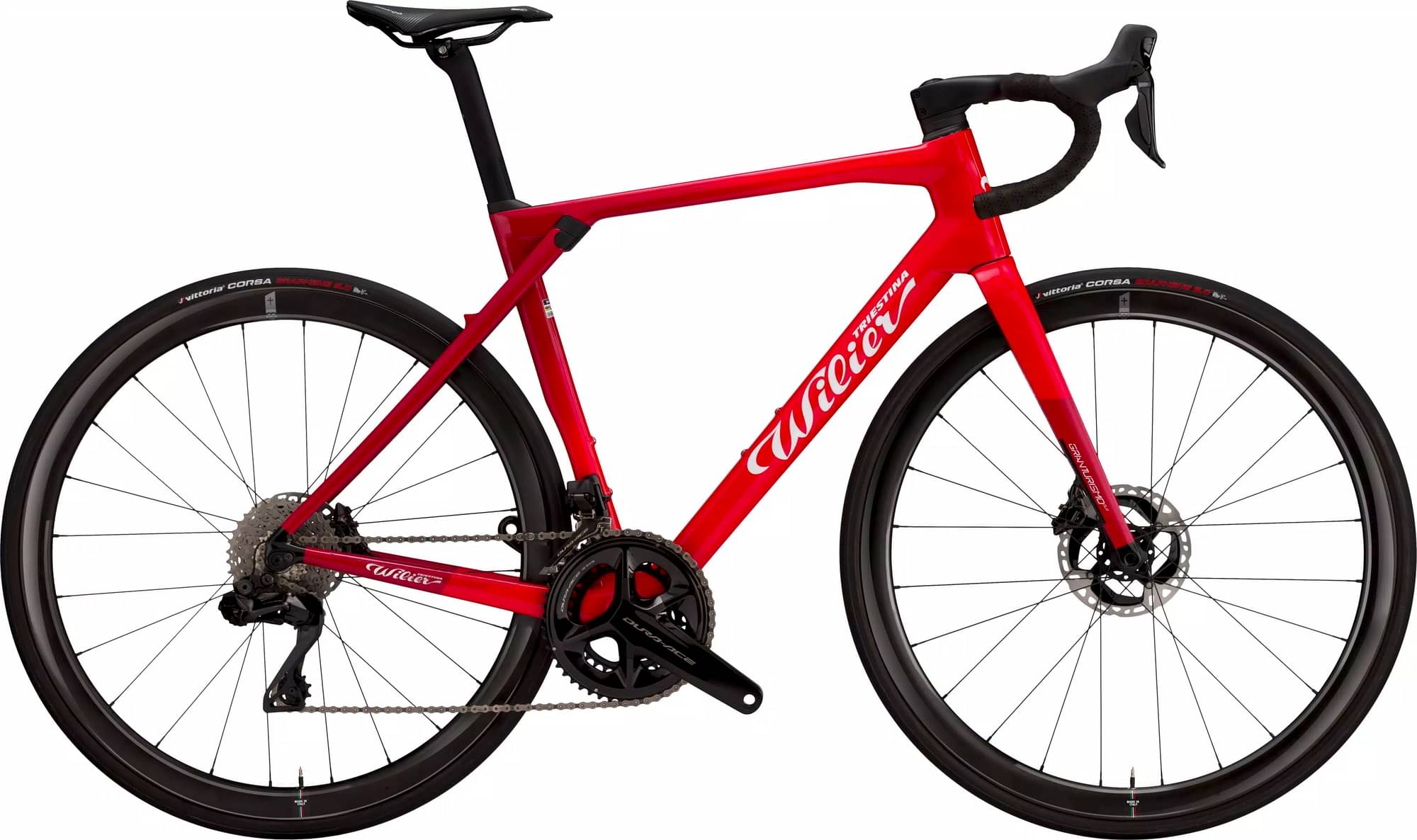

Wilier Granturismo SLR CAMPAGNOLO SUPER RECORD WRL 12S 2024
2024 Road
Estimate price |
13,763$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GRANTURISMO SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Suspension Fork
GRANTURISMO SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Drivetrain
Rear Derailleur
CAMPAGNOLO SUPER RECORD WRL 12S RD23-SR12WRL
Front Derailleur
CAMPAGNOLO SUPER RECORD WRL 12S FD23-SR12WRL
Shift Levers
CAMPAGNOLO SUPER RECORD ERGOPOWER SHIFT WRL
Cassette
CAMPAGNOLO SUPER RECORD CS23-SR1209 12S 10-29T
Crank
CAMPAGNOLO SUPER RECORD PRO T CARBON FC23-SR12295 34-50T
Bottom Bracket
CAMPAGNOLO BB CUP PRO-TECH PRESSFIT 86,5X41 IC21-PRBB86
Chain
CAMPAGNOLO SUPER RECORD CN23-SR12ML 12S
Wheels
Rims
WILIER SLR38KC
Tires
VITTORIA CORSA PRO 700x28
Brakes
Brakes
CAMPAGNOLO SUPER RECORD WRL 12S
Cockpit
Handlebar
ZERO BAR INTEGRATED CARBON
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
PROLOGO DIMENSION 143
Seatpost
FILANTE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.46 mm | 1.493 mm | 1.526 mm | 1.553 mm | 1.582 mm |
| Stack | 527 mm | 546 mm | 566 mm | 586 mm | 604 mm | 625 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 389 mm | 395 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Wheelbase | 977 mm | 985 mm | 995 mm | 1002 mm | 1013 mm | 1027 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
