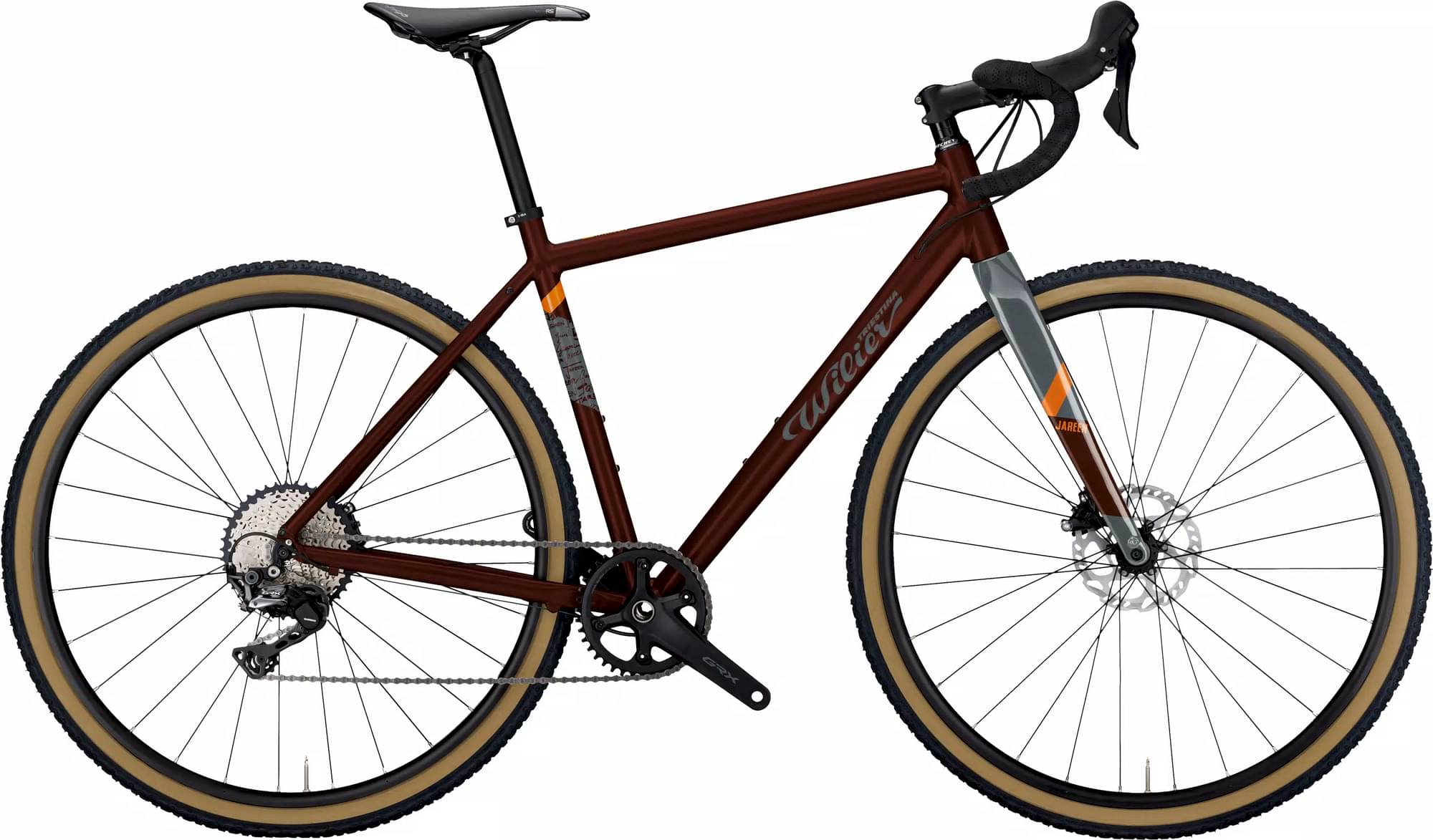

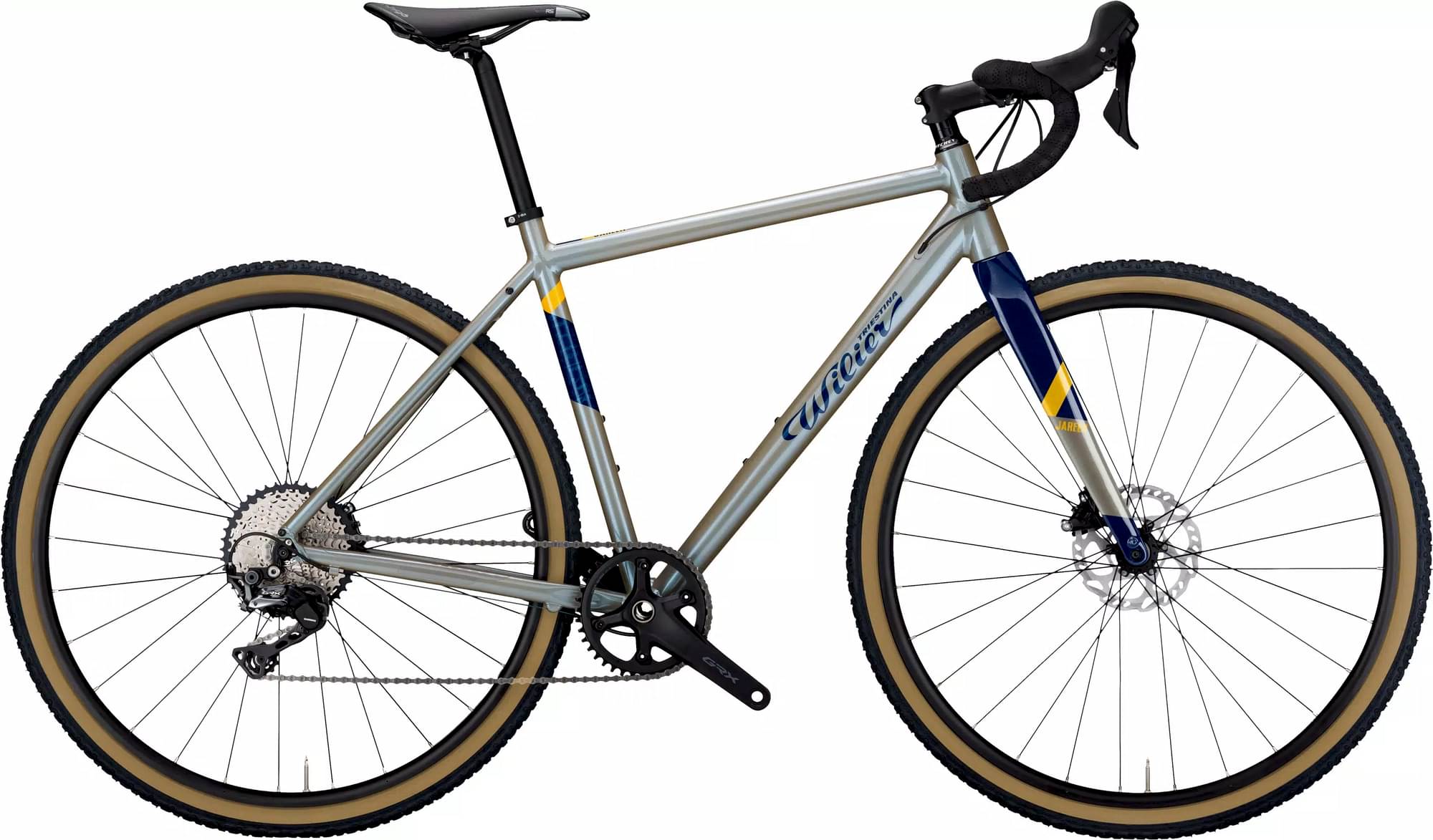

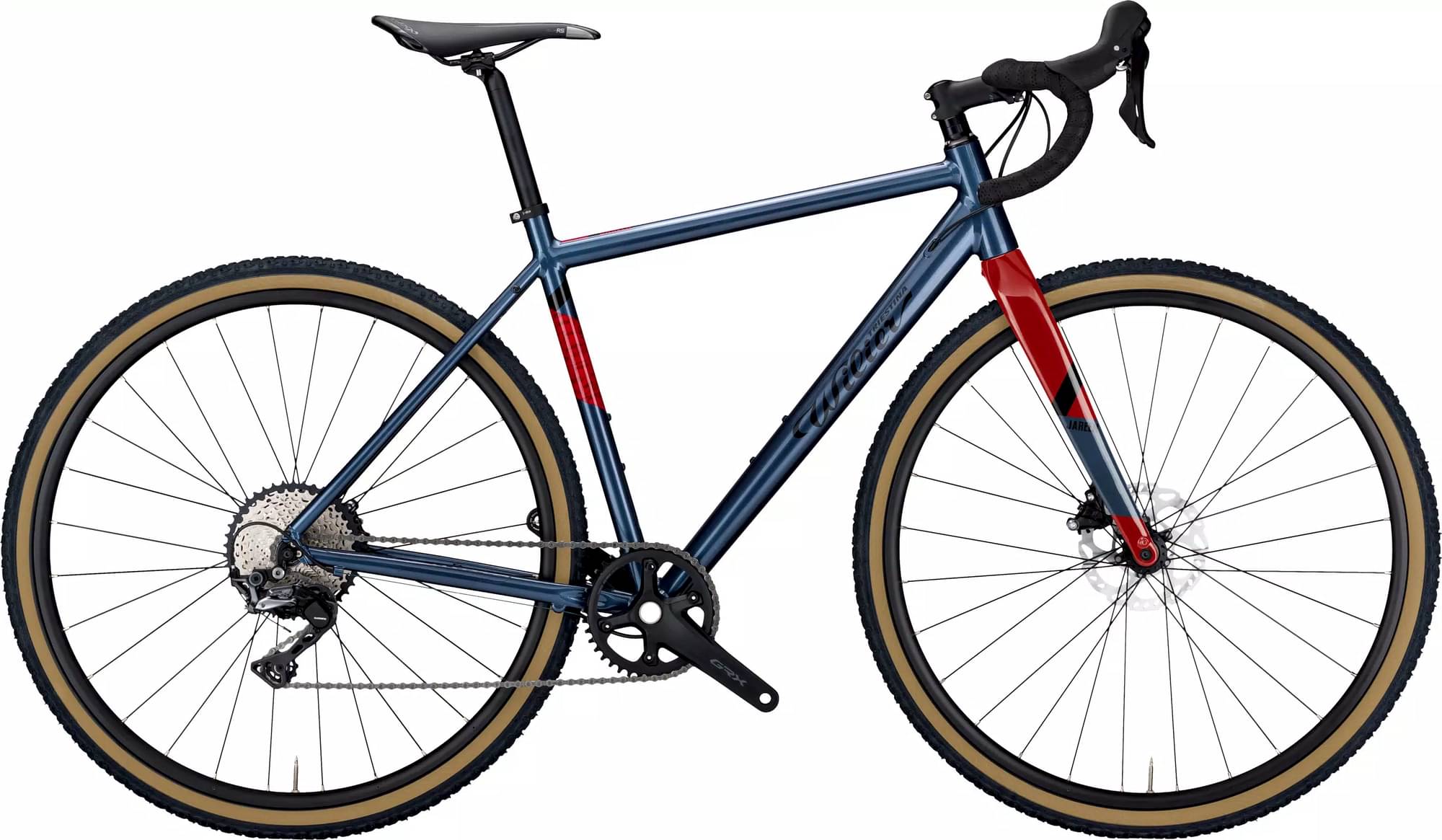

Wilier Jareen SHIMANO GRX 1x12S 2024
2024 Road
Estimate price |
2,443$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALLOY, INTEGRATED CABLE
Suspension Fork
CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX812
Shift Levers
SHIMANO GRX ST-RX610/BL-RX610
Cassette
SHIMANO CS-M7000, 12S 10-42T
Crank
SHIMANO GRX FC-RX610-1 40T
Chain
SHIMANO CN-M6100
Wheels
Rims
WILIER DD28 THRU-AXLE + QR
Tires
KENDA HAPPY MEDIUM 700x40
Brakes
Brakes
SHIMANO GRX BR-RX400
Cockpit
Stem
PROMAX DA-296
Handlebar
PROMAX DROP BAR HB-3053DB 12° FLARE OUT
Headset
FSA INTEGRATED
Seat
Saddle
VELO, BLACK
Seatpost
PROMAX SP-264
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.452 mm | 1.478 mm | 1.5 mm | 1.525 mm |
| Stack | 524 mm | 546 mm | 566 mm | 585 mm | 604 mm |
| Reach | 368 mm | 376 mm | 383 mm | 390 mm | 396 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70.25 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
