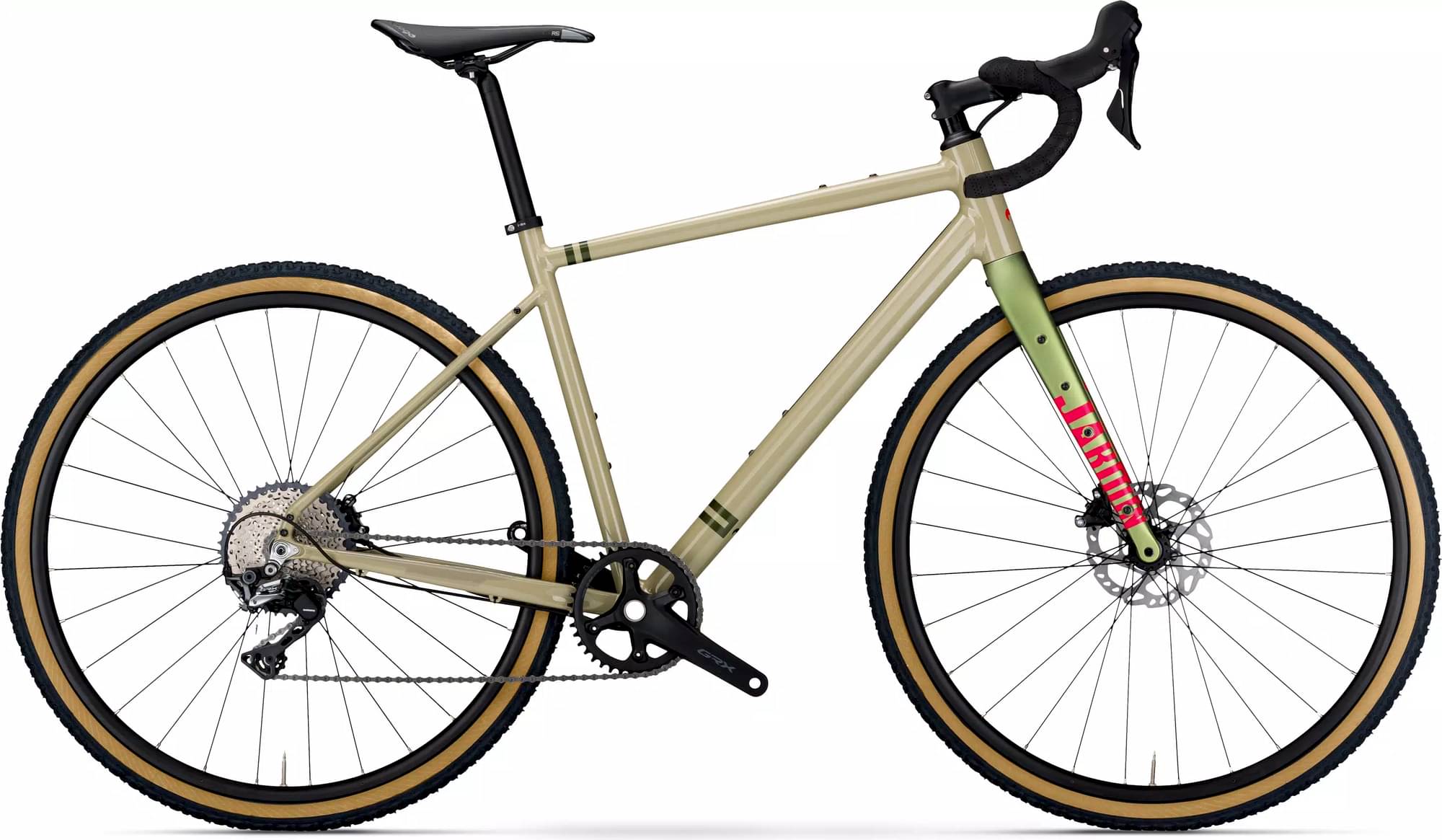

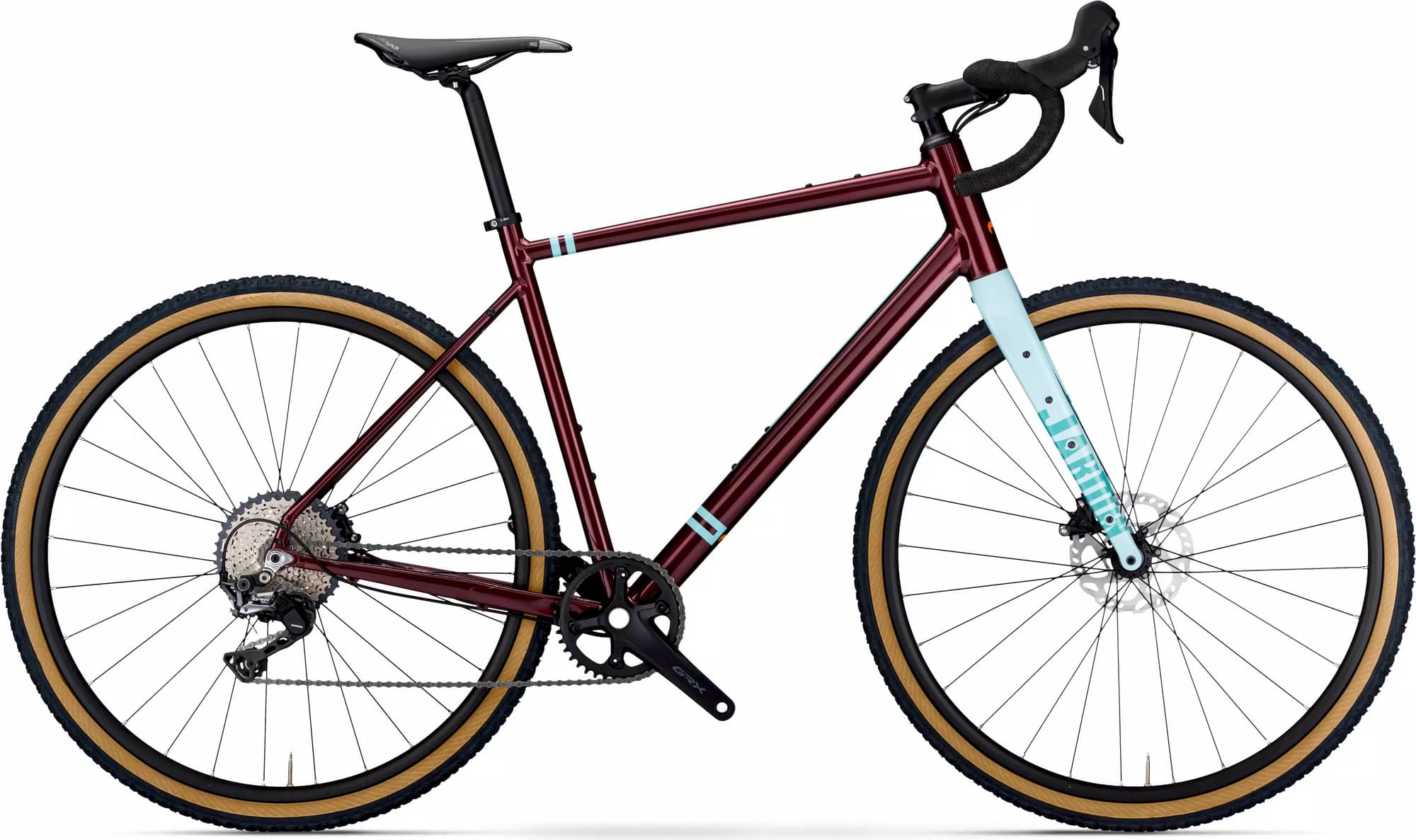

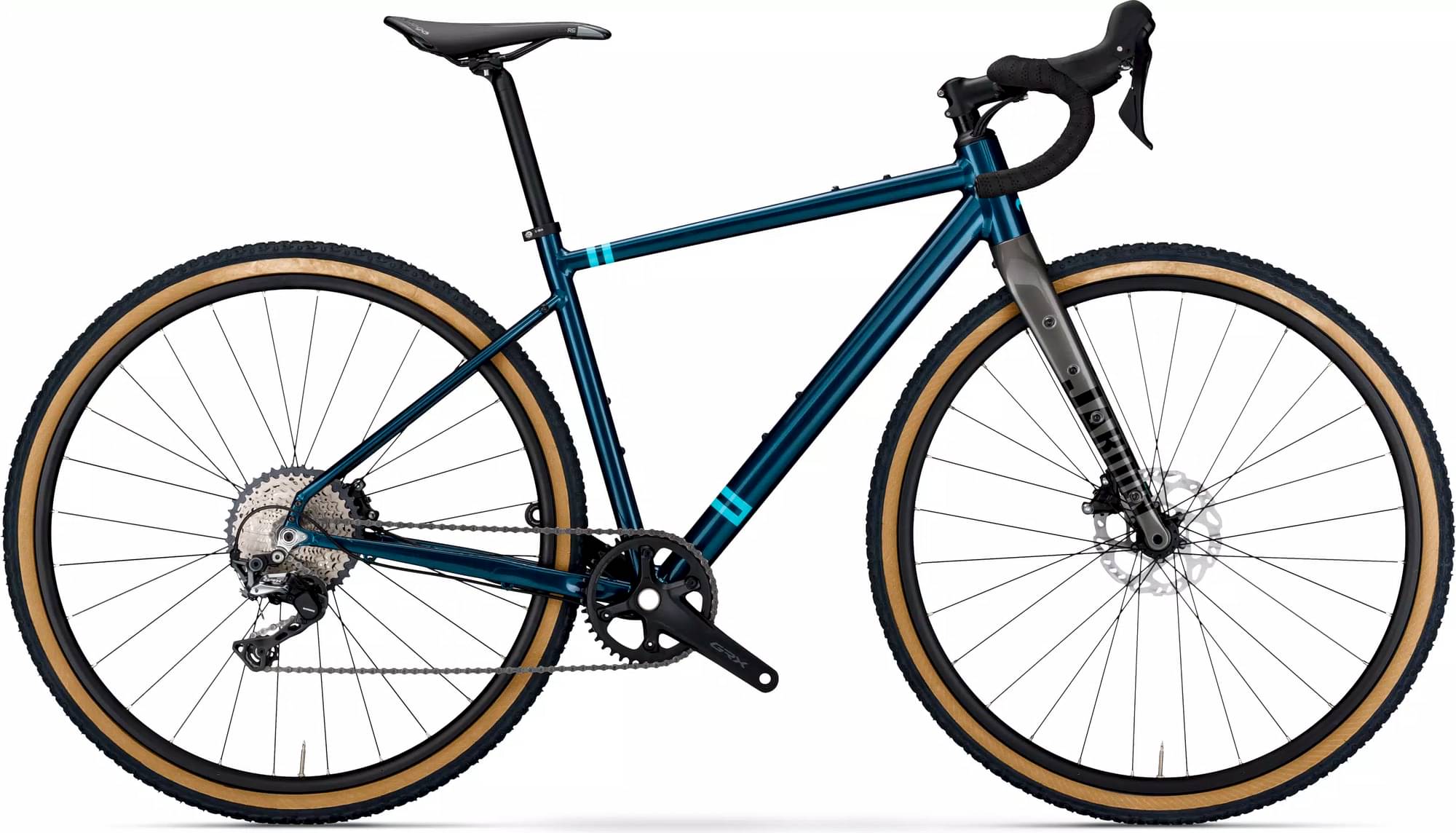

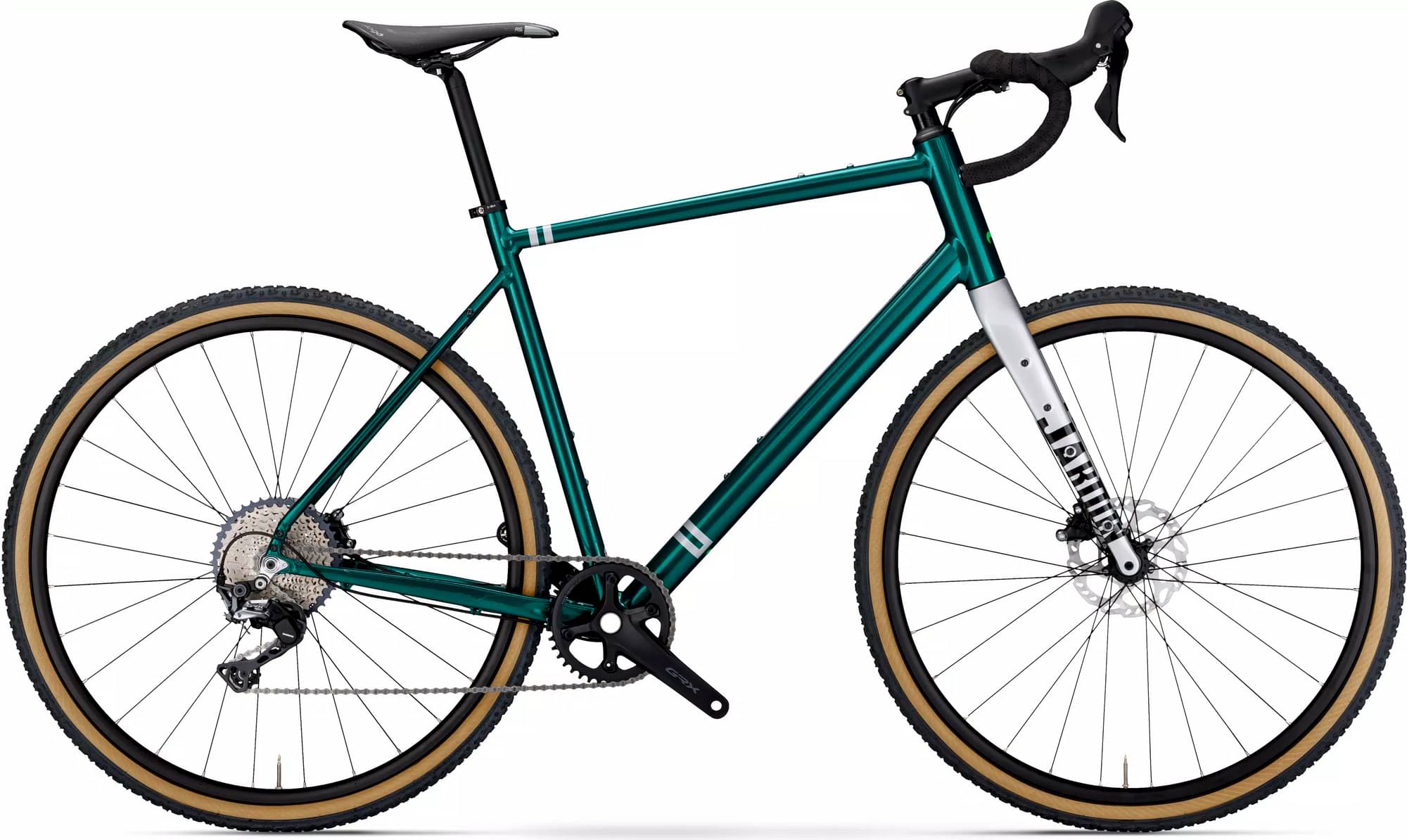

Wilier Jaroon SHIMANO GRX RX610 1X12S 2025
2025 Road
Estimate price |
2,676$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Shimano GRX 600 Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JAROON - ALLOY INTERNAL CABLE ROUTING
Suspension Fork
JAROON - CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX812
Shift Levers
SHIMANO GRX ST-RX6100
Cassette
SHIMANO CS-M7100-12 10-45T
Crank
SHIMANO FC-RX600 40T
Wheels
Rims
WTB 700c ALLOY
Tires
700x40c
Brakes
Brakes
SHIMANO GRX BR-RX610
Cockpit
Stem
PROMAX DA-296
Handlebar
PROMAX DROP BAR HB-3053DB ALLOY
Headset
FSA INTEGRATED
Seat
Saddle
ERGONOMIC DESIGN
Seatpost
ALLOY 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.446 mm | 1.464 mm | 1.482 mm | 1.501 mm |
| Stack | 548 mm | 567 mm | 587 mm | 606 mm | 626 mm |
| Reach | 384 mm | 392 mm | 401 mm | 409 mm | 417 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Wheelbase | 1037 mm | 1054 mm | 1071 mm | 1088 mm | 1104 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
