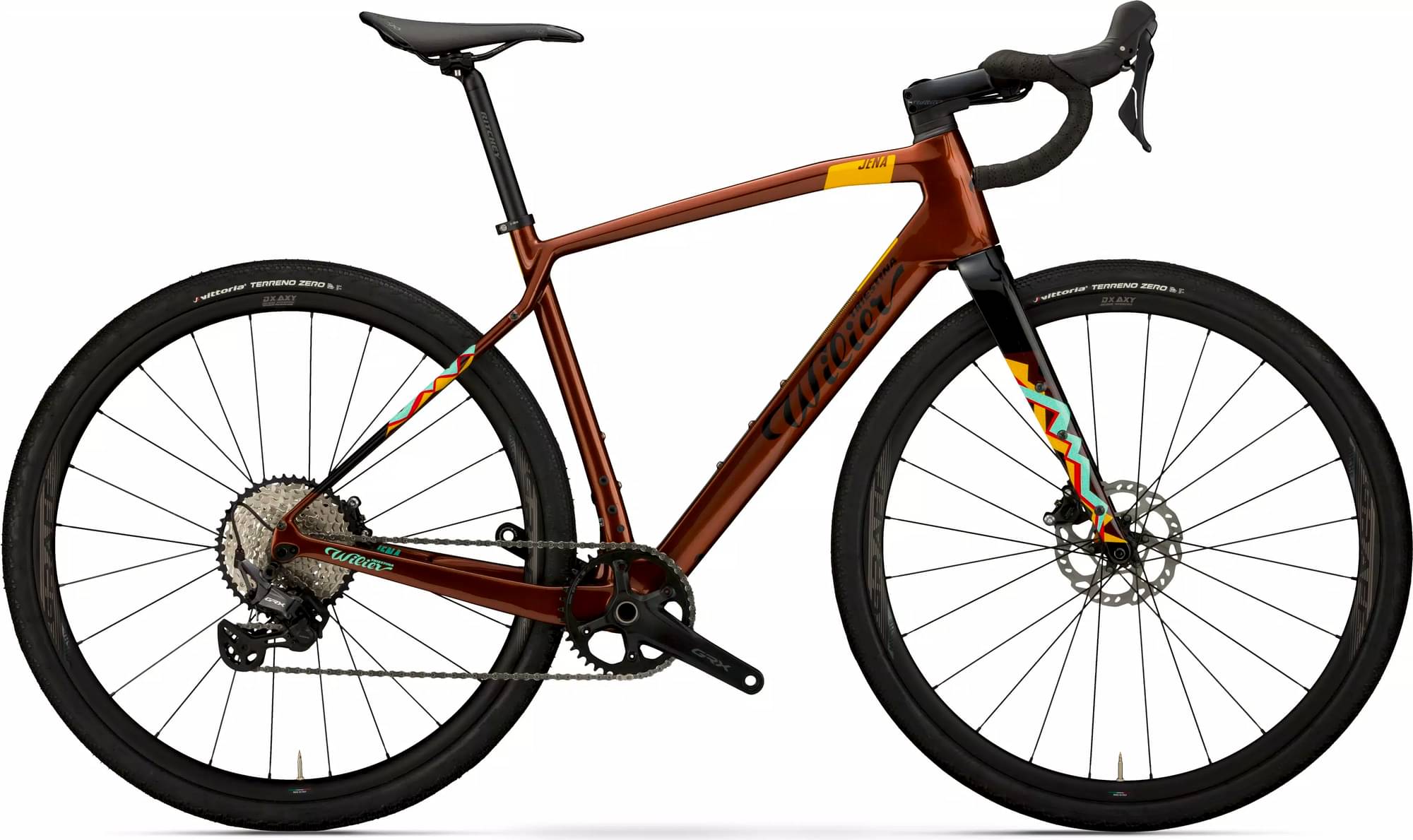

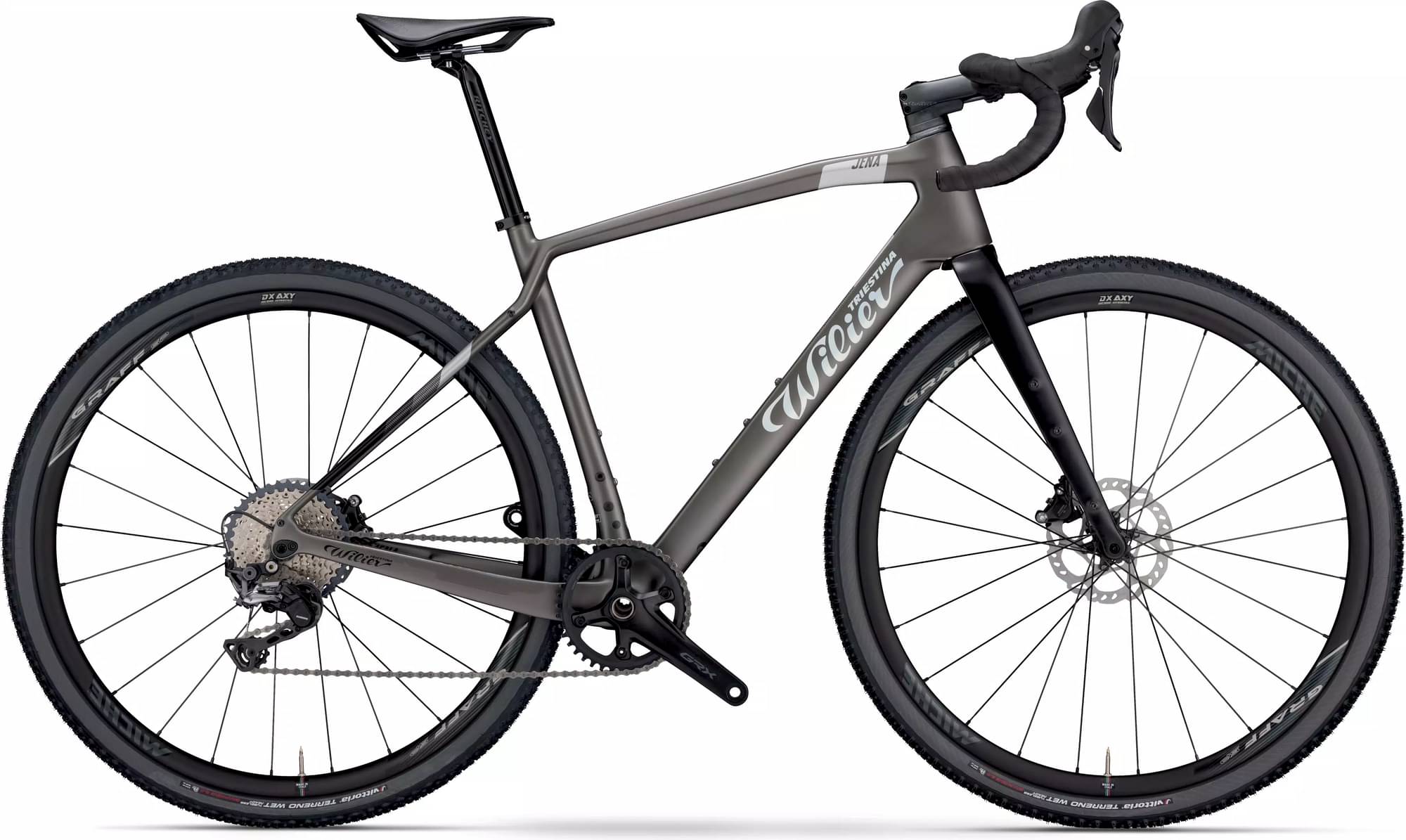

Wilier Jena SHIMANO GRX RX610 1X12S 2025
2025 Road
Estimate price |
4,188$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Shimano GRX 400 Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JENA - CARBON MONOCOQUE 60TON
Suspension Fork
JENA - CARBON MONOCOQUE 60TON
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX822-GS
Shift Levers
SHIMANO GRX ST-RX610
Cassette
SHIMANO CS-M7100-12 10-45T
Crank
SHIMANO GRX FC-RX610 40T
Bottom Bracket
MICHE PRESSFIT 86.5X41
Chain
SHIMANO CN-M6100
Wheels
Rims
MICHE GRAFF XL 700c TLR ALLOY
Tires
VITTORIA TERRENO DRY 700x40c
Brakes
Brakes
SHIMANO GRX BR-RX400
Cockpit
Stem
RITCHEY | WILIER STEMMA S ALLOY
Handlebar
RITCHEY COMP ERGOMAX ALLOY
Headset
CUSTOM SUPERSLIM 1-1/8" UPPER BR | FSA MR137 1-1/4" LOWER BR
Seat
Saddle
NOVUS BOOST™ EVO SUPERFLOW
Seatpost
RITCHEY | WILIER SEATPOST ALLOY 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.495 mm | 1.524 mm | 1.555 mm | 1.579 mm |
| Stack | 531 mm | 556 mm | 582 mm | 608 mm | 633 mm |
| Reach | 363 mm | 372 mm | 382 mm | 391 mm | 401 mm |
| Seat Tube Angle | 75 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.6 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
