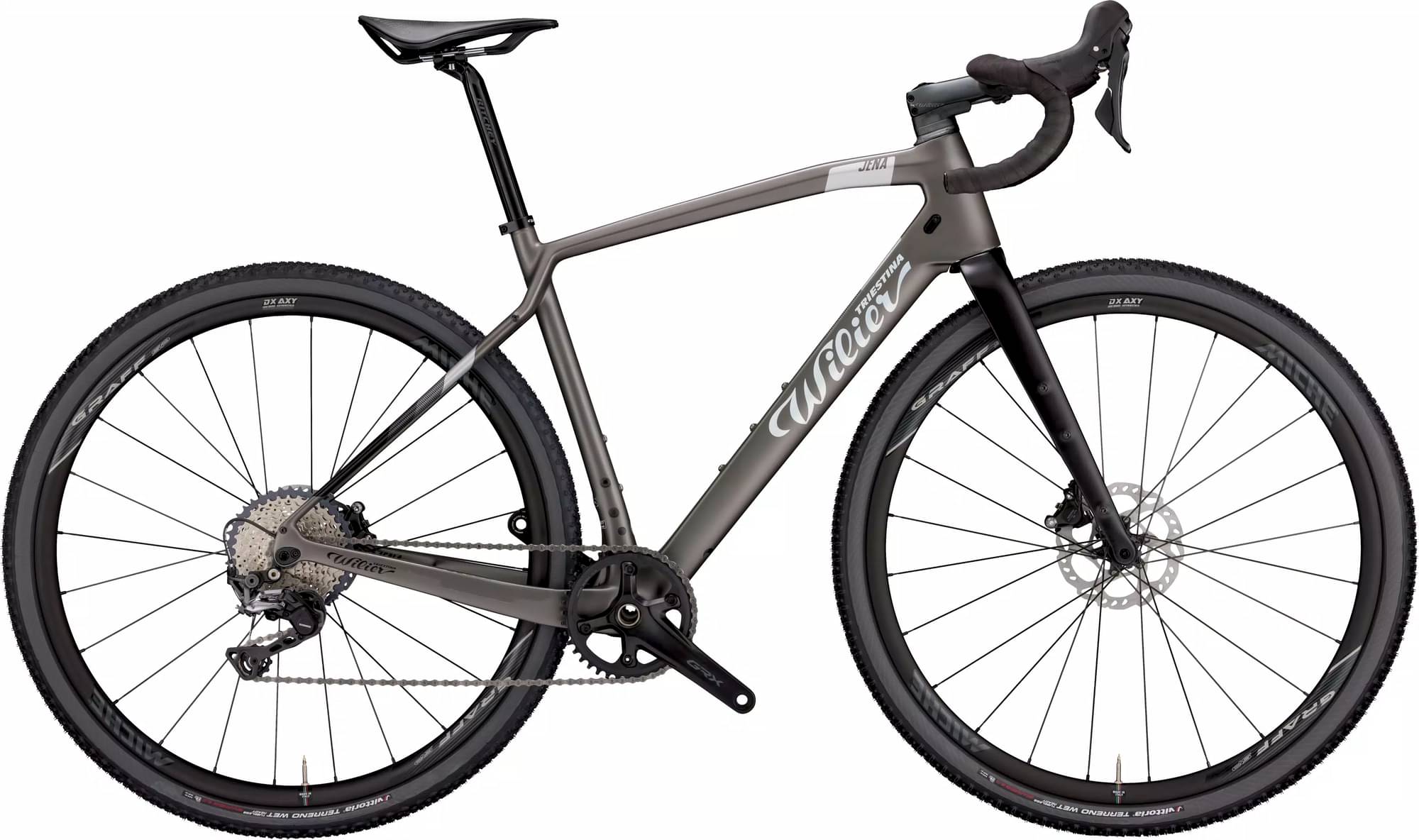

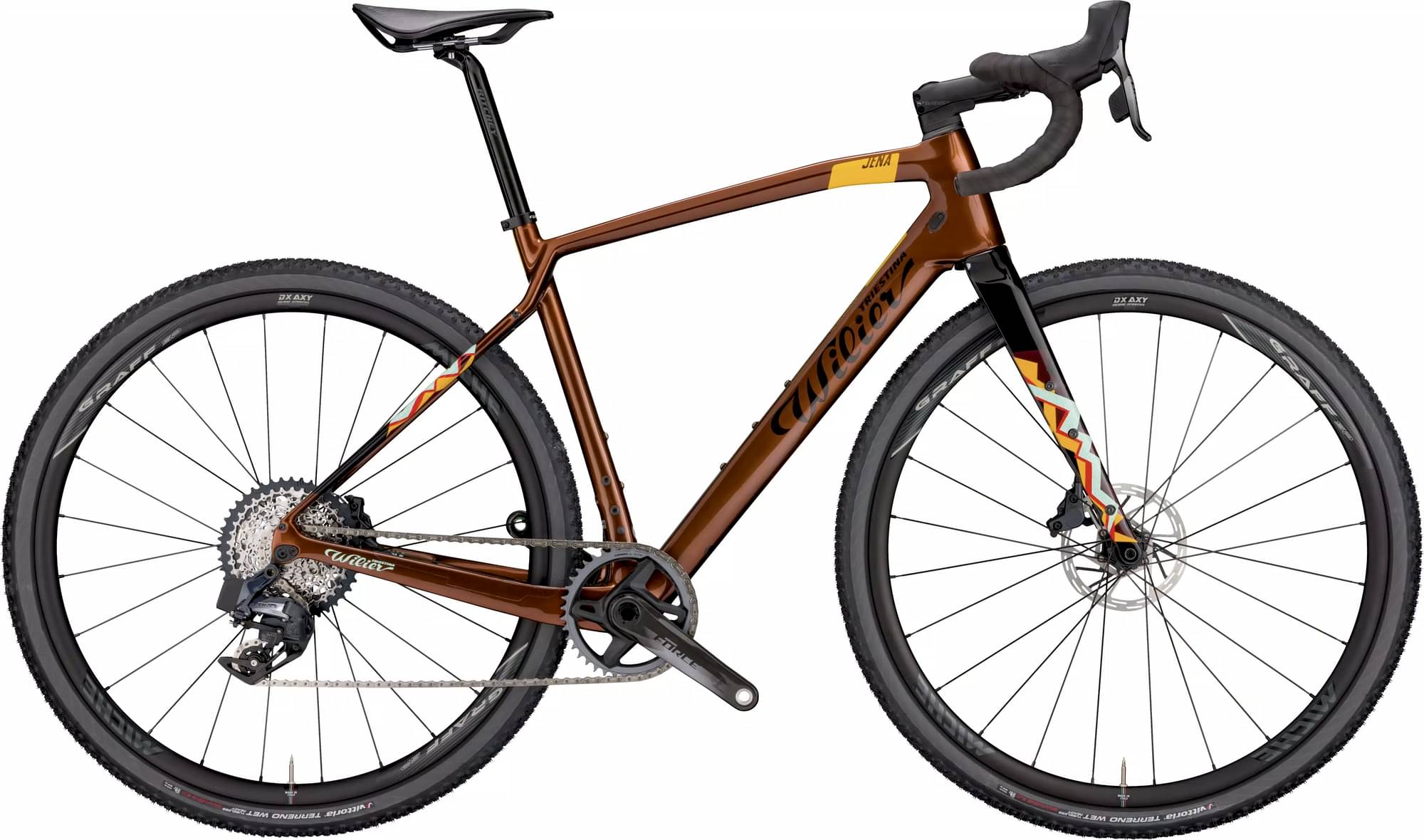

Wilier Jena SRAM RIVAL XPLR AXS 2024
2024 Road
Estimate price |
5,119$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JENA - CARBON MONOCOQUE 60TON
Suspension Fork
JENA - CARBON MONOCOQUE 60TON
Drivetrain
Rear Derailleur
SRAM RIVAL XPLR ETAP AXS D1 MAX 44T
Shift Levers
SRAM RIVAL ETAP AXS
Cassette
SRAM XG 1251 D1 XPLR 10-44T
Crank
SRAM RIVAL 1 D1 DUB WIDE 40T
Bottom Bracket
SRAM DUB PRESSFIT 86,5 MM ROAD
Chain
SRAM RIVAL D1 12S 114 LINK
Wheels
Rims
MICHE GRAFF XL
Tires
VITTORIA TERRENO DRY 2C 700x40
Brakes
Brakes
SRAM RIVAL ETAP AXS
Cockpit
Stem
STEMMA S
Handlebar
RITCHEY ERGOMAX COMP
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
WILIER SADDLE ROAD TITAN RAIL M 245-144
Seatpost
RITCHEY COMP 2-BOLT V2 ALU
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.495 mm | 1.524 mm | 1.555 mm | 1.579 mm |
| Stack | 531 mm | 556 mm | 582 mm | 608 mm | 633 mm |
| Reach | 363 mm | 372 mm | 382 mm | 391 mm | 401 mm |
| Seat Tube Angle | 75 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.6 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
