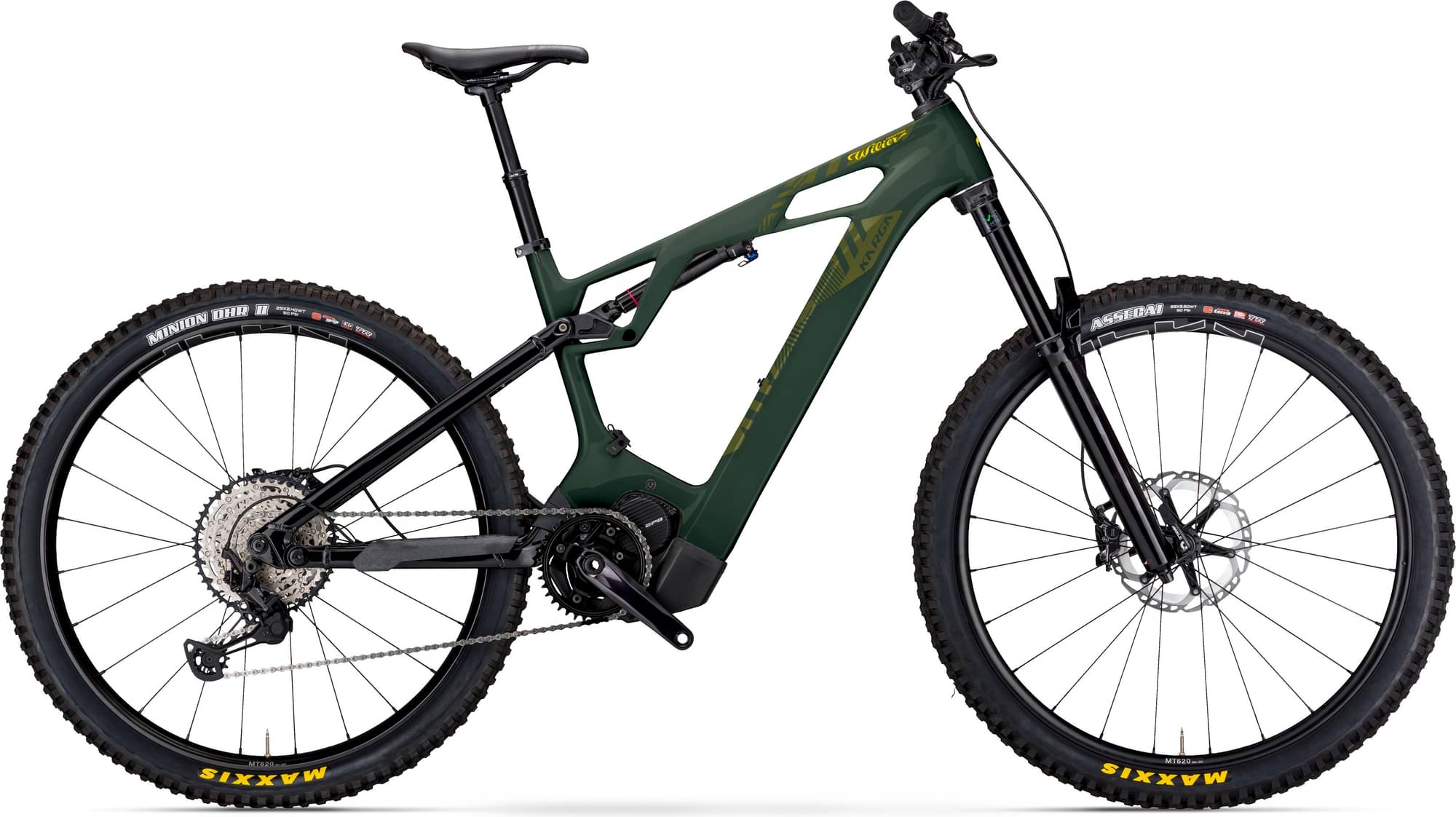

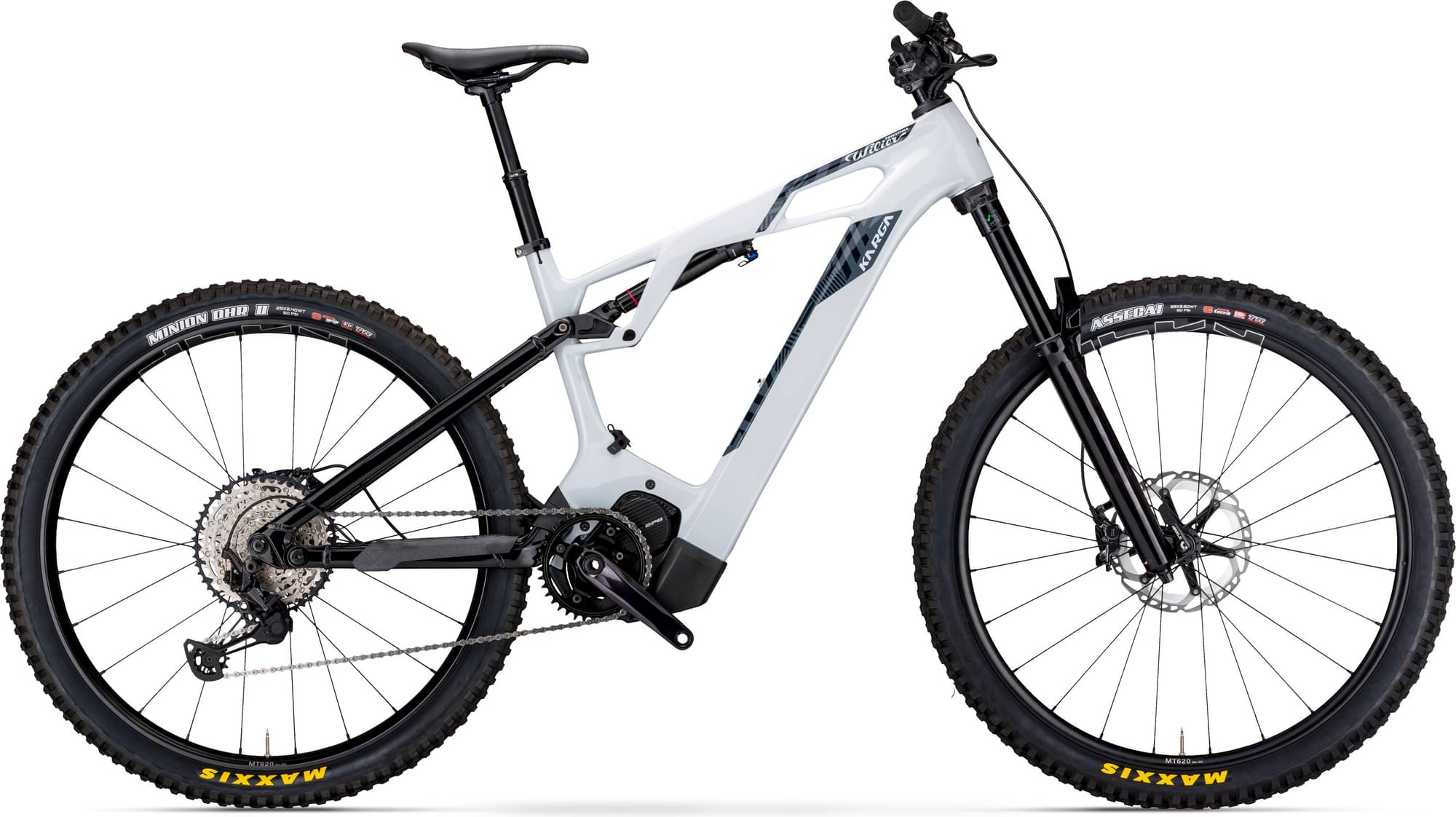

Wilier Karga SHIMANO DEORE 1X12S + SHIMANO EP6 2025
2025 E-bike
Estimate price |
8,027$
Weight | 24.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork RockShox 35 Silver
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery SIMPLO TPS-002 in-tube battery pack 720 Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CARBON FRONT TRIANGLE, ALLOY REAR STAYS
Suspension Fork
ROCK SHOX 35 SILVER TK 160 mm
Drivetrain
Rear Derailleur
SHIMANO RD-M7100-SGS
Shift Levers
SHIMANO DEORE M6101
Cassette
SHIMANO DEORE CS-M6100-12 10-51T
Crank
SHIMANO FC-EM602
Bottom Bracket
SHIMANO EP6 DRIVE UNIT INTEGRATED AXLE
Chain
SHIMANO CN-M6100
Wheels
Rims
SHIMANO MT620 ALLOY 29" TLR
Tires
VITTORIA MAZZA 29X2.4" TLR
Brakes
Brakes
SHIMANO MT401 / MT420 4 PISTONS SET
Cockpit
Stem
FSA COMET
Handlebar
FSA COMET ALLOY
Headset
TOKEN
Seat
Saddle
ERGONOMIC DESIGN
Seatpost
KS LEV-Si 100 DROPPER ? 27.2 mm
Motor & Battery
Motor
SHIMANO MID-DRIVE DU-EP6 85 Nm
Battery
SIMPLO TPS-002 in-tube battery pack 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.378 mm | 1.321 mm | 1.269 mm |
| Stack | 620 mm | 627 mm | 634 mm | 641 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Wheelbase | 1213 mm | 1241 mm | 1269 mm | 1298 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
