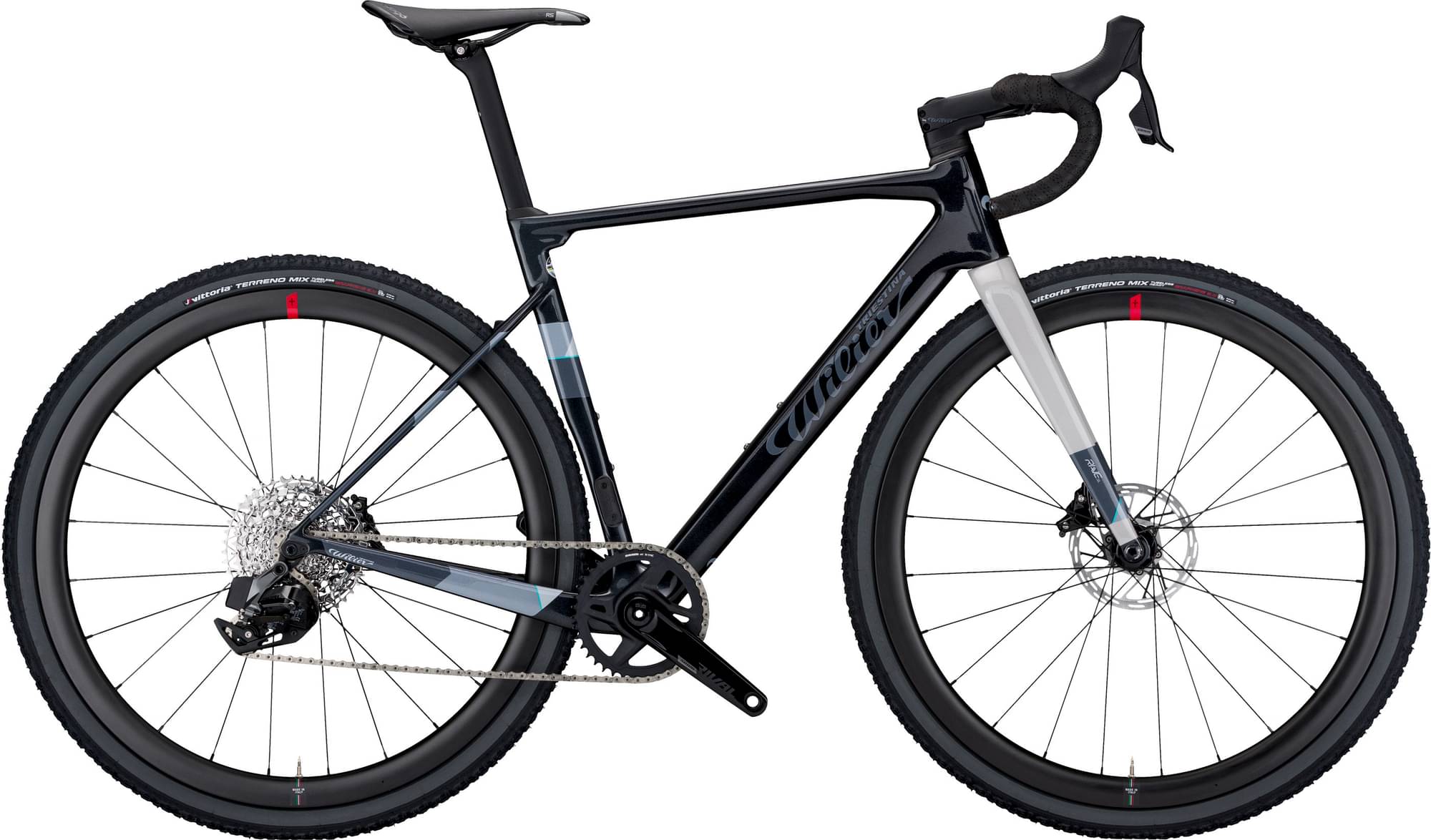

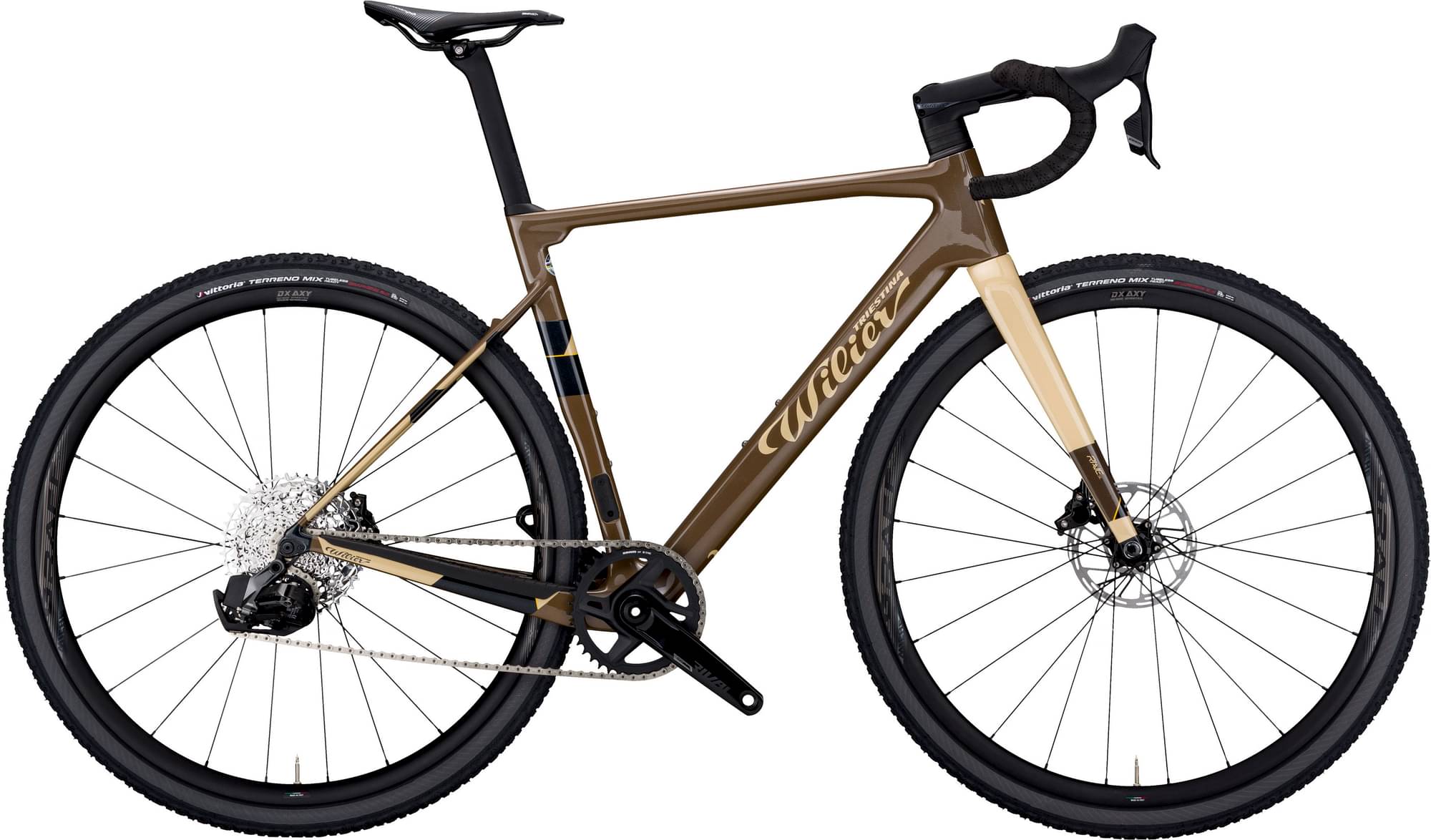

Wilier Rave SL SHIMANO ULTEGRA Di2 R8170 2024
2024 Road
Estimate price |
8,143$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAVE SL - CARBON MONOCOQUE NHU-MOD + HIGH IMPACT STRENGHT
Suspension Fork
RAVE SL - CARBON MONOCOQUE NHU-MOD + HIGH IMPACT STRENGHT
Drivetrain
Rear Derailleur
SHIMANO ULTEGRA RD-R8150 Di2
Front Derailleur
SHIMANO ULTEGRA FD-R8150 Di2
Shift Levers
SHIMANO ULTEGRA ST-R8170 Di2
Cassette
SHIMANO ULTEGRA CS-R8100 12S
Crank
SHIMANO ULTEGRA FC-R8100
Bottom Bracket
SHIMANO ULTEGRA PRESS FIT SM-BB72
Chain
SHIMANO ULTEGRA CN-M8100 12
Wheels
Rims
WILIER NDR38KC
Tires
VITTORIA RUBINO 700X28
Brakes
Brakes
SHIMANO ULTEGRA BR-R8170
Cockpit
Stem
STEMMA S
Handlebar
BARRA S
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
SAN MARCO SHORTFIT STARTUP
Seatpost
FILANTE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.386 mm | 1.411 mm | 1.435 mm | 1.458 mm | 1.48 mm | 1.501 mm |
| Stack | 513 mm | 532 mm | 551 mm | 570 mm | 589 mm | 608 mm |
| Reach | 370 mm | 377 mm | 384 mm | 391 mm | 398 mm | 405 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Wheelbase | 997 mm | 1012 mm | 1017 mm | 1031 mm | 1041 mm | 1051 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
