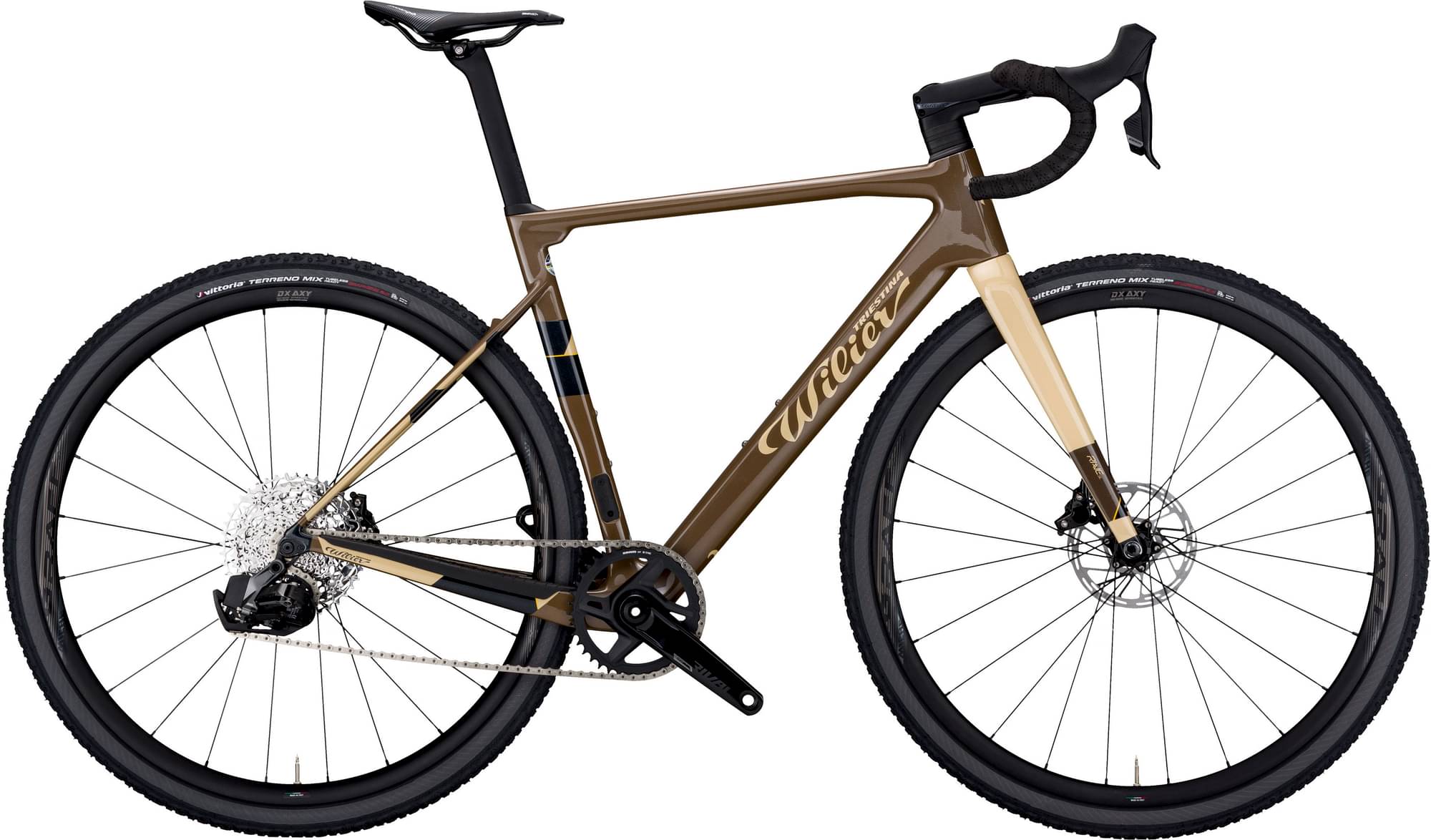

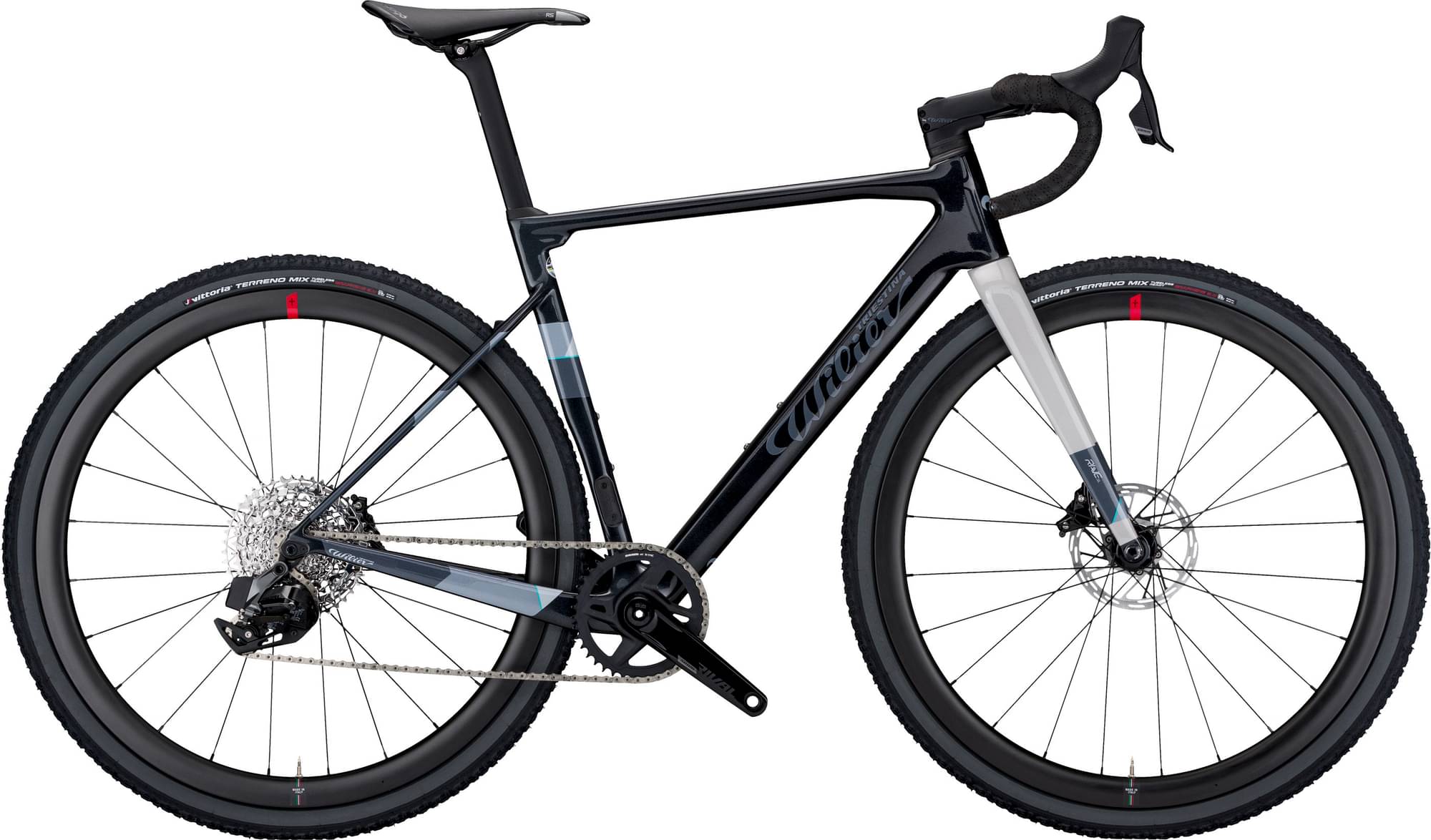

Wilier Rave SL SRAM RIVAL XPLR AXS 2024
2024 Road
Estimate price |
5,700$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAVE SL - CARBON MONOCOQUE NHU-MOD + HIGH IMPACT STRENGHT
Suspension Fork
RAVE SL - CARBON MONOCOQUE NHU-MOD + HIGH IMPACT STRENGHT
Drivetrain
Rear Derailleur
SRAM RIVAL XPLR ETAP AXS D1 MAX 44T
Shift Levers
SRAM RIVAL ETAP AXS
Cassette
SRAM XG 1251 D1 XPLR 10-44T
Crank
SRAM RIVAL 1 D1 DUB WIDE 40T
Bottom Bracket
SRAM DUB PRESSFIT 86,5 MM ROAD
Chain
SRAM RIVAL D1 12S 114 LINK
Wheels
Rims
MICHE GRAFF XL
Tires
VITTORIA TERRENO DRY FOLDING 700X40
Brakes
Brakes
SRAM RIVAL ETAP AXS
Cockpit
Stem
STEMMA S
Handlebar
RITCHEY H-BAR ROAD CMP ERGOMAX
Headset
WILIER CUSTOM BEARINGS SUPERSLIM
Seat
Saddle
PROLOGO DIMENSION AGX
Seatpost
FILANTE SLR CUSTOM MADE -15 mm/0 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.386 mm | 1.411 mm | 1.435 mm | 1.458 mm | 1.48 mm | 1.501 mm |
| Stack | 513 mm | 532 mm | 551 mm | 570 mm | 589 mm | 608 mm |
| Reach | 370 mm | 377 mm | 384 mm | 391 mm | 398 mm | 405 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Wheelbase | 997 mm | 1012 mm | 1017 mm | 1031 mm | 1041 mm | 1051 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
