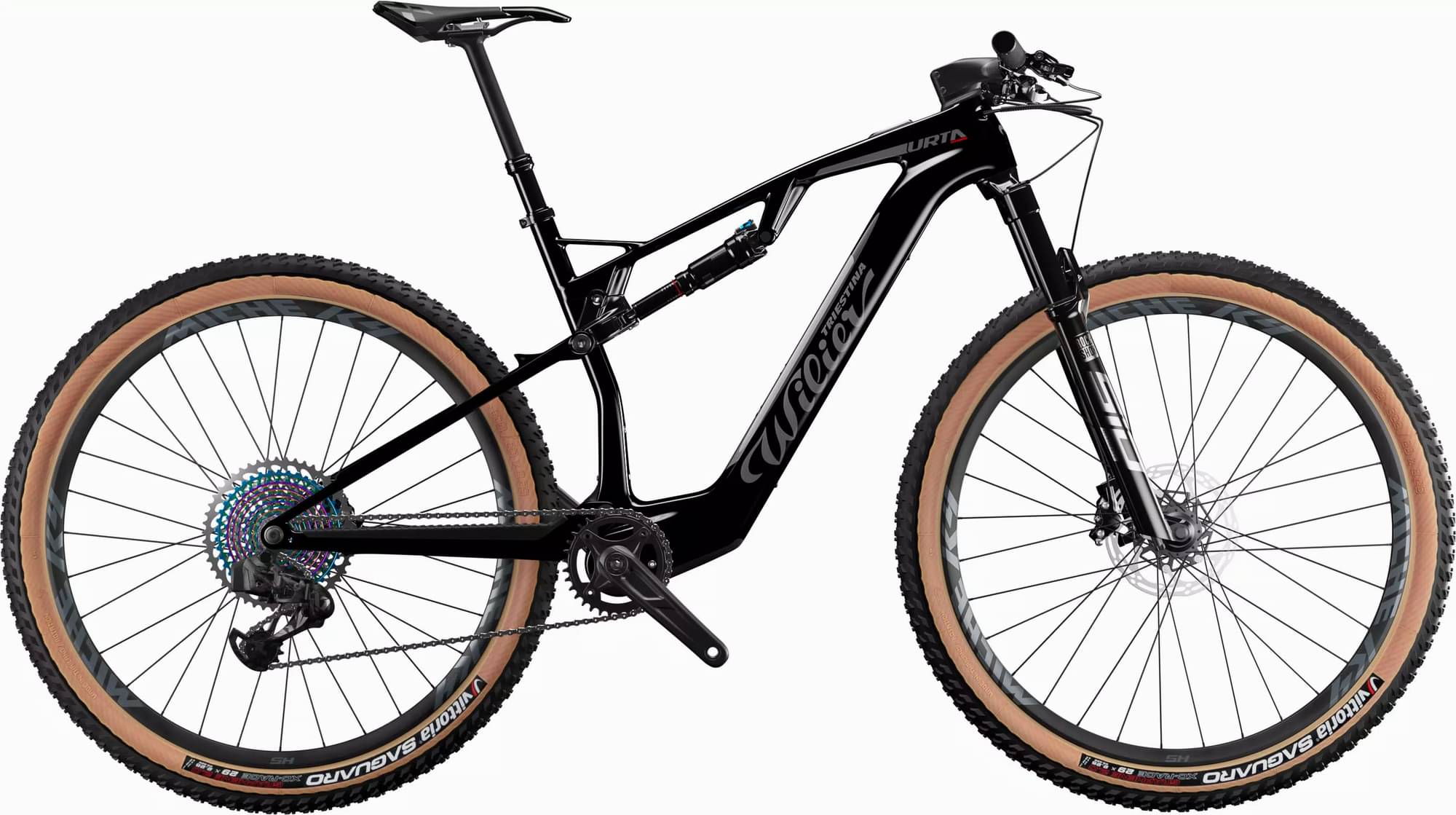

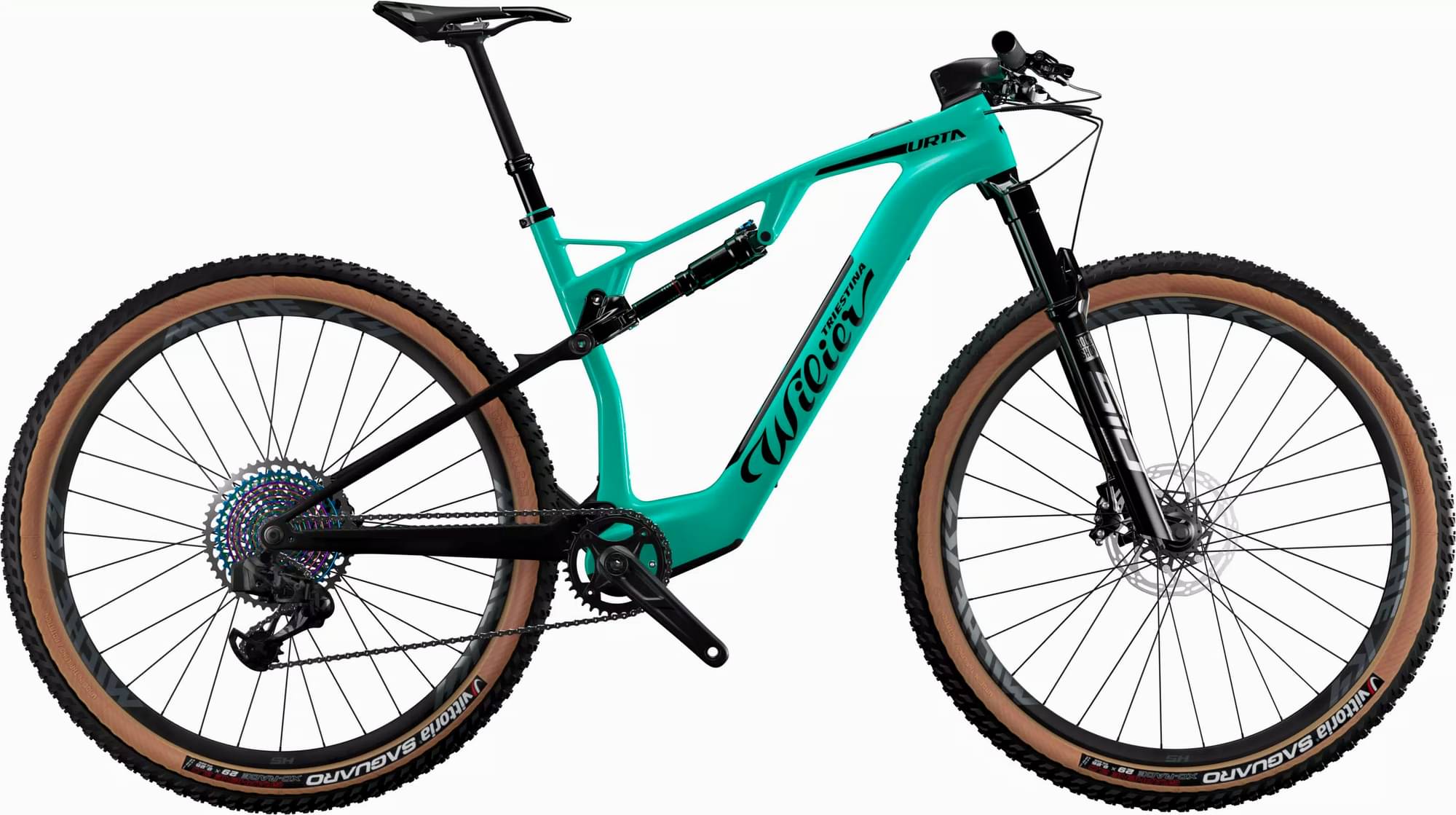

Wilier Urta Hybrid SHIMANO XT 1X12 + FAZUA RIDE 60 2024
2024 E-bike
Estimate price |
8,373$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox SID
-
Groupset XT, SLX -
Suspension Hardtail -
Motor 450W 60Nm mid-drive -
Battery 430Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URTA HYBRID CARBON HUS-MOD
Suspension Fork
ROCKSHOX SID FS-SID-BSE-C1 120 mm, BOOST
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100-SGS
Shift Levers
SHIMANO SLX M7100
Cassette
SHIMANO XT 12S CS-M8100-12 10-51T
Crank
MICHE ALU 32T
Chain
SHIMANO SLX CN-M7100 118 LINK
Wheels
Rims
MICHE 966 ALU
Tires
PIRELLI SCORPION XC 29X2.4"
Brakes
Brakes
SHIMANO XT BR-M8100
Cockpit
Stem
RITCHEY WCS ALU C220
Handlebar
RITCHEY WCS ALU
Headset
RITCHEY COMP
Seat
Saddle
PROLOGO PROXIM
Seatpost
DROP KS RAGEi
Motor & Battery
Motor
450 W, 60 Nm, 25 Km/h
Battery
430Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.461 mm | 1.382 mm | 1.328 mm | 1.285 mm |
| Stack | 593 mm | 597 mm | 608 mm | 623 mm |
| Reach | 406 mm | 432 mm | 458 mm | 485 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Wheelbase | 1148 mm | 1167 mm | 1198 mm | 1231 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
