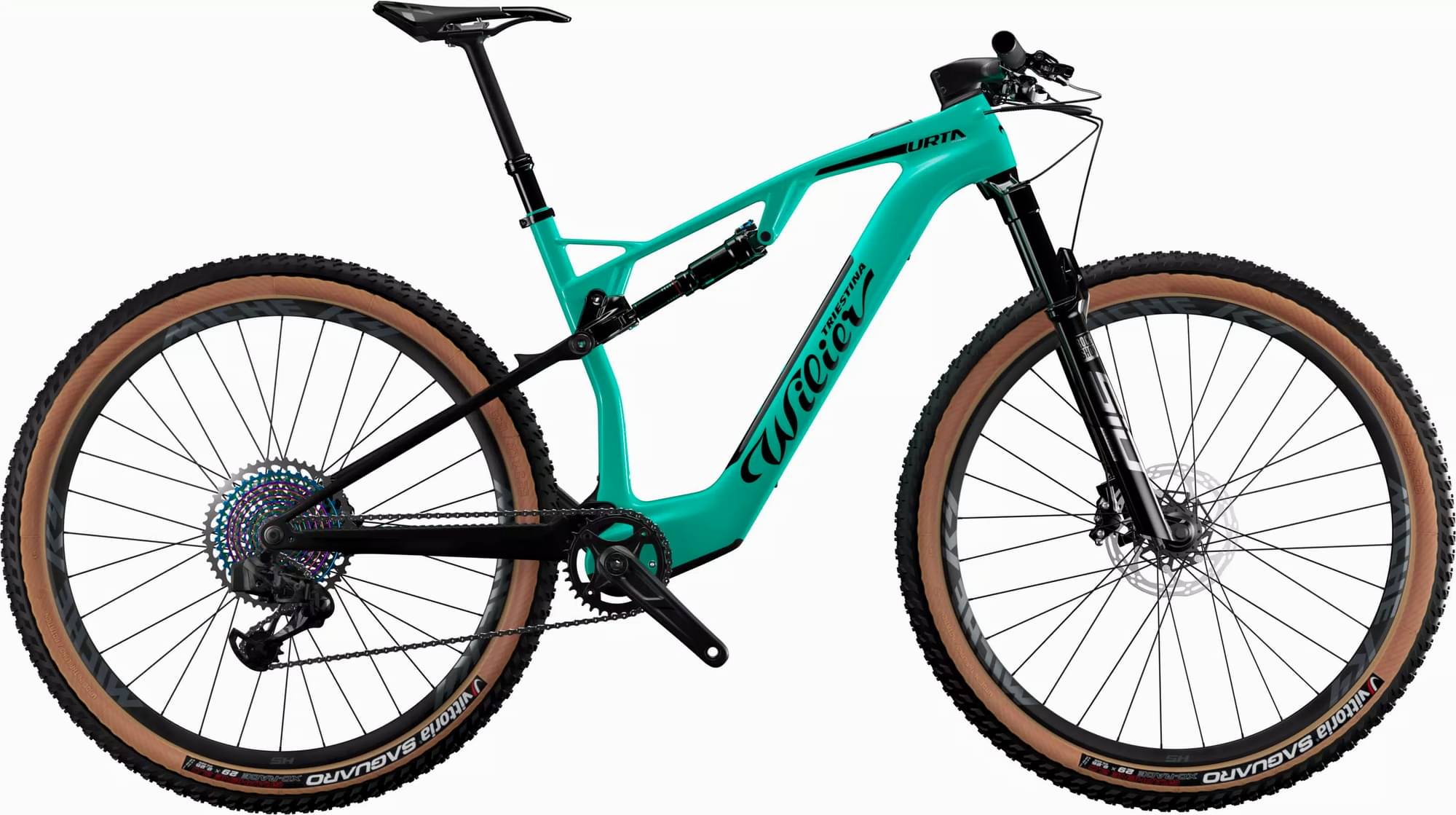

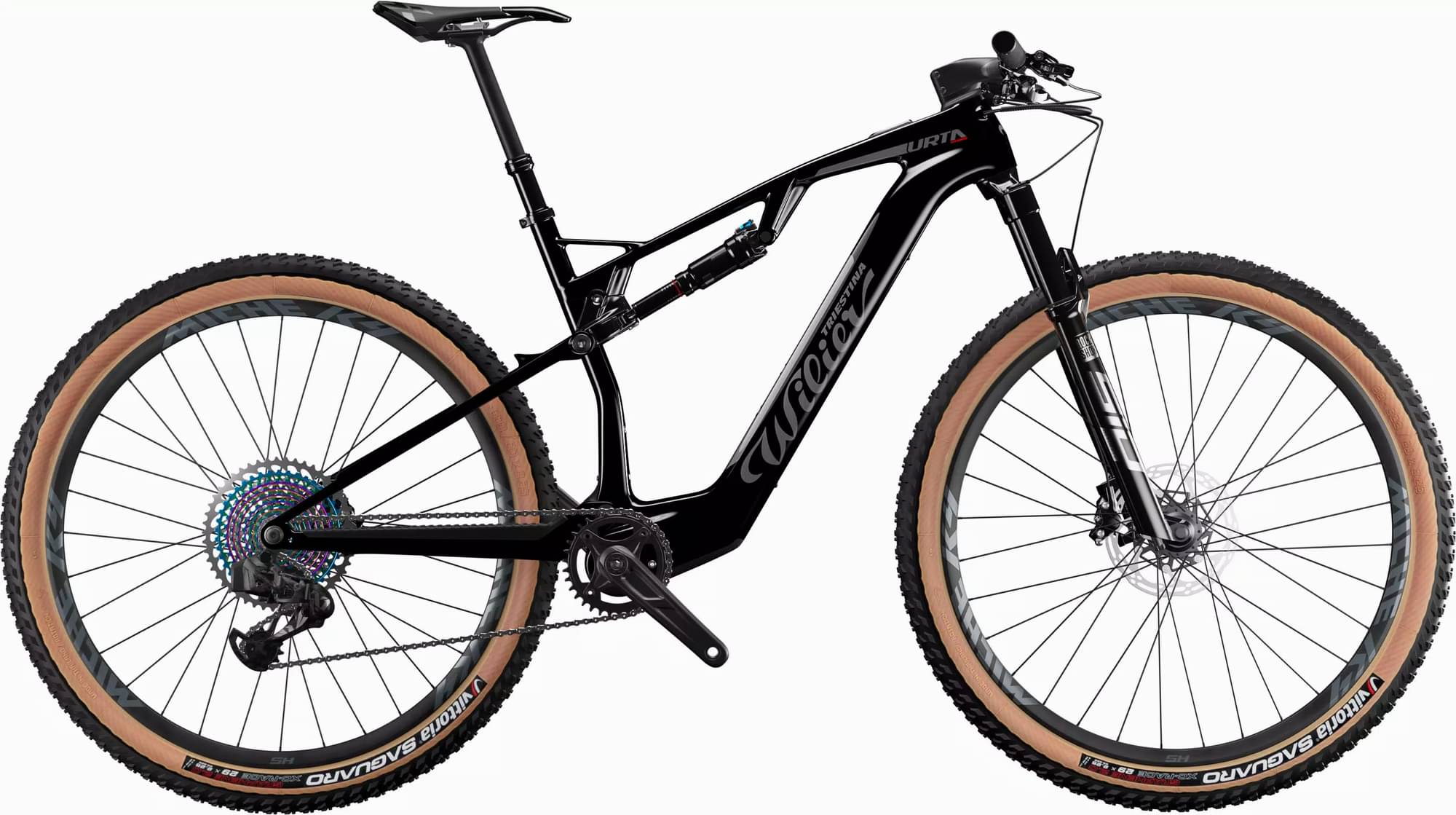

Wilier Urta Hybrid SHIMANO XT 1X12S 2024
2024 E-bike
Estimate price |
8,373$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox SID
-
Groupset XT -
Suspension Hardtail -
Motor Fazua 60Nm mid-drive -
Battery FAZUA ENERGY 430Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URTA HYBRID CARBON HUS-MOD
Suspension Fork
ROCKSHOX SID FS-SID-BSE-C1 120 mm BOOST
Drivetrain
Rear Derailleur
SHIMANO DEORE XT RD-M8100-SGS
Shift Levers
SHIMANO DEORE XT RAPIDFIRE PLUS SL-M8100-R
Cassette
SHIMANO SLX CS-M7100-12 10-51T
Crank
MICHE XHF6 ALLOY WITH MICHE XM MAXI ONE 32T ALLOY CHAINRING
Bottom Bracket
FAZUA RIDE 60 DRIVE UNIT INTEGRATED AXLE
Chain
SHIMANO CHAIN CN-M7100
Wheels
Rims
MICHE 966H ALLOY 29" TLR
Tires
PIRELLI SCORPION™ XC M 29X2.4" TLR
Brakes
Brakes
SHIMANO DEORE XT M8100 SET
Cockpit
Stem
RITCHEY WCS ALLOY
Handlebar
RITCHEY WCS ALLOY
Headset
ISB MR137 UPPER BR | CMP PF 1.5" 33035336044 LOWER BR
Seat
Saddle
PROLOGO DIMENSION T4.1
Seatpost
KS LEV-Si 100 DROPPER ? 27.2 mm
Motor & Battery
Motor
FAZUA MID-DRIVE 60 Nm
Battery
FAZUA ENERGY 430Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.461 mm | 1.382 mm | 1.328 mm | 1.285 mm |
| Stack | 593 mm | 597 mm | 608 mm | 623 mm |
| Reach | 406 mm | 432 mm | 458 mm | 485 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Wheelbase | 1148 mm | 1167 mm | 1198 mm | 1231 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
