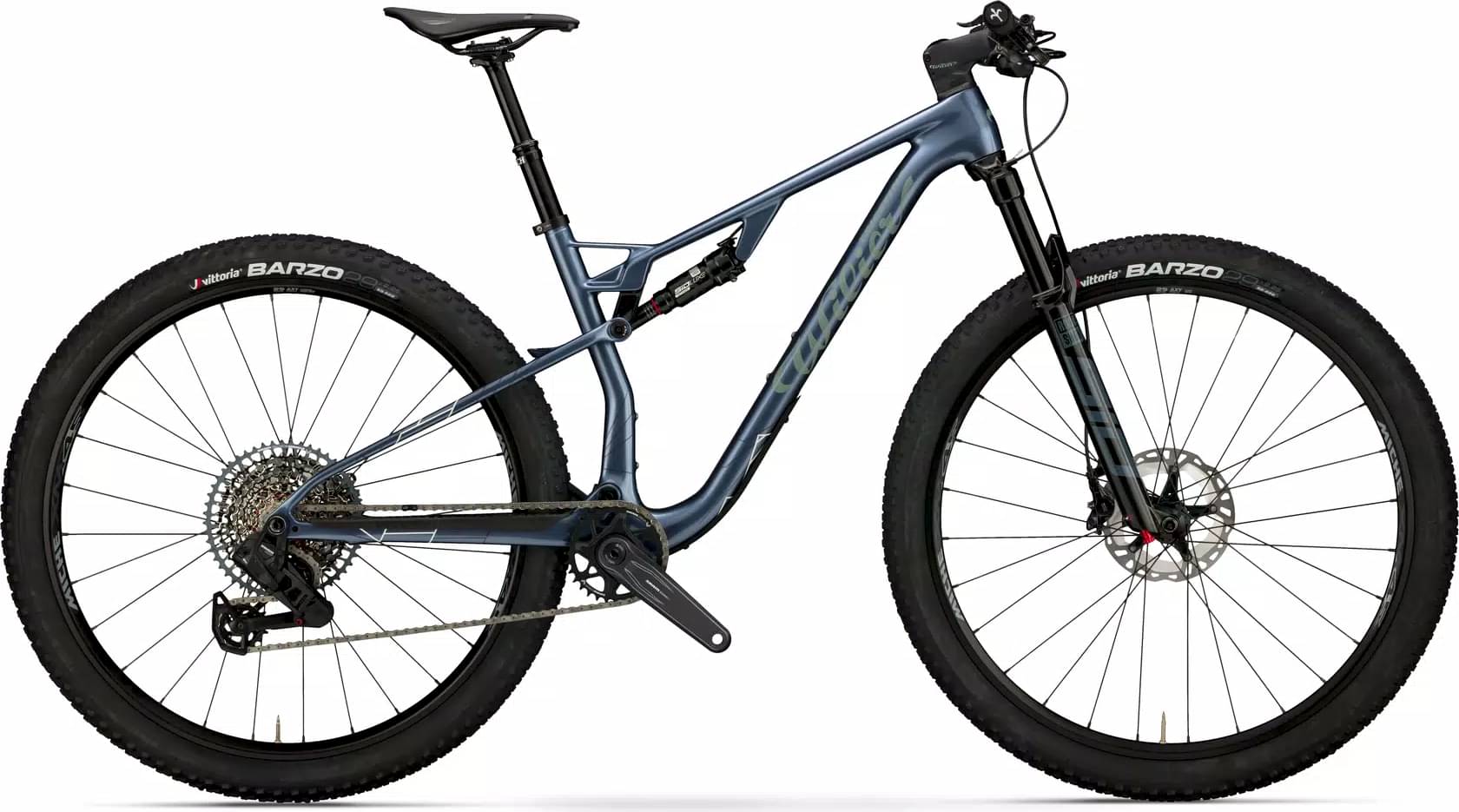

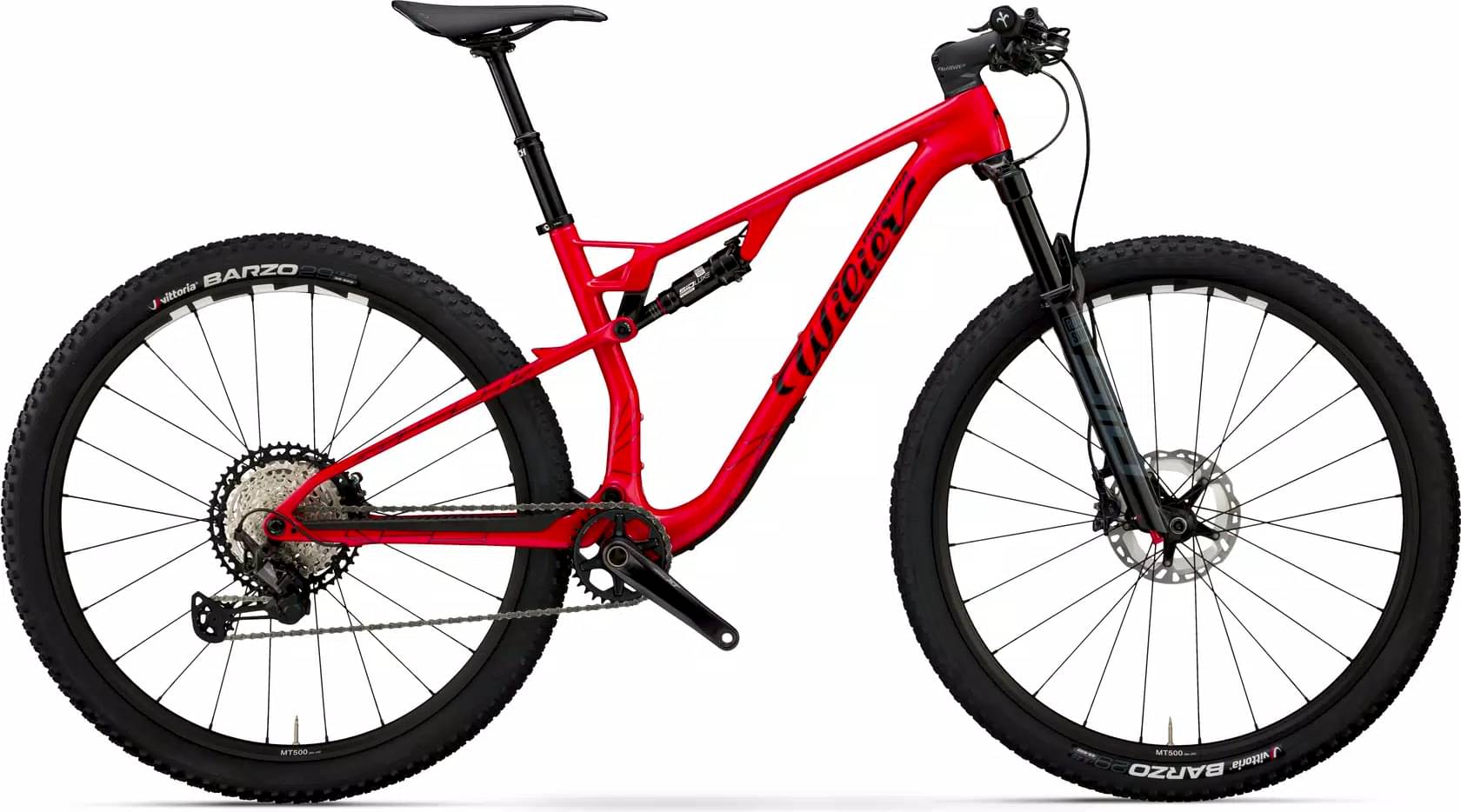

Wilier Urta Max SL SHIMANO XT 1X12S 2025
2025 Mountain
Estimate price |
4,537$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URTA MAX SL - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGHT
Suspension Fork
ROCK SHOX SID BSE 120 mm
Drivetrain
Rear Derailleur
SHIMANO DEORE XT RD-M8100-SGS
Shift Levers
SHIMANO DEORE XT RAPIDFIRE PLUS SL-M8100-R
Cassette
SHIMANO DEORE XT CS-M8100 10-51T
Crank
SHIMANO DEORE XT FC-M8100-1 32T
Bottom Bracket
SHIMANO PRESS-FIT MT8000
Chain
SHIMANO CHAIN CN-M7100
Wheels
Rims
SHIMANO MT 501 29" ALLOY
Tires
VITTORIA SAGUARO XC TLR 29X2.25"
Brakes
Brakes
SHIMANO DEORE XT BL-M8100 + BR-M8100
Cockpit
Stem
RITCHEY STEMMA SL-SWITCH WCS ALLOY
Handlebar
RITCHEY H-BAR MTN COMP 2X ALLOY
Headset
RITCHEY COMP
Seat
Saddle
PROLOGO KAPPA RS
Seatpost
KS RAGEI DROPPER POST 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.35 mm | 1.278 mm | 1.226 mm |
| Stack | 598 mm | 598 mm | 602 mm | 613 mm |
| Reach | 415 mm | 443 mm | 471 mm | 500 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Wheelbase | 1126 mm | 1154 mm | 1184 mm | 1218 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
