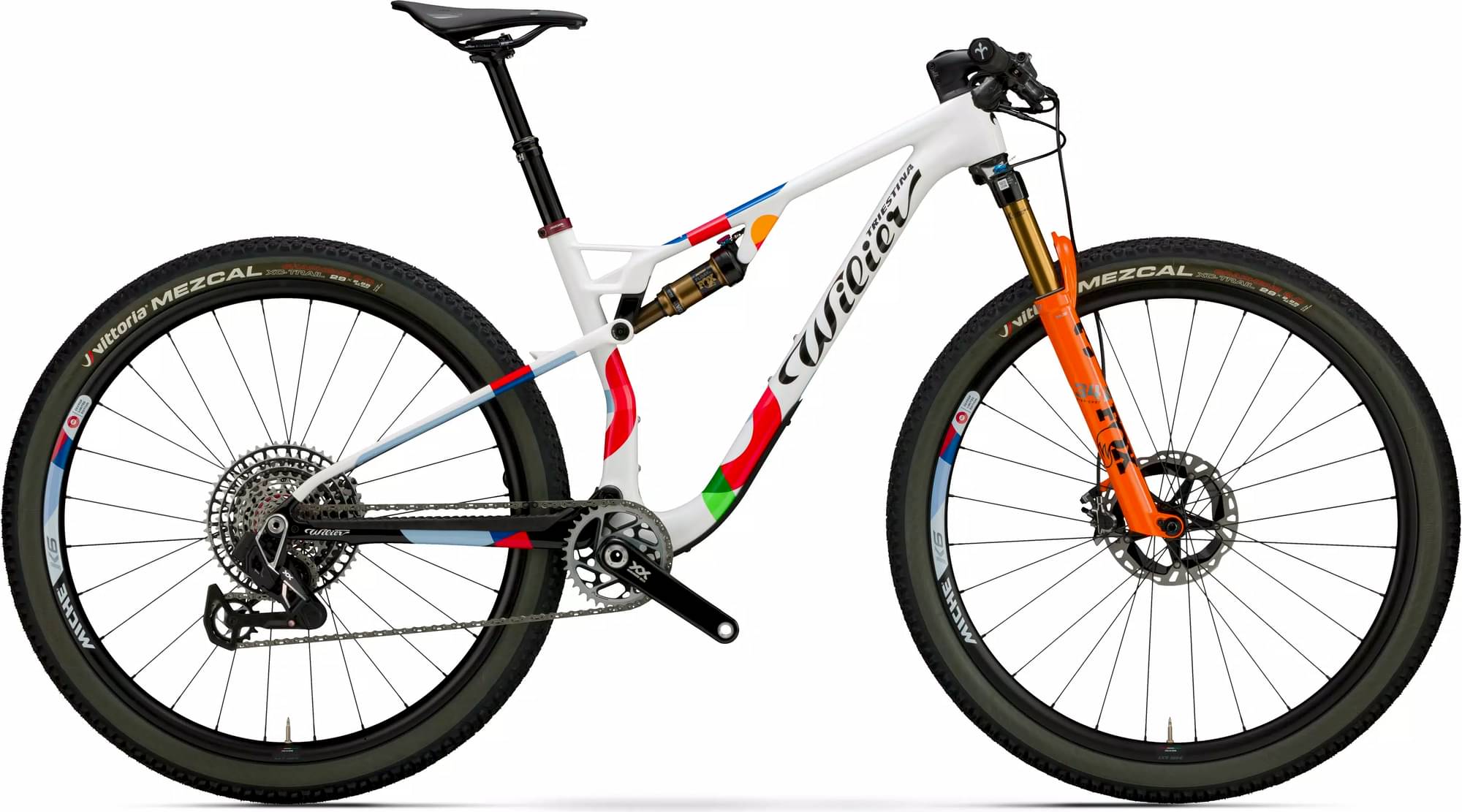

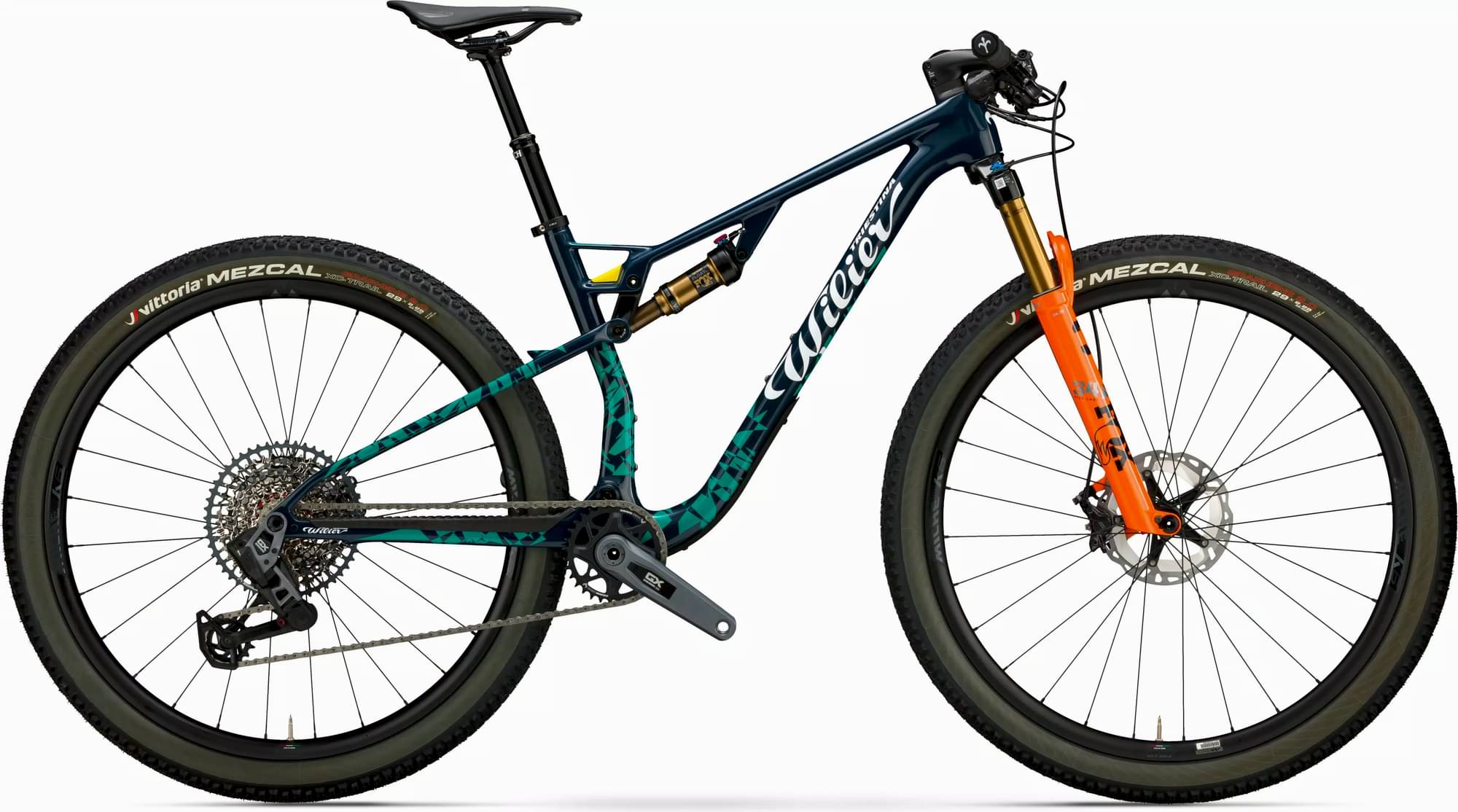

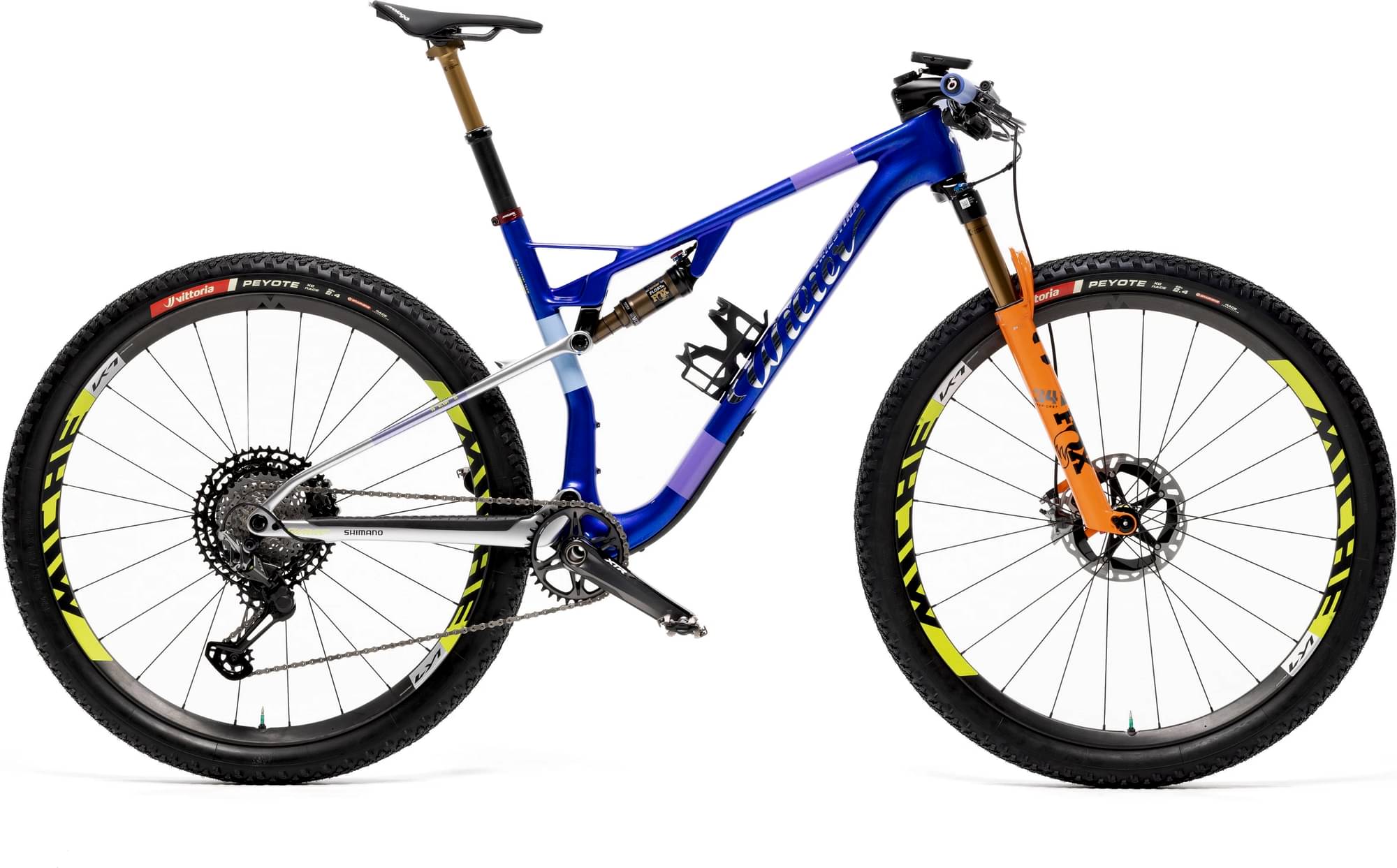

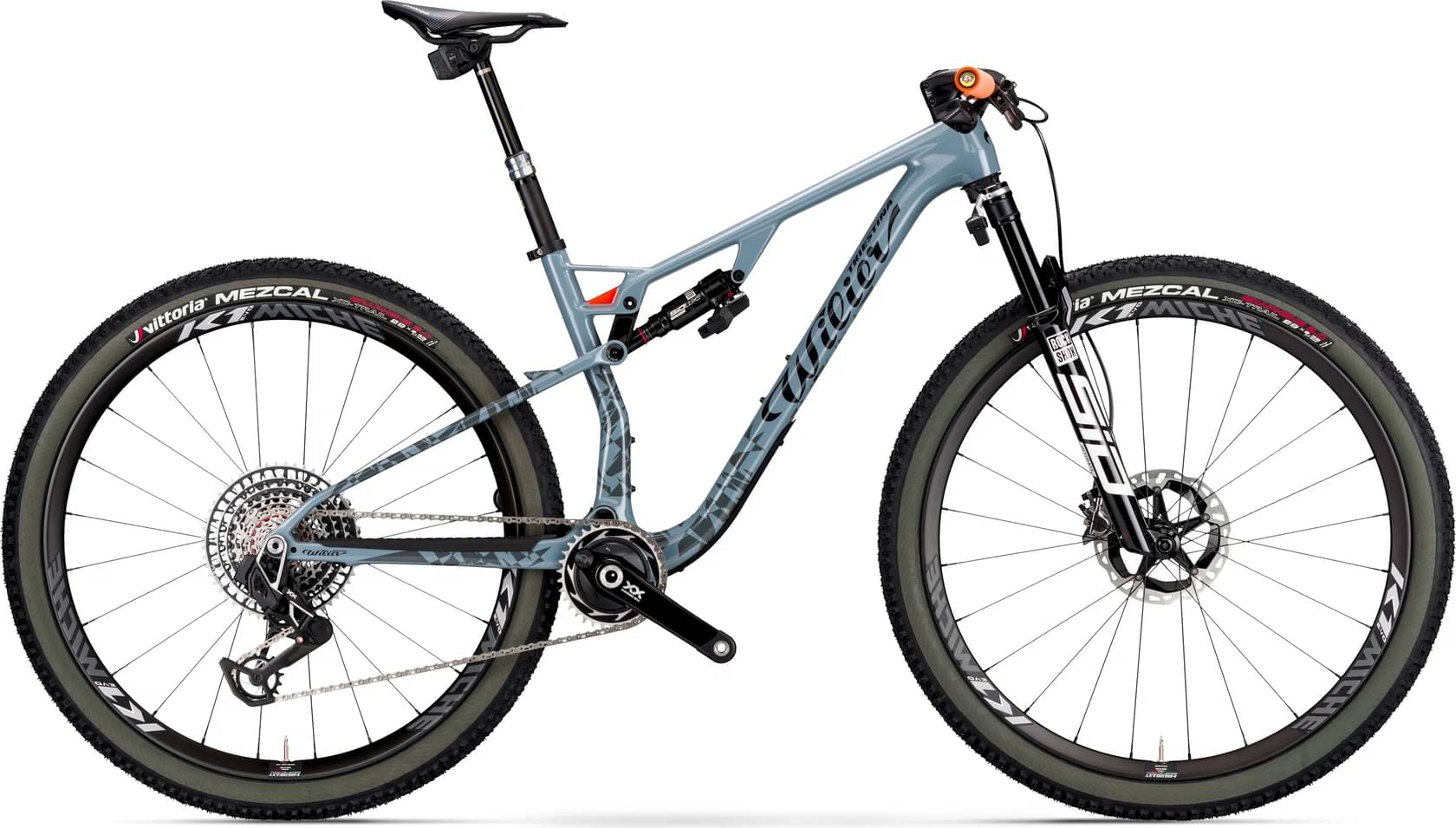

Wilier Urta Max SLR SHIMANO XTR Di2 1X12S 2025
2025 Mountain
Estimate price |
9,772$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset Dura-Ace Di2, XTR -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URTA MAX SLR - CARBON MONOCOQUE FRAME HUS MOD + HIGH IMPACT CARBON WEAVE
Suspension Fork
ROCKSHOX SID ULTIMATE 3P FS-SID-ULT3-D1 120 mm
Drivetrain
Rear Derailleur
SHIMANO XTR RD-M9250-SGS
Front Derailleur
-
Shift Levers
SHIMANO XTR M9200 1x12S, Di2 SW-M9250-R
Cassette
SHIMANO CS-M9200-12 10-51T
Crank
SHIMANO XTR FC-M9200 - 32T
Bottom Bracket
SHIMANO PRESS-FIT SM-BB94-41A
Chain
SHIMANO CHAIN CN-M9100
Wheels
Rims
MICHE 966 SPR ALLOY 29" TLR
Tires
VITTORIA MEZCAL XC-TRAIL 29"X2.25 TLR
Brakes
Brakes
SHIMANO XTR BL-M9200 + BR-M9200
Cockpit
Stem
-
Handlebar
URTA MAX BAR INTEGRATED CARBON STEM AND BAR -27°
Headset
ACROSS HEADSET AIF610
Seat
Saddle
SELLE SAN MARCO SHORTFIT 2.0 OPEN-FIT NARROW
Seatpost
FOX TRANSFER SL ? 31.6 mm Drop Internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.35 mm | 1.278 mm | 1.226 mm |
| Stack | 598 mm | 598 mm | 602 mm | 613 mm |
| Reach | 415 mm | 443 mm | 471 mm | 500 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Wheelbase | 1126 mm | 1154 mm | 1184 mm | 1218 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
