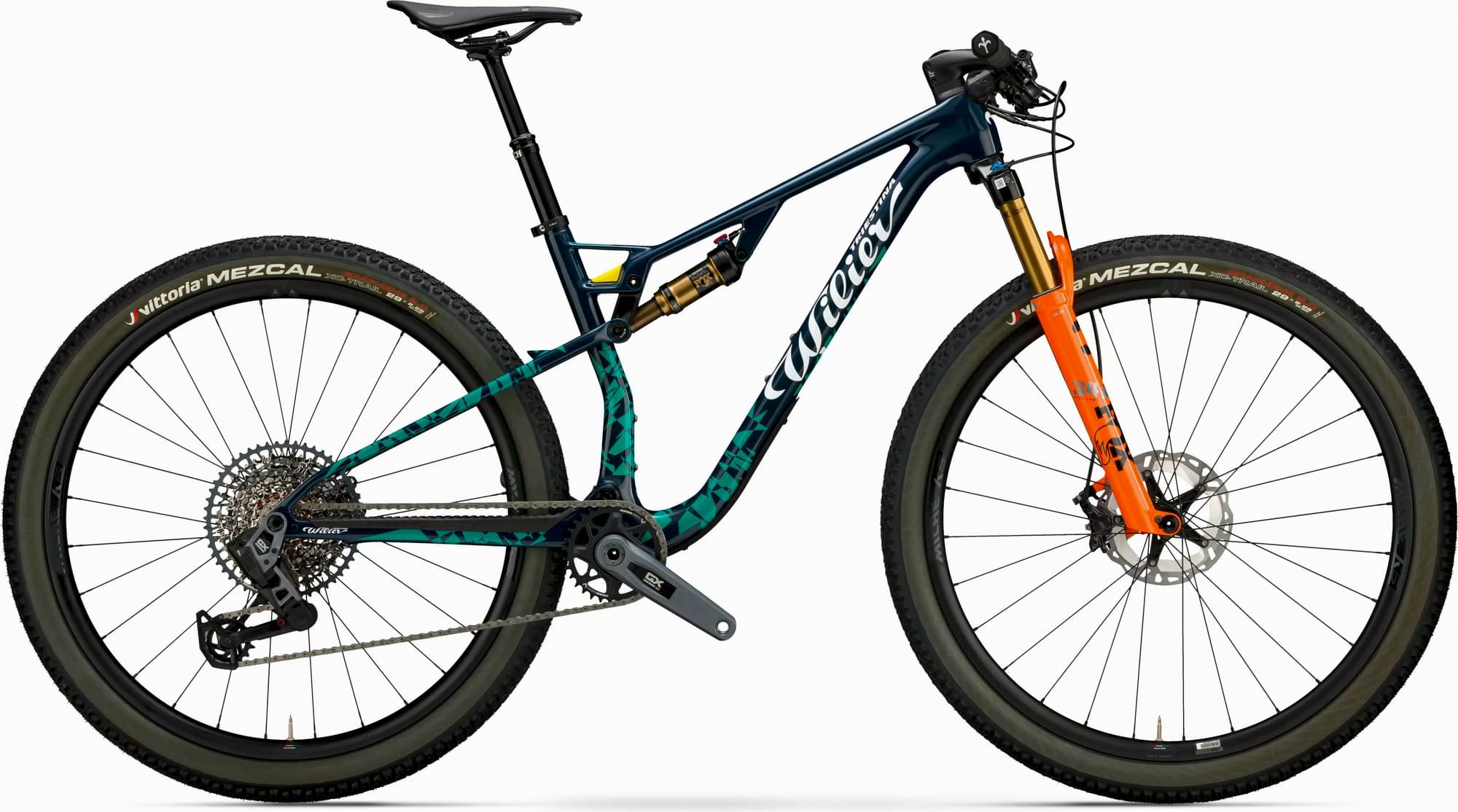

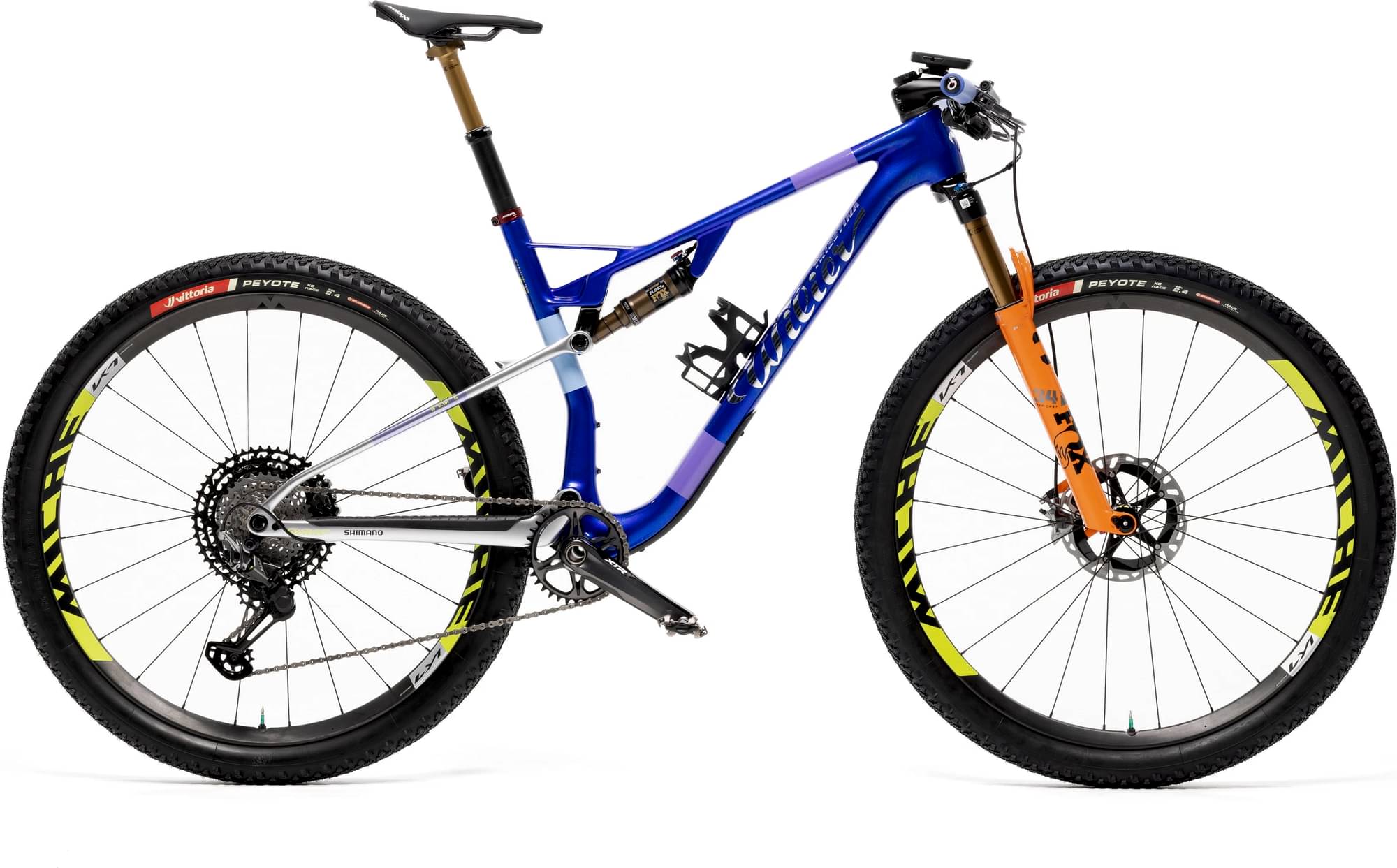

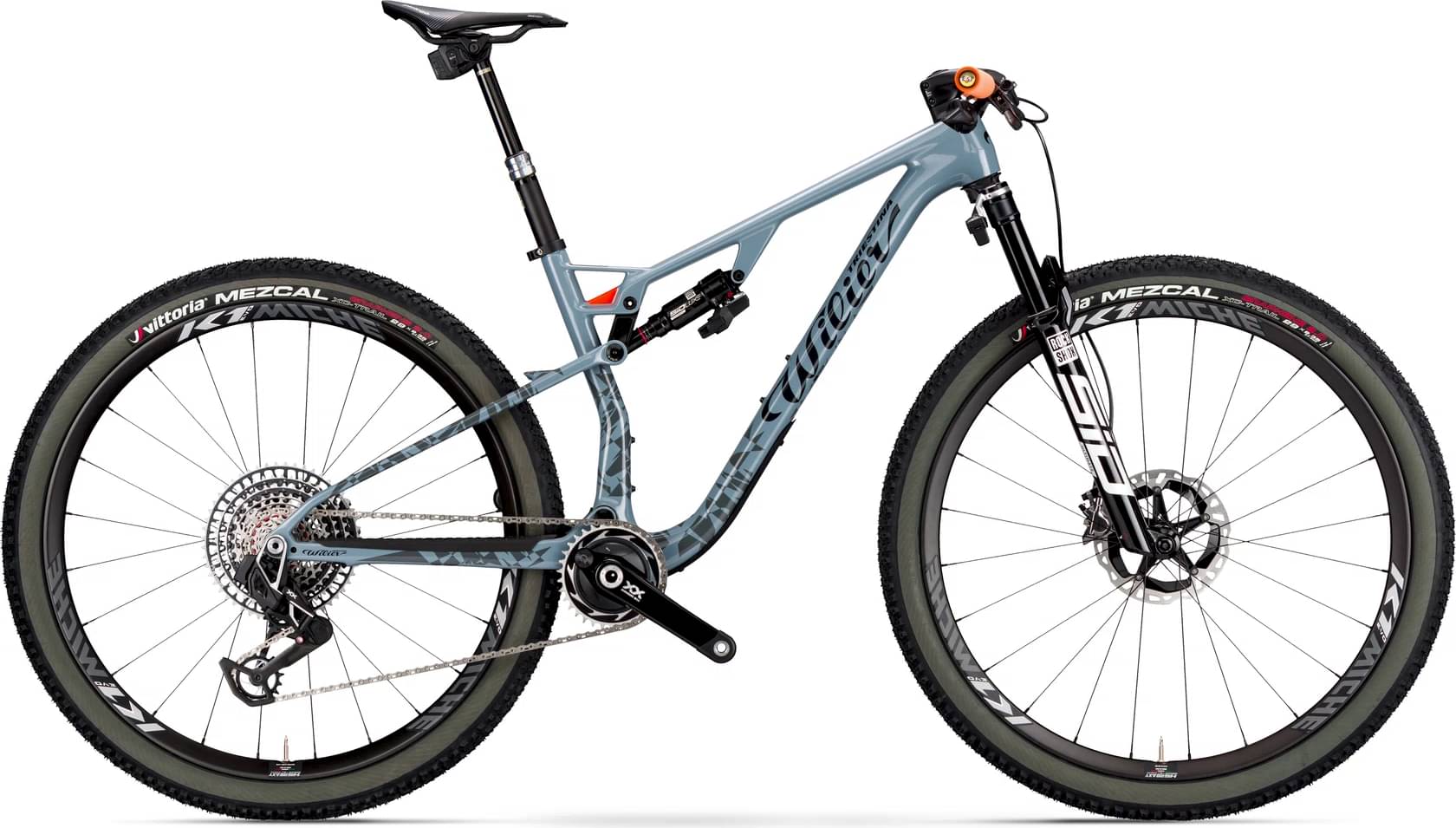

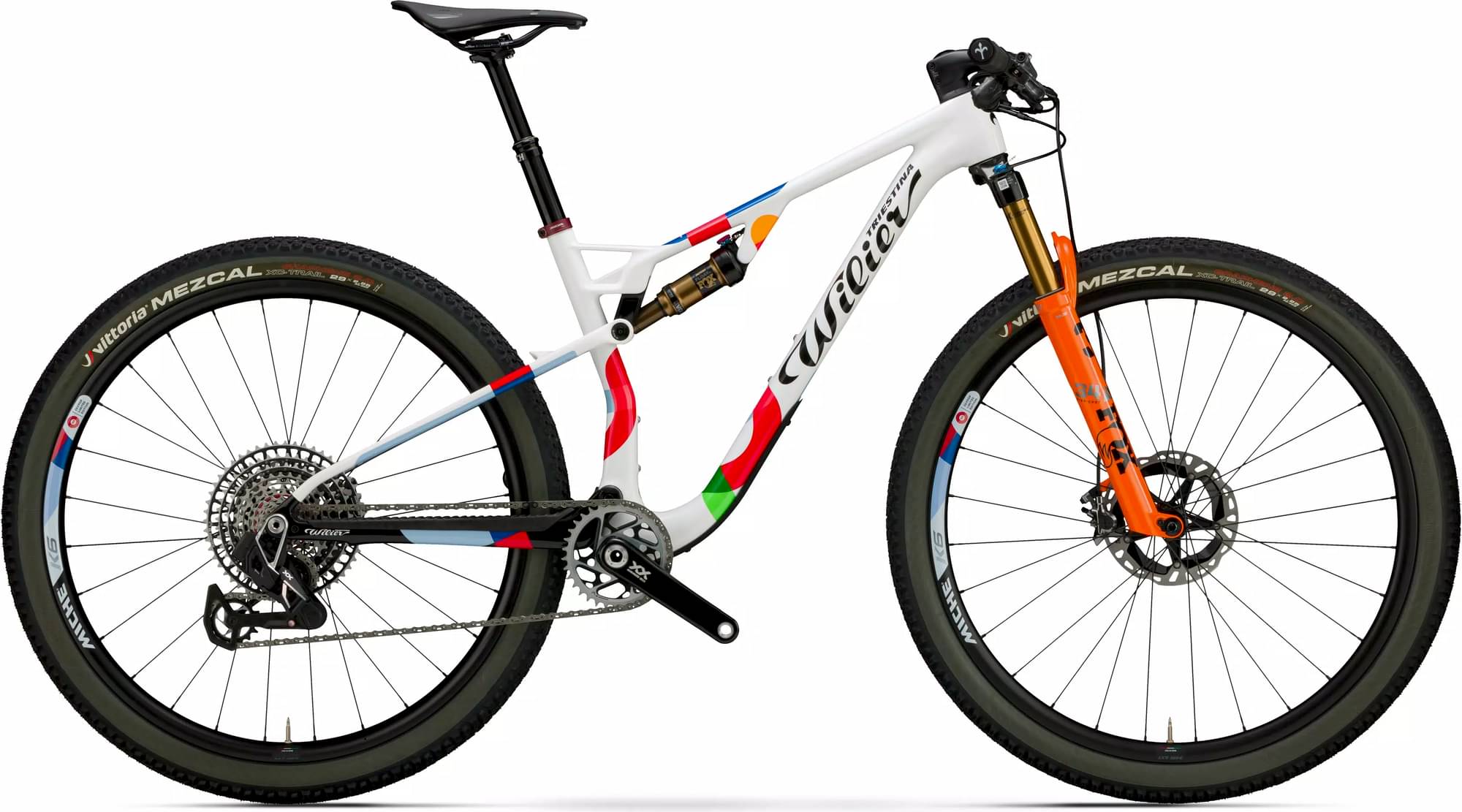

Wilier Urta Max SLR SRAM XX SL EAGLE AXS T-TYPE 1X12S 2025
2025 Mountain
Estimate price |
11,982$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX SL Eagle Transmission, Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URTA MAX SLR - CARBON MONOCOQUE FRAME HUS MOD + HIGH IMPACT CARBON WEAVE
Suspension Fork
ROCKSHOX SID ULTIMATE 3P FS-SID-ULT3-D1 120 mm
Drivetrain
Rear Derailleur
SRAM XX SL EAGLE AXS T-TYPE RD-XX-SLE-B1
Shift Levers
SRAM AXS POD ULTIMATE RIGHT DISCRETE CLAMP EC-AXS-PODU-D1
Cassette
SRAM XX SL T-TYPE CS-XS-1299-A1 10-52T
Crank
SRAM XX SL EAGLE T-TYPE FC-XX-SL-D1 34T
Bottom Bracket
SRAM DUB PRESS FIT BB-DUB-PF-A1 92 mm MTB
Chain
SRAM XX SL EAGLE T-TYPE FLATTOP CN-TTYP-XXSL-A1
Wheels
Rims
MICHE K6 CARBON 29" TLR
Tires
VITTORIA MEZCAL XC-TRAIL 29"X2.35 TLR
Brakes
Brakes
SHIMANO XTR BL-M9100+BR-M9100
Cockpit
Handlebar
URTA MAX BAR INTEGRATED CARBON STEM AND BAR -27°
Headset
ACROSS HEADSET AIF610
Seat
Saddle
SELLE SAN MARCO SHORTFIT 2.0 OPEN-FIT NARROW
Seatpost
FOX TRANSFER SL ? 31.6 mm Drop Internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.35 mm | 1.278 mm | 1.226 mm |
| Stack | 598 mm | 598 mm | 602 mm | 613 mm |
| Reach | 415 mm | 443 mm | 471 mm | 500 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Wheelbase | 1126 mm | 1154 mm | 1184 mm | 1218 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
