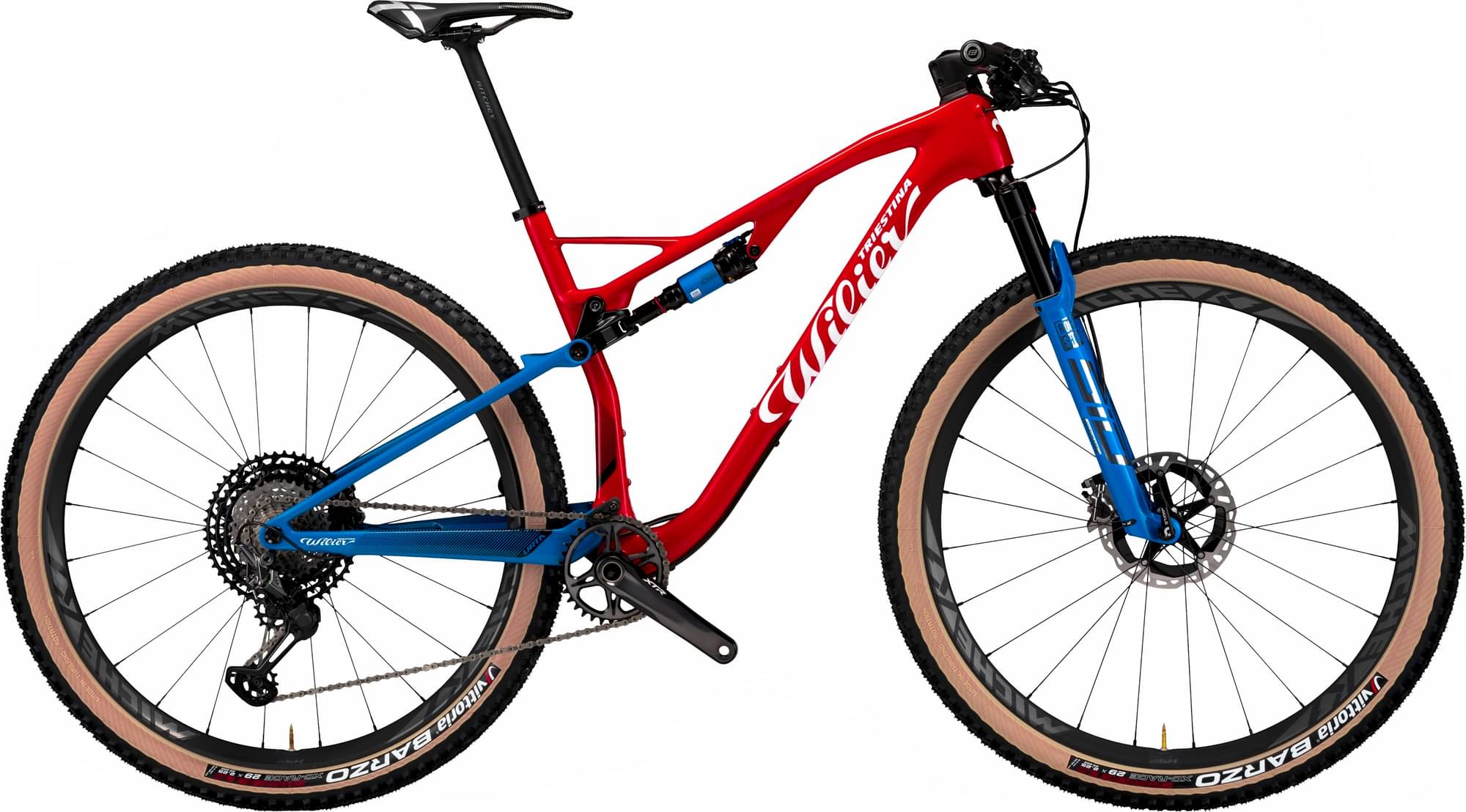

Wilier Urta SLR SRAM XX SL EAGLE AXS T-TYPE 1X12S 2024
2024 Mountain
Estimate price |
11,982$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Float 34
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URTA SLR - CARBON MONOCOQUE FRAME HUS MOD
Suspension Fork
FOX 34 STEP-CAST KASHIMA 100 mm
Drivetrain
Rear Derailleur
SRAM XX SL EAGLE AXS T-TYPE RD-XX-SLE-B1
Shift Levers
SRAM AXS POD ULTIMATE RIGHT DISCRETE CLAMP EC-AXS-POD-B2
Cassette
SRAM XX SL T-TYPE CS-XS-1299-A1 10-52T
Crank
SRAM XX SL EAGLE T-TYPE FC-XX-SL-D1 34T
Bottom Bracket
SRAM DUB PRESS FIT BB-DUB-PF-A1 92 mm MTB
Chain
SRAM XX SL EAGLE T-TYPE FLATTOP CN-TTYP-XXSL-A1
Wheels
Rims
MICHE K6 CARBON 29" TLR
Tires
VITTORIA MEZCAL XC-TRAIL 29"X2.25 TLR
Brakes
Brakes
SHIMANO XTR BL-M9100+BR-M9100
Cockpit
Handlebar
URTA BAR INTEGRATED CARBON STEM AND BAR -17°
Headset
RITCHEY COMP
Seat
Saddle
SELLE SAN MARCO SHORTFIT STARTUP
Seatpost
RITCHEY WCS TRAIL ZERO ? 31.6 mm ALLOY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.399 mm | 1.333 mm | 1.277 mm |
| Stack | 593 mm | 596 mm | 604 mm | 613 mm |
| Reach | 400 mm | 426 mm | 453 mm | 480 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Wheelbase | 1088 mm | 1115 mm | 1145 mm | 1175 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
