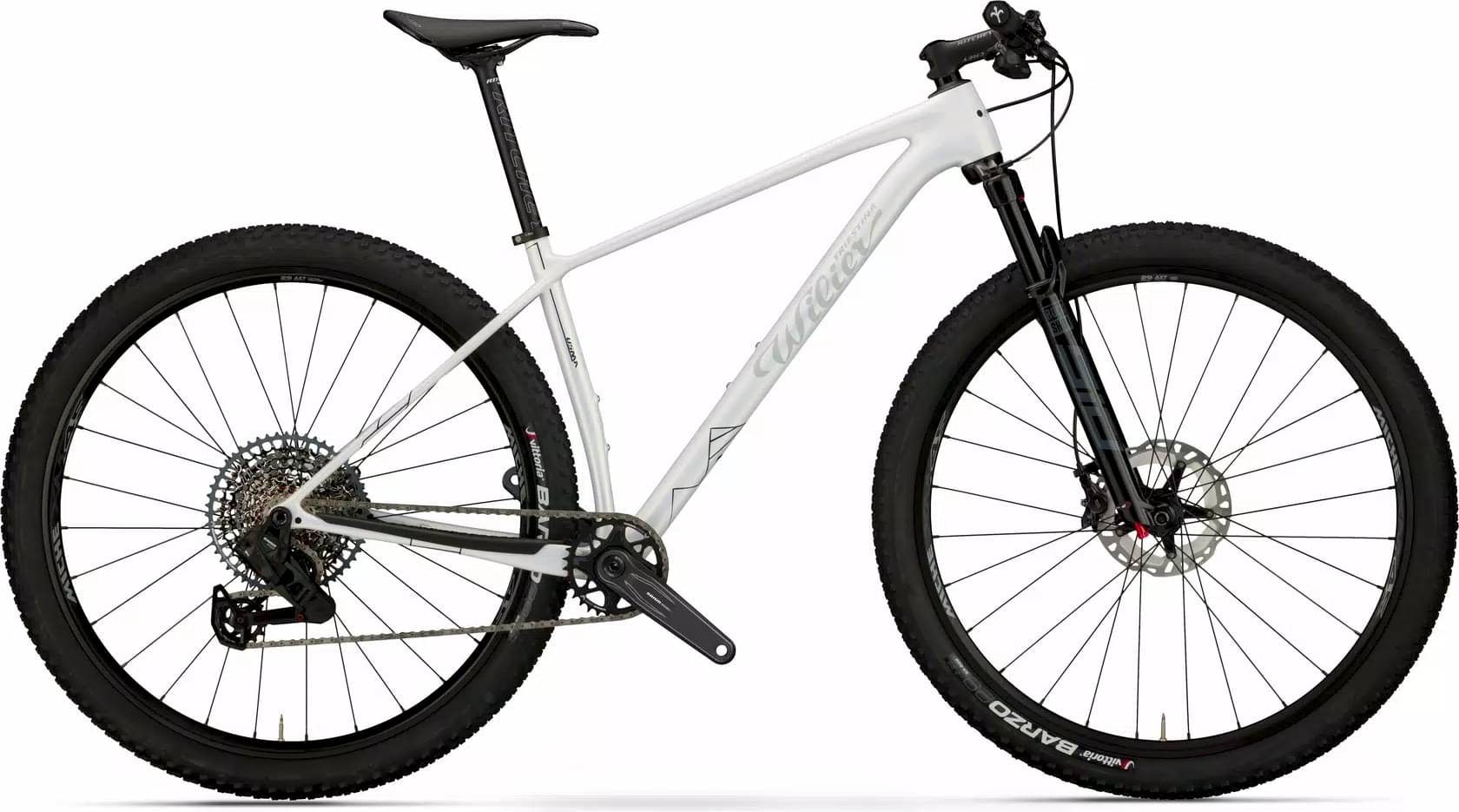

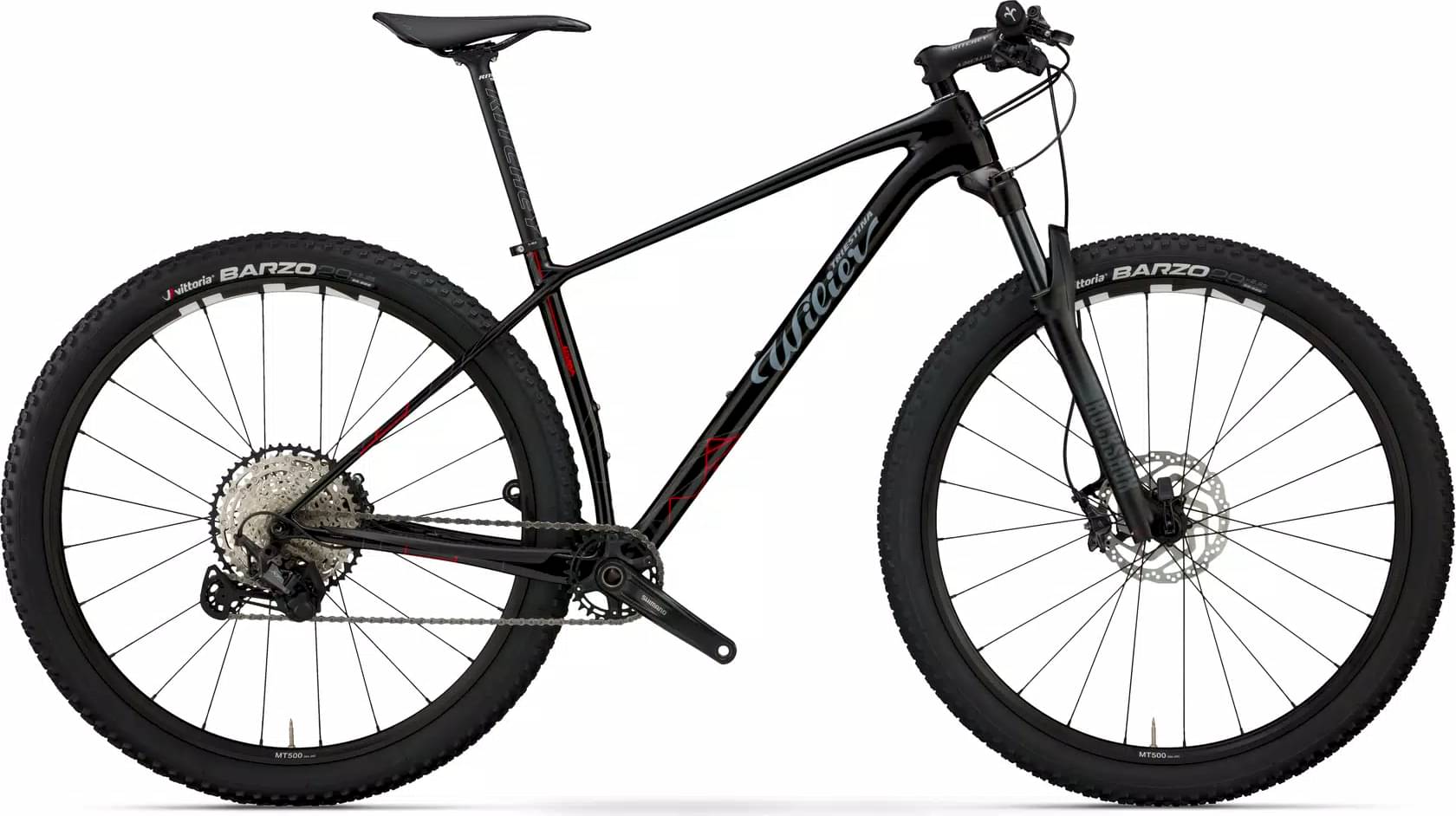

Wilier Usma SL SHIMANO XT 1X12S 2025
2025 Mountain
Estimate price |
2,443$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
USMA SL - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGHT
Suspension Fork
ROCK SHOX RECON RL 100 mm
Drivetrain
Rear Derailleur
SHIMANO DEORE XT RD-M8100-SGS
Shift Levers
SHIMANO DEORE SL-M6100-R
Cassette
SHIMANO SLX CS-M7100-12 10-51T
Crank
SHIMANO DEORE FC-MT510-1 30T
Bottom Bracket
SHIMANO PRESS-FIT BB-MT500-PA
Chain
SHIMANO CHAIN CN-M7100
Wheels
Rims
SHIMANO MT 501 29" ALLOY
Tires
VITTORIA SAGUARO XC TLR 29X2.25"
Brakes
Brakes
SHIMANO BR-RS600
Cockpit
Stem
RITCHEY COMP 4AXIS ALLOY
Handlebar
RITCHEY H-BAR MTN COMP 2X ALLOY
Headset
RITCHEY COMP
Seat
Saddle
PROLOGO KAPPA RS
Seatpost
RITCHEY COMP TRAIL ? 27.2 mm ALLOY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.414 mm | 1.363 mm | 1.318 mm |
| Stack | 597 mm | 608 mm | 619 mm | 630 mm |
| Reach | 405 mm | 430 mm | 454 mm | 478 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 67.75 ° | 67.75 ° | 67.75 ° | 67.75 ° |
| Wheelbase | 1090 mm | 1120 mm | 1148 mm | 1177 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
