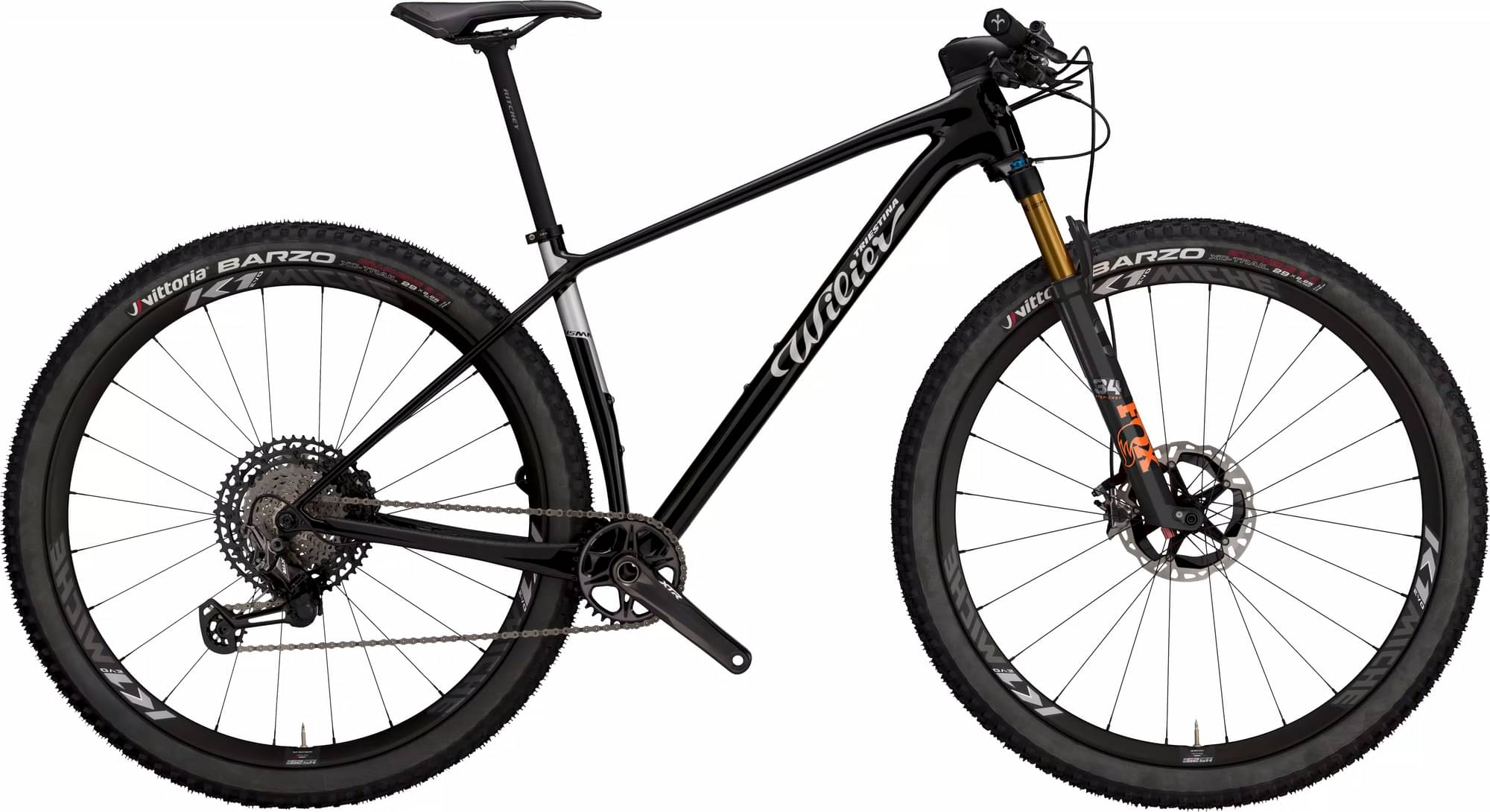

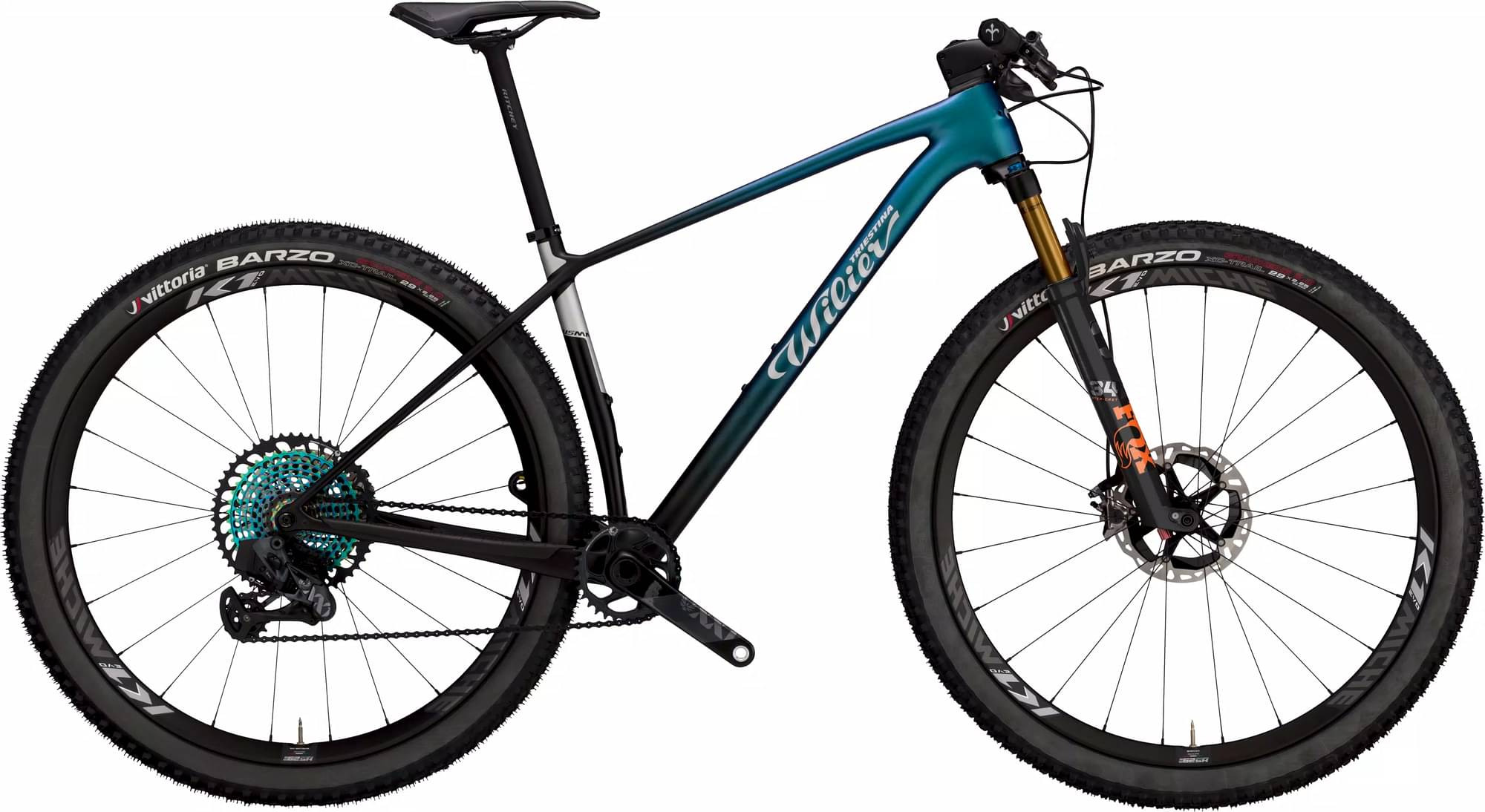

Wilier Usma SLR SHIMANO XT 1X12 2024
2024 Mountain
Estimate price |
5,505$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
USMA SLR - CARBON MONOCOQUE FRAME HUS-MOD + HIGH IMPACT CARBON WEAVE
Suspension Fork
ROCK SHOX SID SL ULTIMATE 100 mm, BOOST
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100-SGS
Shift Levers
SHIMANO XT 1X12 SL-M8100
Cassette
SHIMANO XT CS-M8100-12, 10-51T
Crank
SHIMANO XT FC-M8100 32T
Bottom Bracket
SHIMANO PRESSFIT MT800-PA
Chain
SHIMANO XT CN-M8100
Wheels
Rims
MICHE 966 ALU
Tires
VITTORIA MEZCALL III 29x2.25
Brakes
Brakes
SHIMANO XT BR-M8100
Cockpit
Stem
RITCHEY WCS ALU C220
Handlebar
RITCHEY WCS ALU
Headset
RITCHEY / WILIER 1"1/4 - 1"1/2
Seat
Saddle
SAN MARCO SHORTFIT STARTUP
Seatpost
RITCHEY WCS ALU
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.414 mm | 1.363 mm | 1.318 mm |
| Stack | 597 mm | 608 mm | 619 mm | 630 mm |
| Reach | 405 mm | 430 mm | 454 mm | 478 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 67.75 ° | 67.75 ° | 67.75 ° | 67.75 ° |
| Wheelbase | 1090 mm | 1120 mm | 1148 mm | 1177 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
