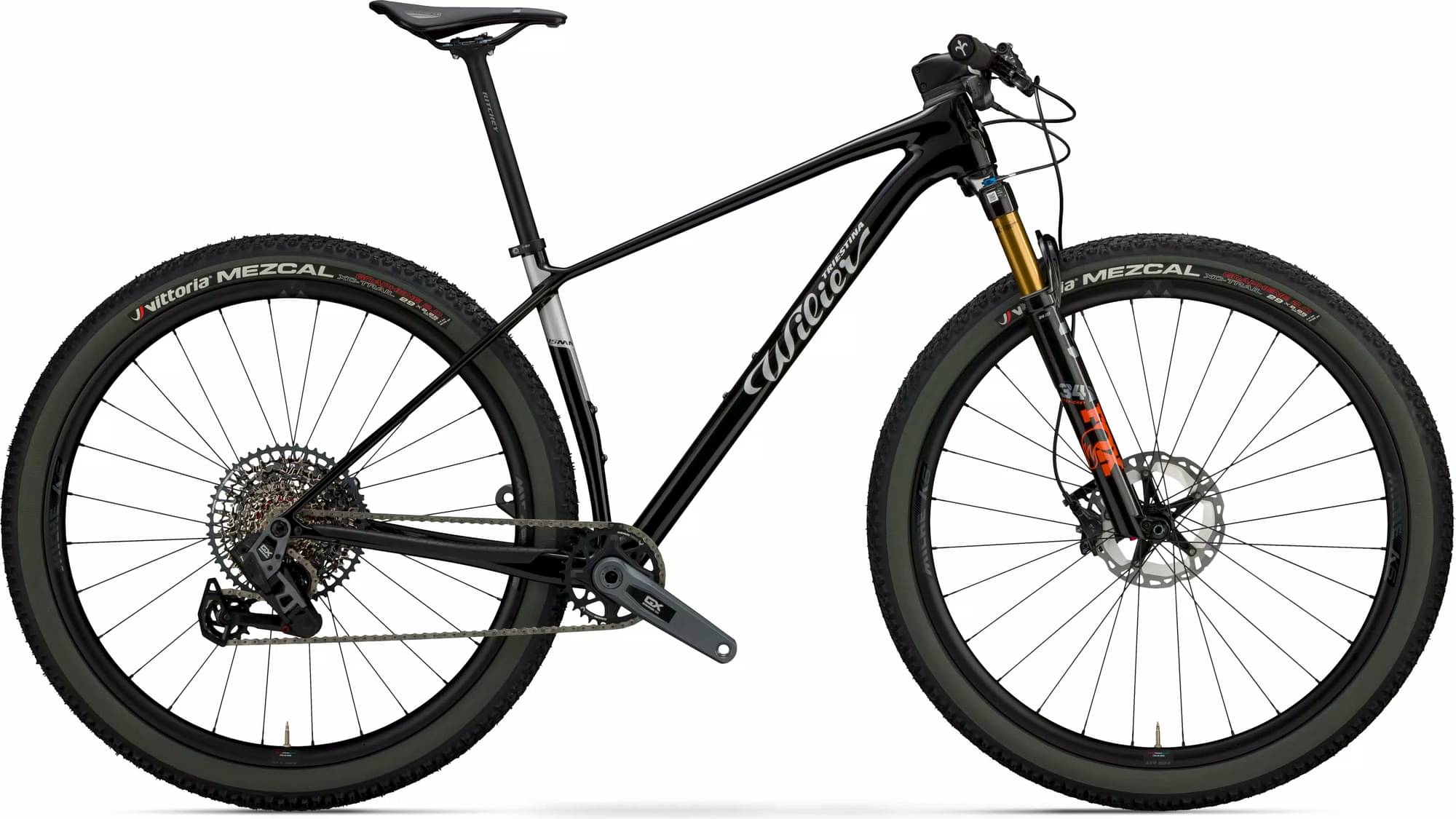

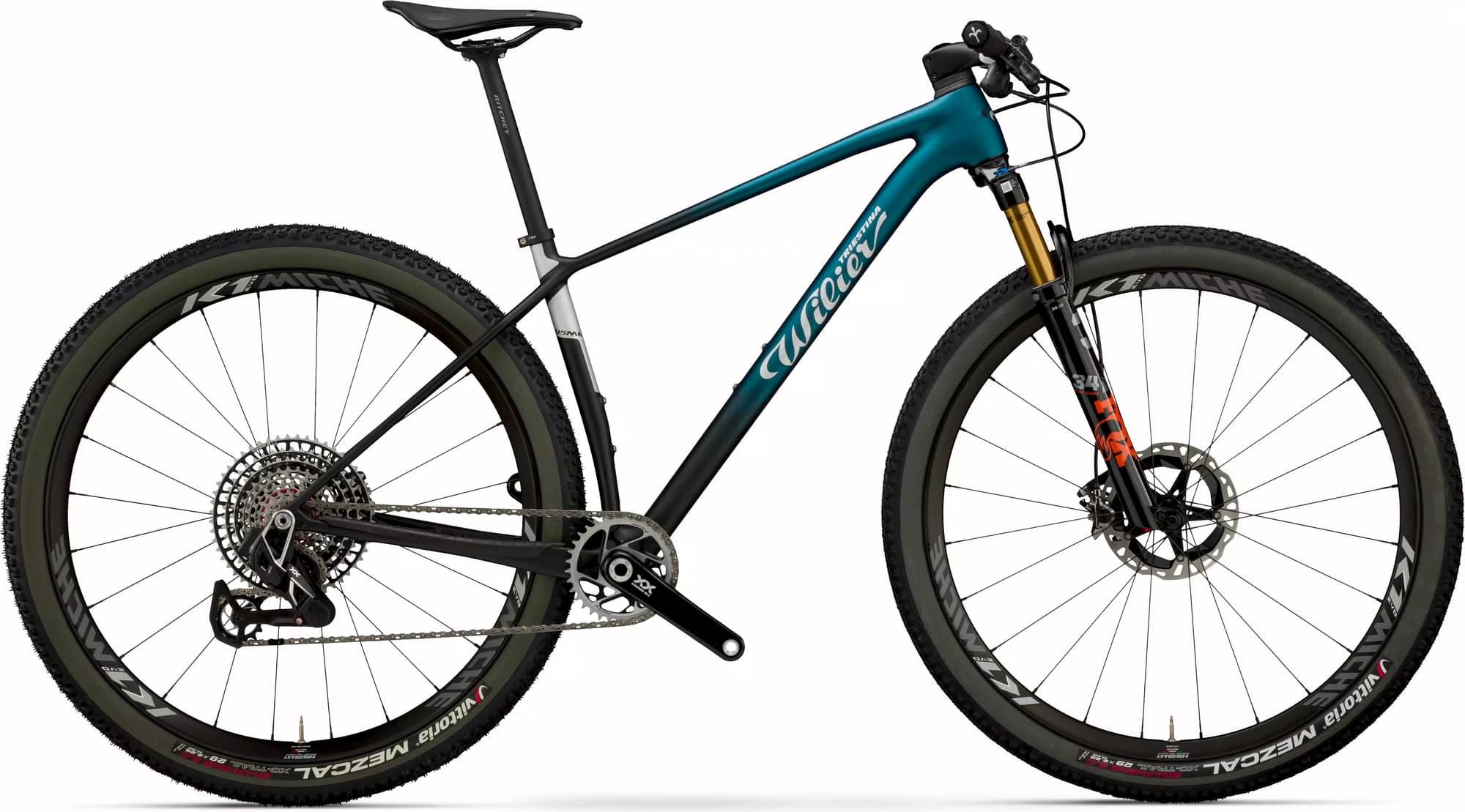

Wilier Usma SLR SHIMANO XT 1X12S 2025
2025 Mountain
Estimate price |
5,933$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
USMA SLR - CARBON MONOCOQUE FRAME HUS-MOD + HIGH IMPACT CARBON WEAVE
Suspension Fork
FOX 32 STEP-CAST KASHIMA 100 mm
Drivetrain
Rear Derailleur
SHIMANO DEORE XT RD-M8100-SGS
Shift Levers
SHIMANO DEORE XT 12S SL-M8100-R
Cassette
SHIMANO DEORE XT CS-M8100 10-51T
Crank
SHIMANO DEORE XT FC-M8100-1 32T
Bottom Bracket
SHIMANO PRESS-FIT XT MT8000
Chain
SHIMANO SLX CN-M7100 12-v HYPERGLIDE+
Wheels
Rims
MICHE 966 SPR ALLOY 29" TLR
Tires
VITTORIA MEZCAL XC-TRAIL 29"X2.25 TLR
Brakes
Brakes
SHIMANO DEORE XT BL-M8100 + BR-M8101
Cockpit
Stem
RITCHEY WCS TOYON ALLOY
Handlebar
RITCHEY WCS 2X FLAT ALLOY
Headset
RITCHEY / WILIER 1"1/4 - 1"1/2
Seat
Saddle
SELLE SAN MARCO SHORTFIT 2.0 OPEN-FIT NARROW
Seatpost
RITCHEY WCS TRAIL ZERO ? 27.2 mm ALLOY
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.414 mm | 1.363 mm | 1.318 mm |
| Stack | 597 mm | 608 mm | 619 mm | 630 mm |
| Reach | 405 mm | 430 mm | 454 mm | 478 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 67.75 ° | 67.75 ° | 67.75 ° | 67.75 ° |
| Wheelbase | 1090 mm | 1120 mm | 1148 mm | 1177 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
