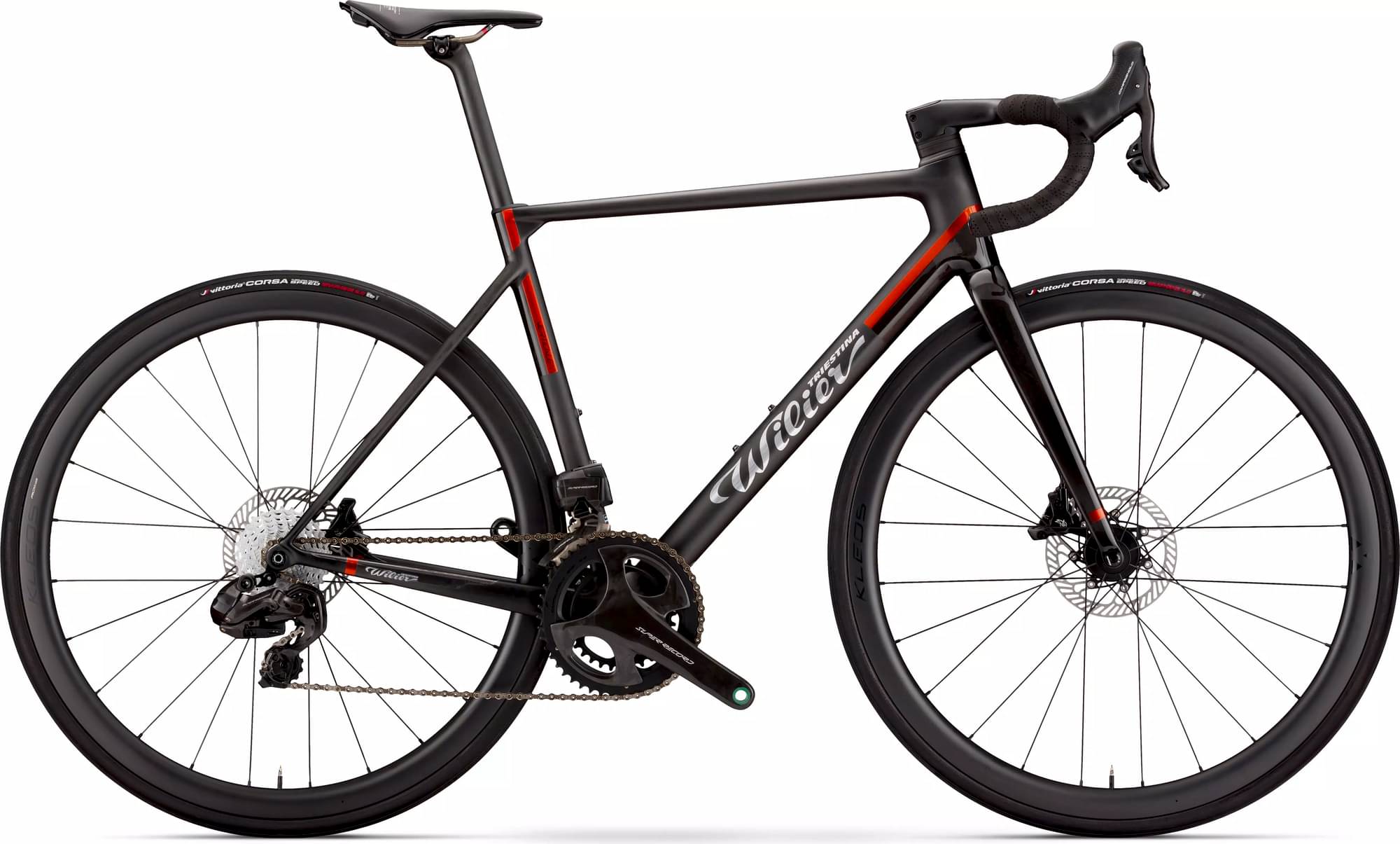

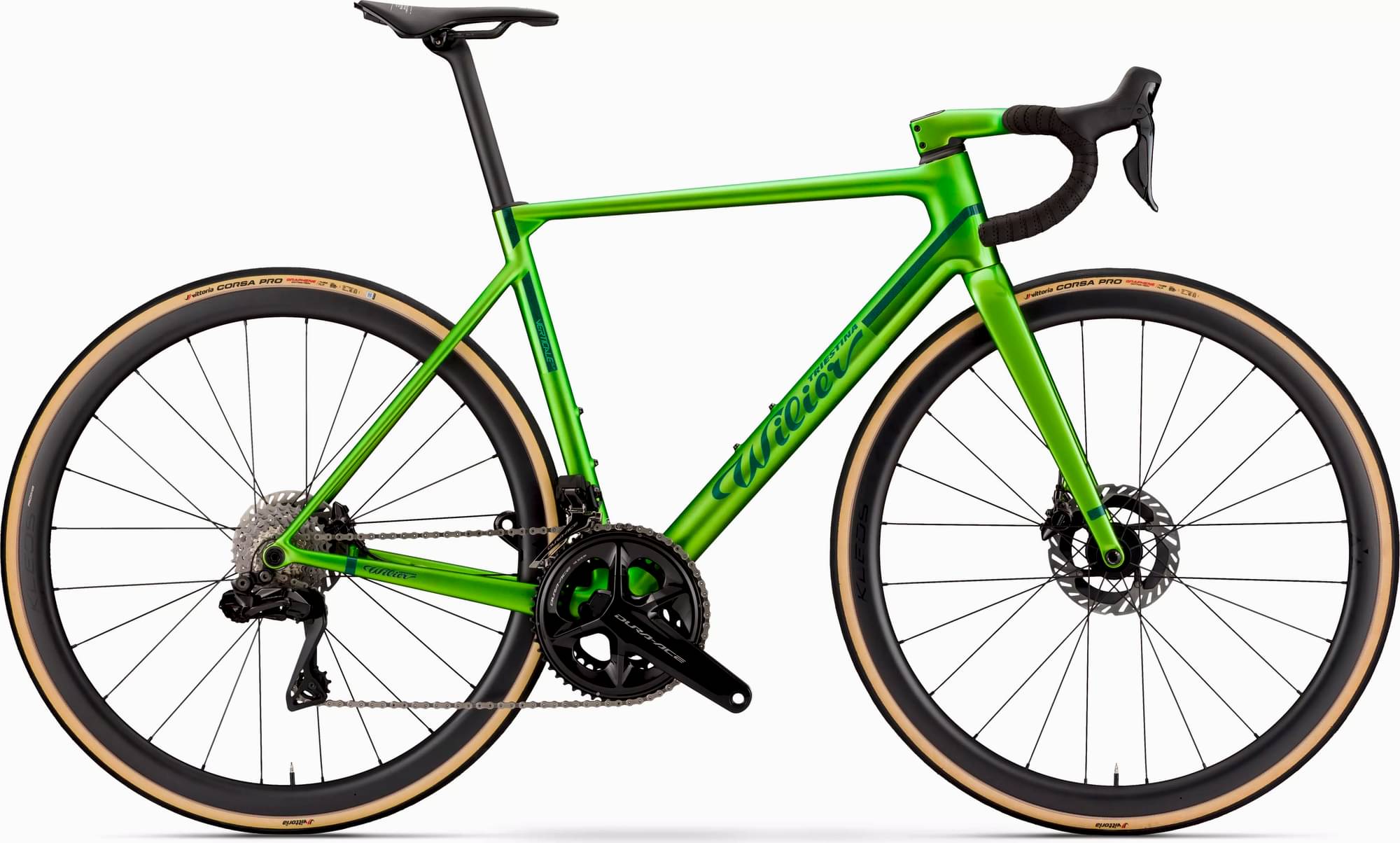

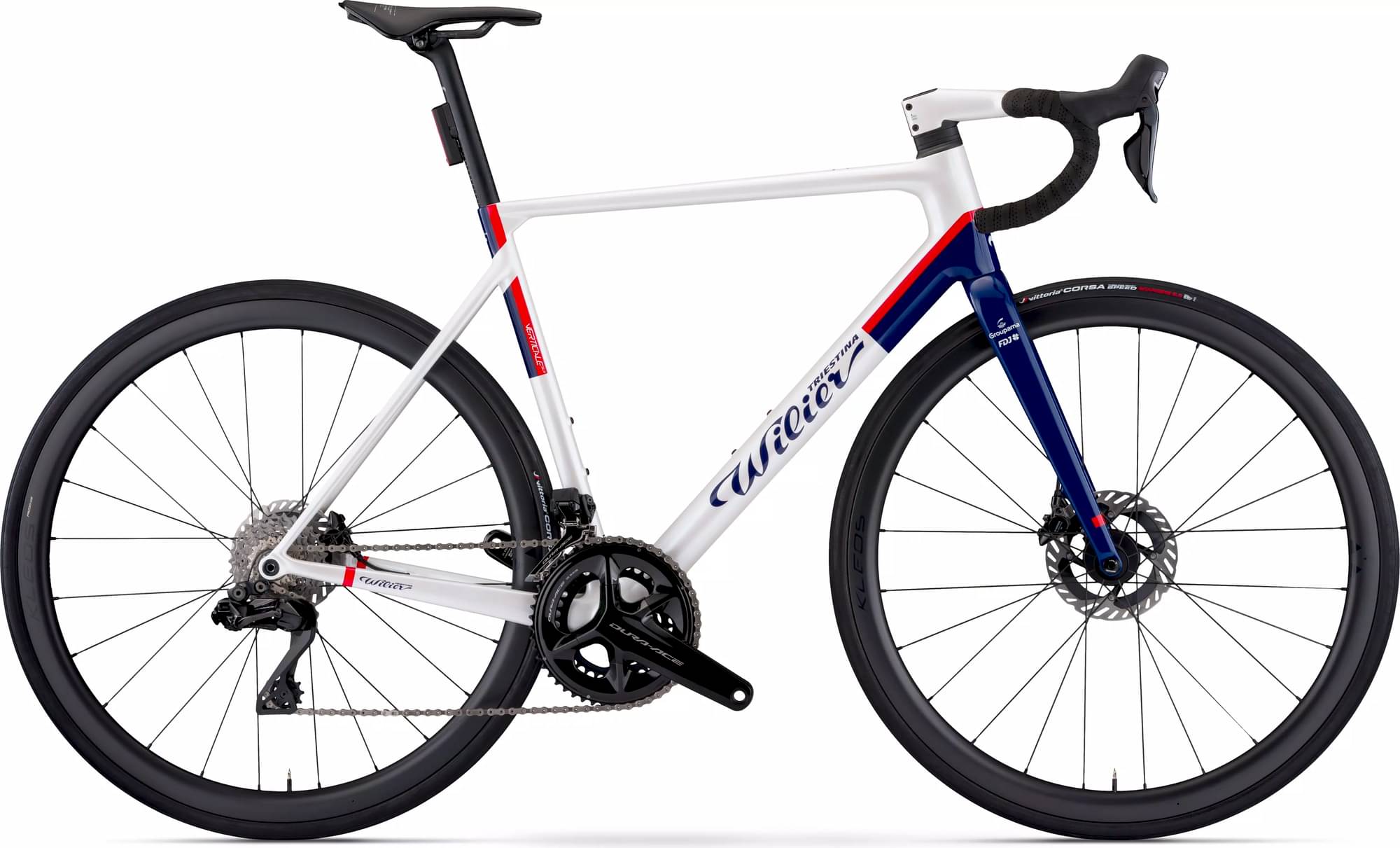

Wilier Verticale SLR SHIMANO DURA-ACE Di2 R9270 2x12S 2024
2024 Road
Estimate price |
14,193$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
VERTICALE SLR - TORAY T800+T1100 M46JB CARBON MONOCOQUE
Suspension Fork
VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO DURA-ACE Di2 FD-R9250
Front Derailleur
SHIMANO DURA-ACE Di2 FD-R9250
Shift Levers
SHIMANO DURA-ACE Di2 ST-R9270
Cassette
SHIMANO DURA-ACE CS-R9200-12 11-30T
Crank
SHIMANO DURA-ACE FC-R9200 50-34T
Bottom Bracket
MICHE INTEGRALE RD | CERAMICSPEED PRESSFIT 86.5X41
Chain
SHIMANO DURA-ACE CN-M9100
Wheels
Rims
MICHE KLEOS RD 36 CARBON | CERAMICSPEED BEARINGS
Tires
VITTORIA CORSA PRO 700X28c
Brakes
Brakes
SHIMANO DURA-ACE BR-R9270
Cockpit
Handlebar
V BAR INTEGRATED CARBON CUSTOM MADE + GARMIN/WAHOO MOUNT
Headset
CUSTOM SUPERSLIM 1-1/8" UPPER BR | FSA MR137 1-1/4" LOWER BR
Seat
Saddle
PROLOGO NAGO R4 PAS CARBON RAILS
Seatpost
WILIER VERTICALE CARBON CUSTOM MADE -15 mm + REAR LIGHT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.376 mm | 1.398 mm | 1.422 mm | 1.443 mm | 1.458 mm |
| Stack | 505 mm | 523 mm | 541 mm | 559 mm | 577 mm | 595 mm |
| Reach | 374 mm | 380 mm | 387 mm | 393 mm | 400 mm | 408 mm |
| Seat Tube Angle | 75.2 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.6 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° |
| Wheelbase | 974 mm | 981 mm | 990 mm | 999 mm | 1009 mm | 1017 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
