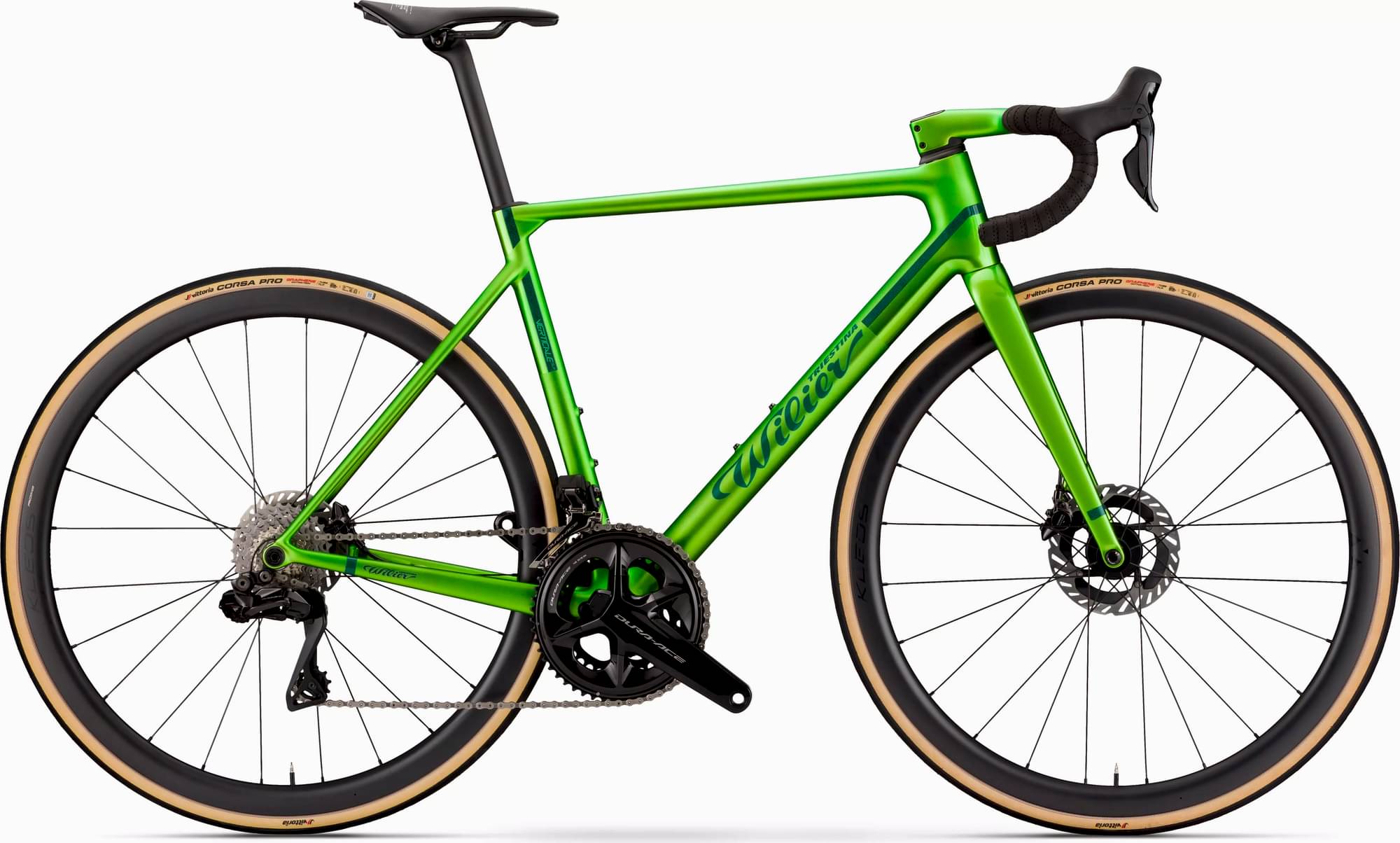

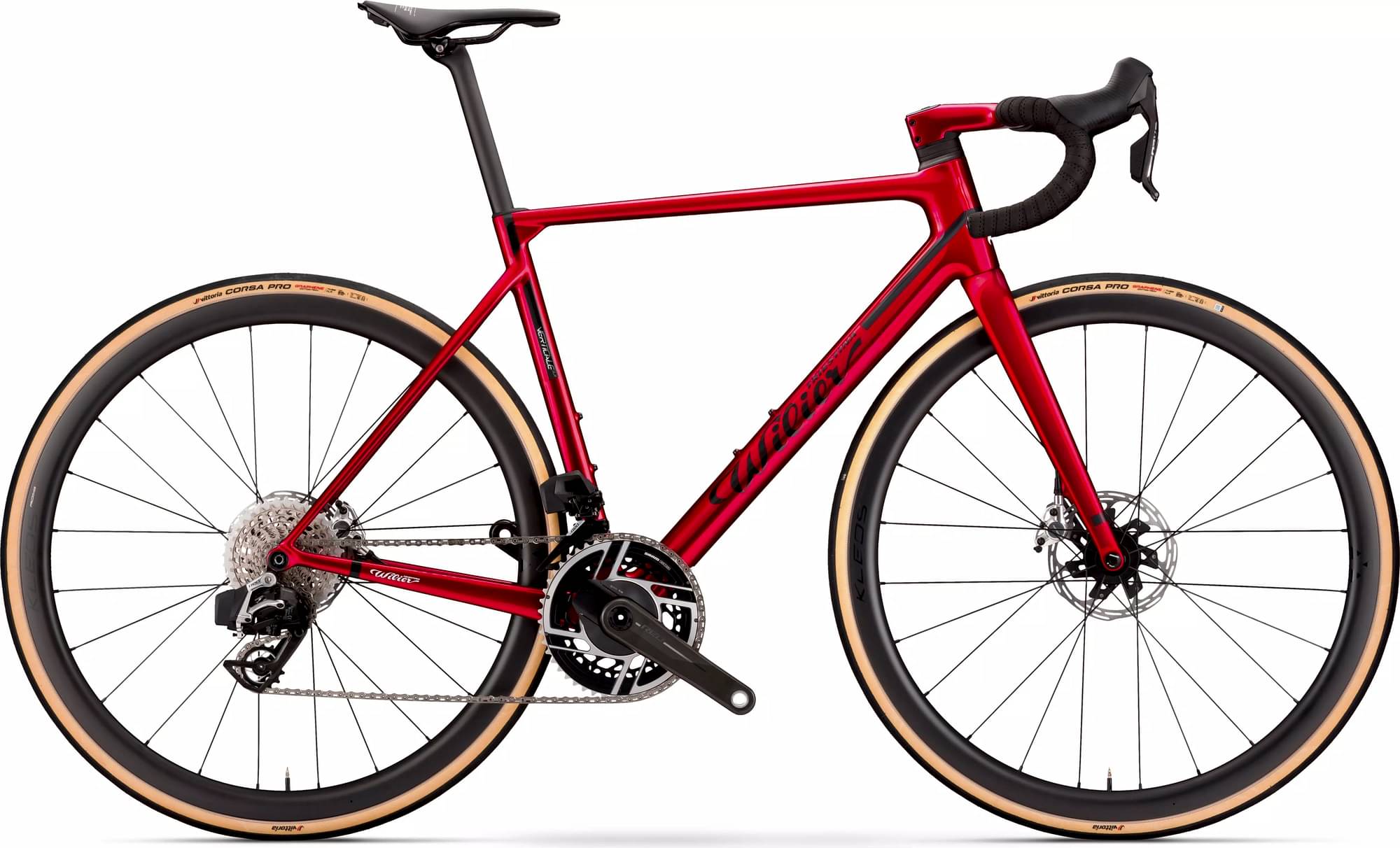

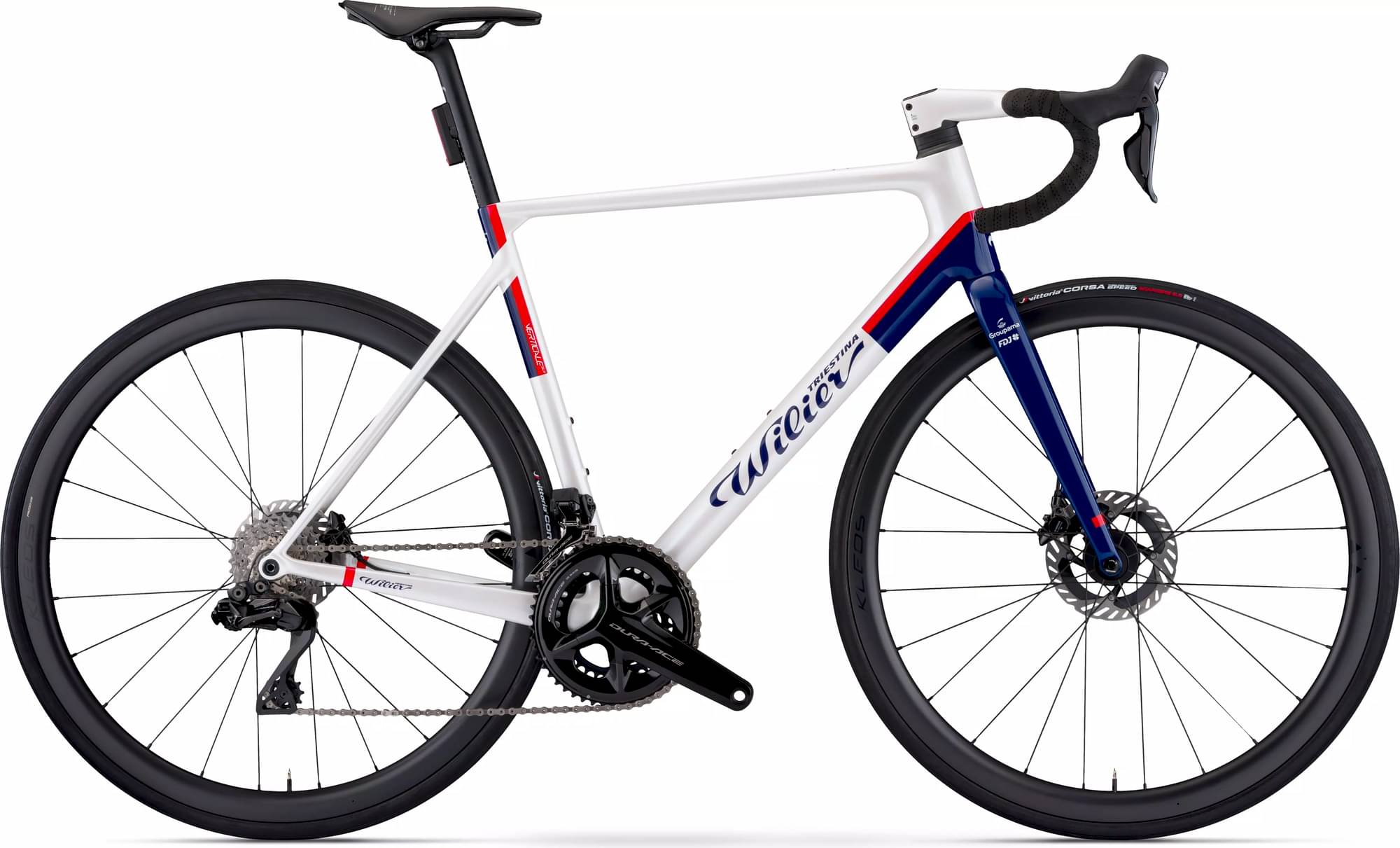

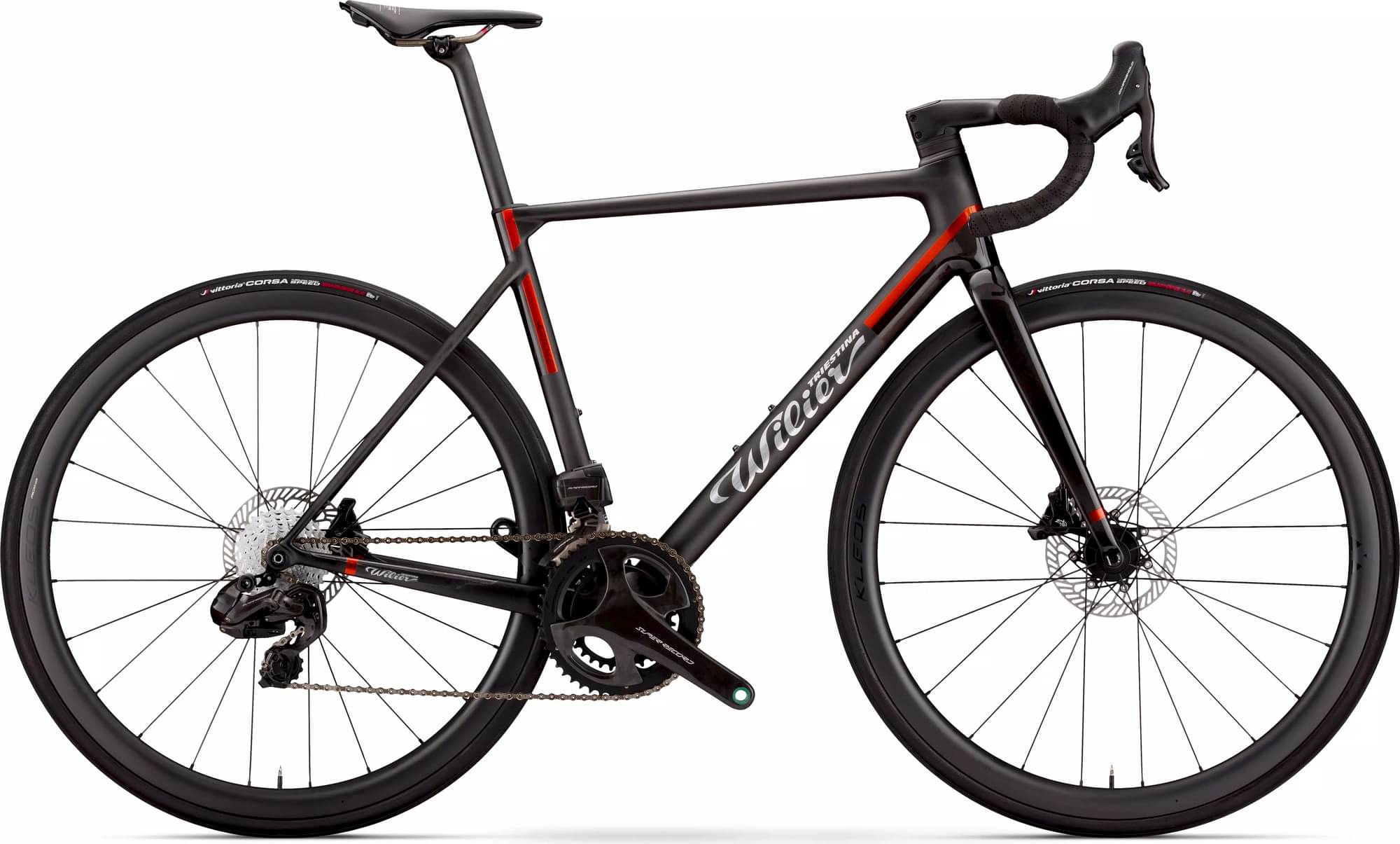

Wilier Verticale SLR SRAM FORCE AXS D2 12S WITH POWERMETER 2024
2024 Road
Estimate price |
12,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
Suspension Fork
VERTICALE SLR - TORAY T800+T1100 M46 JB CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SRAM FORCE AXS D2 12S
Front Derailleur
SRAM FORCE AXS D2 12S
Shift Levers
SRAM FORCE AXS D2 12S
Cassette
SRAM FORCE 12S 10-33T
Crank
SRAM FORCE AXS D2 12S WITH POWERMETER
Bottom Bracket
SRAM DUB PRESSFIT 86.5 ROAD WIDE
Chain
SRAM FORCE 12S
Wheels
Rims
MICHE KLEOS 36 CARBON
Tires
VITTORIA CORSA PRO 700X28C
Brakes
Brakes
SRAM FORCE AXS D2 12S
Cockpit
Handlebar
TORAY T800+T1100 M46 JB CARBON MONOCOQUE V BAR + GARMIN/WAHOO MOUNT
Headset
WILIER SUPERSLIM CUSTOM BEARINGS
Seat
Saddle
PROLOGO DIMENSION T4.1
Seatpost
VERTICALE SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm + REAR LIGHT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.354 mm | 1.376 mm | 1.4 mm | 1.422 mm | 1.443 mm | 1.458 mm |
| Stack | 505 mm | 523 mm | 541 mm | 559 mm | 577 mm | 595 mm |
| Reach | 373 mm | 380 mm | 386.5 mm | 393 mm | 400 mm | 408 mm |
| Seat Tube Angle | 72.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.6 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° |
| Wheelbase | 974 mm | 981 mm | 990 mm | 999 mm | 1009 mm | 1017 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |
