Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
20"
115cm - 125cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mid Aluminium
Suspension Fork
Winora Unicrown

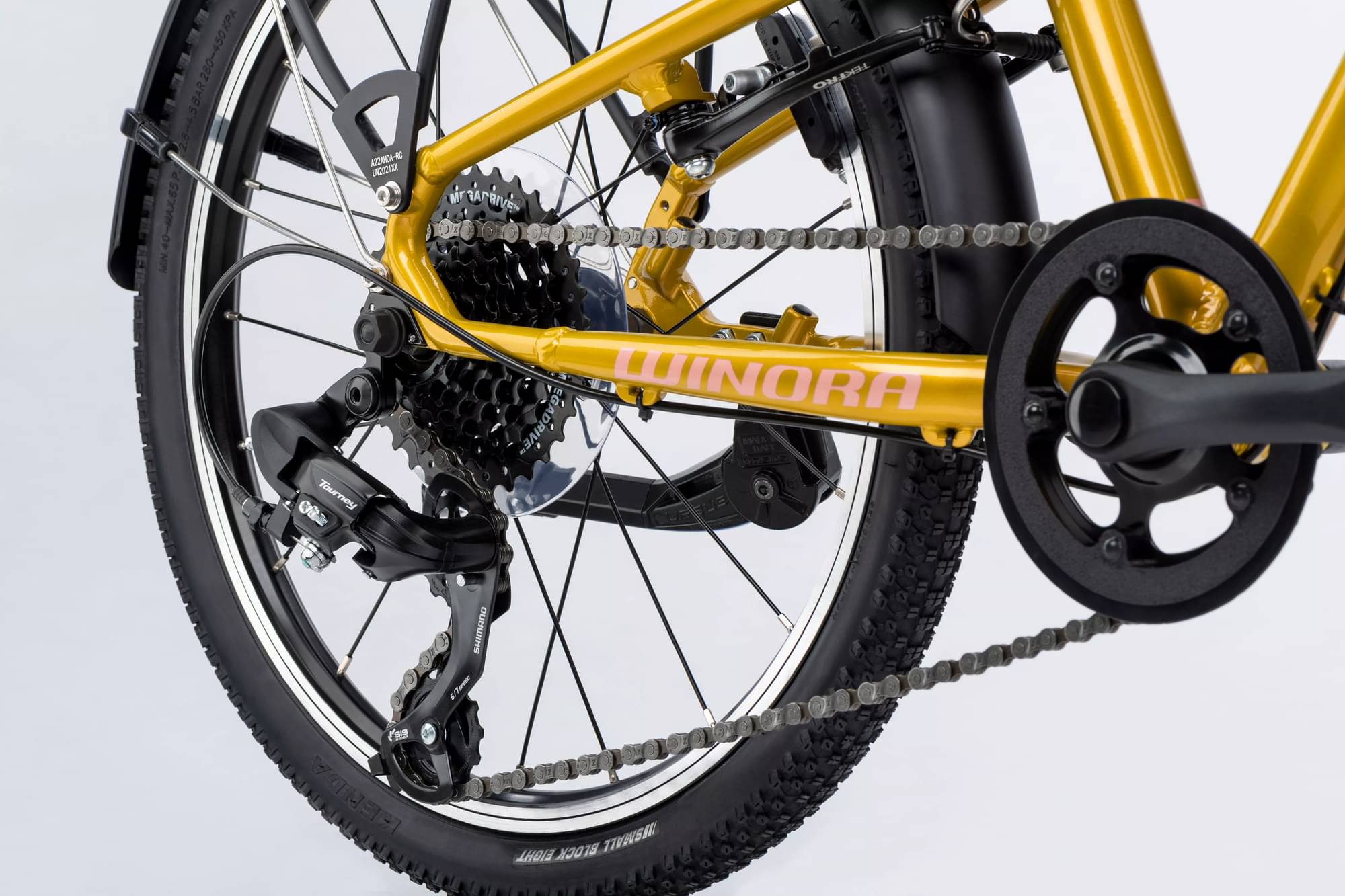

Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300, 7s
Front Derailleur
Shimano Tourney FD-TY300
Shift Levers
Shimano Gripshift Tourney SL-RS35, Rapidfire
Cassette
Shimano CS-HG31-7, HG
Crank
Samox aluminium crank
Bottom Bracket
Thun BSA Dinky
Chain
KMC Chain Z7
Chain Guide
Winora plastic
Pedals
VP 225
Wheels
Front Hub
Kun Teng A15F
Rear Hub
Kun Teng A11R
Rims
Shining Rims Hollow rim MT-46
Tires
Kenda K-1047 40-406
Brakes
Brakes
Mechanical V-brake V-Brake
Cockpit
Stem
Winora Adjustable aluminium, A-Head
Handlebar
Winora ATB handlebar
Headset
Fsa Semi-integrated NO.10 ED 1-1/8" ZS44
Seat
Saddle
XLC Kids
Seatpost
XLC Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.625 mm |
| Front Center | 483 mm |
| Rake | 32 mm |
| Stack | 455 mm |
| Reach | 280 mm |
| Top Tube Length | 455 mm |
| Seat Tube Angle | 69 ° |
| Seat Tube Length | 250 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 365 mm |
| Wheelbase | 843 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 500 mm |
| Wheels | 20" |
| Rider Min Height | 115 cm |
| Rider Max Height | 125 cm |
