Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Acera -
Suspension Rigid -
Brakes Tektro Rim
Sizing
Recommended size guide.
24"
125cm - 135cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mid Aluminium Girls
Suspension Fork
Winora Unicrown

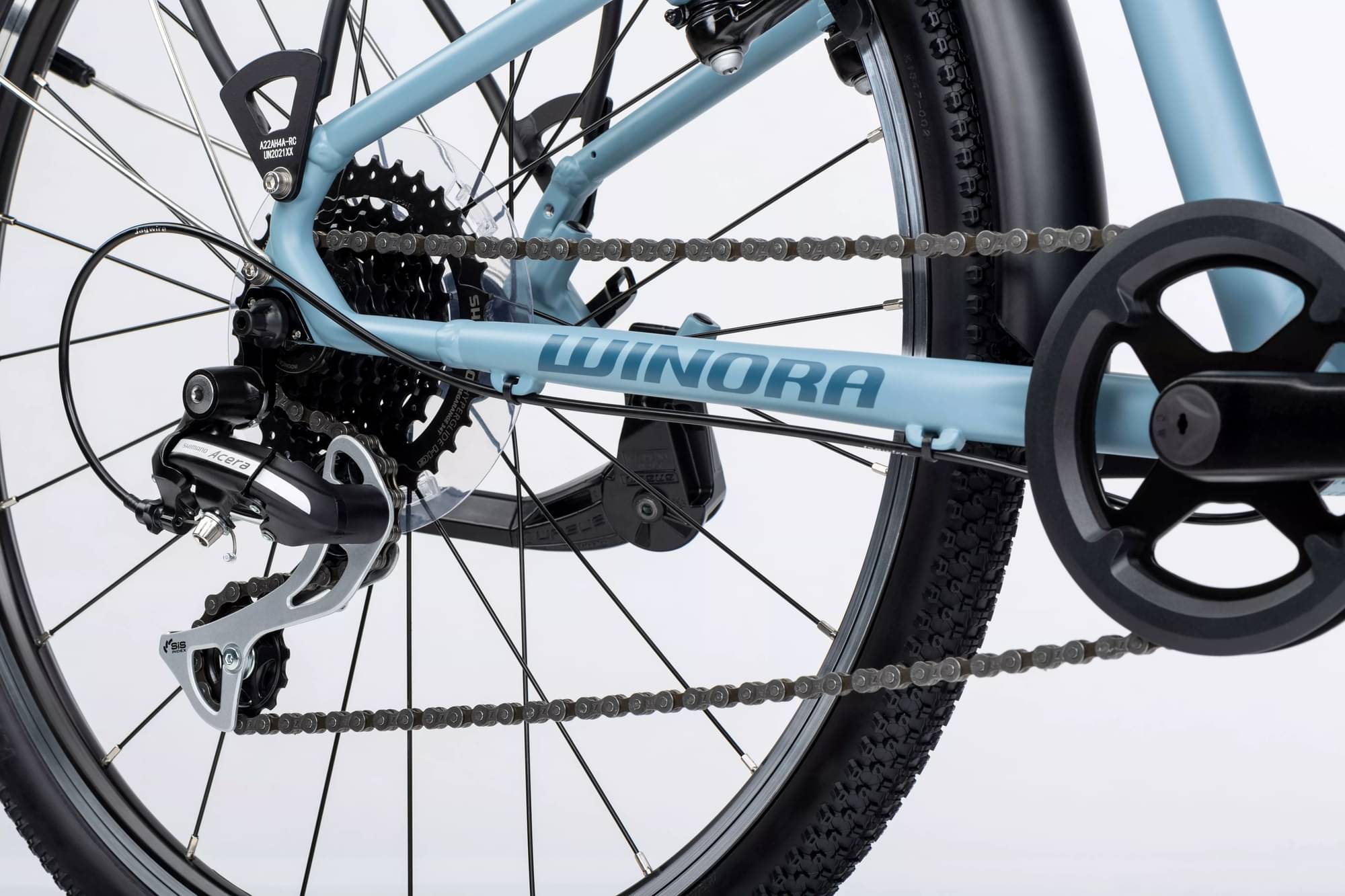

Drivetrain
Rear Derailleur
Shimano Acera RD-M360, 8s
Front Derailleur
Shimano Acera FD-M360
Shift Levers
Shimano Gripshift Tourney SL-RS45
Cassette
Shimano CS-HG31-8, HG
Crank
Samox aluminium crank
Bottom Bracket
Thun BSA Dinky
Chain
KMC Chain Z7
Chain Guide
Winora plastic
Pedals
VP 225
Wheels
Front Hub
Kun Teng A15F
Rear Hub
Kun Teng A11R
Rims
Shining Rims Hollow rim MT-46
Tires
Kenda K-1047 40-507
Brakes
Brakes
Tektro Mechanical V-brake 837AL
Brake Levers
Tektro TS325A
Cockpit
Stem
Winora Adjustable aluminium, A-Head
Handlebar
Winora ATB handlebar
Headset
Fsa Semi-integrated NO.10 ED 1-1/8" ZS44
Seat
Saddle
XLC Kids
Seatpost
XLC Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.515 mm |
| Front Center | 564 mm |
| Rake | 40 mm |
| Stack | 512 mm |
| Reach | 338 mm |
| Top Tube Length | 535 mm |
| Seat Tube Angle | 69 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 410 mm |
| Wheelbase | 971 mm |
| Bottom Bracket Drop | 40 mm |
| Standover Height | 600 mm |
| Wheels | 24" |
| Rider Min Height | 125 cm |
| Rider Max Height | 135 cm |
