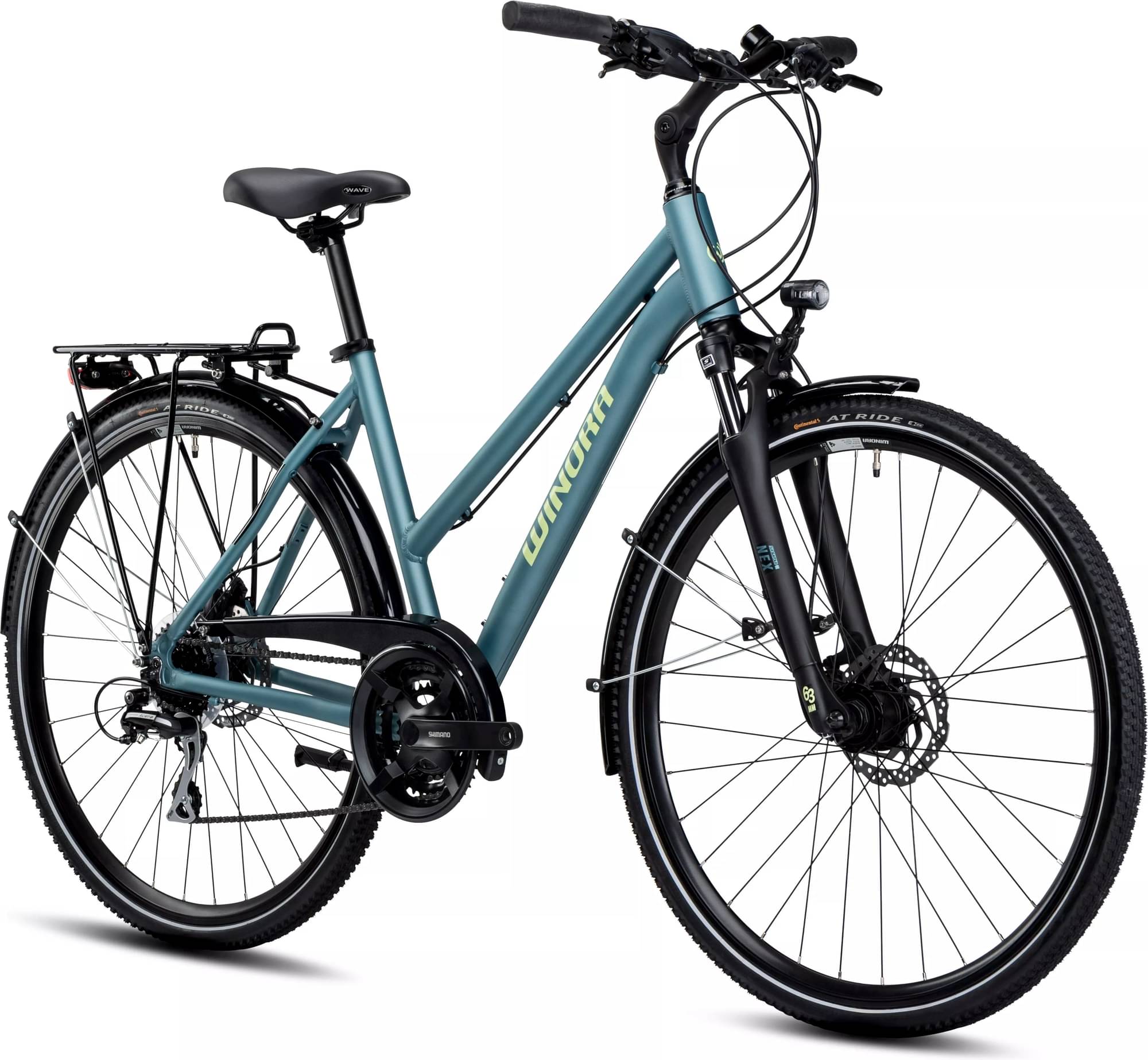

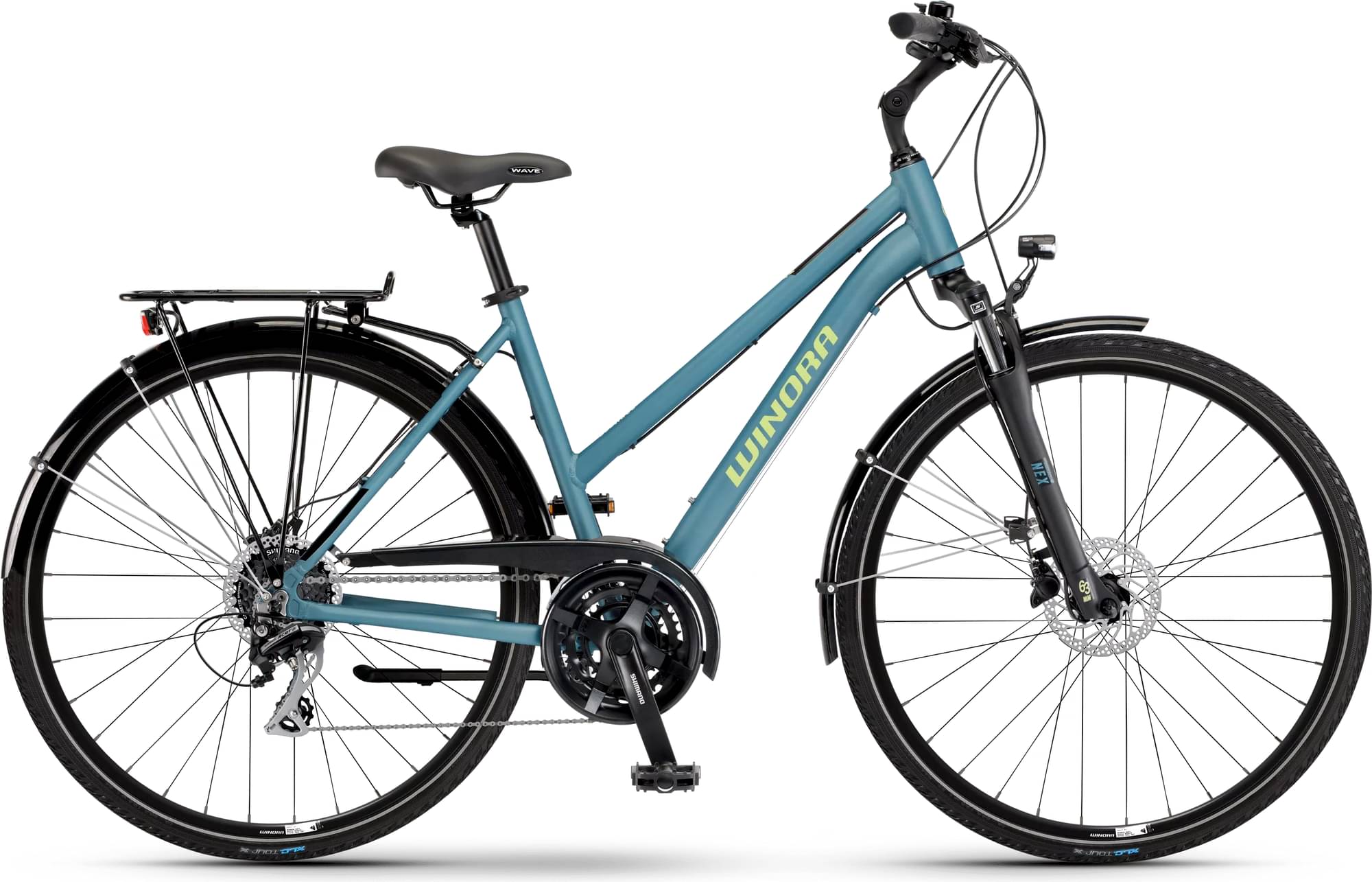

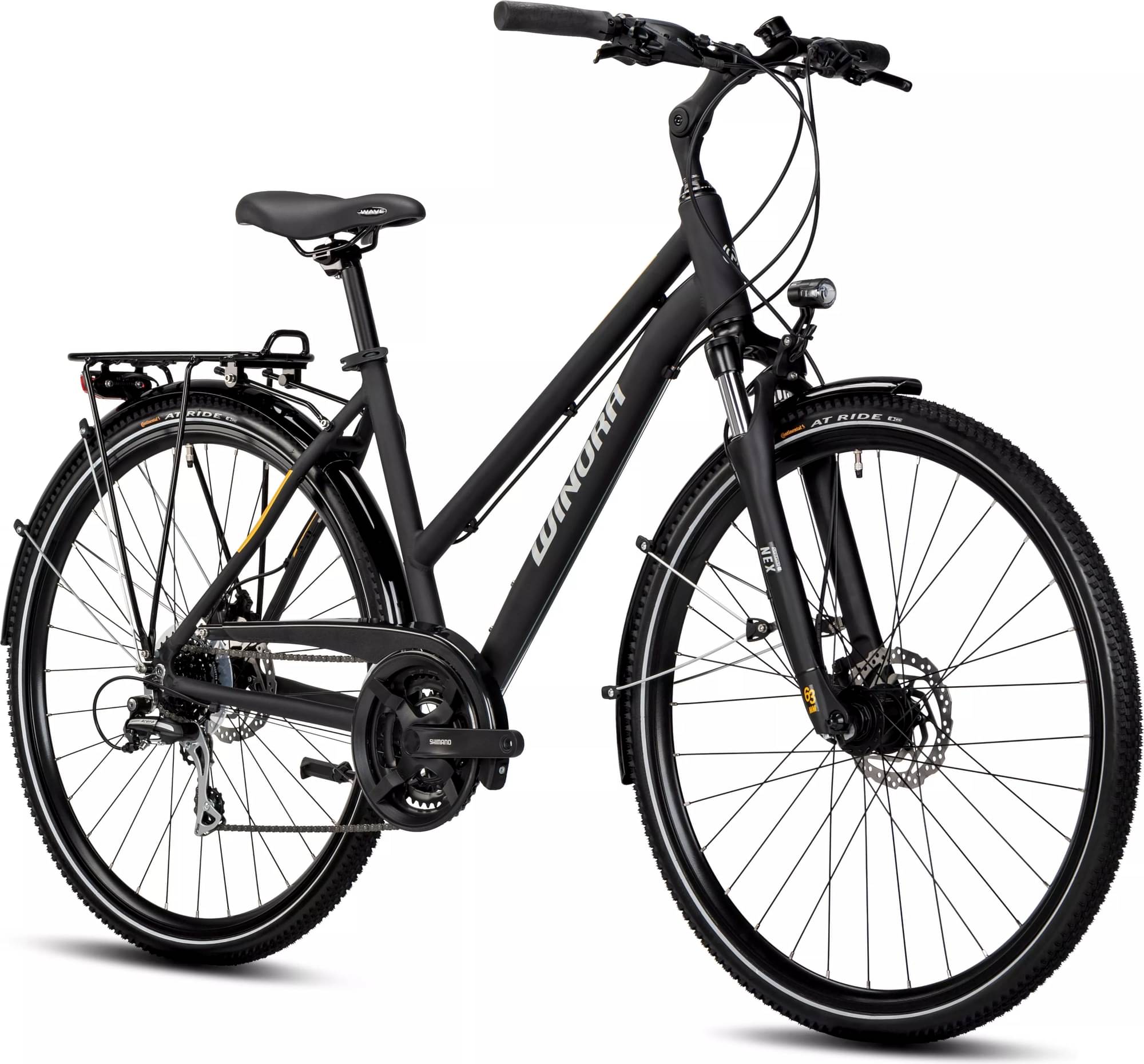

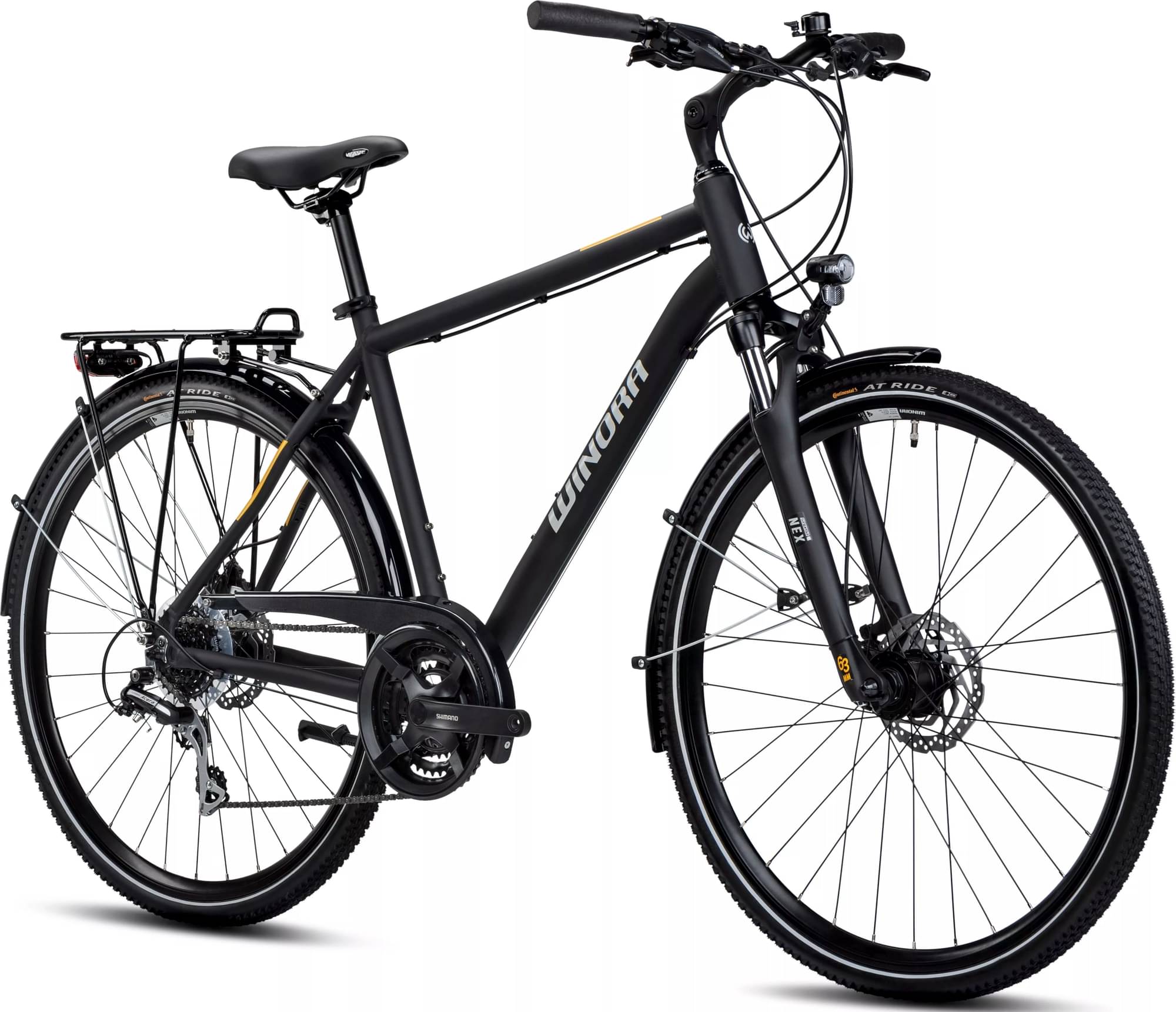

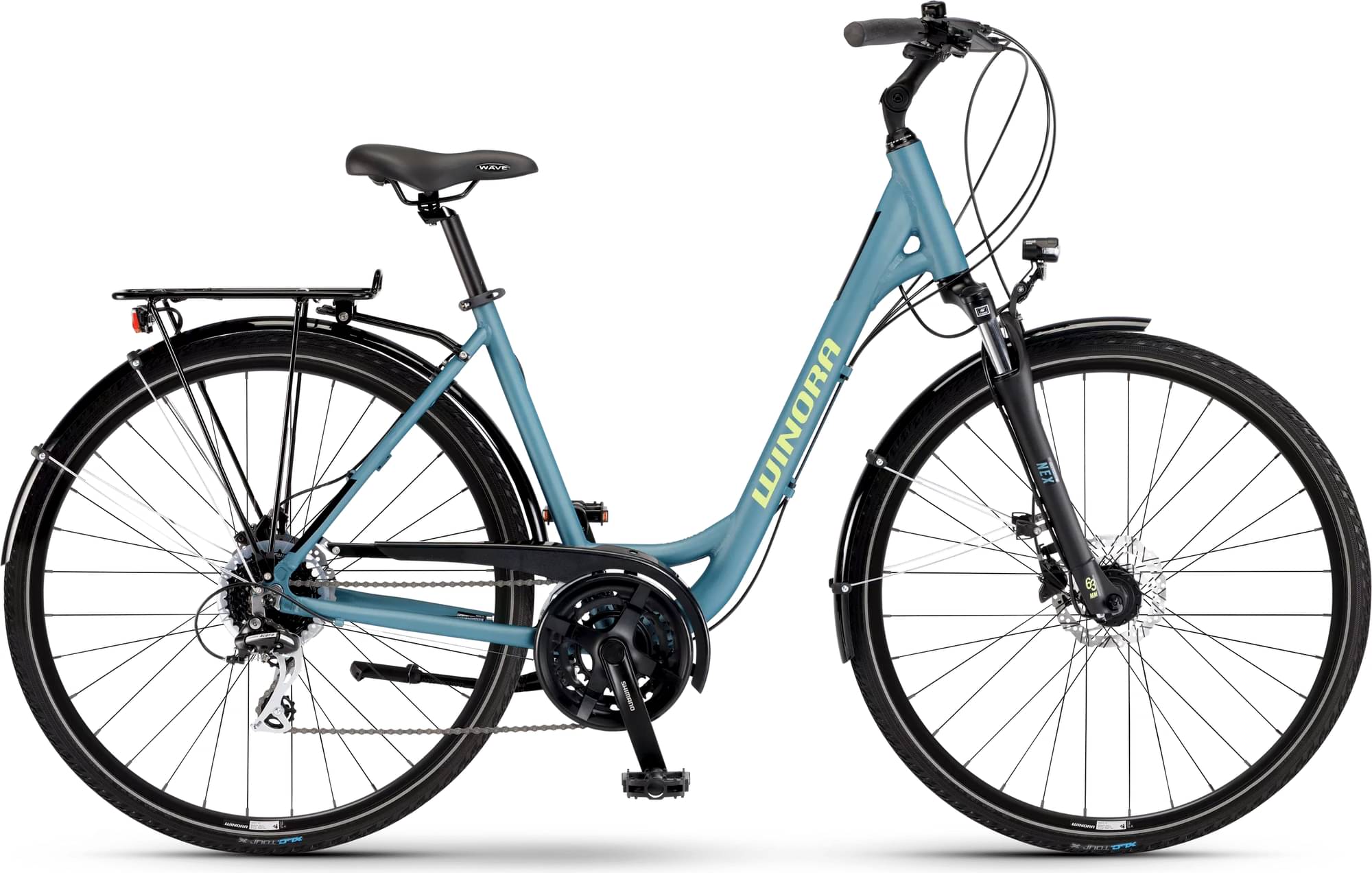

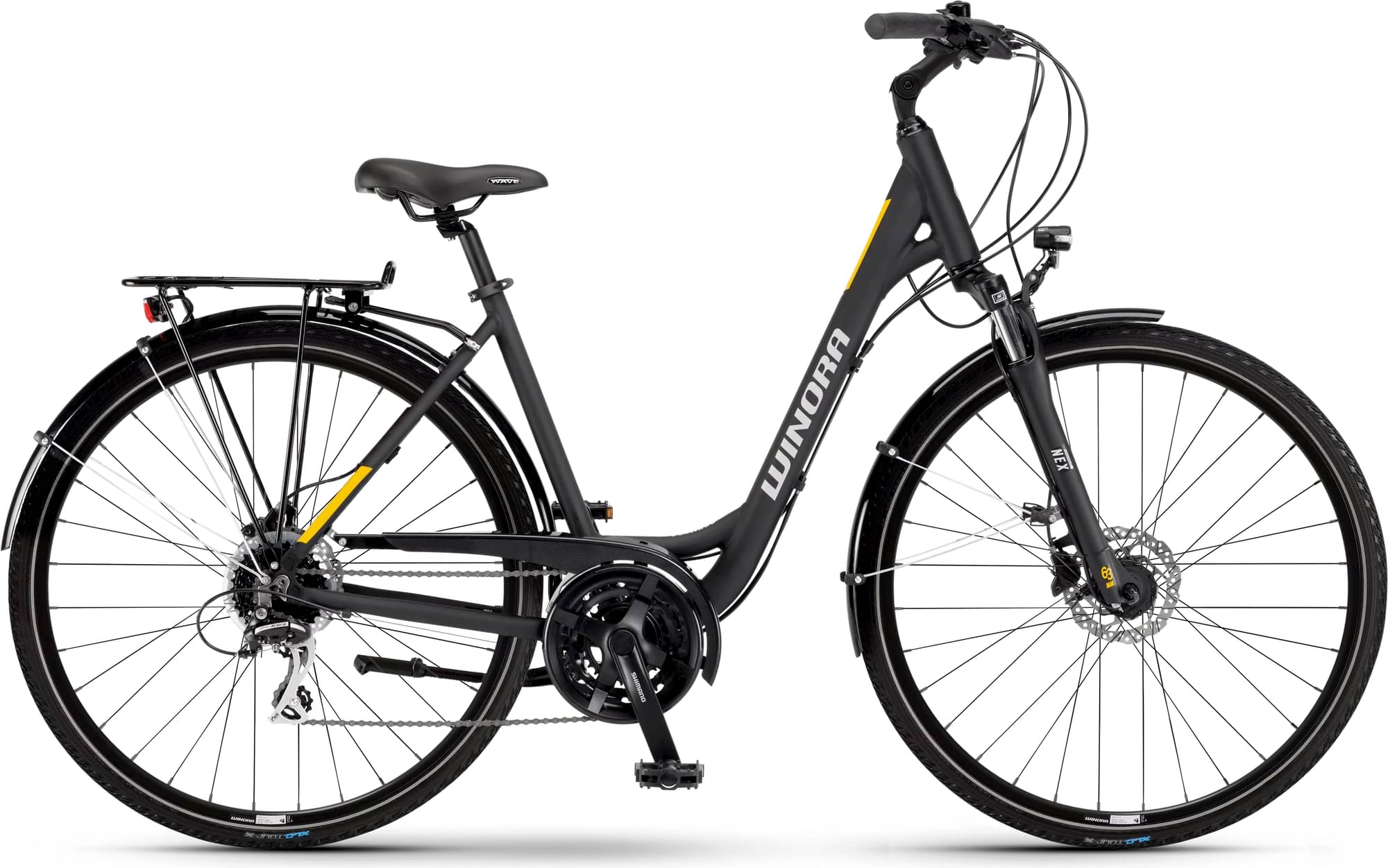

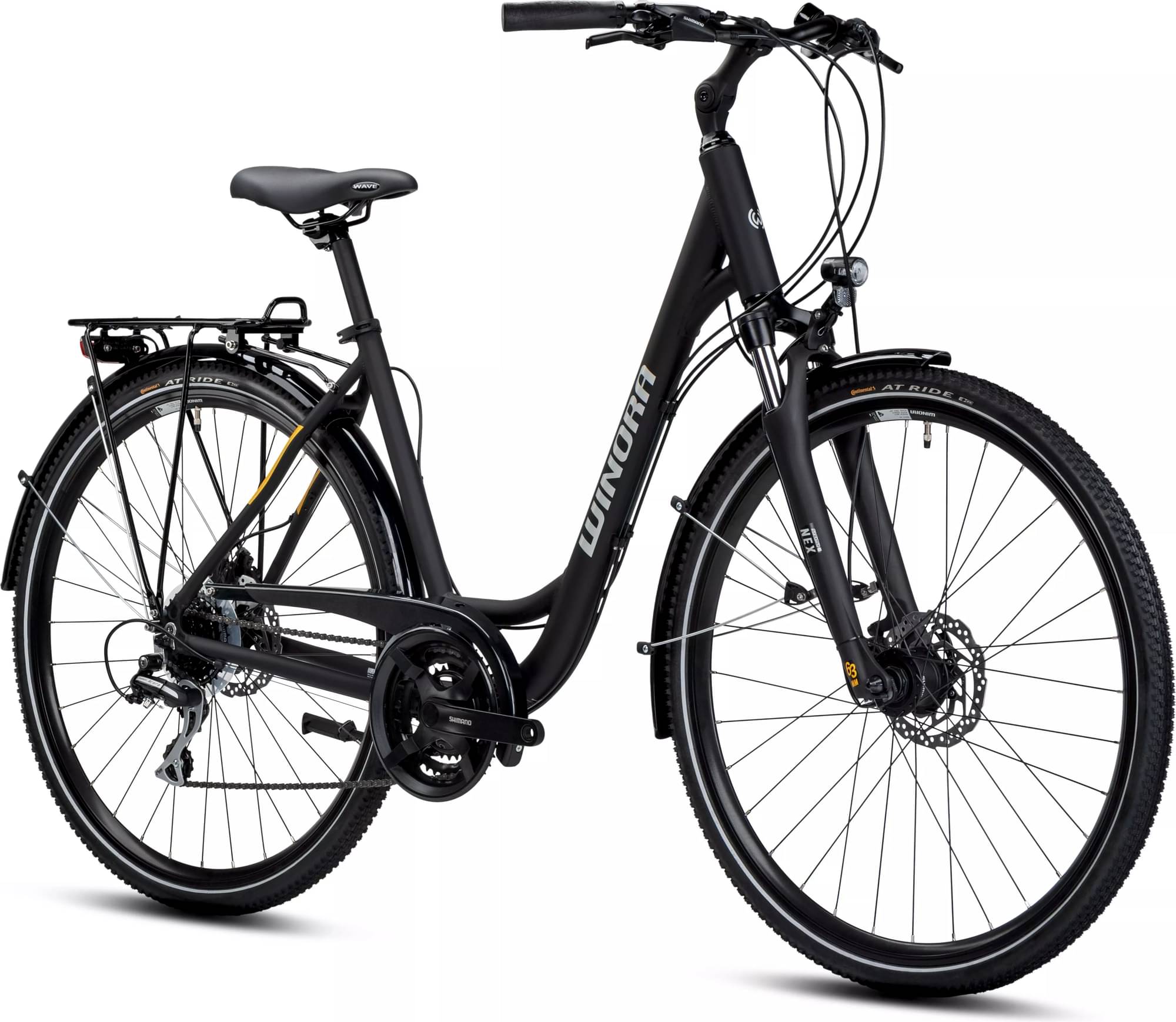

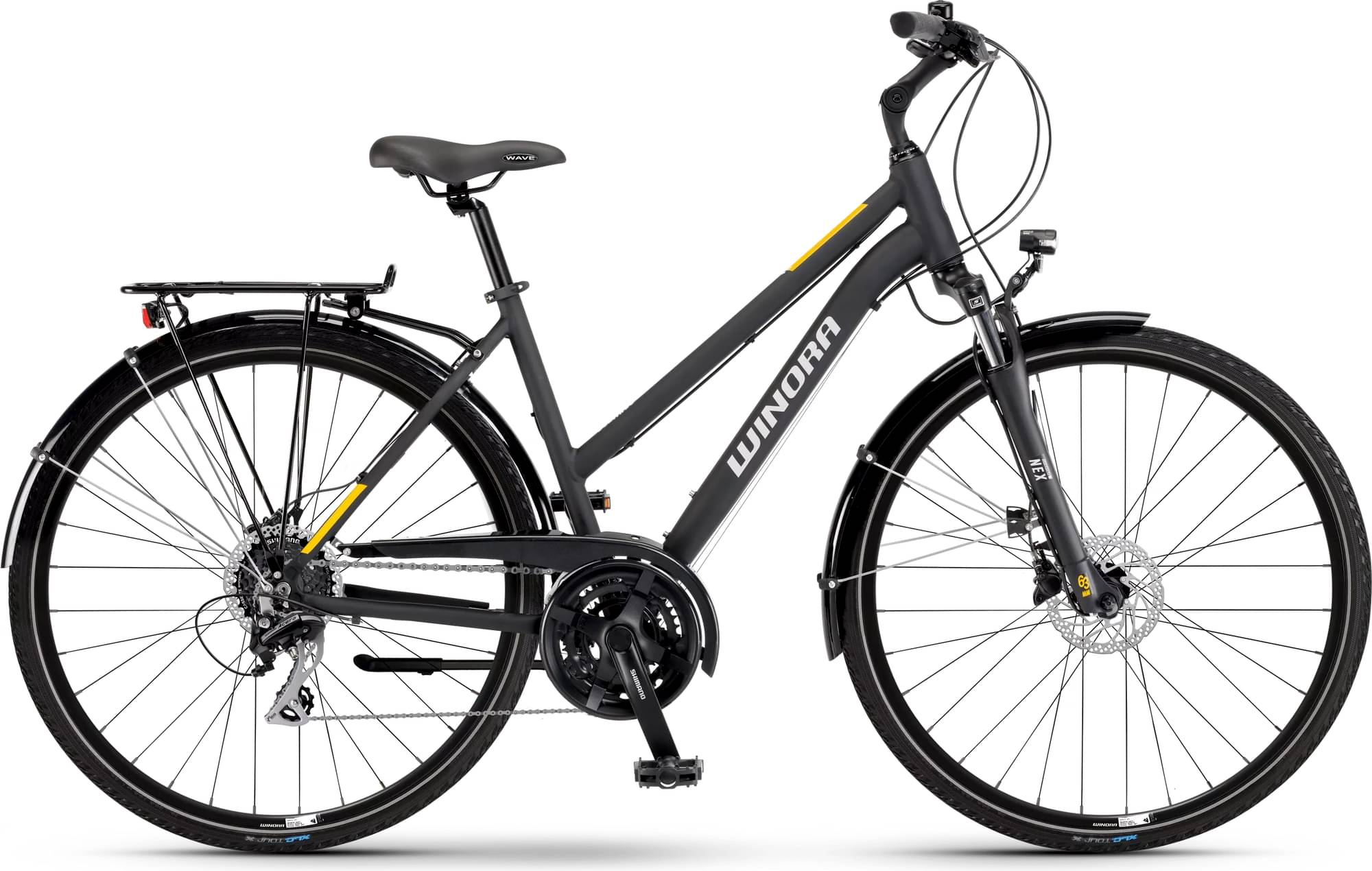

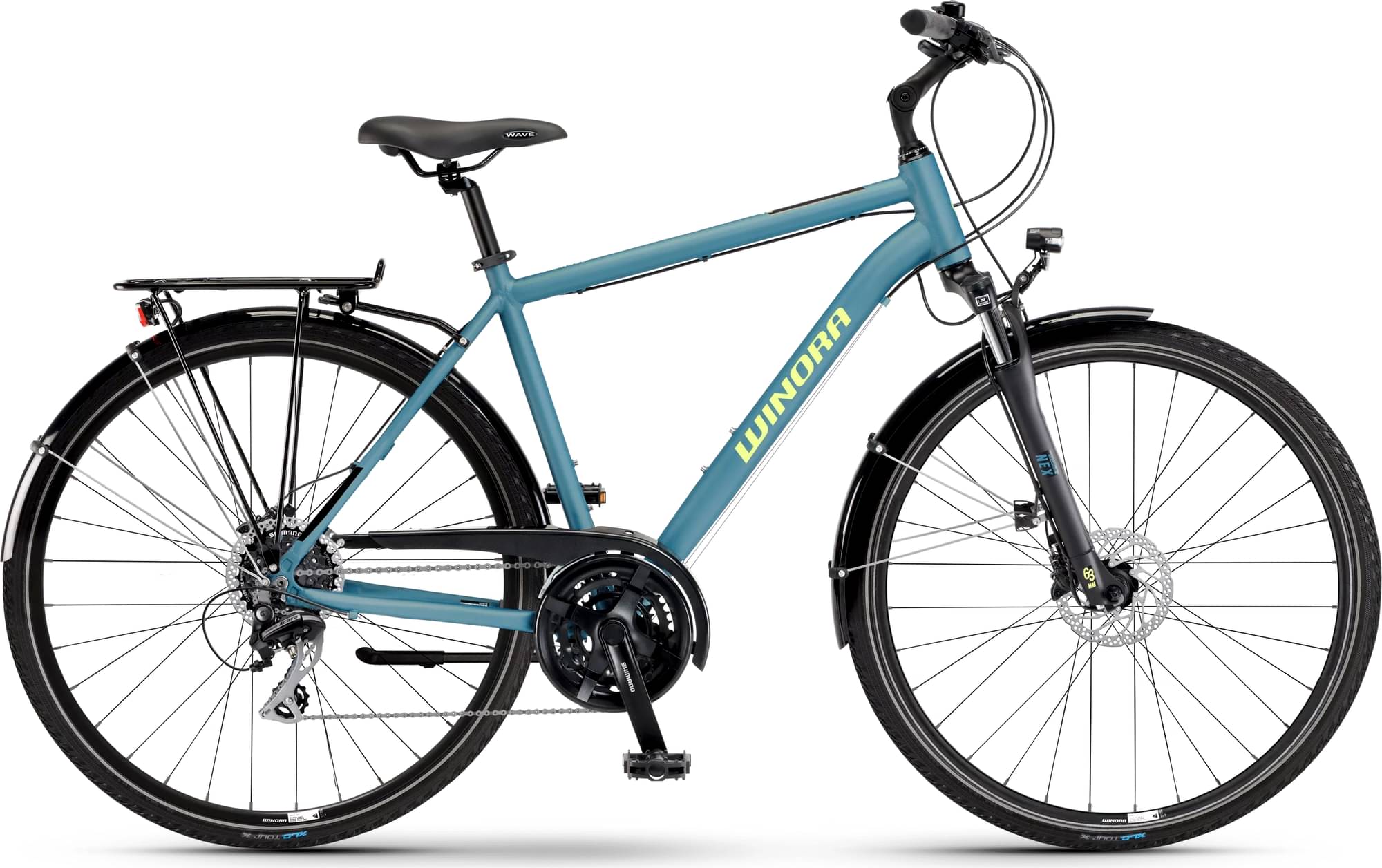

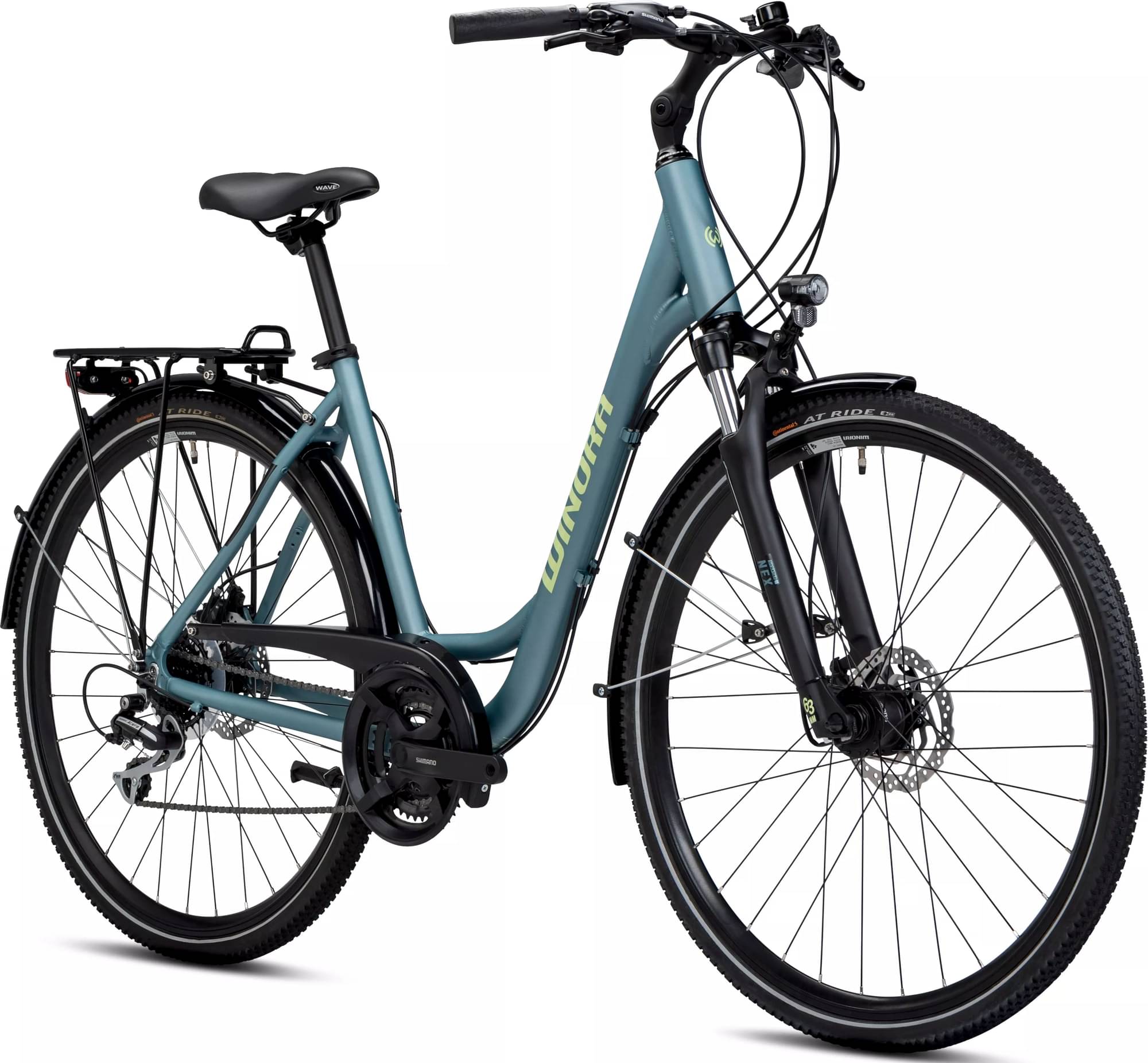

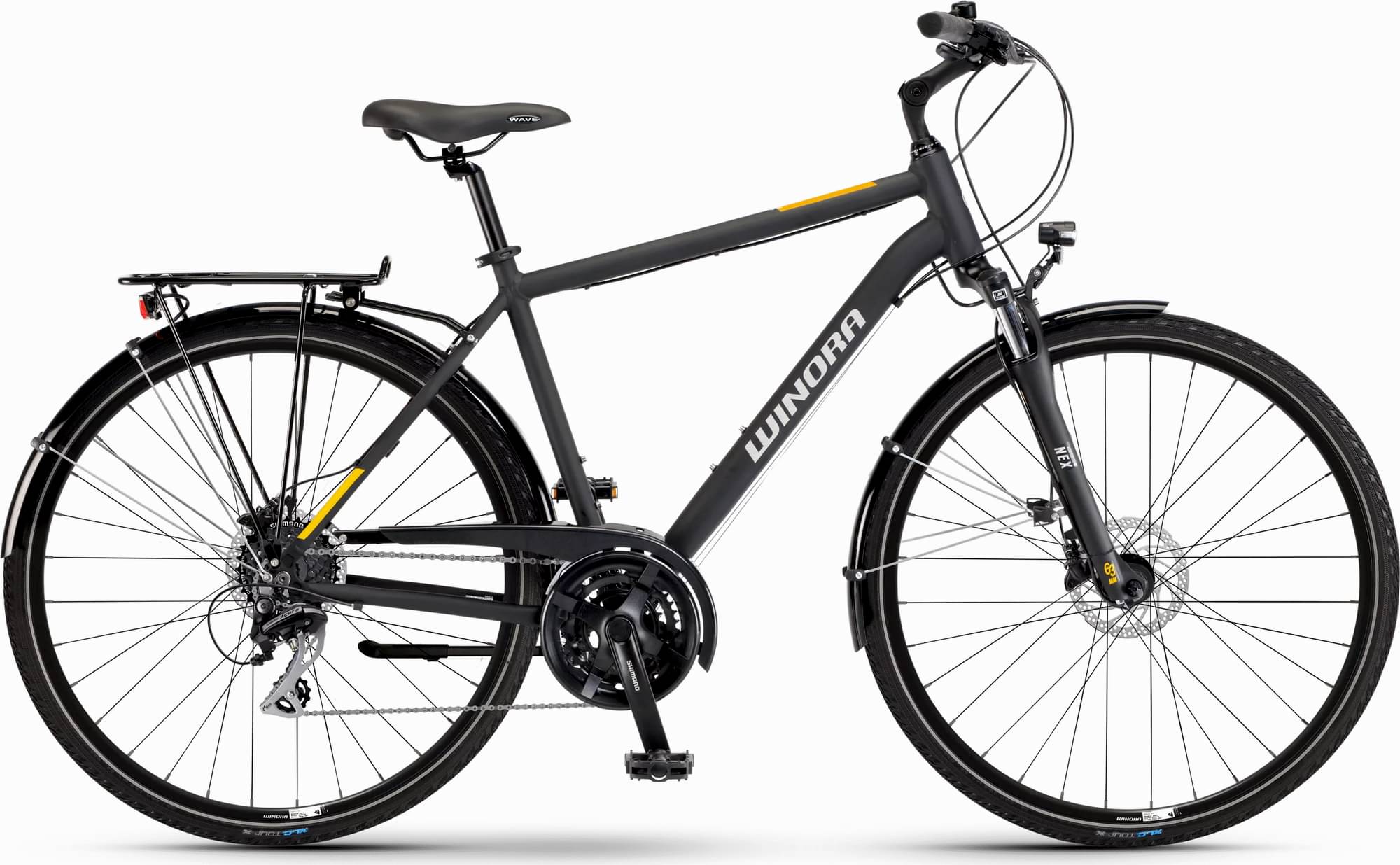

winora Domingo 24 2025
2025 Urban
Estimate price |
697$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -

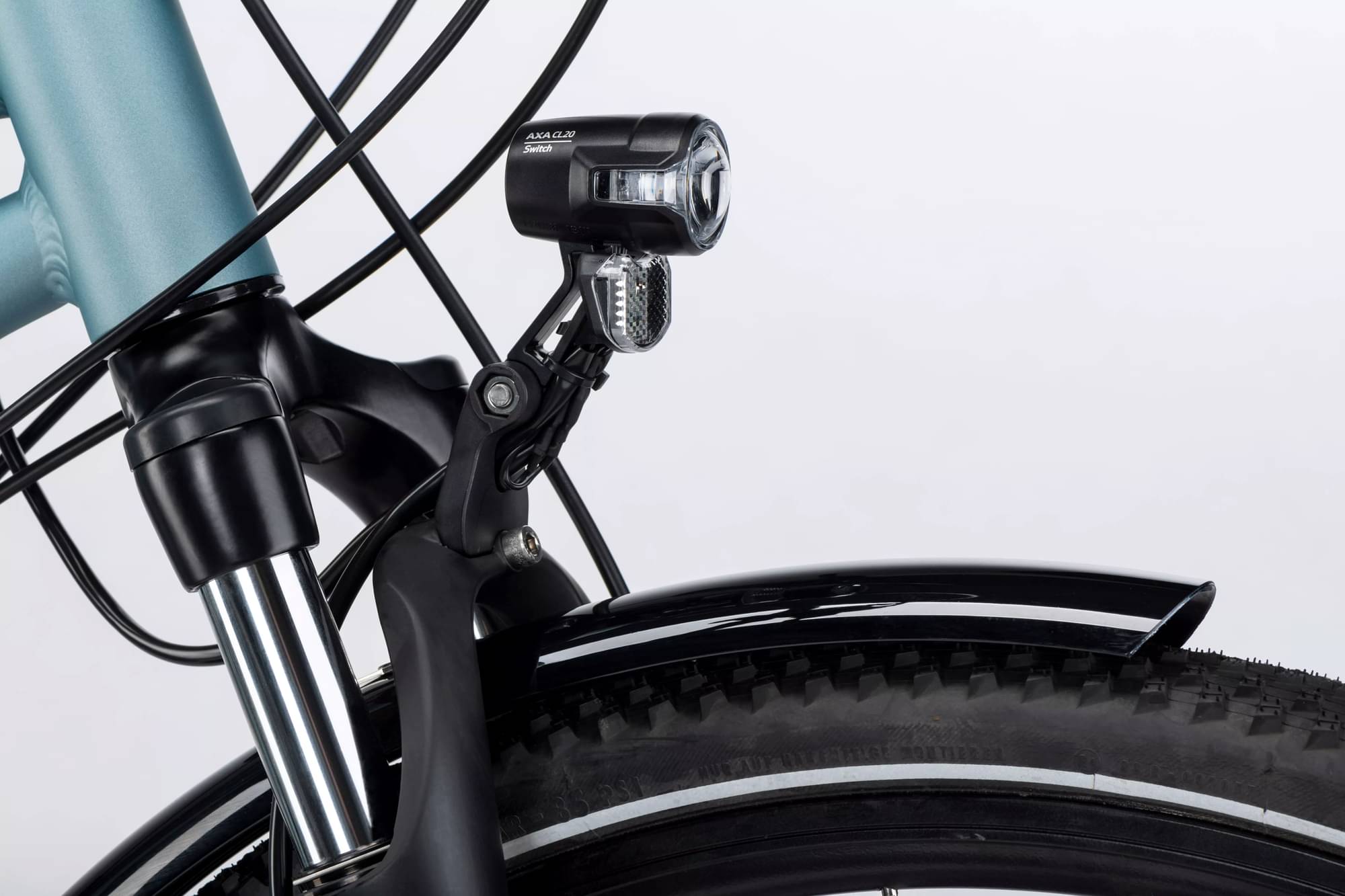

Fork Zoom
-
Groupset Tourney, Acera -
Suspension Hardtail -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
48cm
162cm - 170cm
52cm
168cm - 178cm
56cm
176cm - 186cm
60cm
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Gents

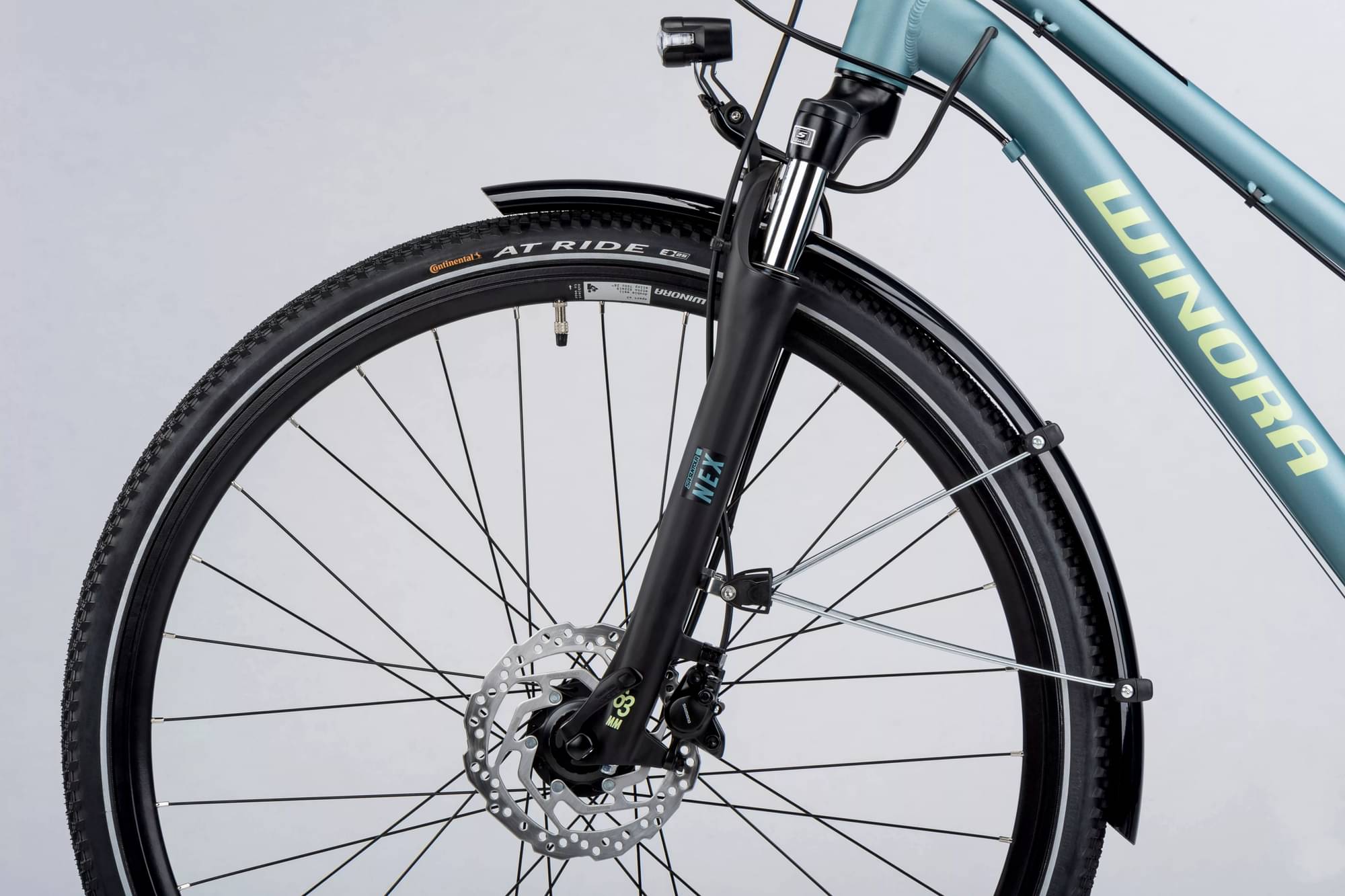

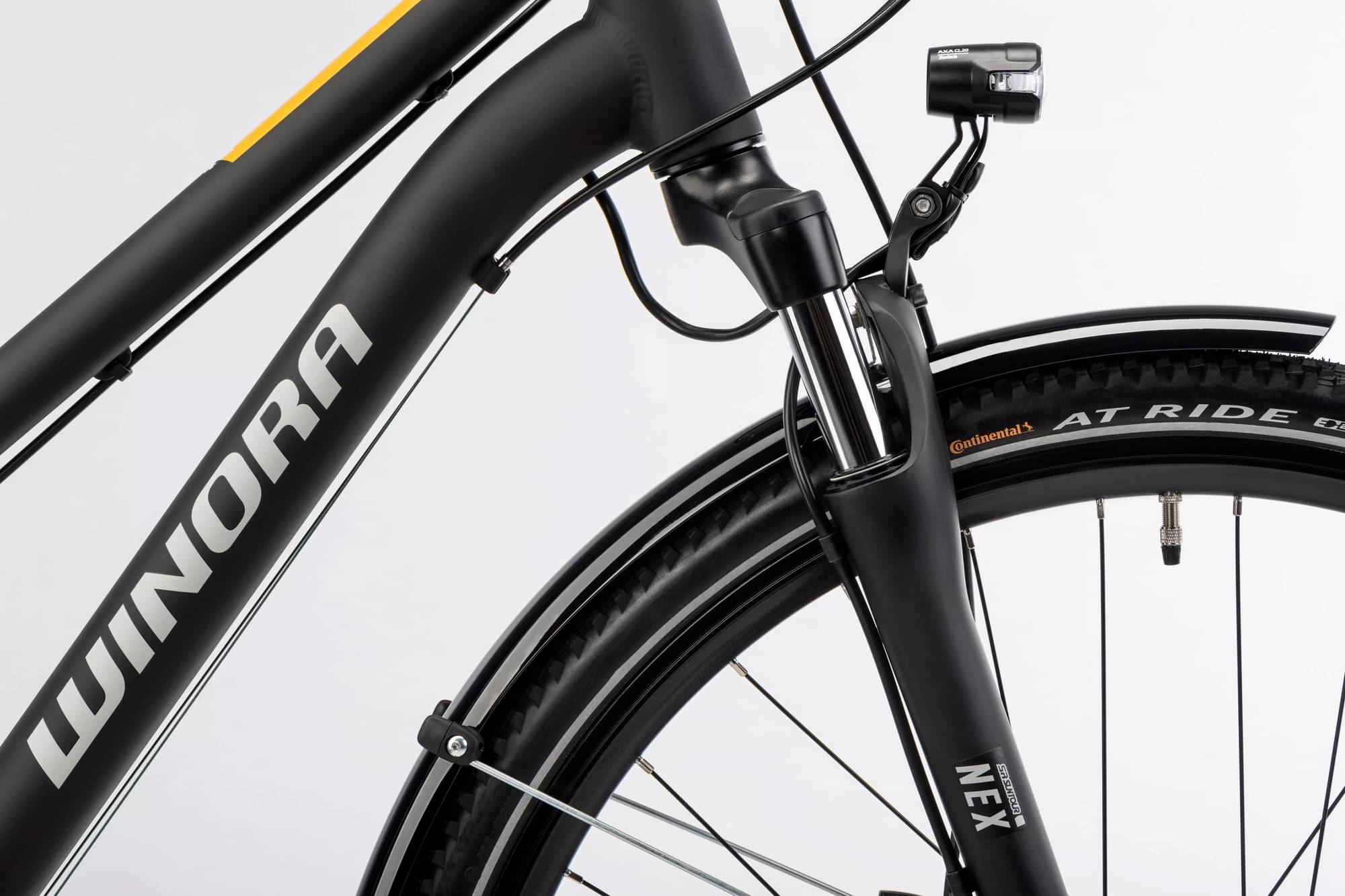

Suspension Fork
Zoom 187 AMS 63 mm

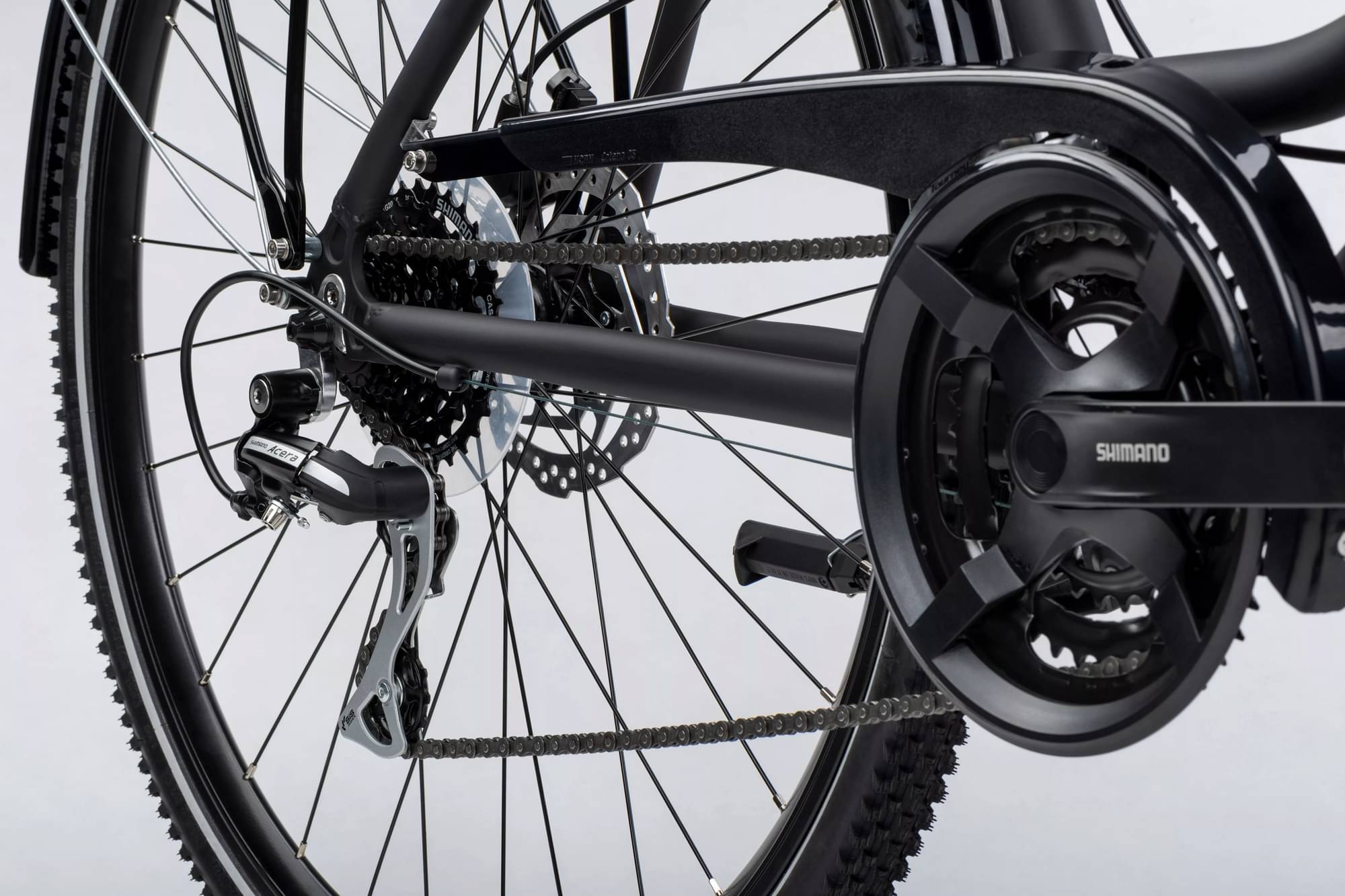

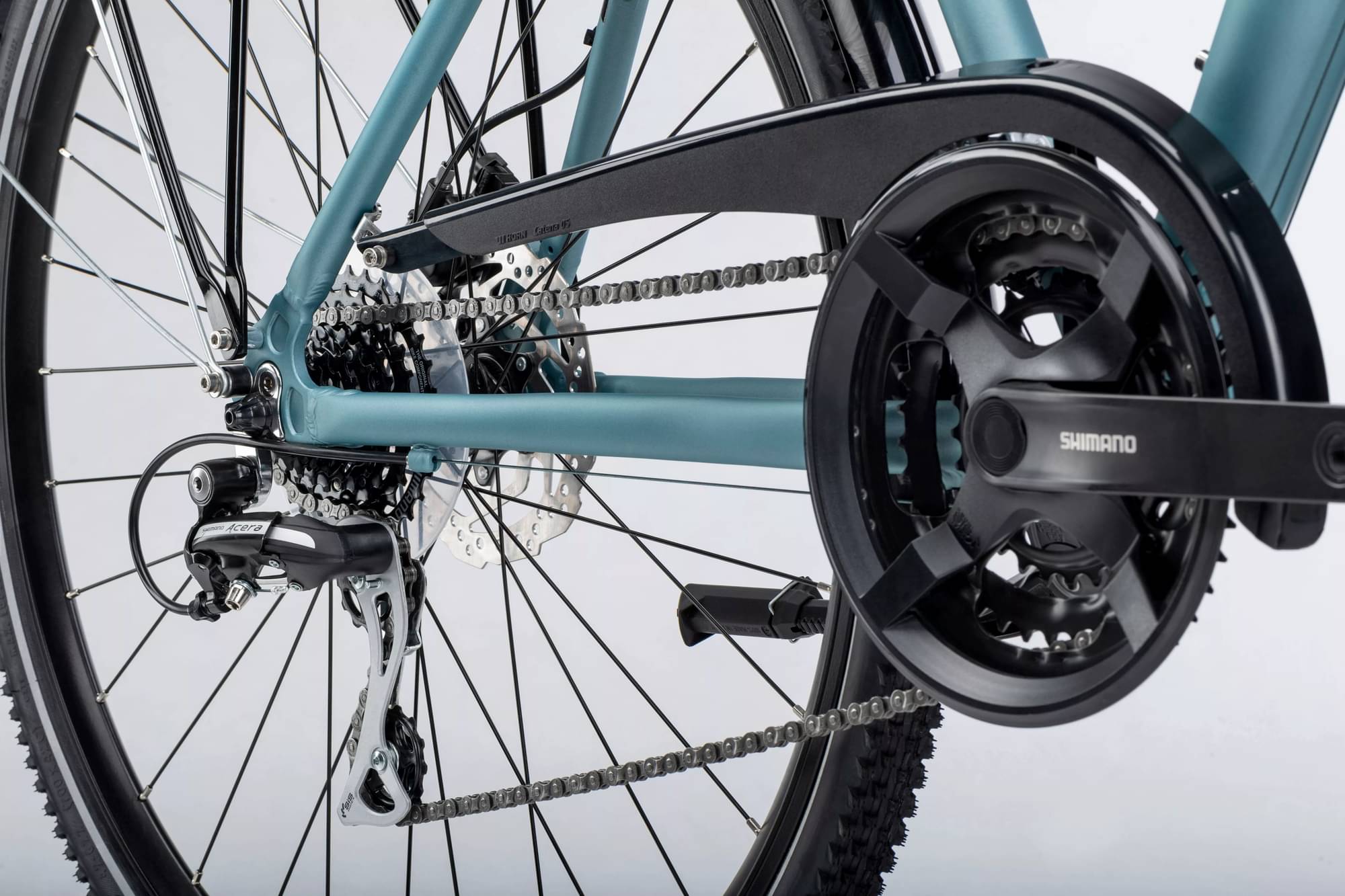

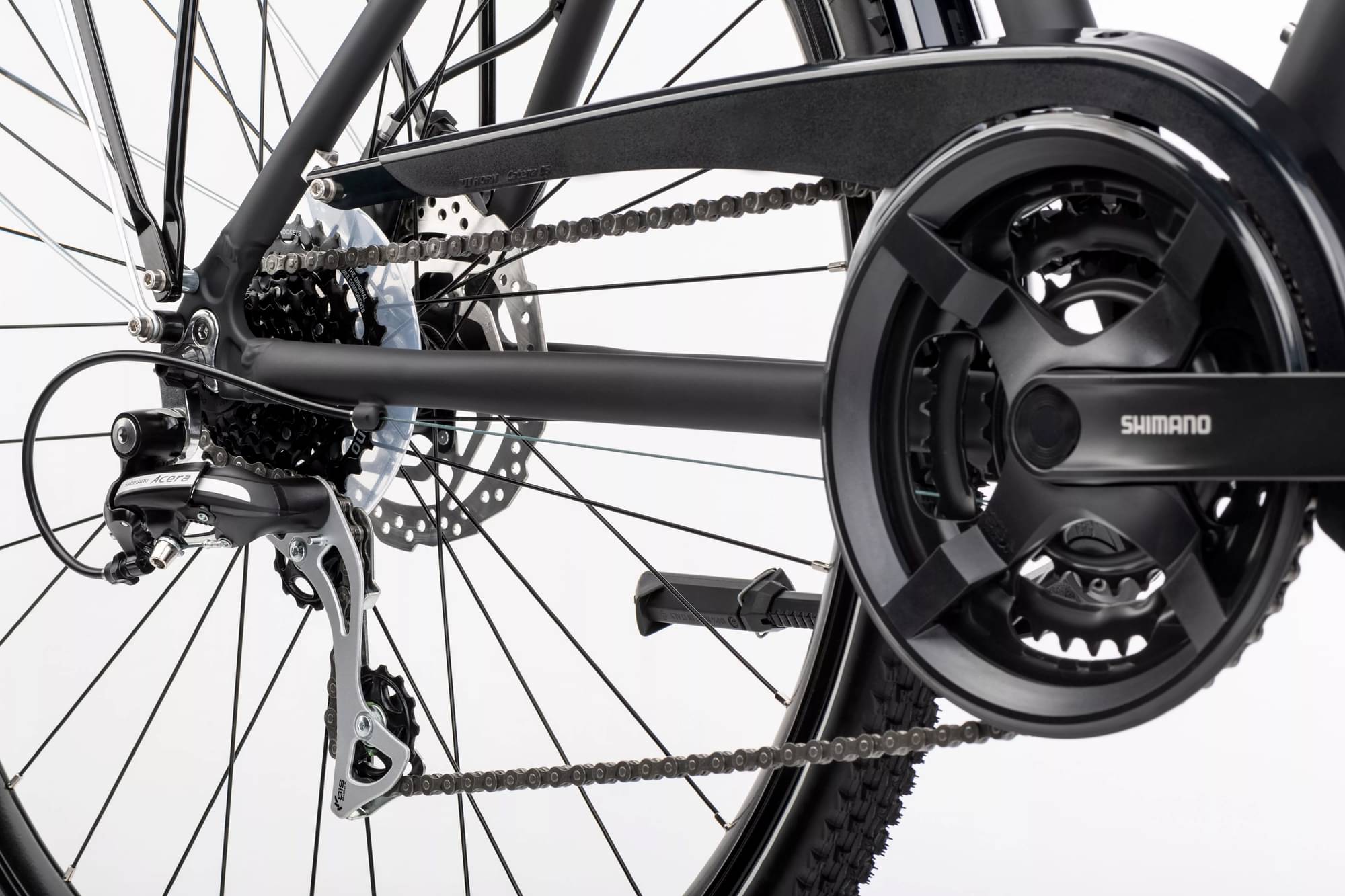

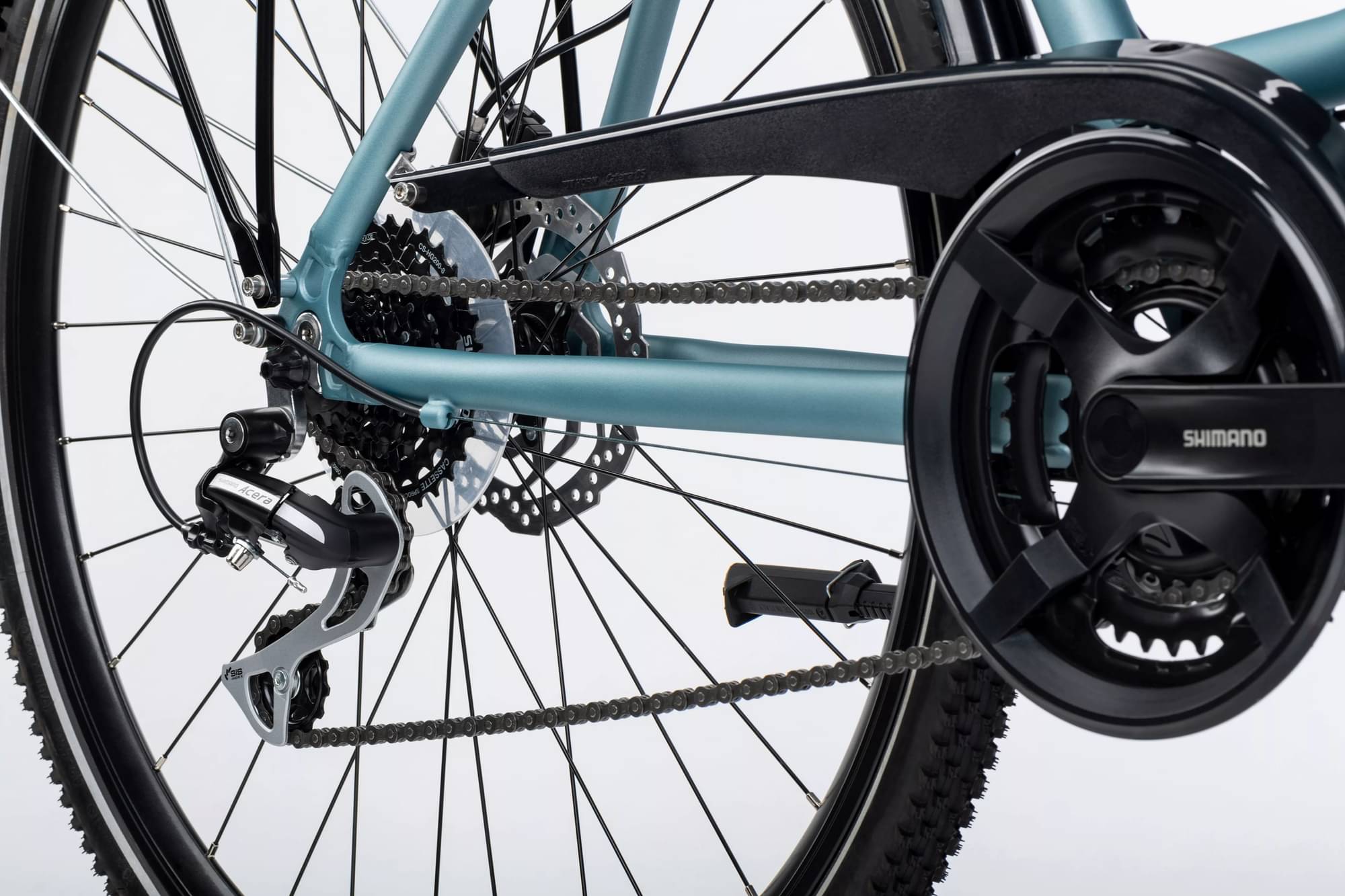

Drivetrain
Rear Derailleur
Shimano Acera RD-M360, 8s
Front Derailleur
Shimano Tourney FD-TY710

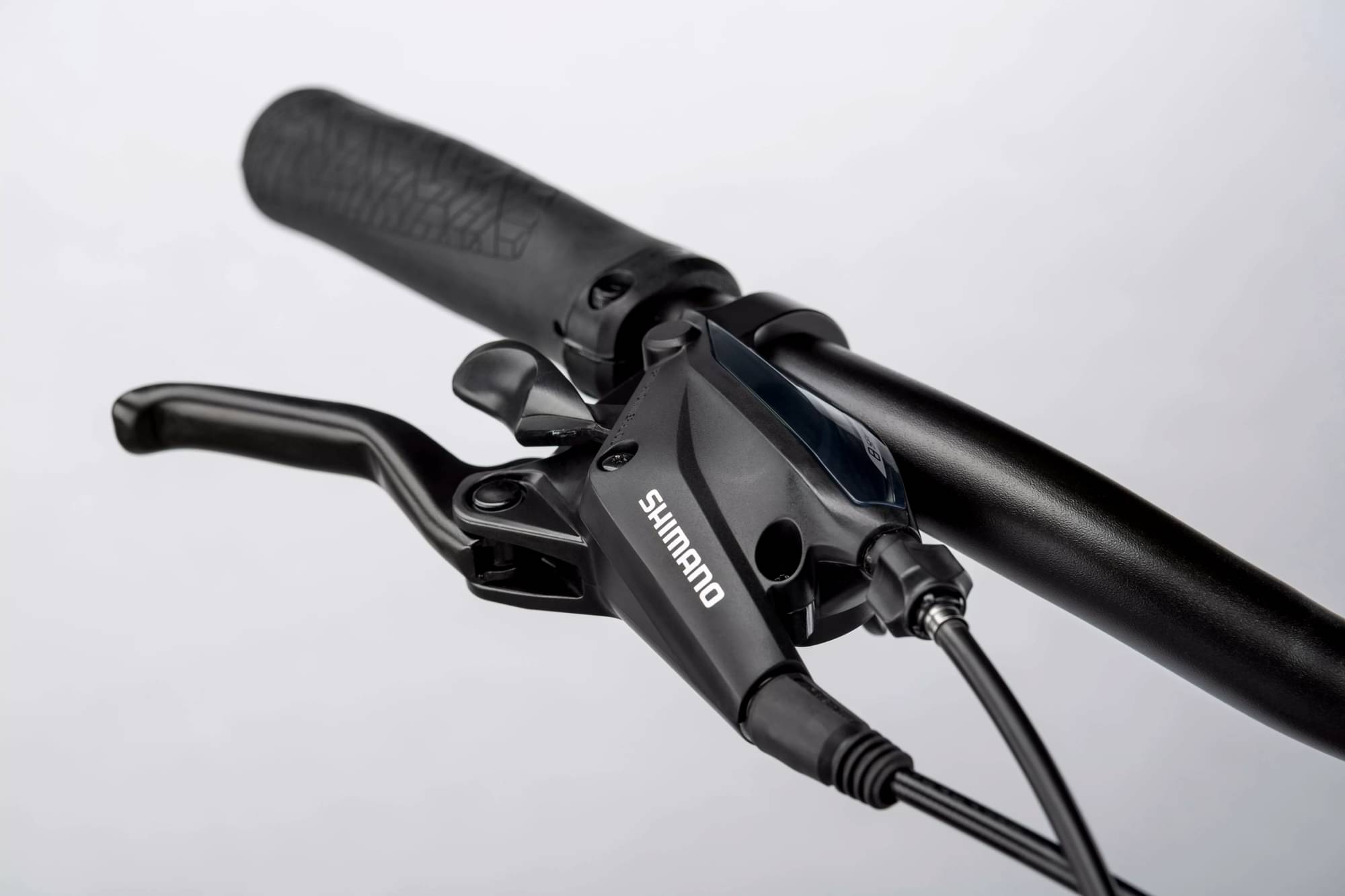

Shift Levers
Shimano Triggershift Altus ST-EF505-2L, Rapidfire
Cassette
Shimano CS-HG200-8, HG
Crank
Shimano Tourney FC-TY301
Bottom Bracket
VP BSA BC73
Chain
KMC Chain Z8
Chain Guide
Horn CATENA 05-3 TRIPLE 48T
Wheels
Front Hub

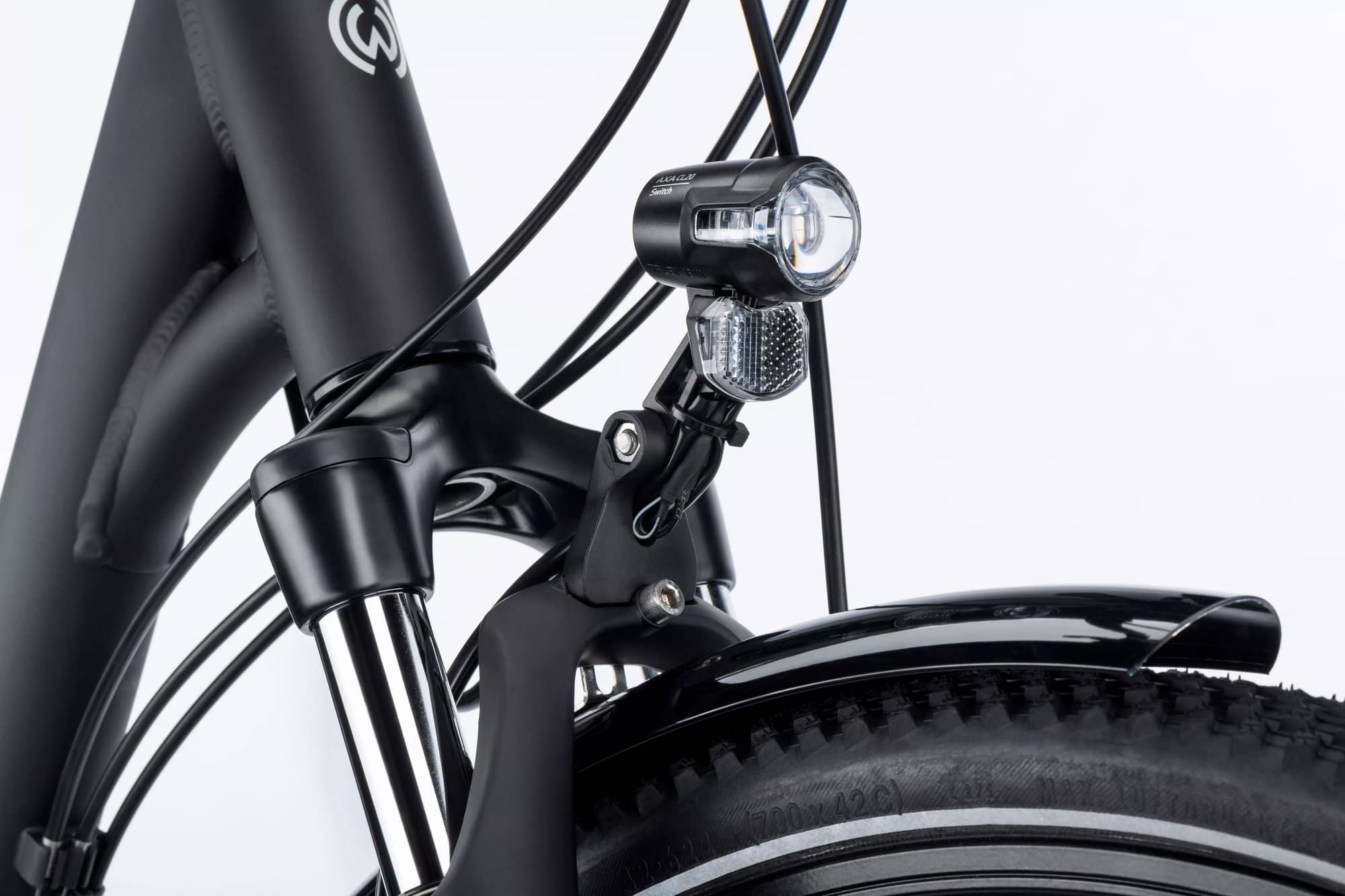

Shimano Alivio hub dynamo DH-T4050 9x100 mm

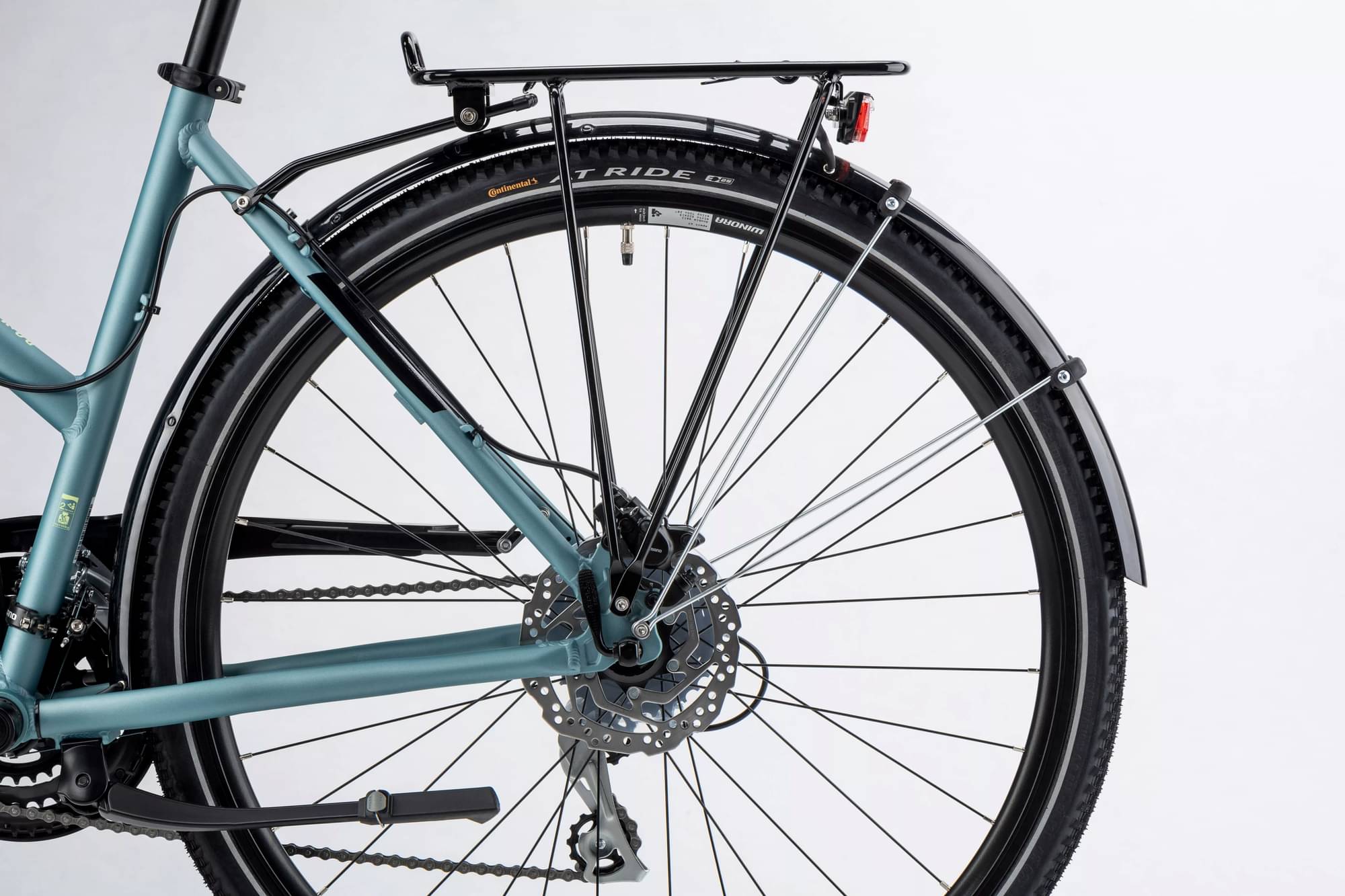

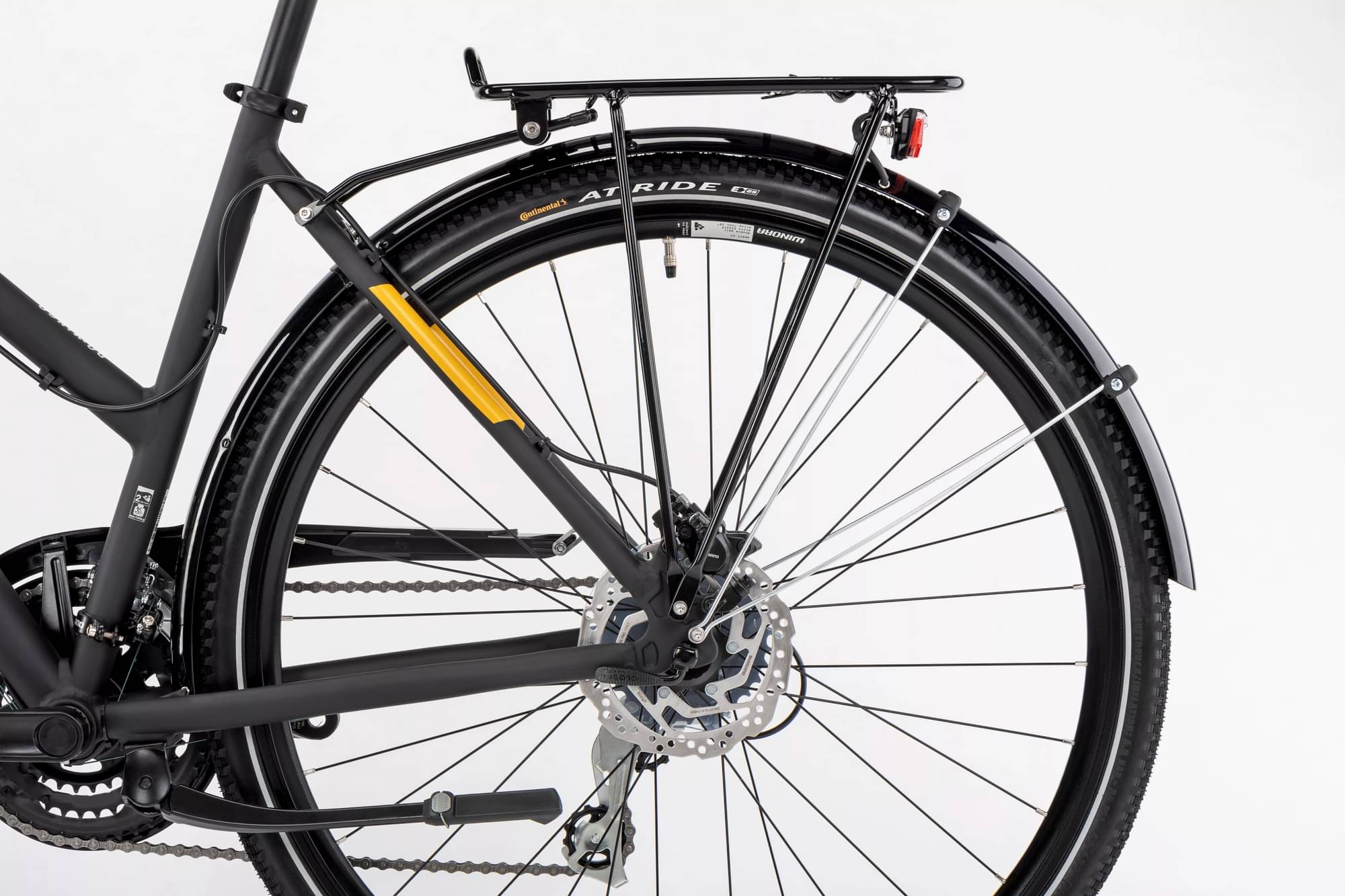

Rear Hub
Shimano HB-TX 500 10x135 mm
Rims
Rodi Hollow rim alu
Tires
Continental Ride Tour 42-622
Brakes
Brakes
Shimano Hydraulic Disc brake
Cockpit
Stem
Winora Adjustable aluminium, angle adjustable
Handlebar
Winora Ergoriser
Headset
Winora CH-919
Seat
Saddle
Selle Royal Wave
Seatpost
Winora Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.493 mm | 1.487 mm | 1.487 mm |
| Front Center | 644 mm | 659 mm | 675 mm | 691 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 606 mm | 615 mm | 629 mm | 644 mm |
| Reach | 400 mm | 412 mm | 423 mm | 433 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 135 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1087 mm | 1102 mm | 1118 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 770 mm | 800 mm | 820 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 168 cm | 176 cm | 184 cm |
| Rider Max Height | 170 cm | 178 cm | 186 cm | 194 cm |
