Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -

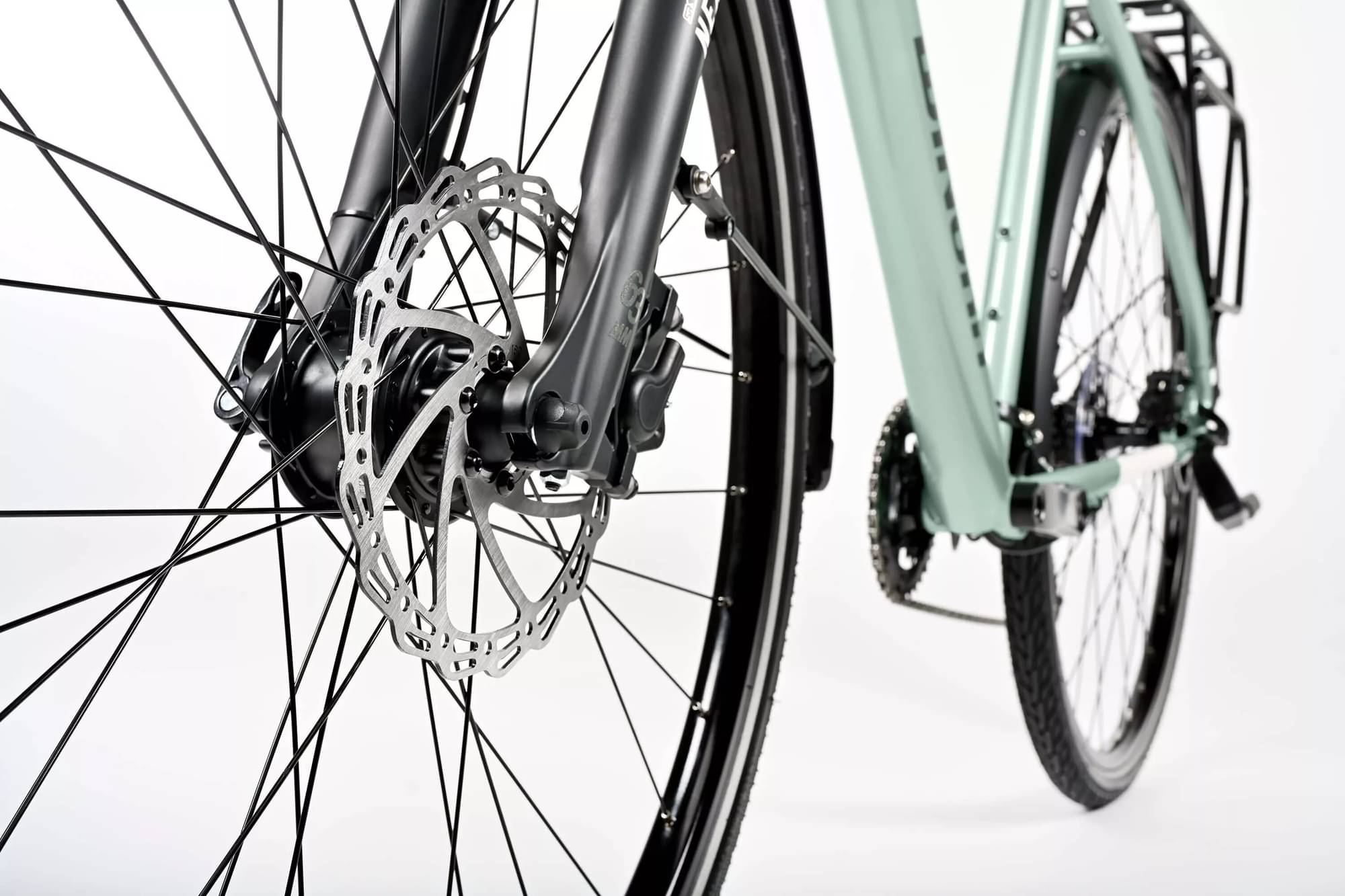

Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 171cm
MD
169cm - 179cm
LG
177cm - 187cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

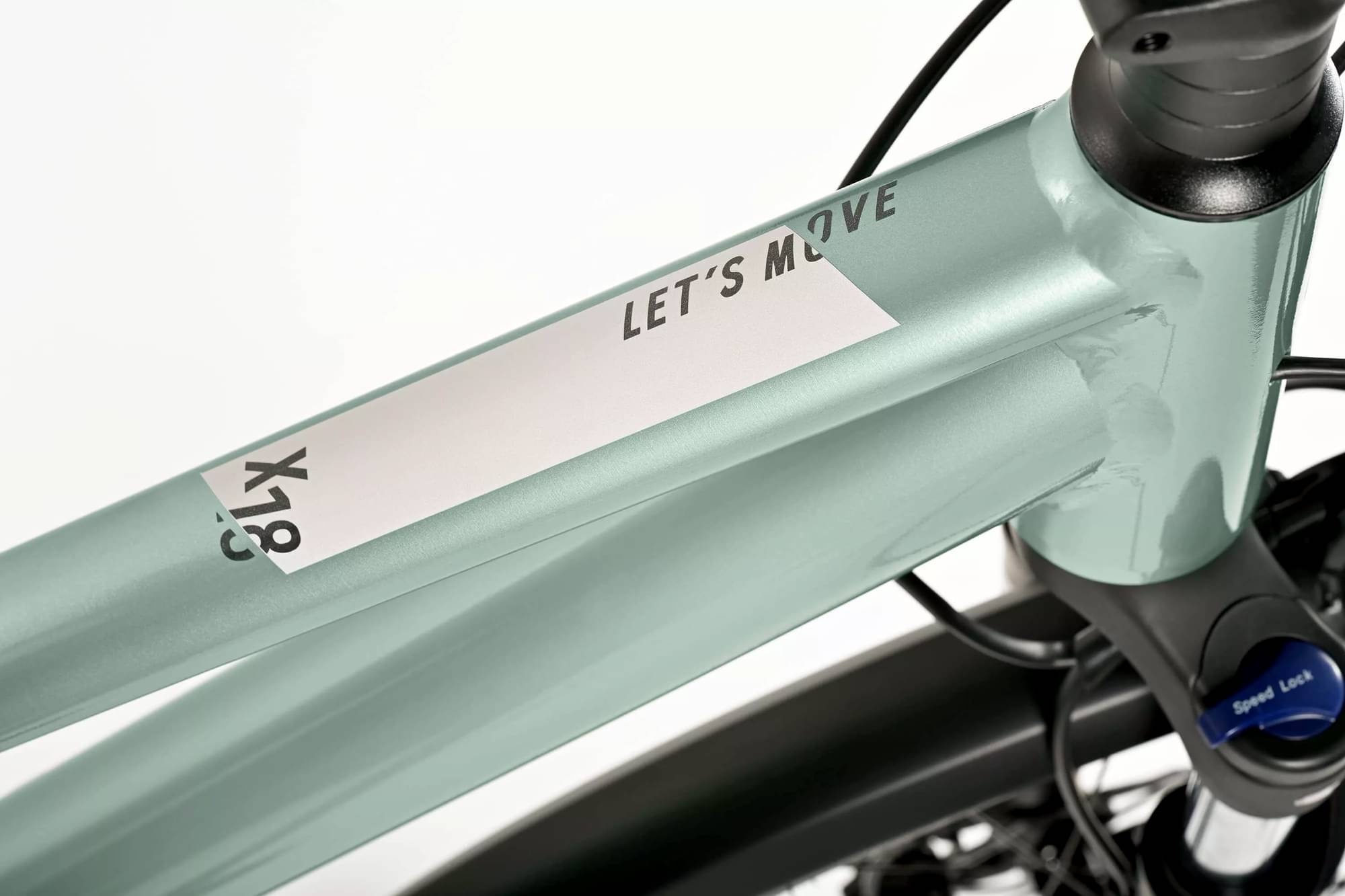

Frame

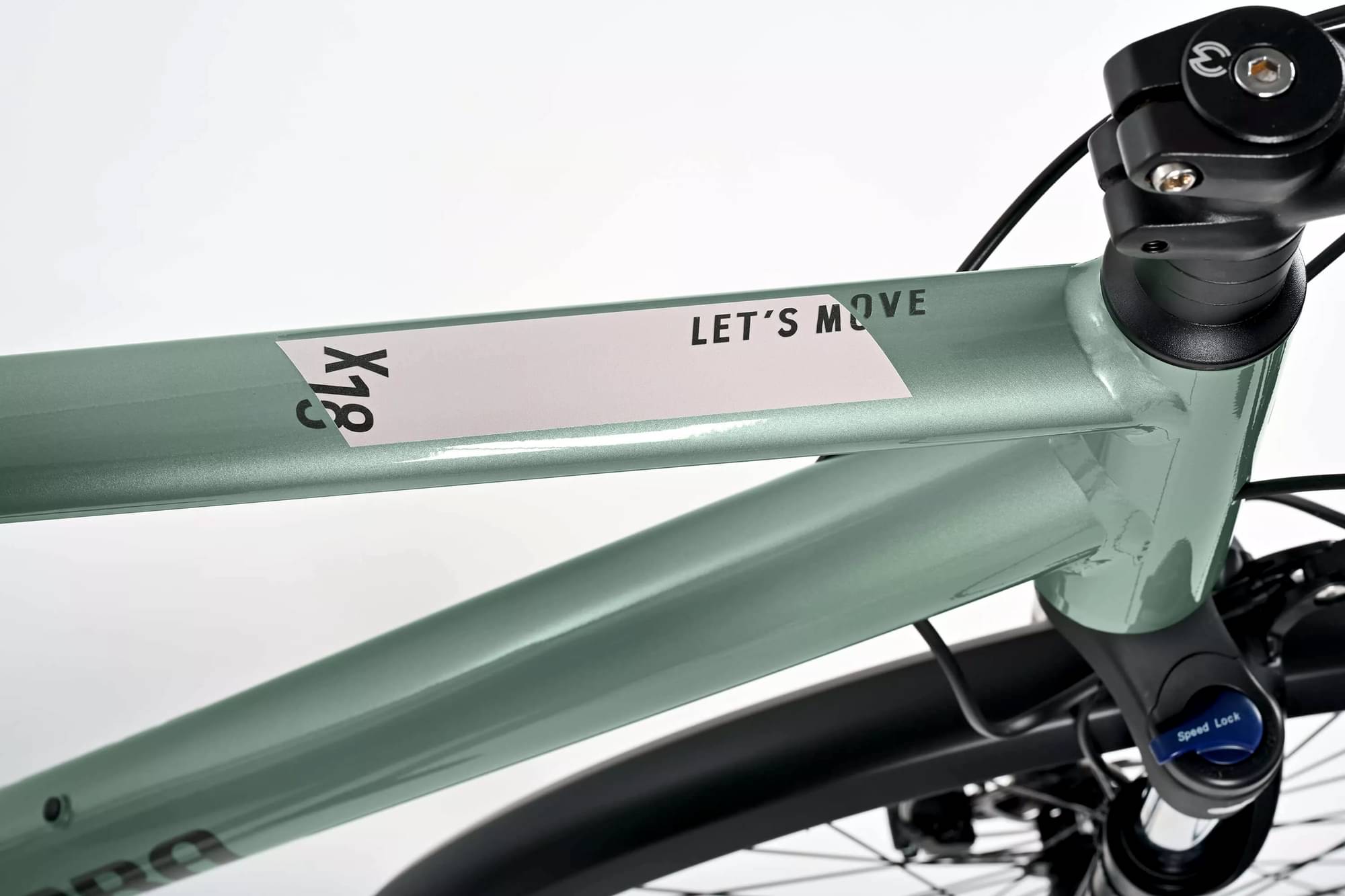

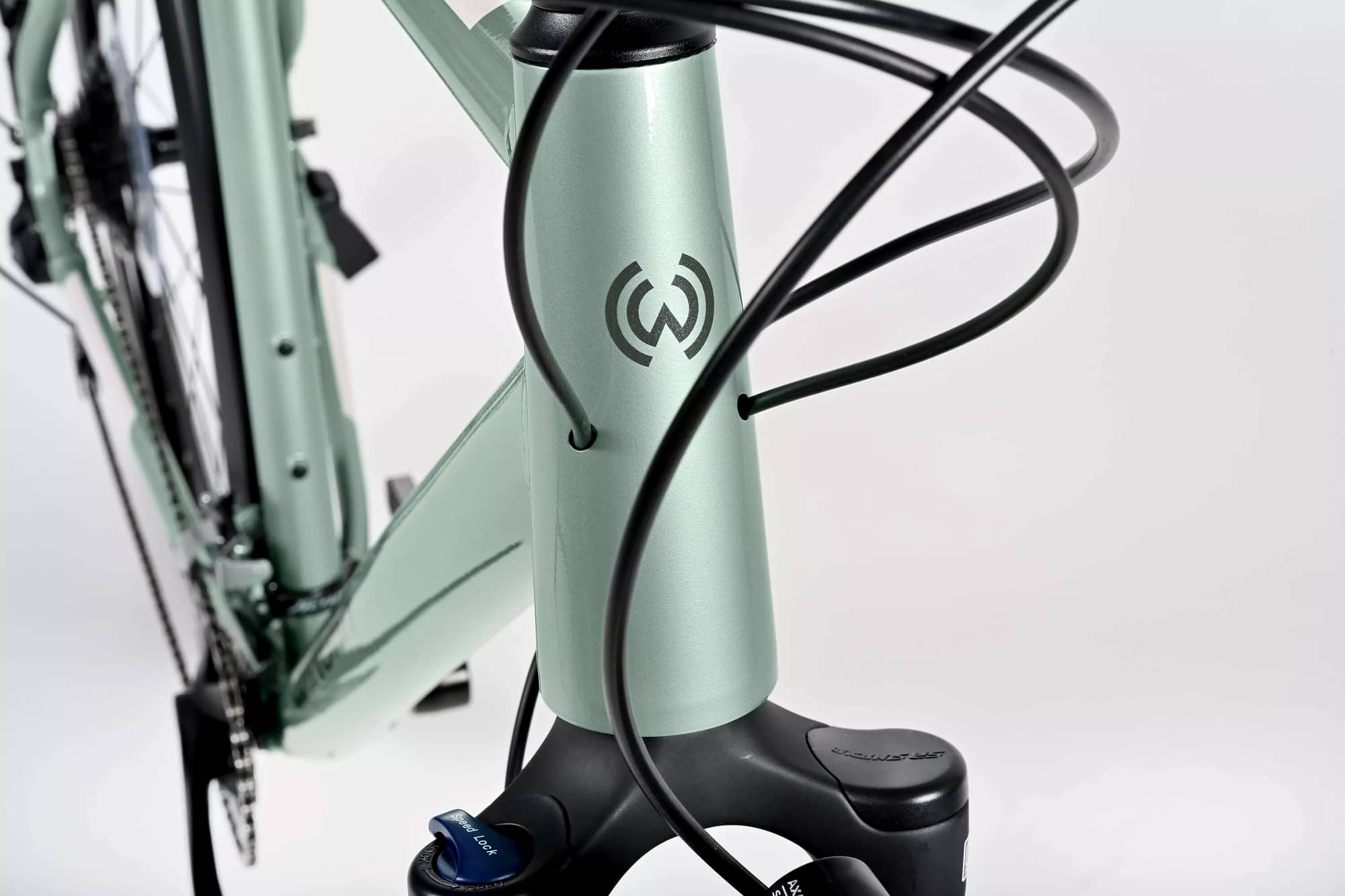

Frame
High Aluminium

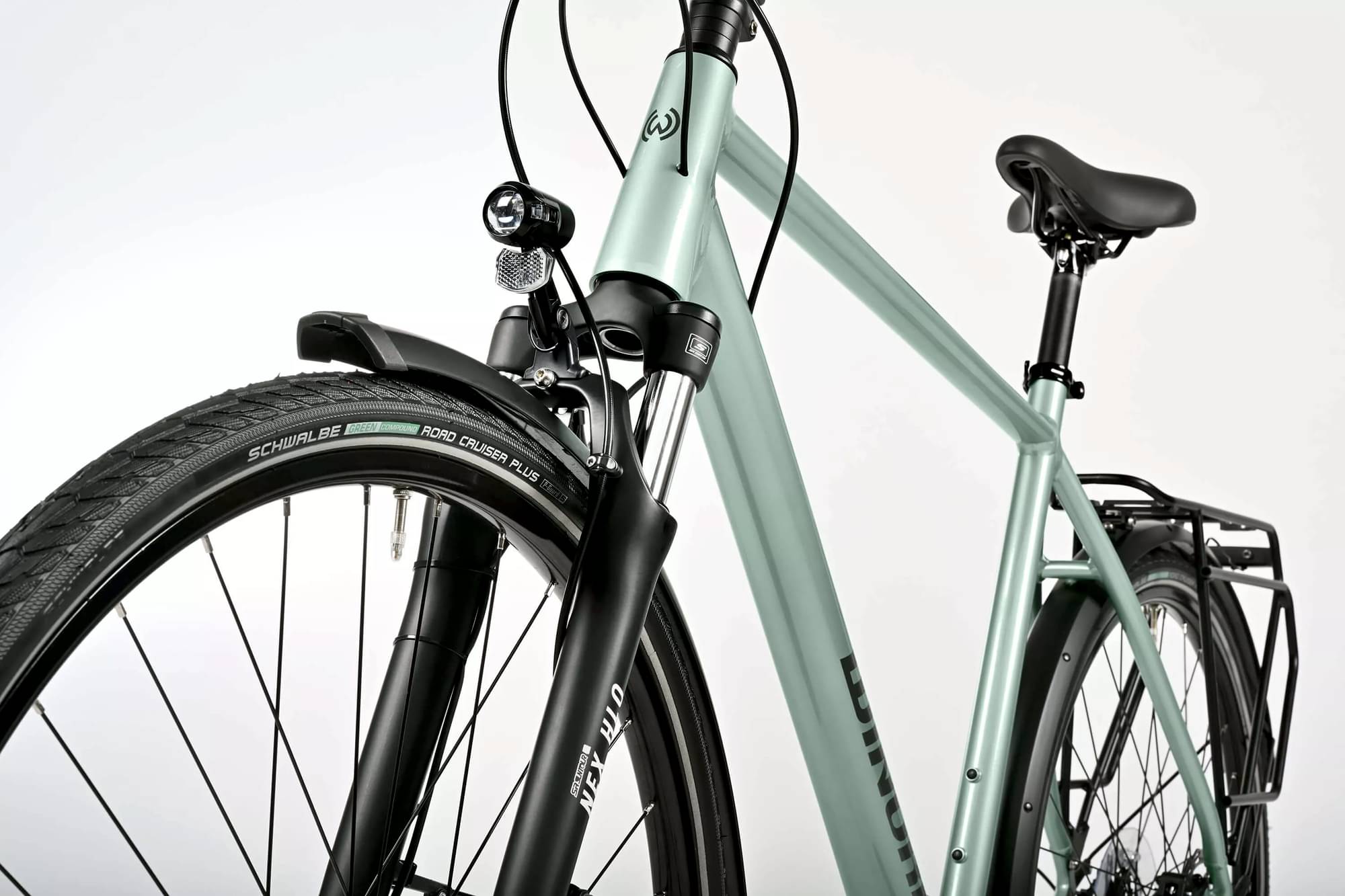

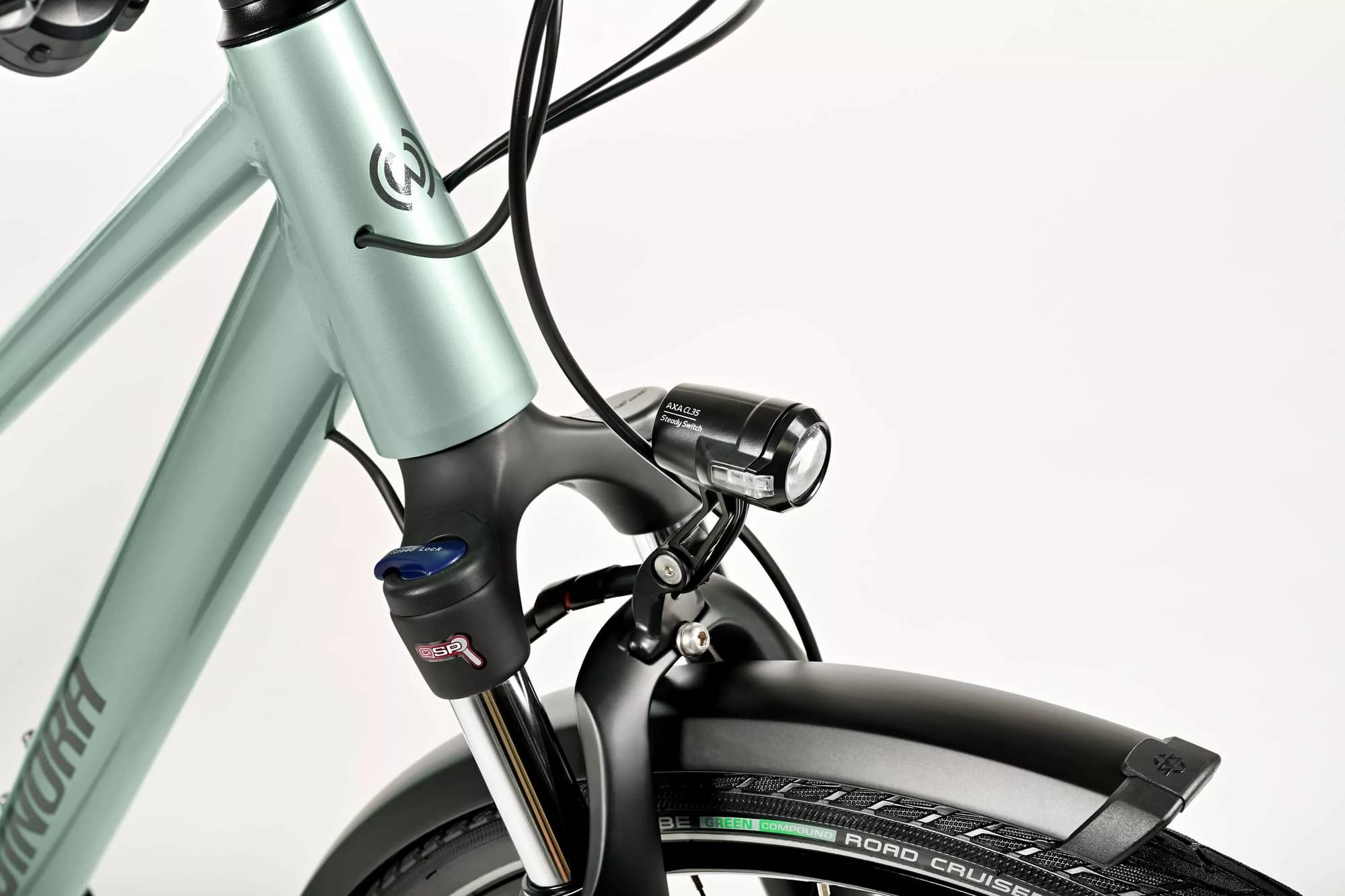

Suspension Fork
Suntour NEX HLO 63 mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U3020, 9s
Front Derailleur
Shimano Cues FD-U4010
Shift Levers
Shimano Triggershift Cues SL-U4000-9R, Rapidfire
Cassette
Shimano CS-LG300-9, HG
Crank
Shimano Cues FC-U40102
Bottom Bracket
Thun BSA Paso-ML 73 mm
Chain
Shimano Chain Cues LG500
Chain Guide
Horn CAT 05/48
Wheels
Front Hub
Shimano hub dynamo 3D32
Rear Hub
Winora alu hub, sealed
Rims
Rodi Hollow rim alu
Tires
Schwalbe Road Cruiser 42-622
Brakes
Brakes
Shimano Hydraulic Disc brake MT200, 180 mm

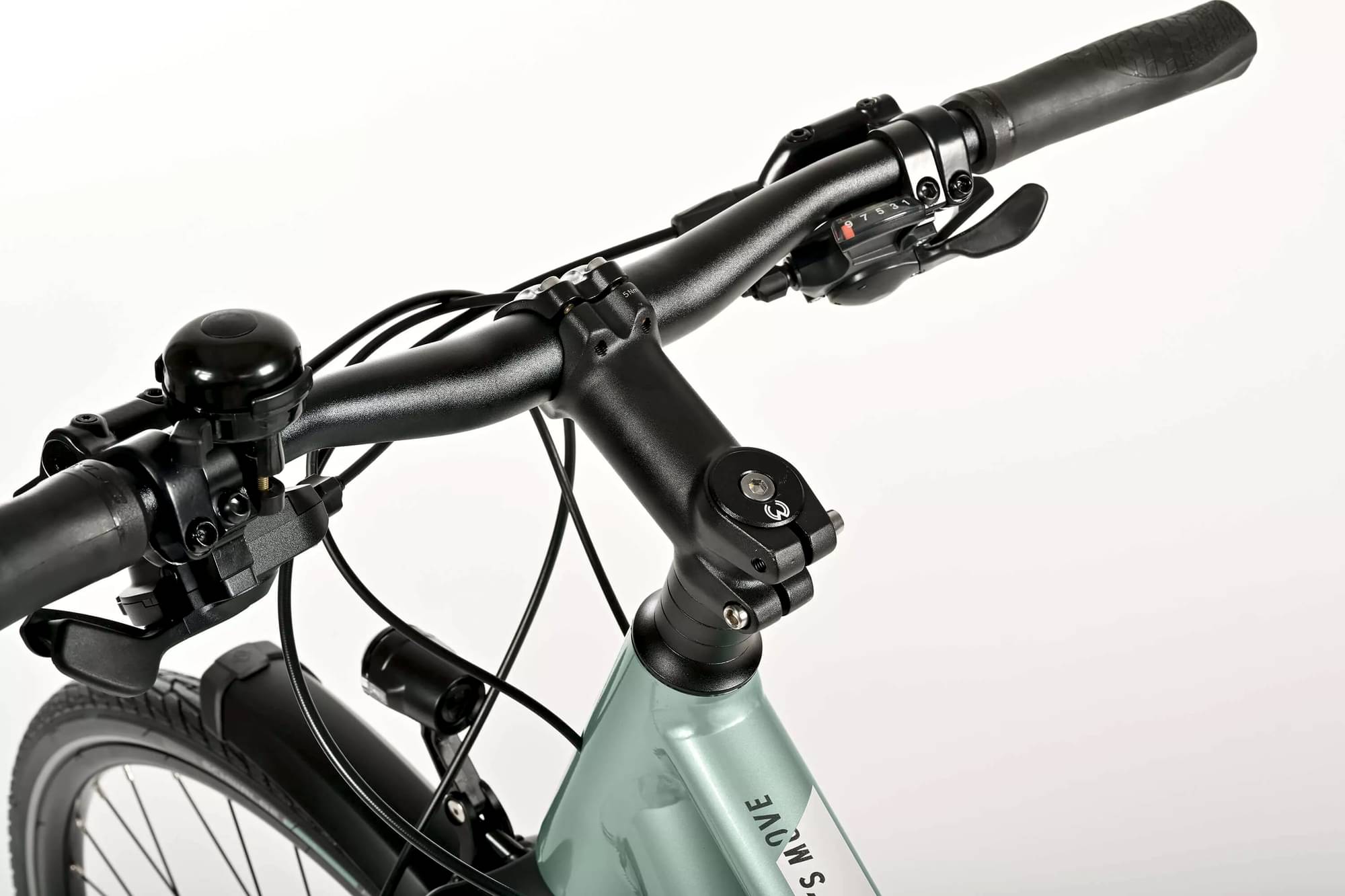

Cockpit
Stem
Winora Not Adjustable aluminium, A-Head, Dia. 31.8 mm
Handlebar
Winora Ergobar, oversize
Headset
VP Z104PE
Seat

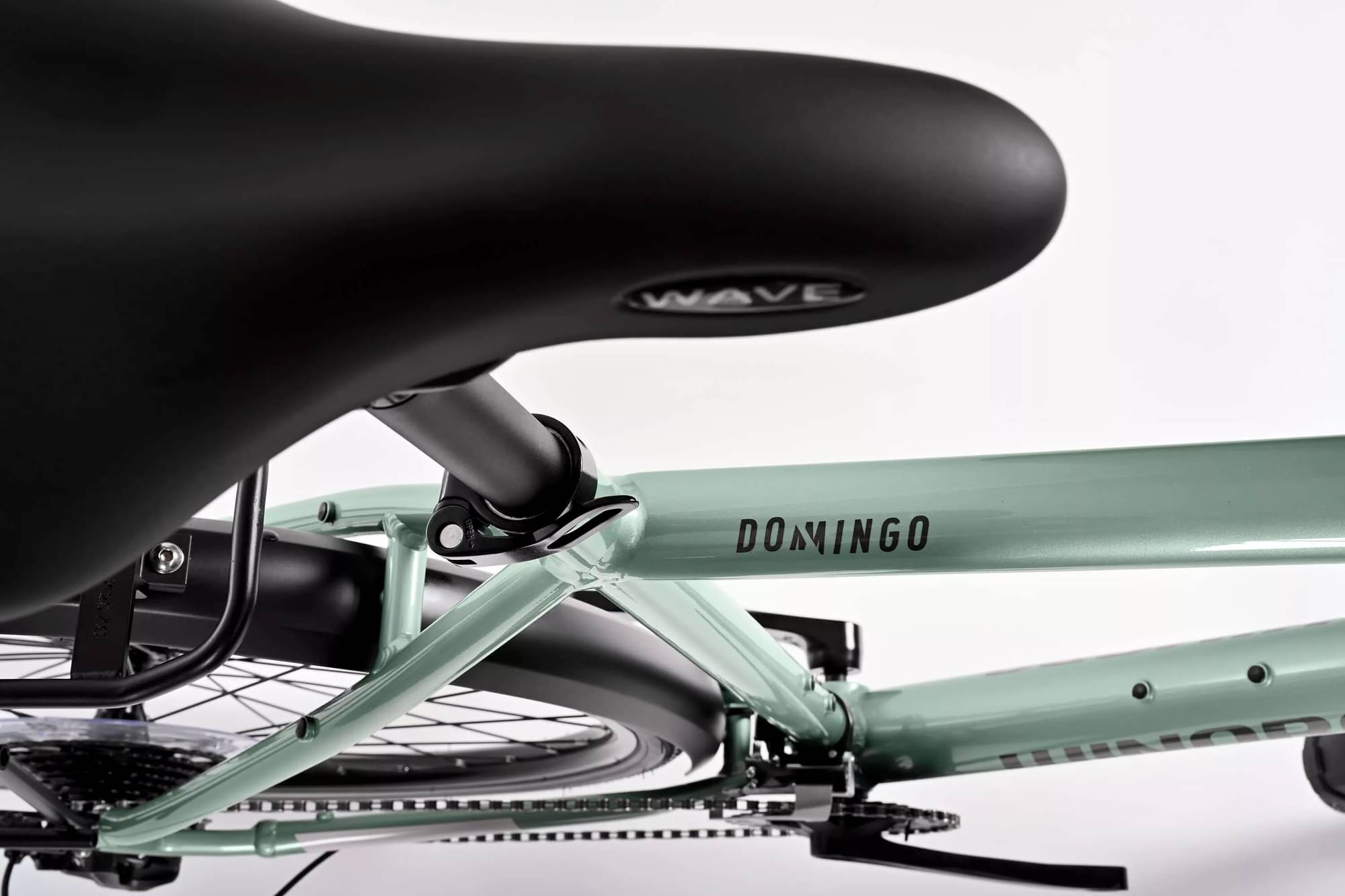

Saddle
Selle Royal Wave
Seatpost
Winora Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.493 mm | 1.487 mm | 1.487 mm |
| Front Center | 644 mm | 659 mm | 675 mm | 691 mm |
| Trail | 128 mm | 129 mm | 129 mm | 128 mm |
| Stack | 606 mm | 615 mm | 629 mm | 644 mm |
| Reach | 400 mm | 412 mm | 423 mm | 433 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1087 mm | 1102 mm | 1118 mm | 1134 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm | -60 mm |
| Standover Height | 770 mm | 780 mm | 810 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 161 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 195 cm |
