Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 168cm
MD
166cm - 175cm
LG
173cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mid Aluminium
Suspension Fork

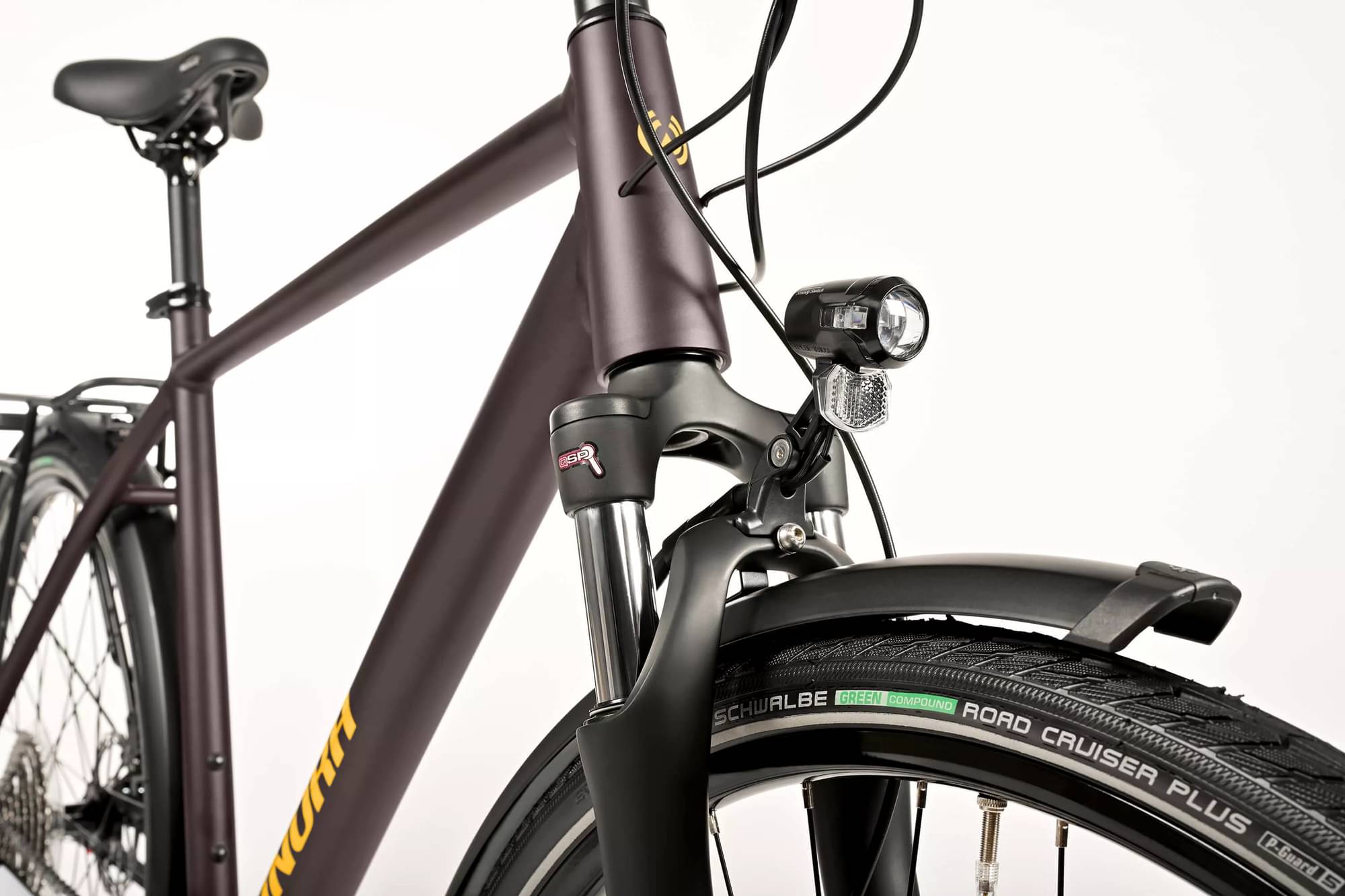

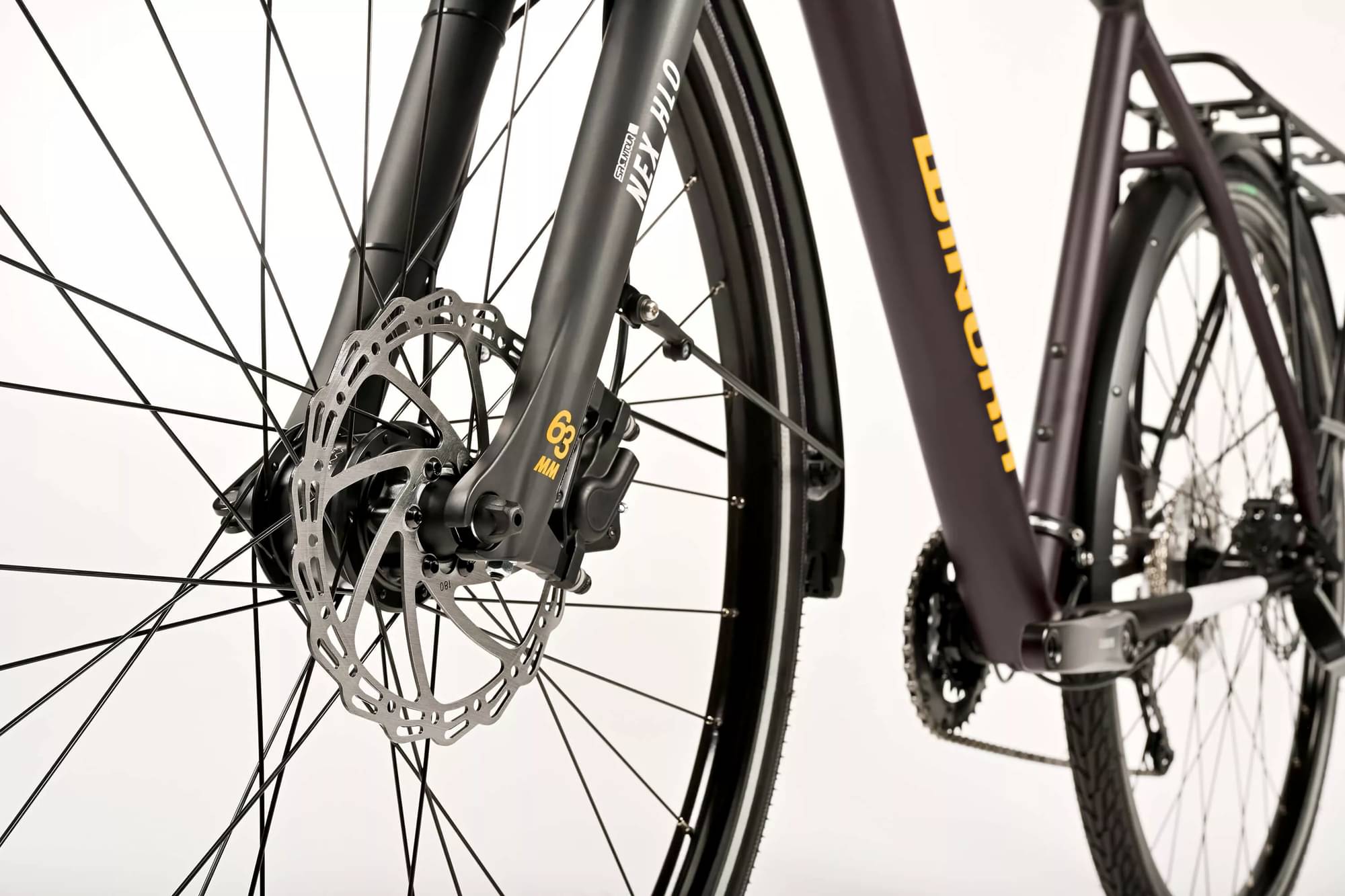

Suntour NEX HLO 63 mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U6020, 20s
Front Derailleur
Shimano Cues FD-U6010
Shift Levers
Shimano Triggershift Cues SL-U6000-L

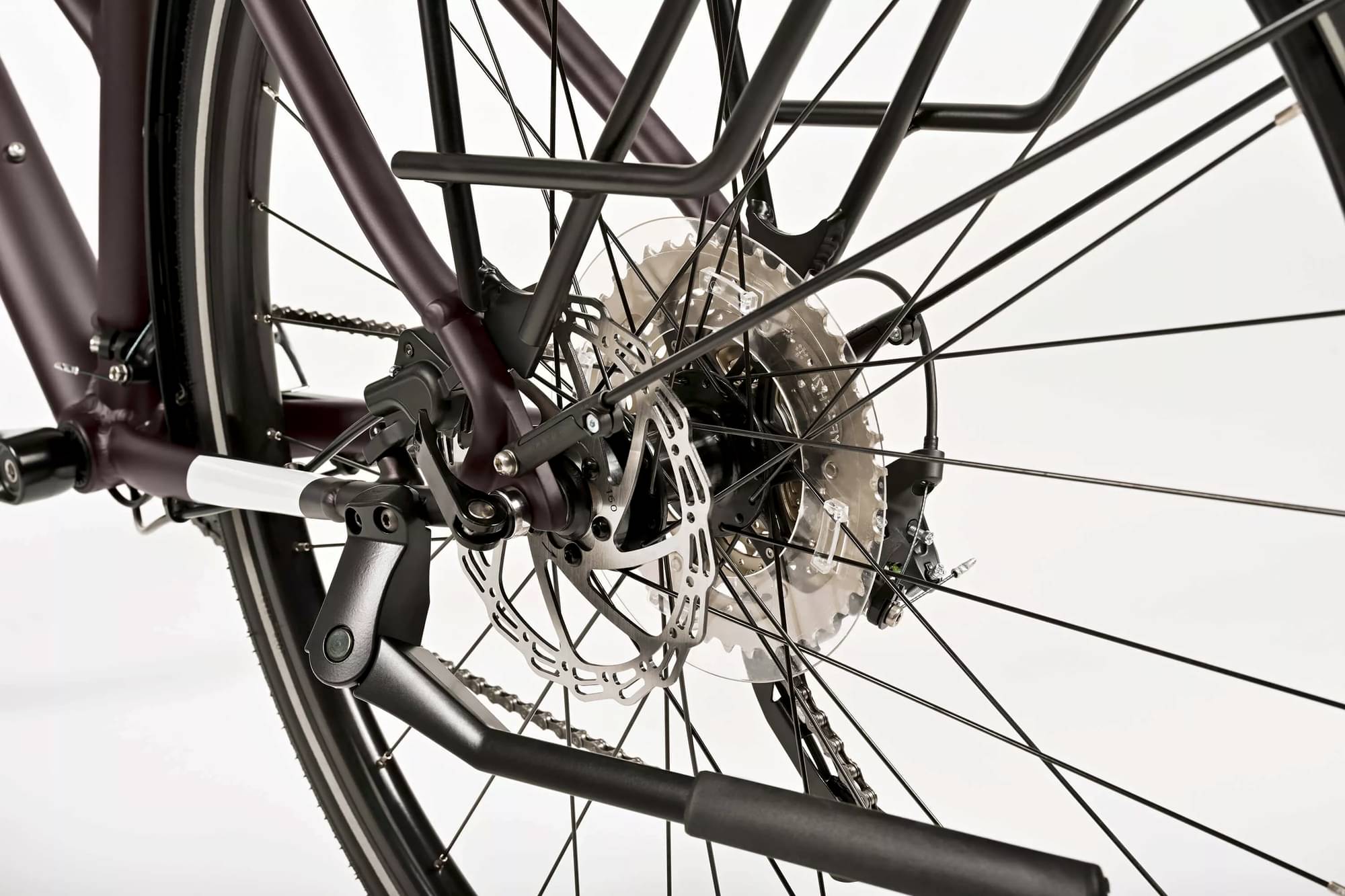

Cassette
Shimano CS-LG300-10, HG
Crank
Shimano Cues FC-U40102
Bottom Bracket
Thun BSA Paso-ML 73 mm
Chain
Shimano Chain Cues LG500
Chain Guide
Horn CAT 05/48
Wheels
Front Hub
Shimano hub dynamo 3D32
Rear Hub
Winora alu hub, sealed
Rims
Rodi Hollow rim alu
Tires

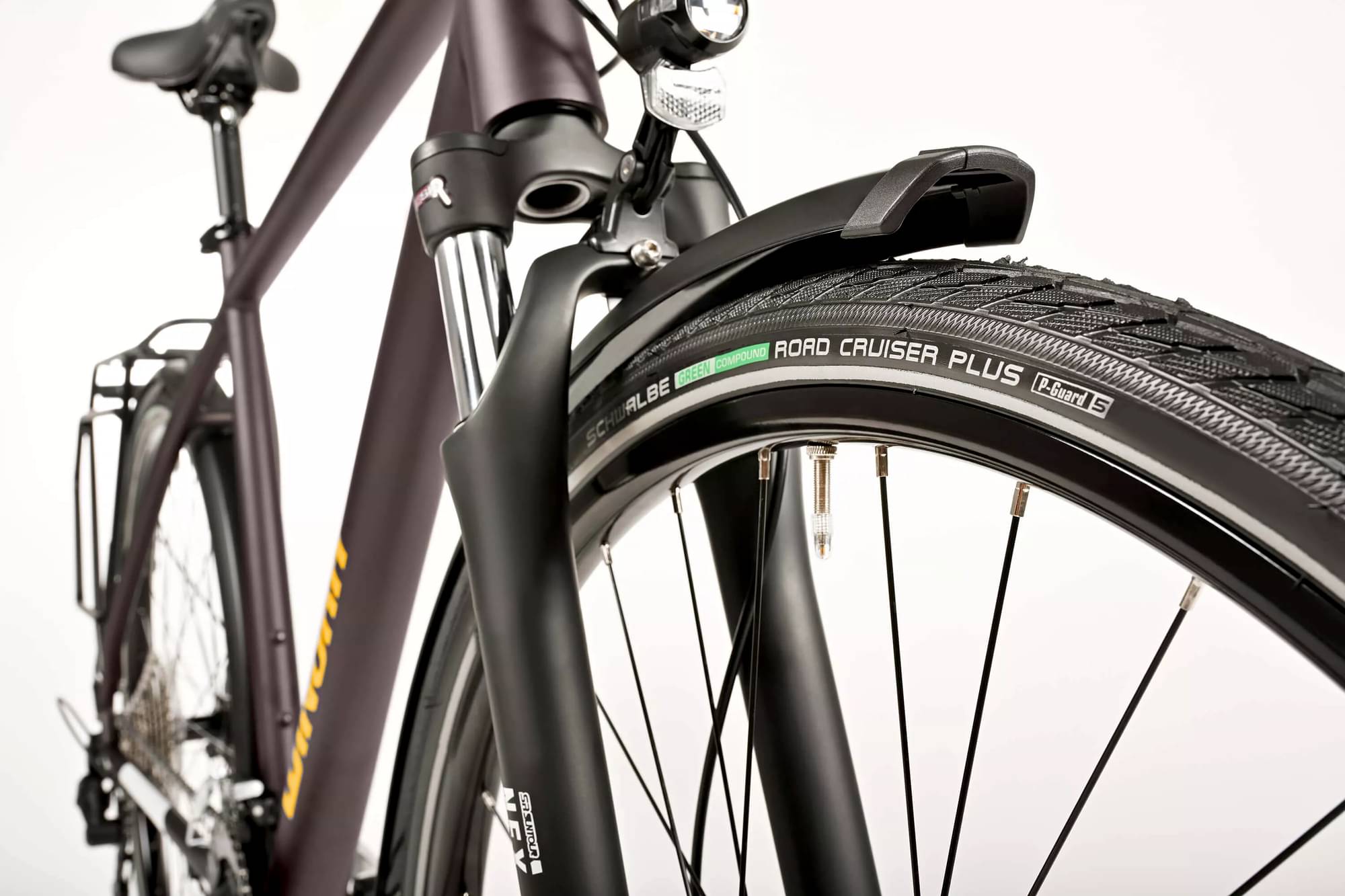

Schwalbe Road Cruiser 42-622
Brakes
Brakes
Shimano Hydraulic Disc brake MT200, 180 mm
Cockpit
Stem

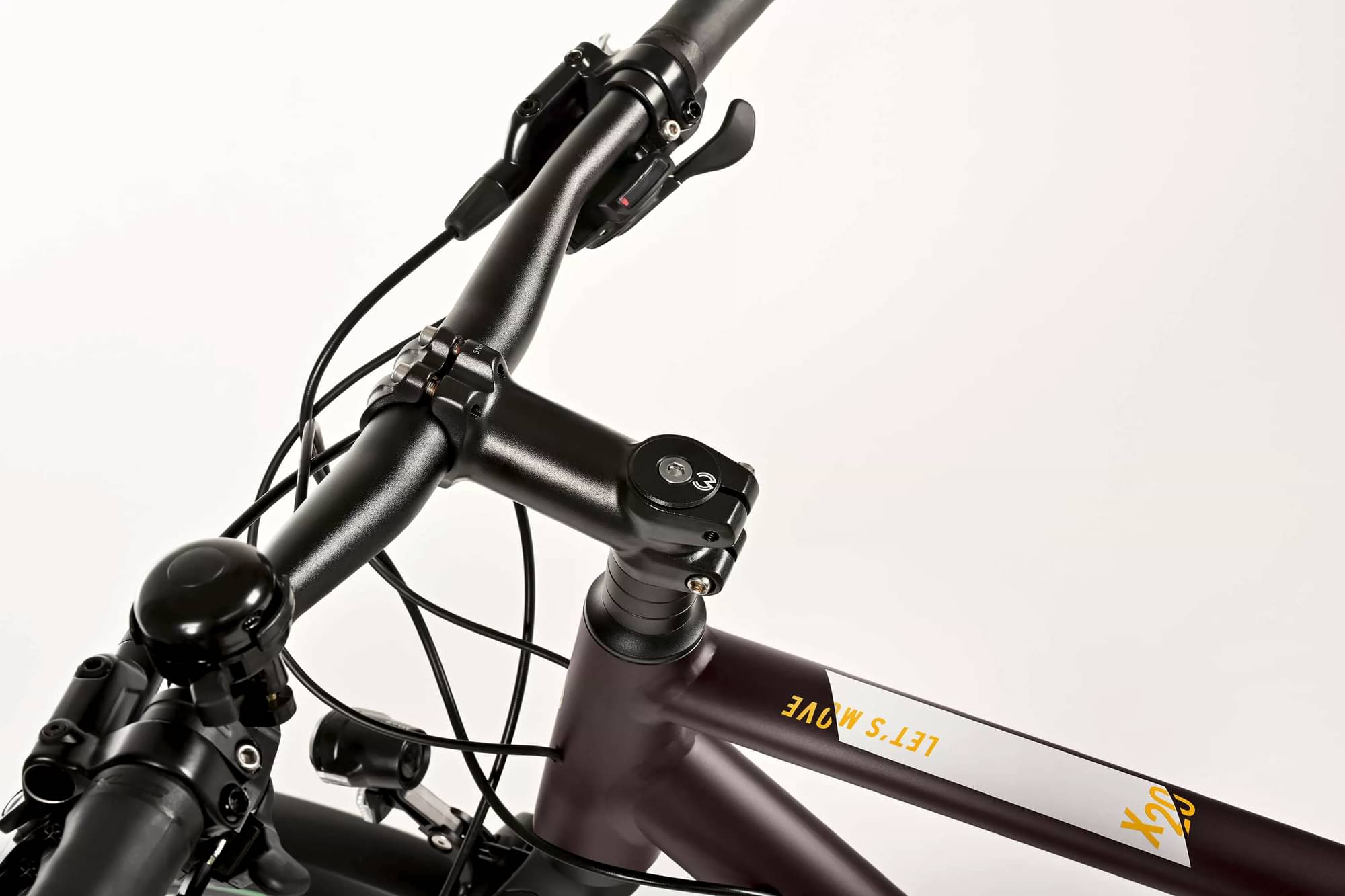

Winora Not Adjustable aluminium, A-Head, Dia. 31.8 mm
Handlebar
Winora Ergobar, oversize

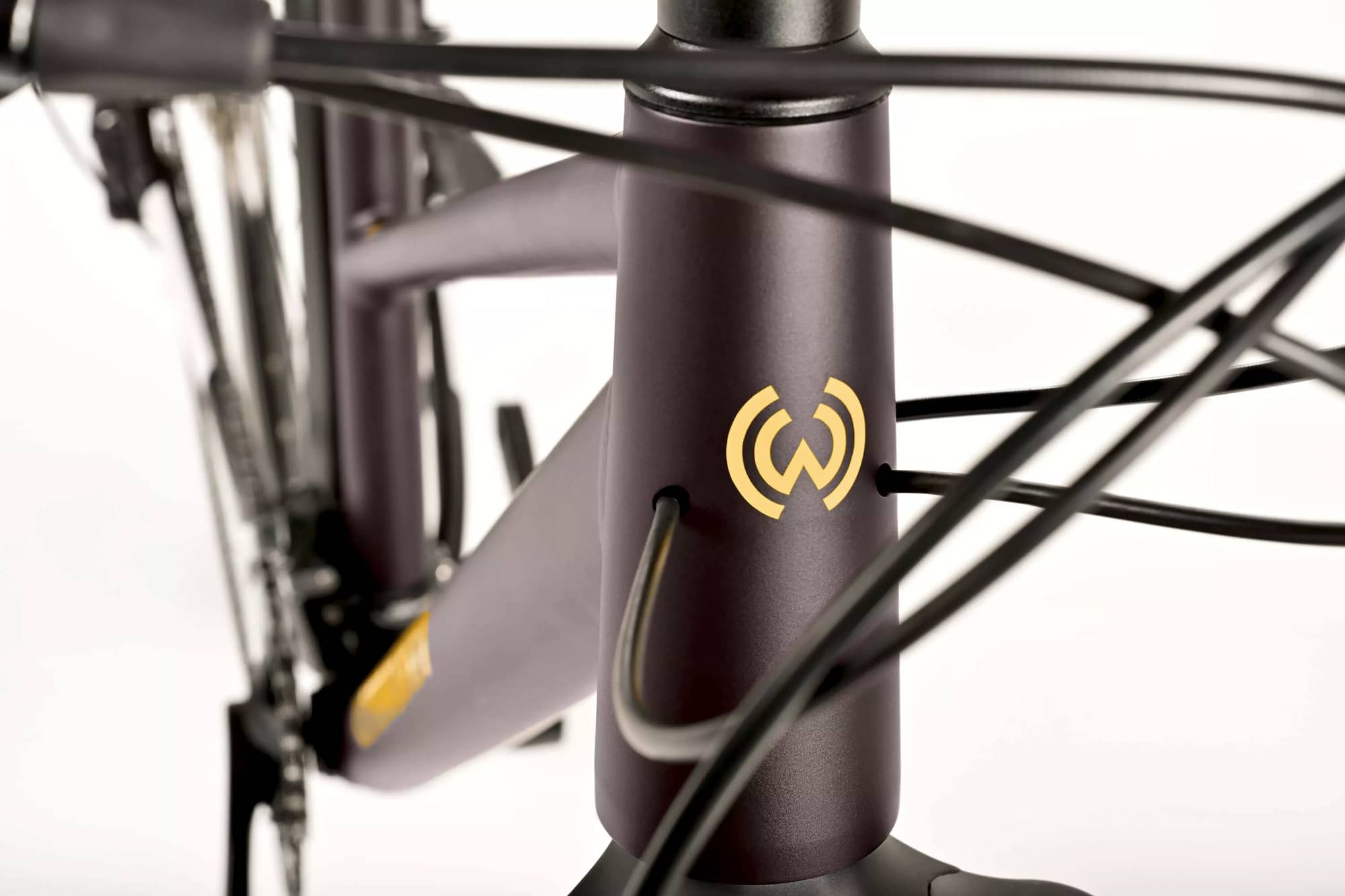

Headset
VP B307AC
Seat
Saddle

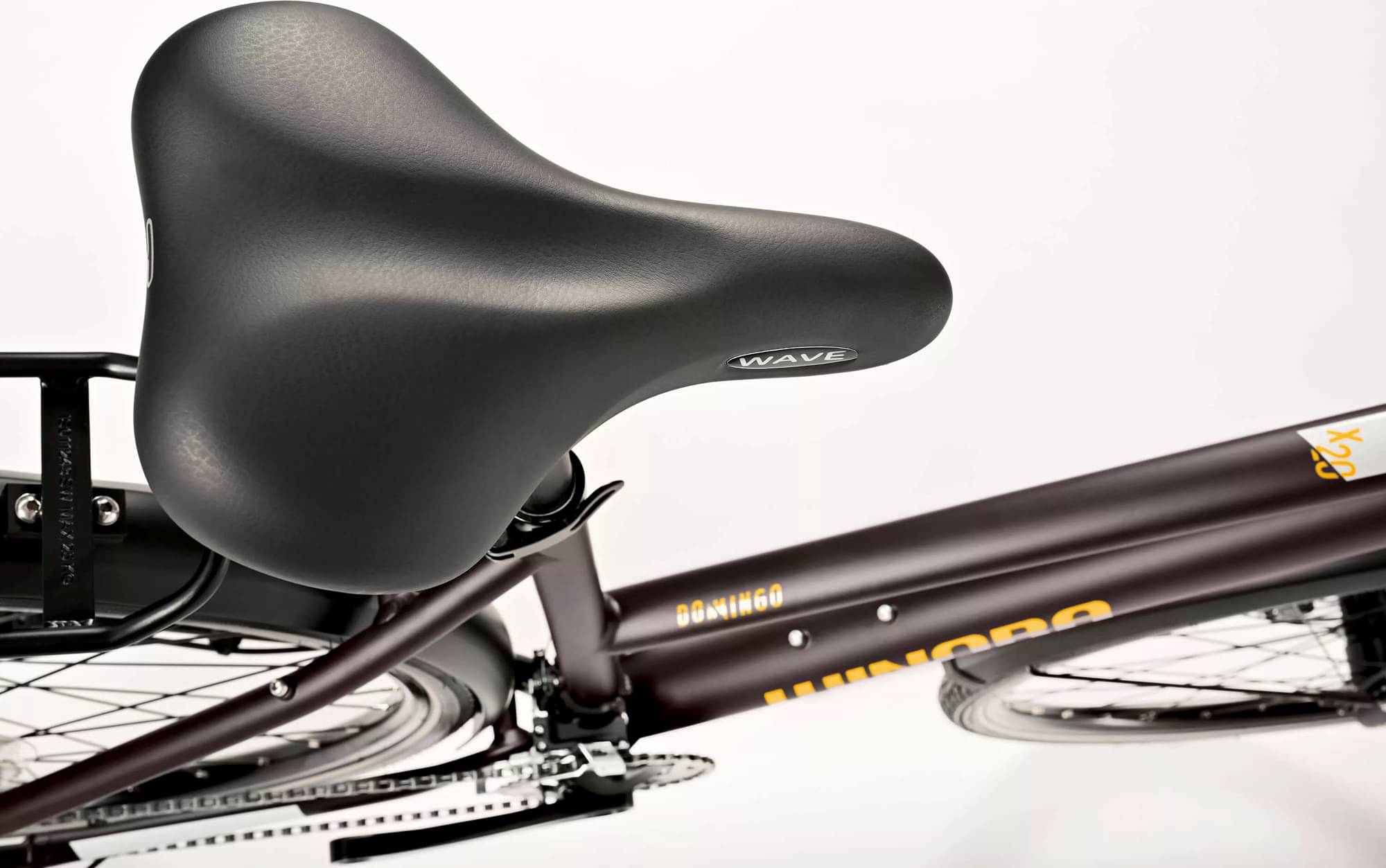

Selle Royal Wave
Seatpost
Winora Non Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.616 mm | 1.589 mm | 1.58 mm |
| Front Center | 619 mm | 634 mm | 650 |
| Trail | 128 mm | 129 mm | 129 mm |
| Stack | 606 mm | 615 mm | 629 mm |
| Reach | 375 mm | 387 mm | 398 mm |
| Top Tube Length | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1062 mm | 1077 mm | 1093 mm |
| Bottom Bracket Drop | -60 mm | -60 mm | -60 mm |
| Standover Height | 570 mm | 570 mm | 580 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 159 cm | 166 cm | 173 cm |
| Rider Max Height | 168 cm | 175 cm | 183 cm |
