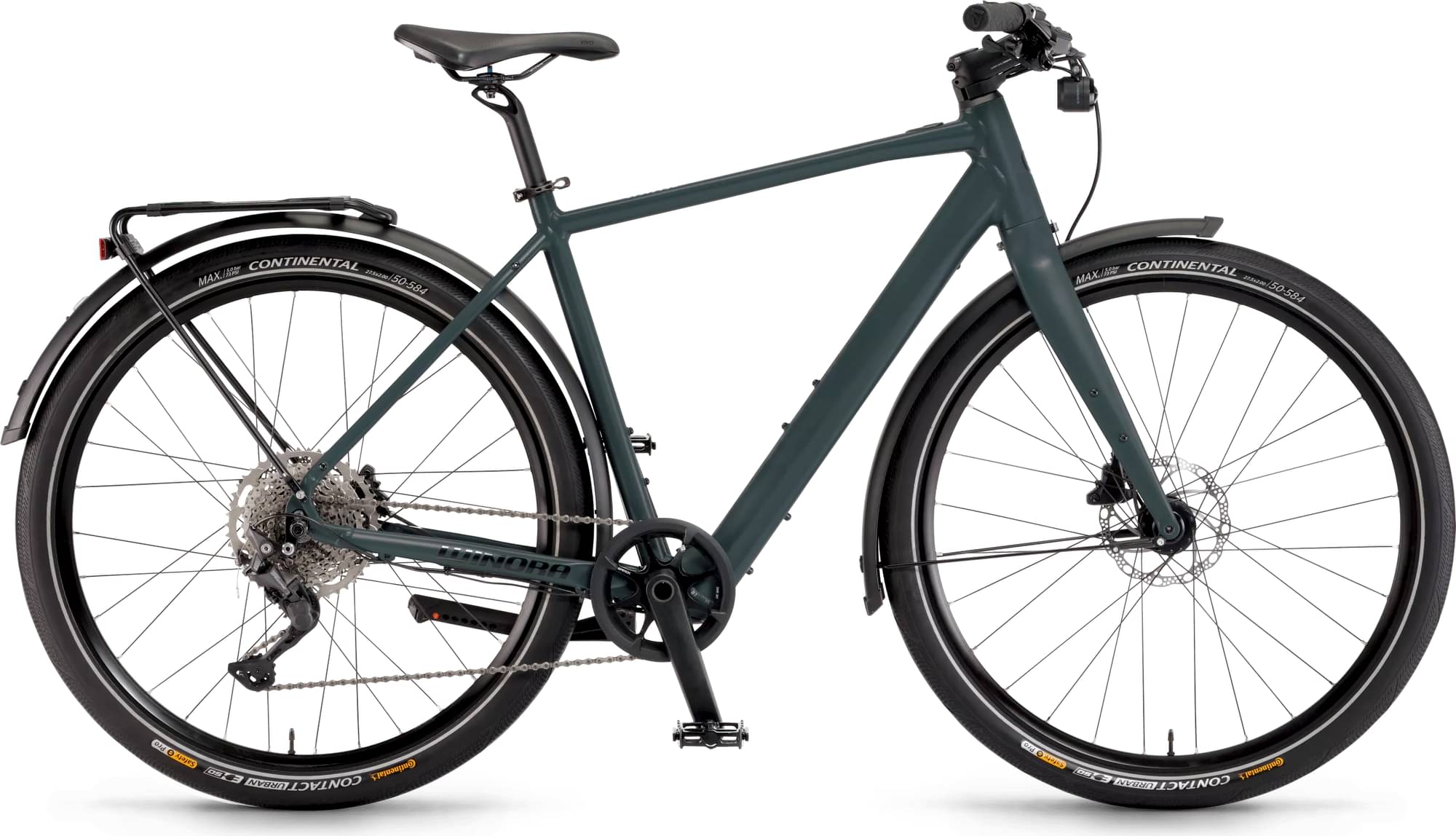

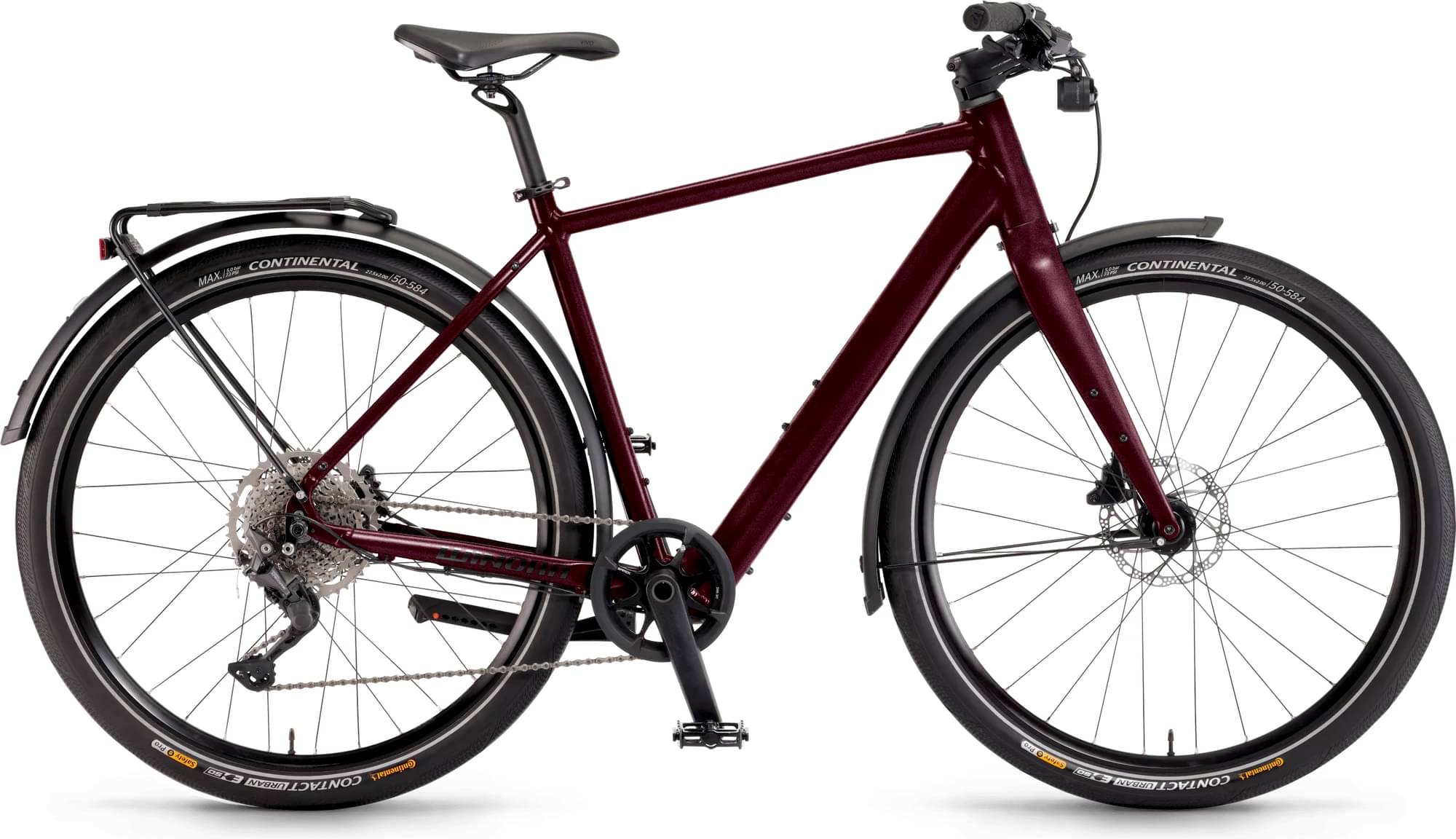

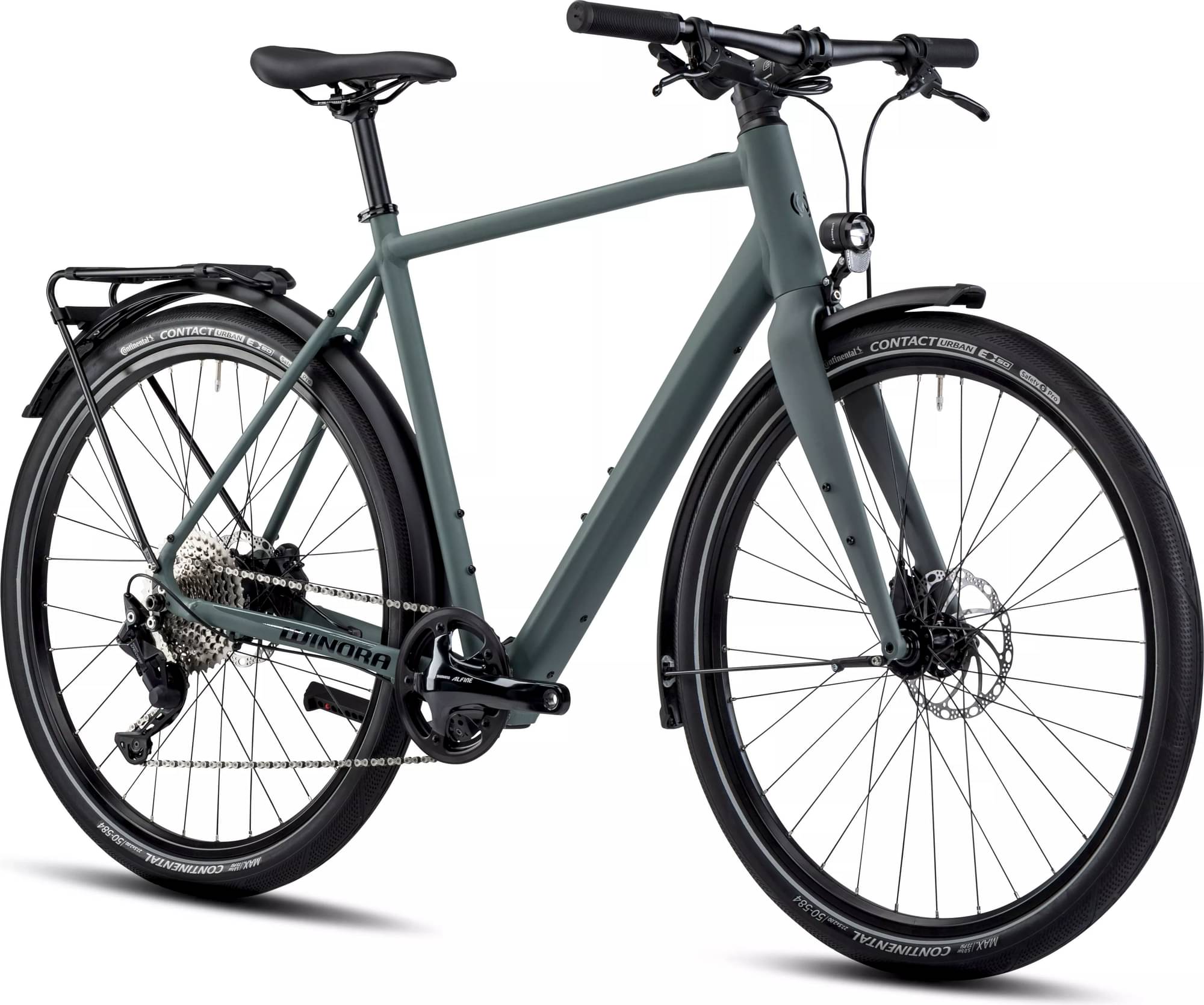

winora E-Flitzer 2025
2025 E-bike
Estimate price |
2,981$
Weight | 16.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

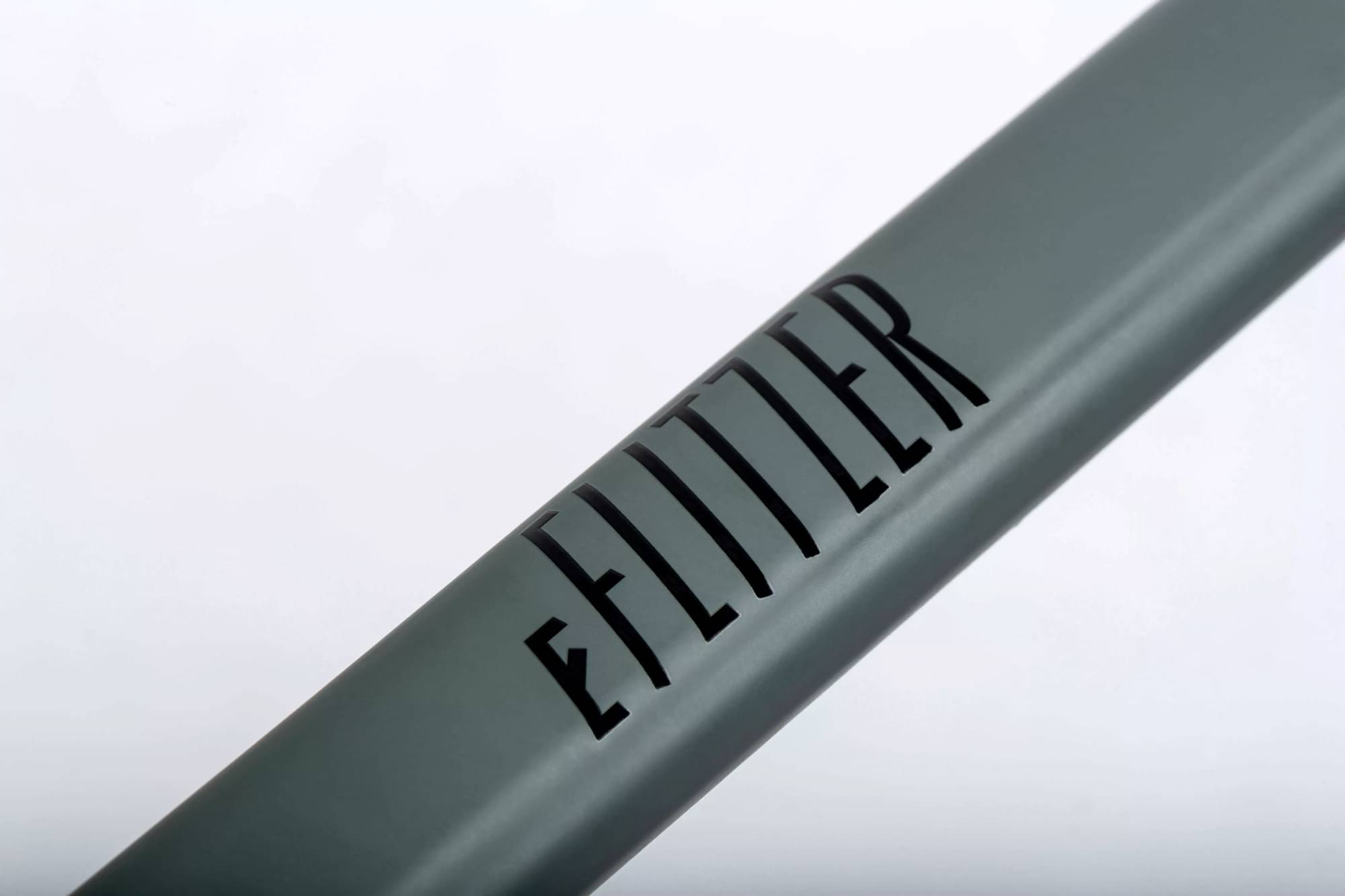

Frame Aluminum -
Groupset Deore, CUES -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle Li-ION SmartBike Systems InTube, Capacity: 250 Wh, Location: Powertube -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
42cm
149cm - 160cm
46cm
158cm - 167cm
50cm
165cm - 175cm
55cm
173cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Uni
Suspension Fork
Winora Carbon

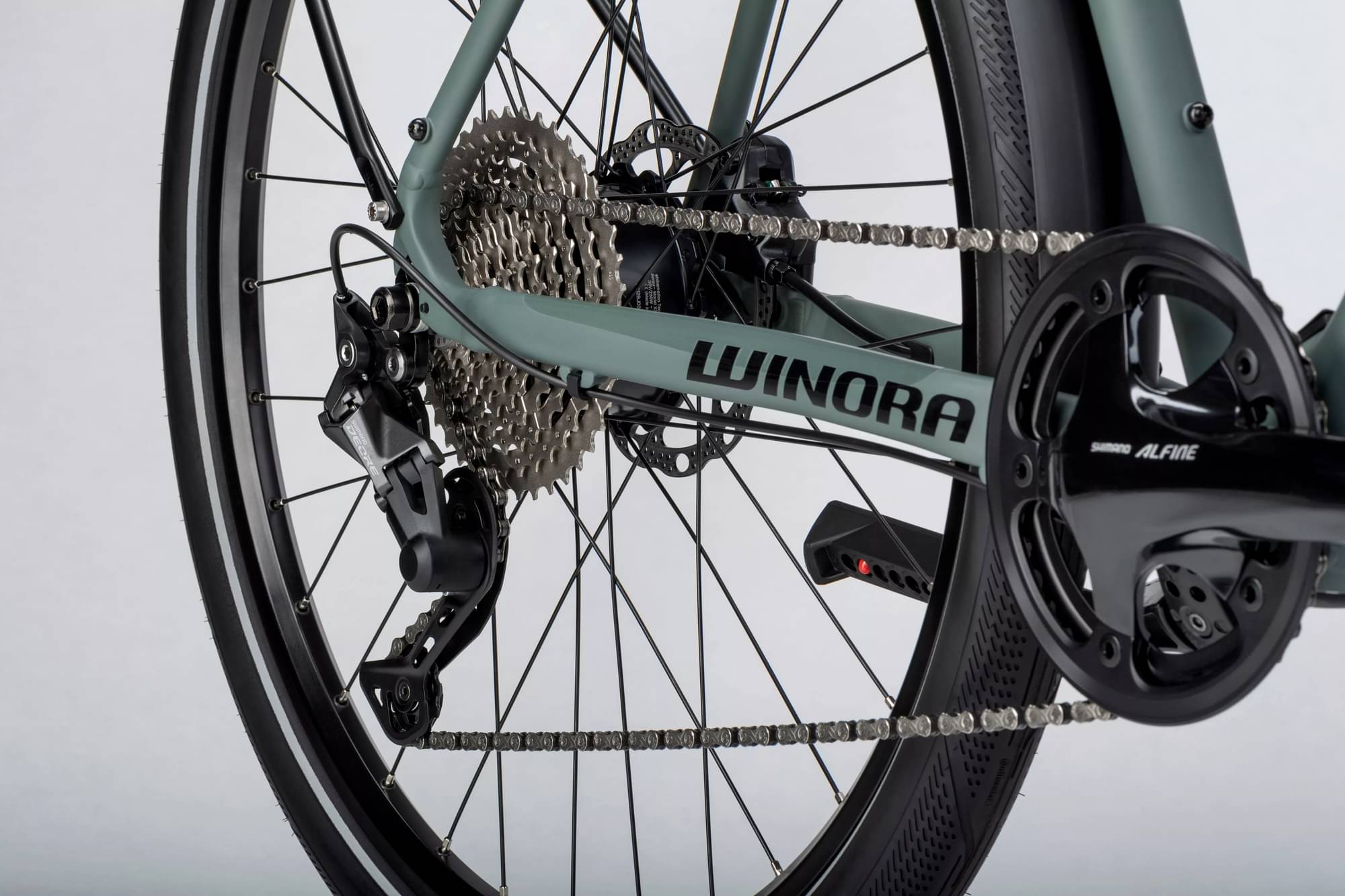

Drivetrain
Rear Derailleur
Shimano Deore M4120
Shift Levers
Shimano Cues U4000
Cassette
Shimano CSM4100
Crank
Samox
Bottom Bracket
Samox EB2405
Chain
KMC Chain e10S
Pedals
Marwi SP-880
Wheels
Front Hub
alu hub
Rims
Ryde Hollow rim Rival19
Tires

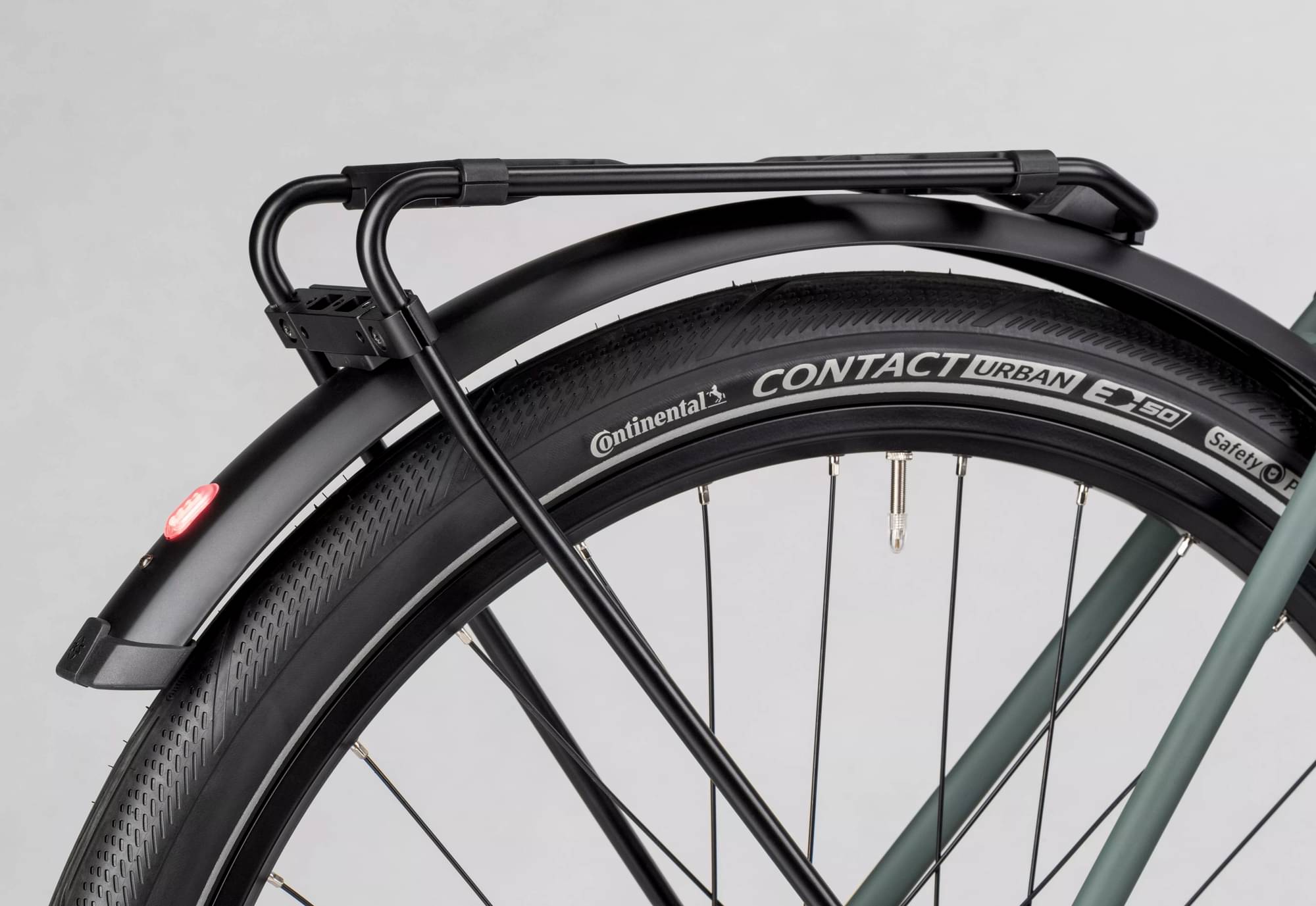

Continental Contact Urban 50-584
Brakes
Brakes

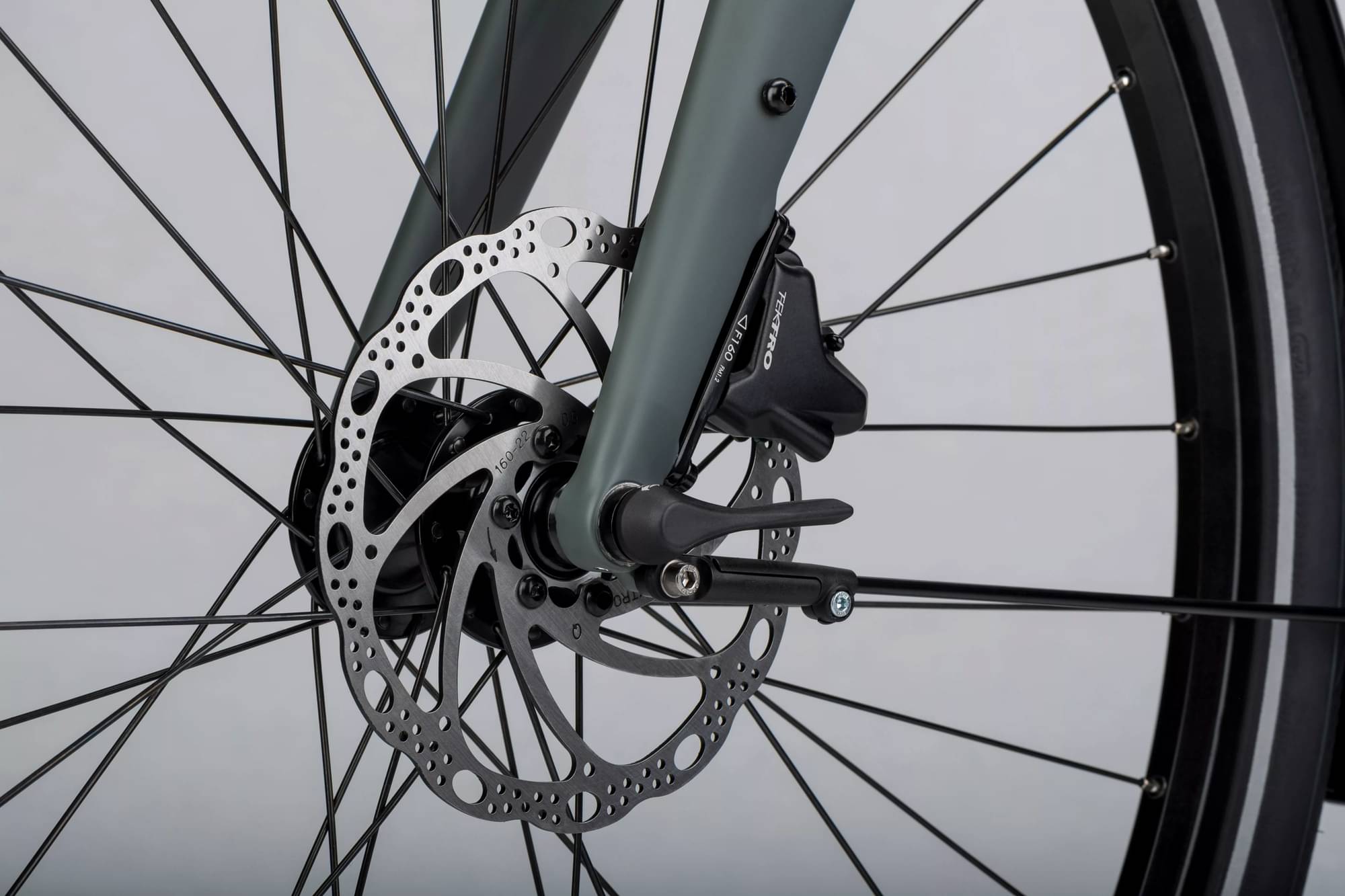

Tektro Hydraulic Disc brake R280
Cockpit
Stem
Alu
Handlebar
Topflat
Headset
Acros AIX-532
Seat
Saddle
Selle Royal VivoErgo
Seatpost
Non Suspension
Motor & Battery
Motor
Mahle Ebikemotion x35+
Battery
Mahle Li-ION SmartBike Systems InTube, Capacity: 250 Wh, Location: Powertube

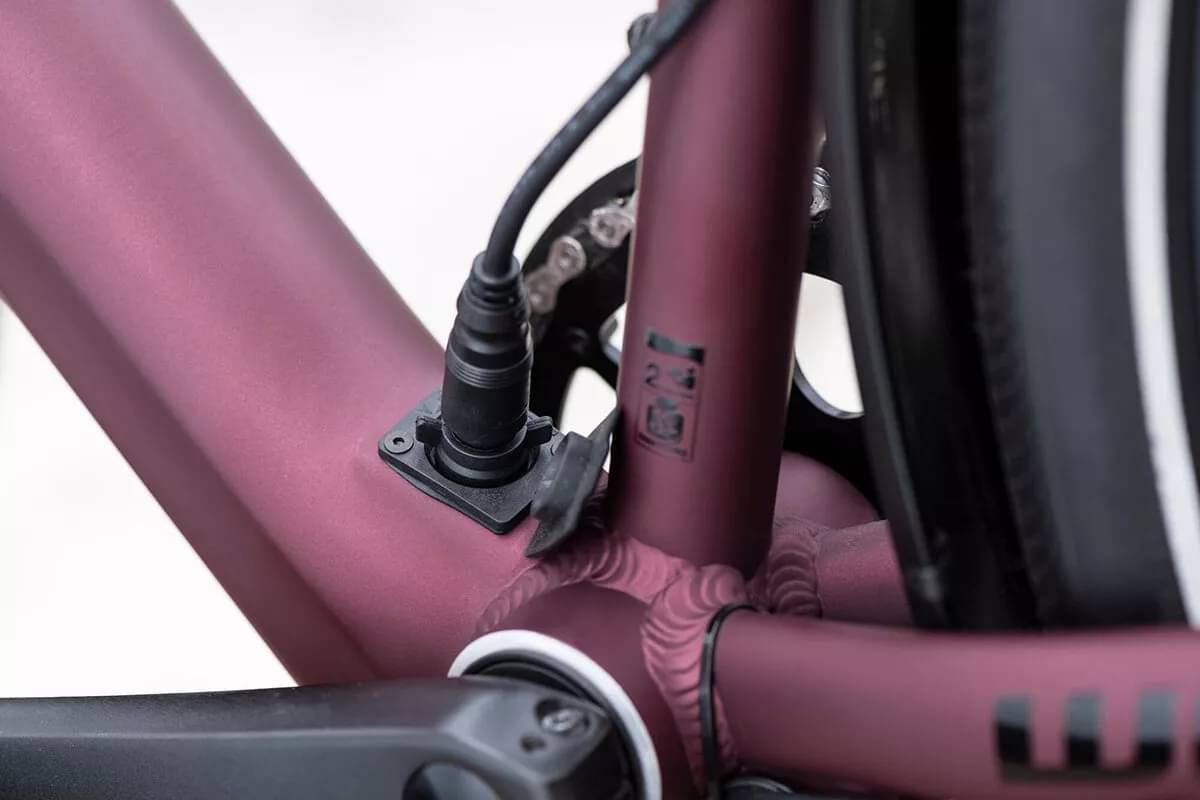

Charger
Mahle SmartBike Systems X35 Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 55cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.451 mm | 1.525 mm | 1.562 mm |
| Front Center | 580 mm | 596 mm | 604 mm | 623 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 69 mm | 66 mm | 66 mm |
| Stack | 517 mm | 547 mm | 578 mm | 606 mm |
| Reach | 367 mm | 377 mm | 379 mm | 388 mm |
| Top Tube Length | 525 mm | 544 mm | 561 mm | 579 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 120 mm | 150 mm | 180 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1004 mm | 1020 mm | 1028 mm | 1047 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 158 cm | 165 cm | 173 cm |
| Rider Max Height | 160 cm | 167 cm | 175 cm | 184 cm |
