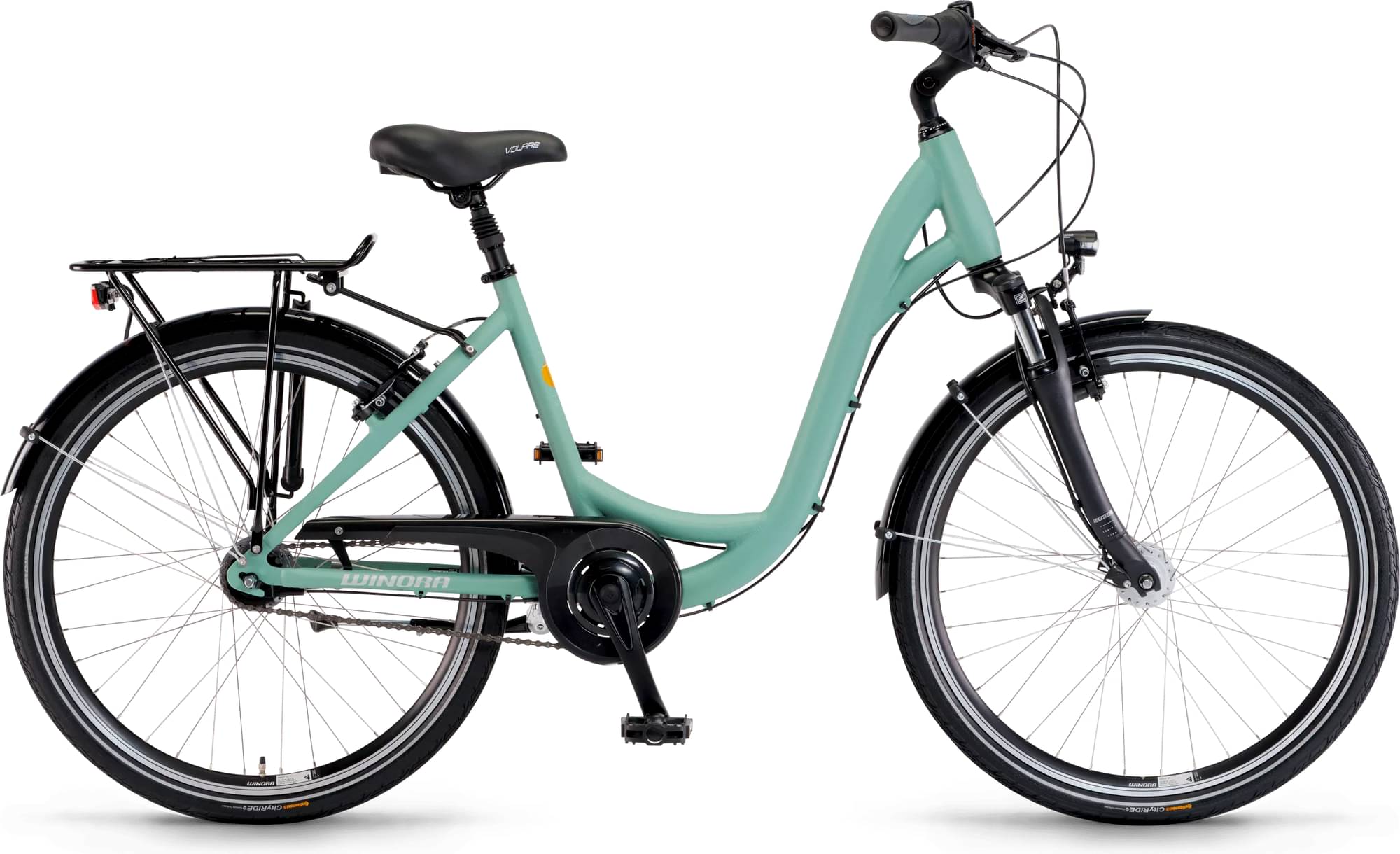

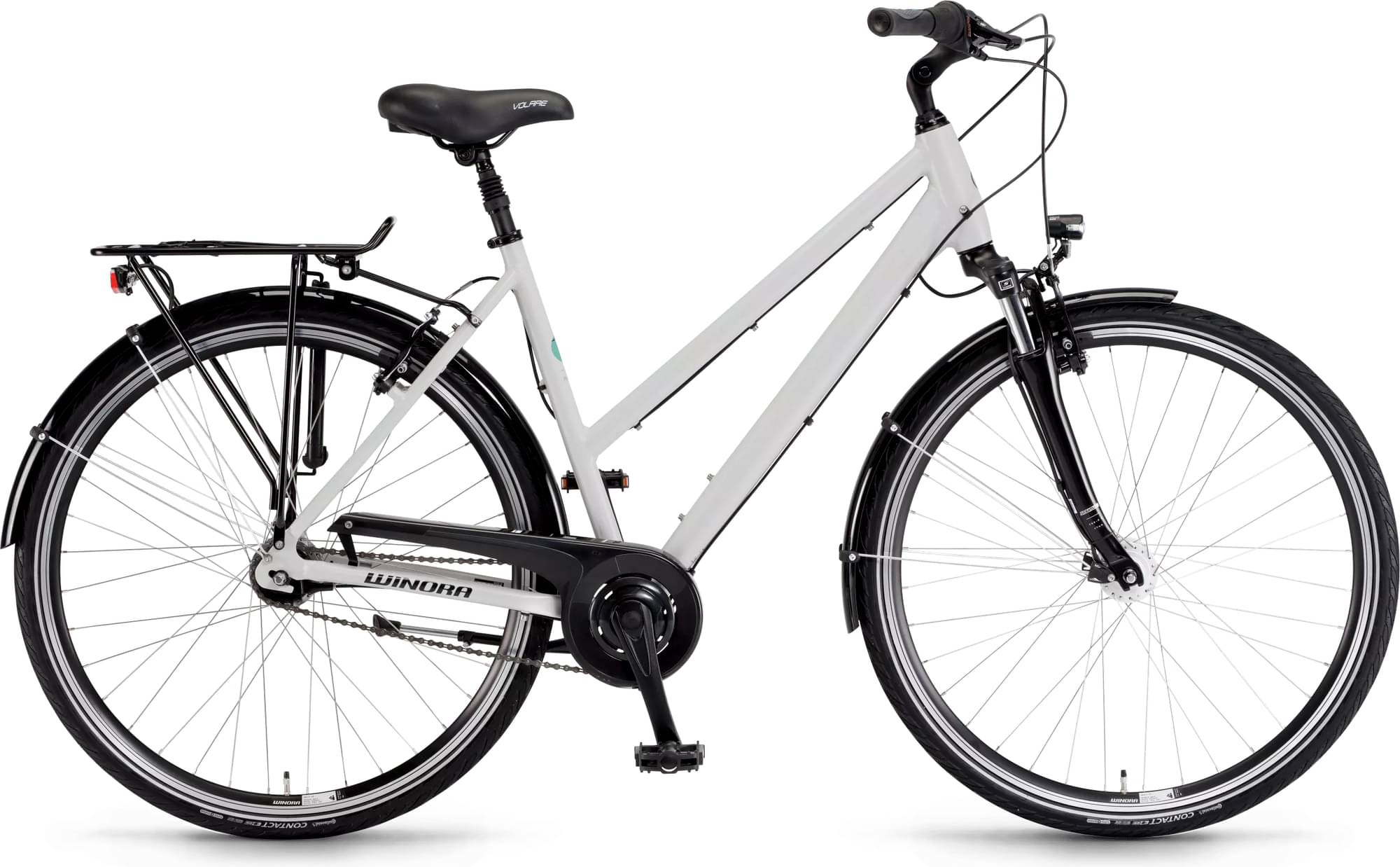

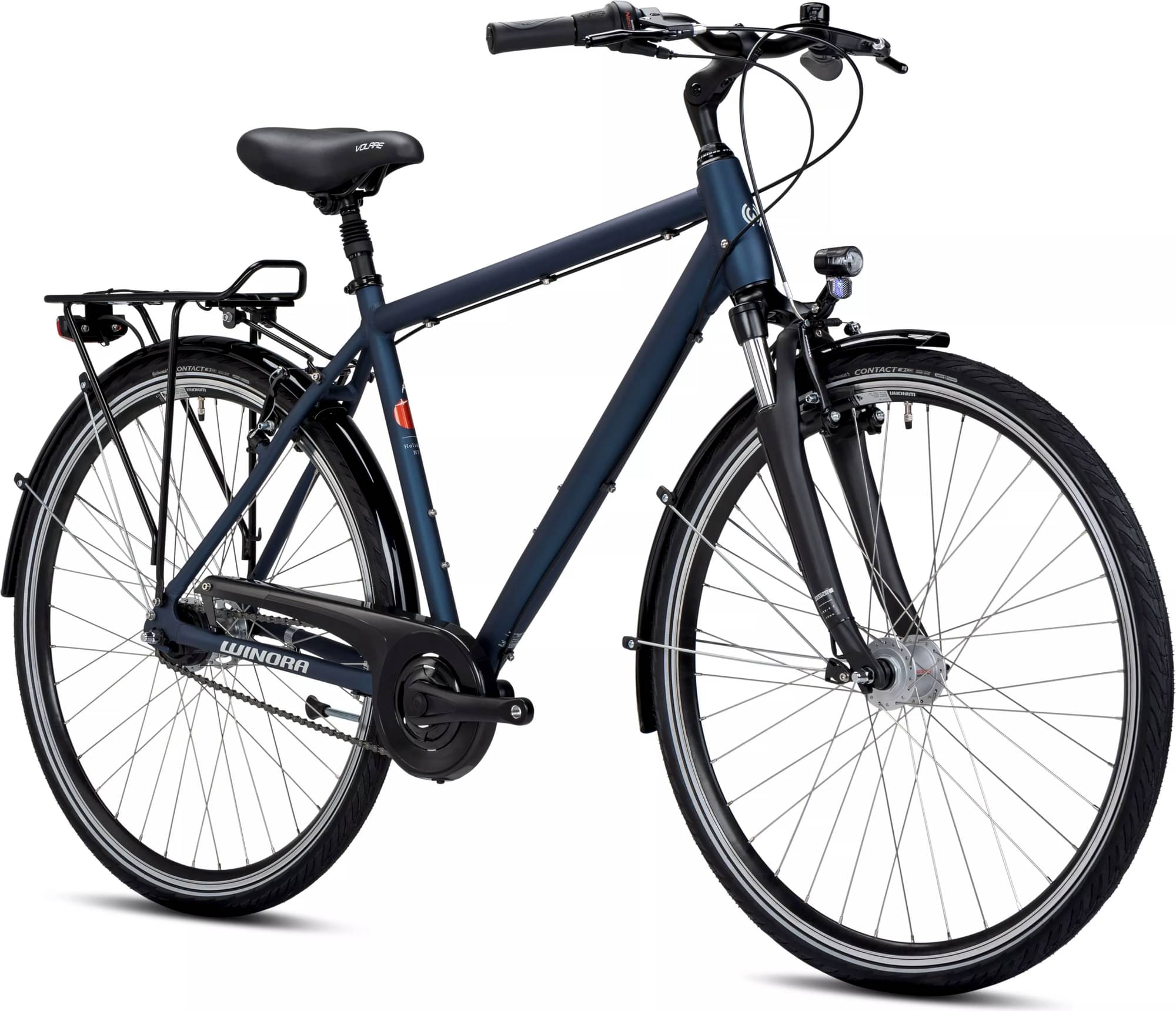

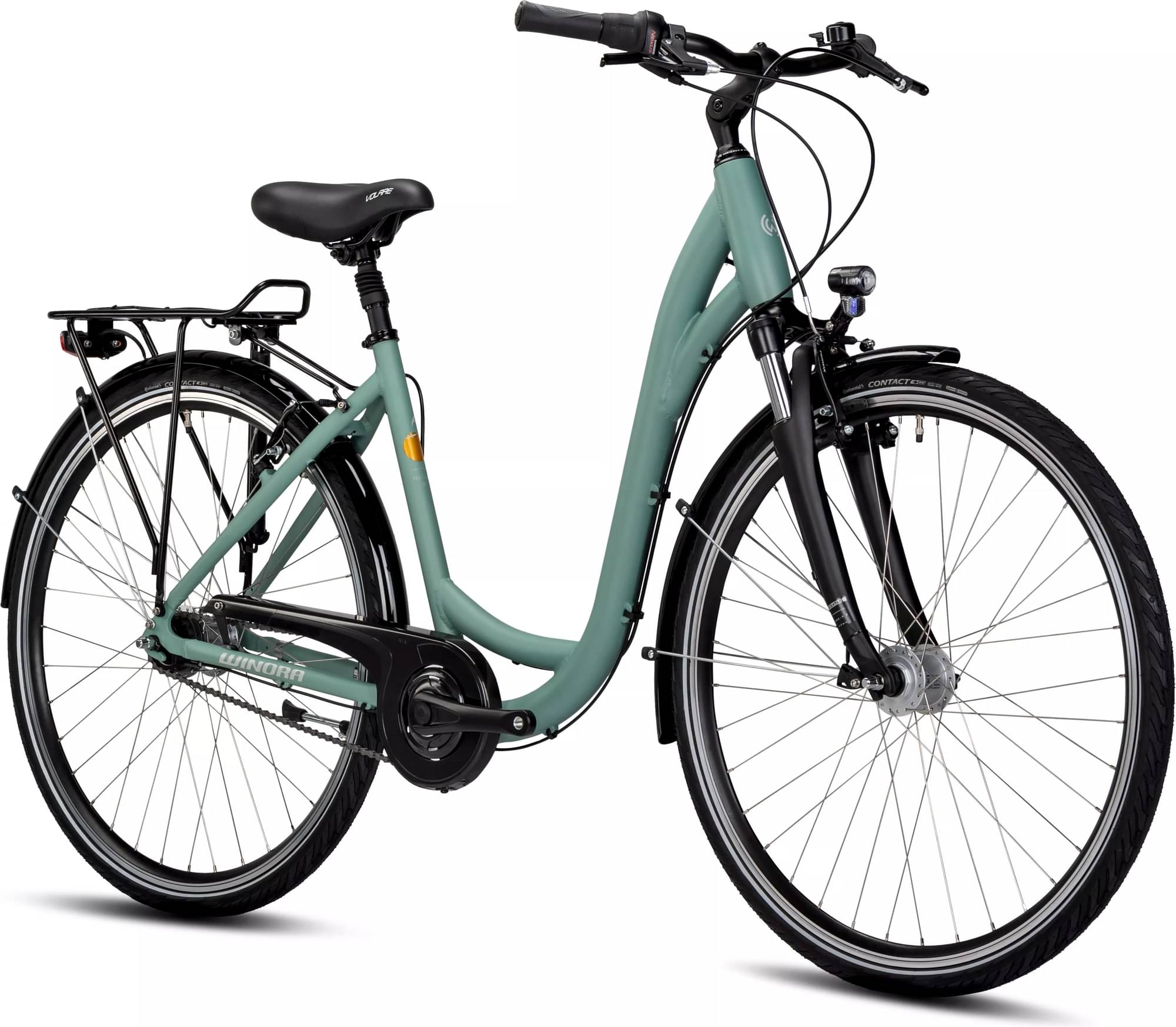

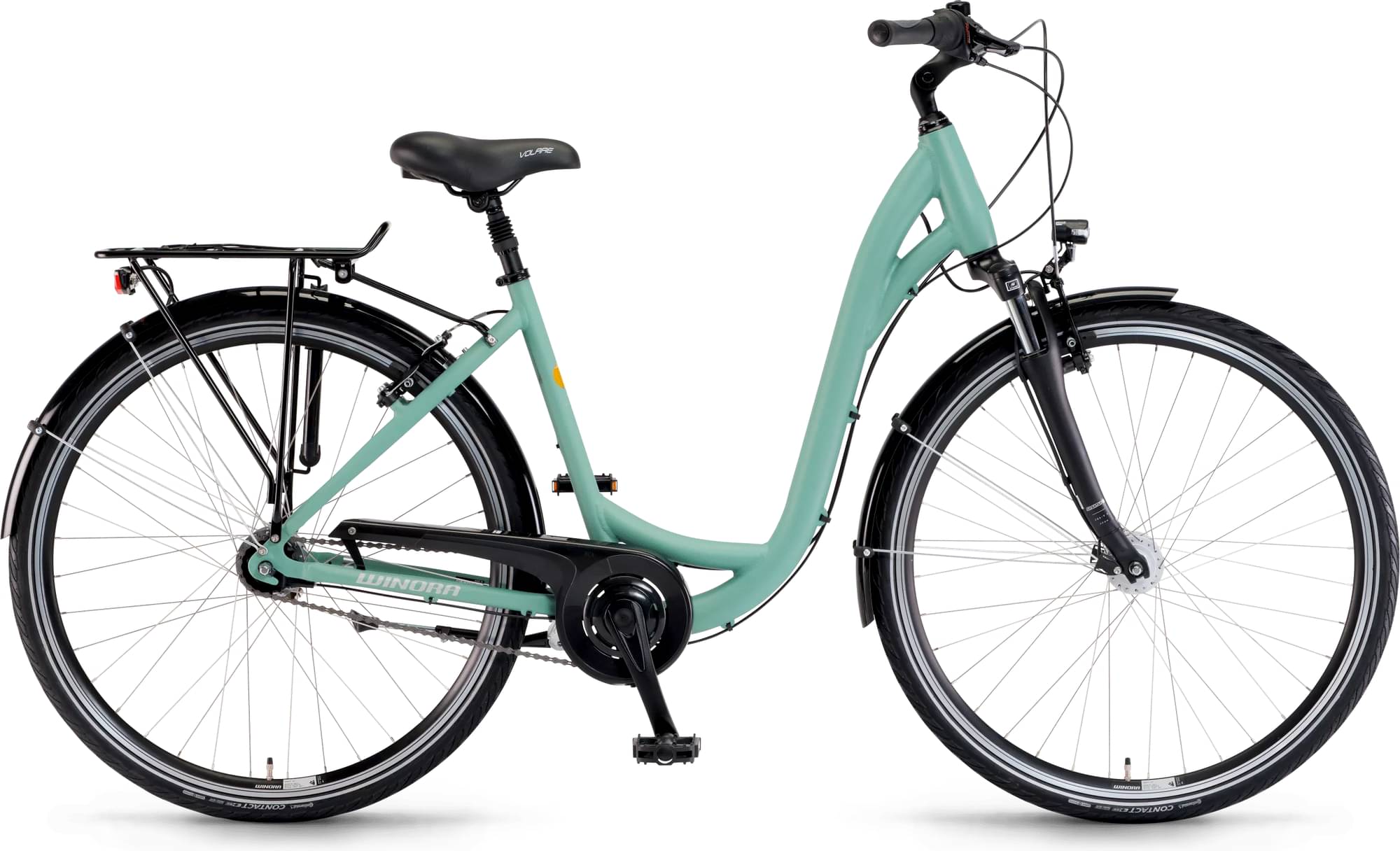

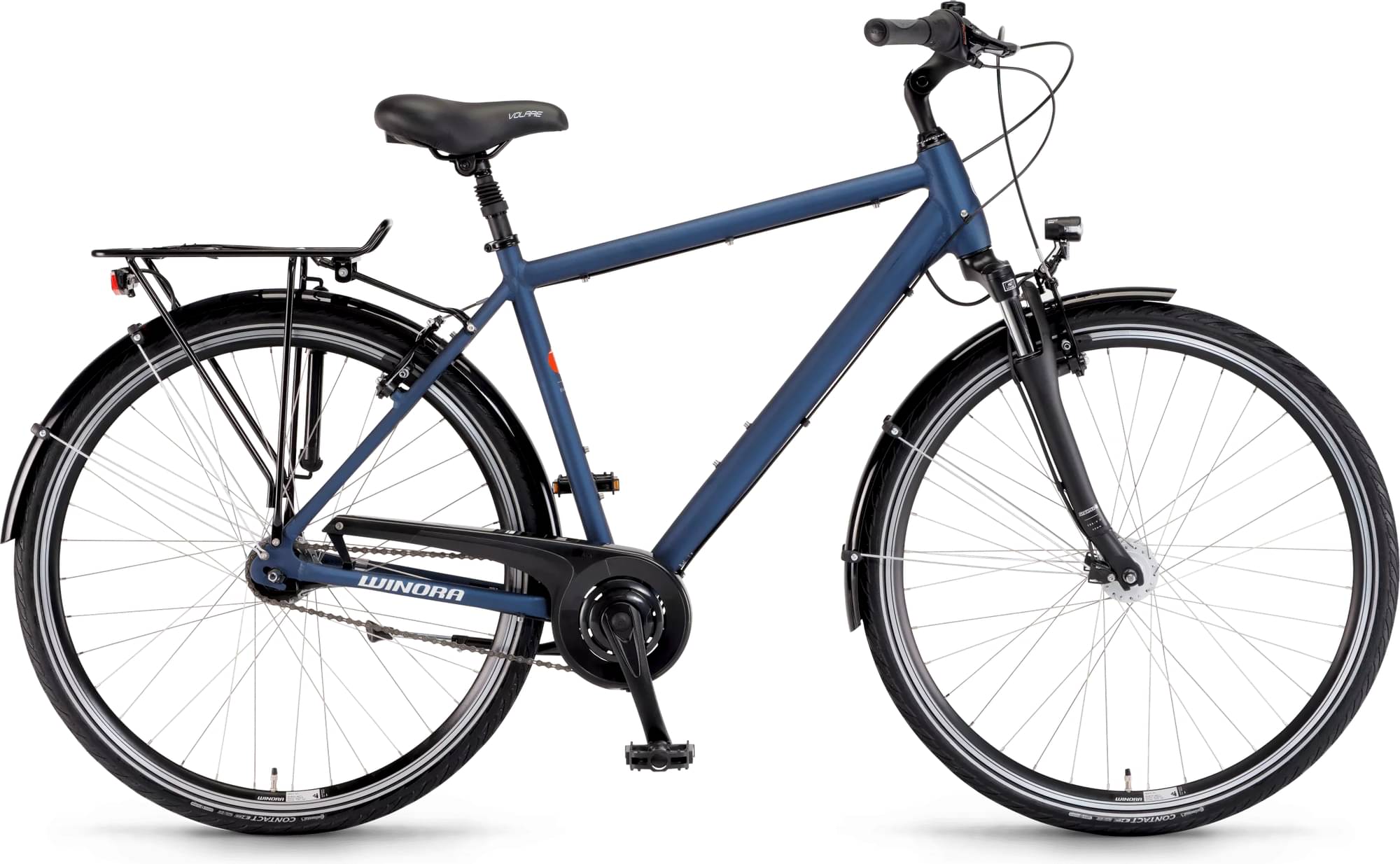

winora Holiday N7 2025
2025 Urban
Estimate price |
697$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
48cm
161cm - 171cm
52cm
169cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mid Aluminium Ladies

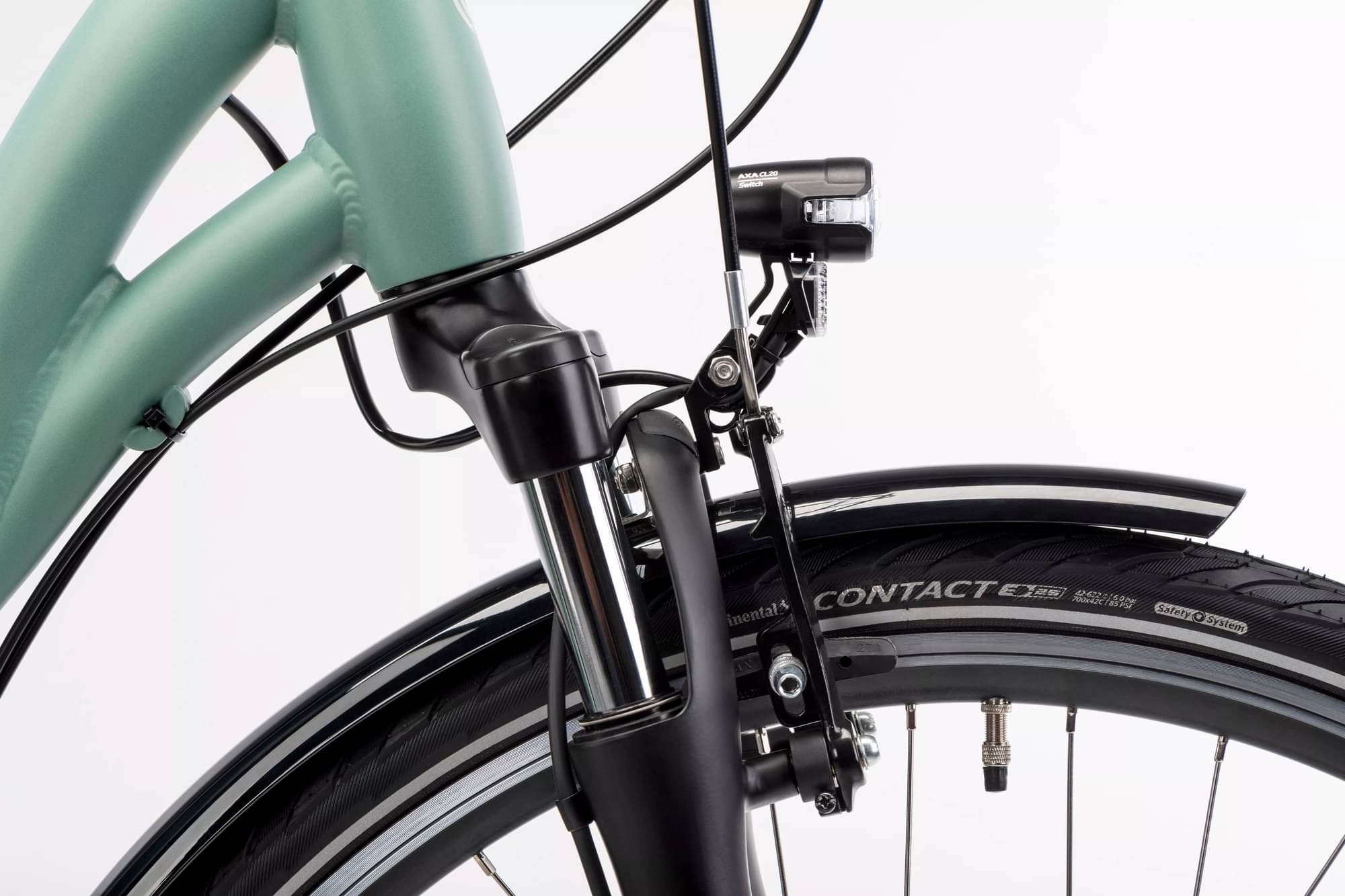

Suspension Fork
Suntour CR 7V-A adjustable
Drivetrain
Shift Levers
Shimano Gripshift Nexus
Cassette
sprocket
Crank
aluminium crank
Bottom Bracket
VP BC73
Chain
Chain
Chain Guide
AXA Mach1
Pedals
VP 872
Wheels

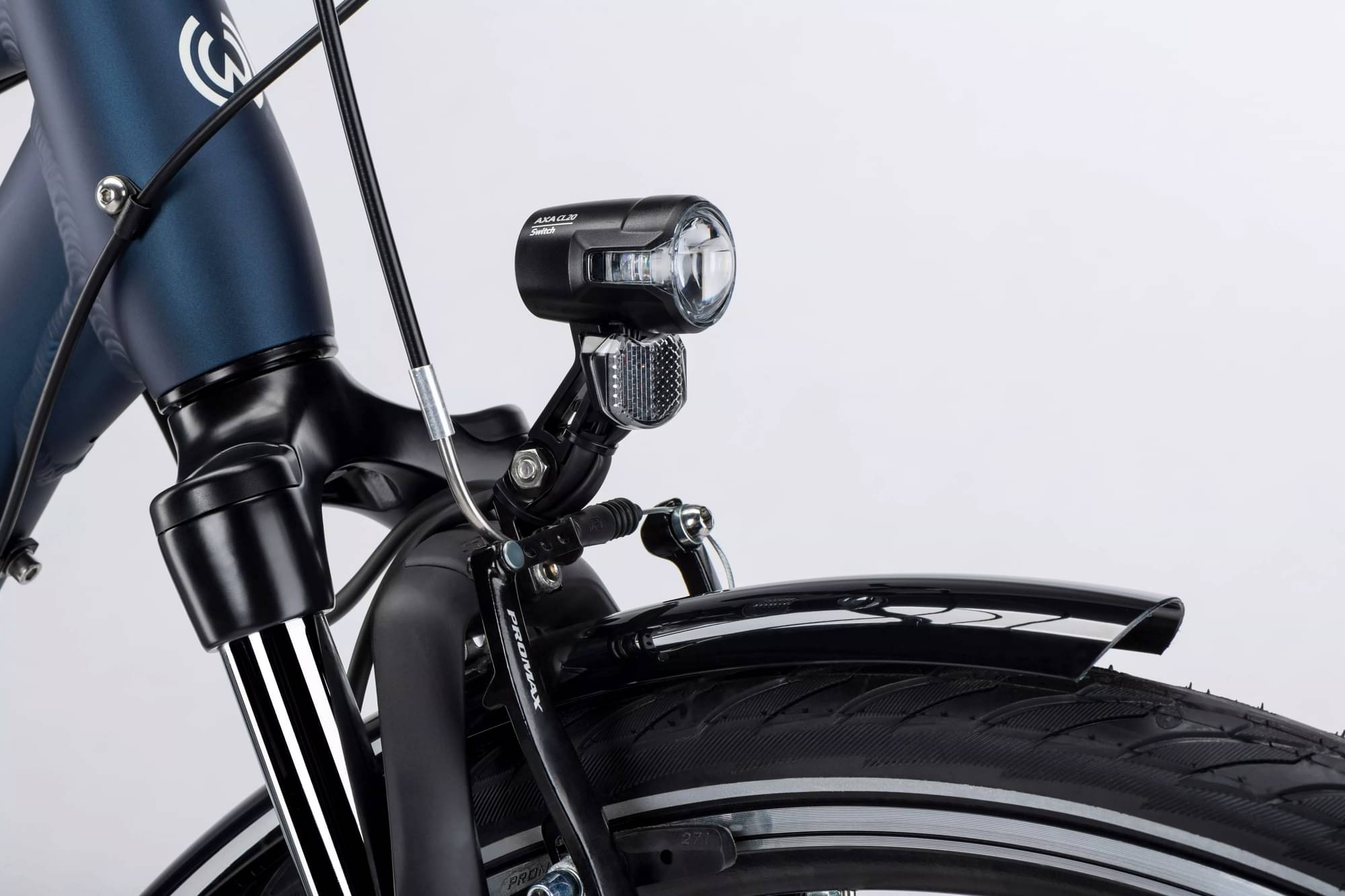

Front Hub
Shimano Nexus hub dynamo C3000

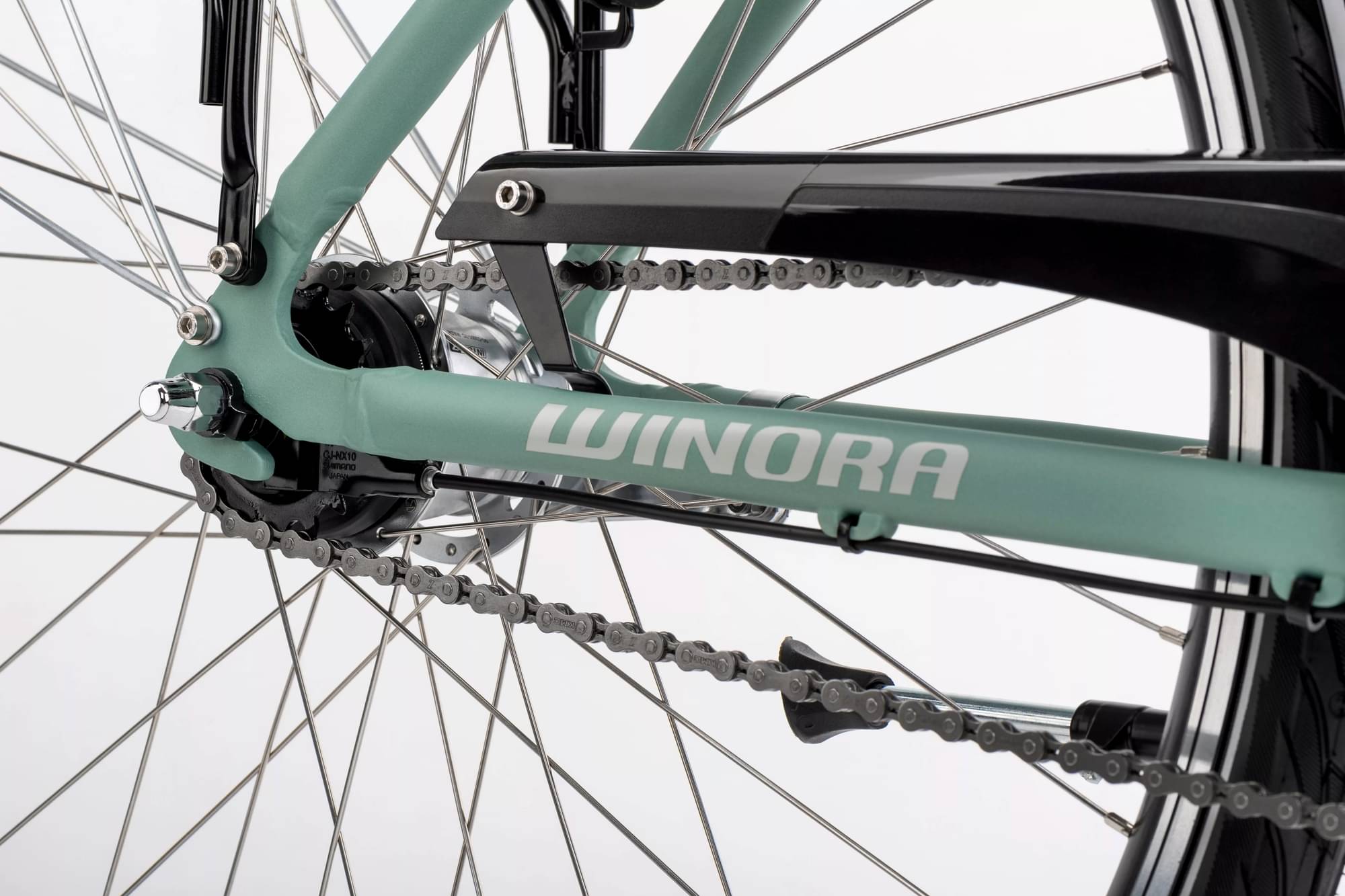

Rear Hub
Shimano Nexus
Rims
Hollow rim X3
Tires
XLC StreetXStreetX 47-559
Brakes
Brakes
Mechanical V-brake V-Brake
Brake Levers
aluminium lever
Cockpit
Stem
Adjustable aluminium, angle ajustable
Handlebar
city handlebar
Headset
CH-919
Seat
Saddle
Selle Bassano Volare City XL
Seatpost
Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm |
|---|---|---|
| Stack Reach Ratio | 1.614 mm | 1.605 mm |
| Front Center | 628 mm | 644 mm |
| Rake | 45 mm | 45 mm |
| Trail | 76 mm | 76 mm |
| Stack | 615 mm | 629 mm |
| Reach | 381 mm | 392 mm |
| Top Tube Length | 575 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 145 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1071 mm | 1087 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 605 mm | 610 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 161 cm | 169 cm |
| Rider Max Height | 171 cm | 179 cm |
