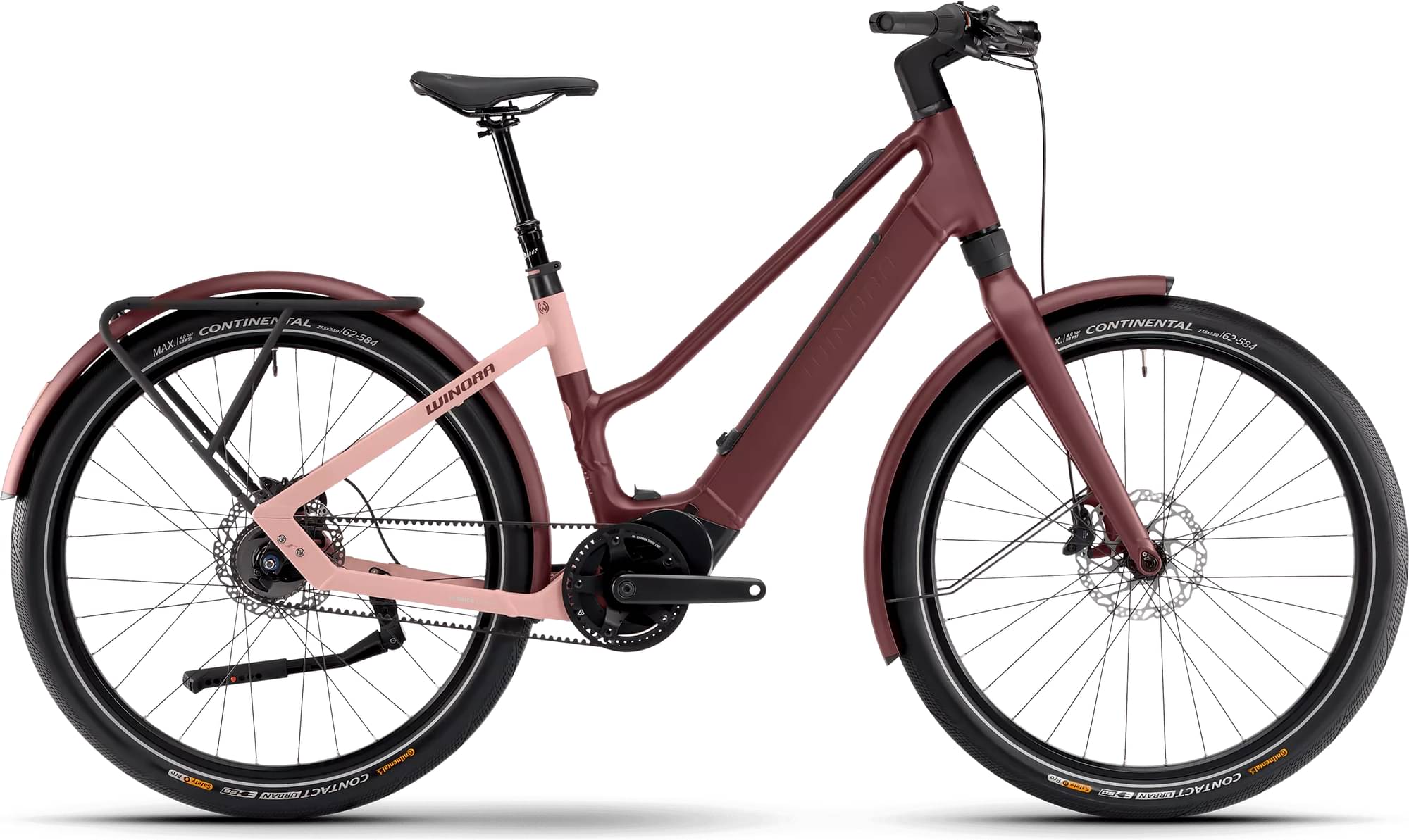

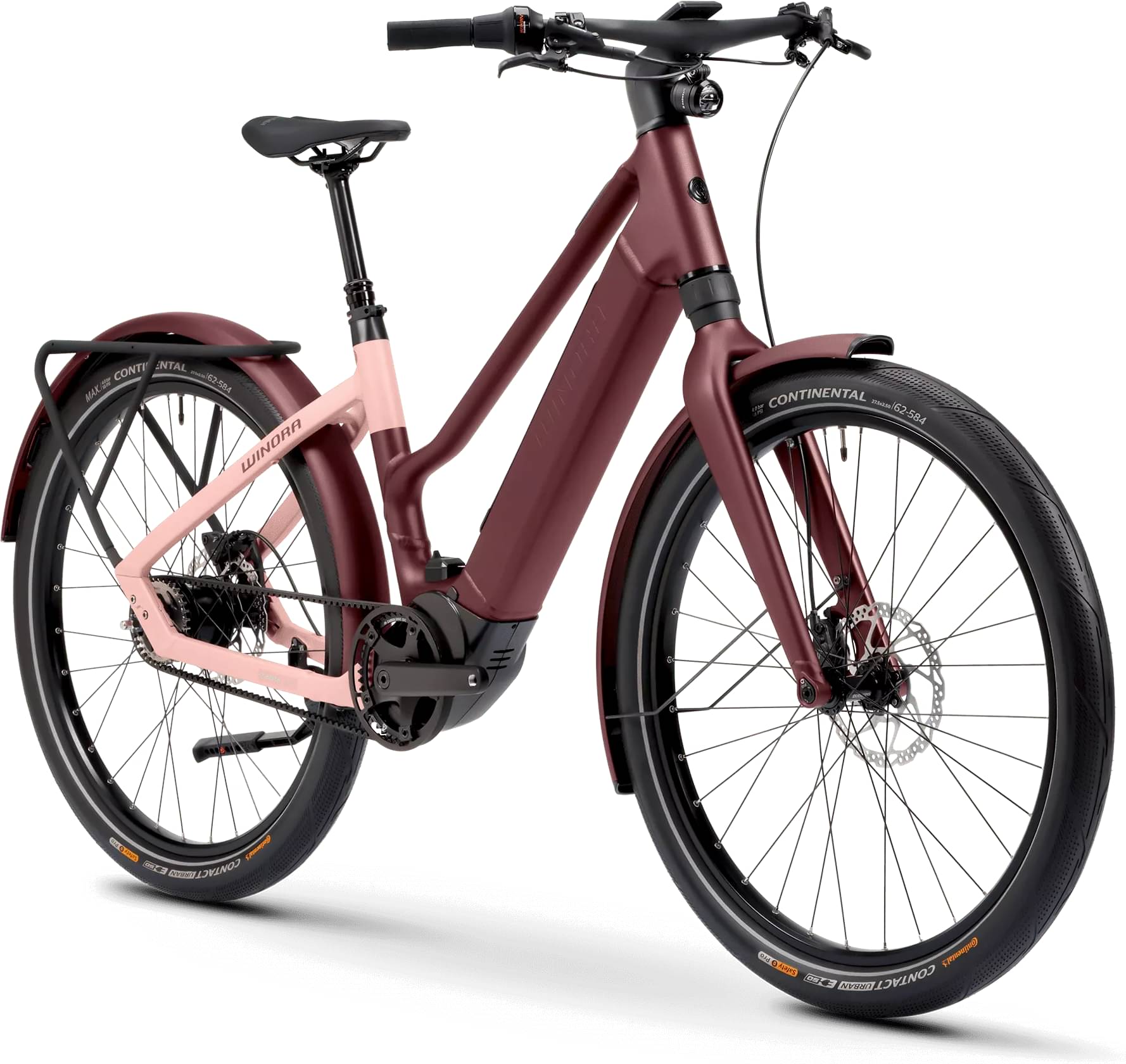

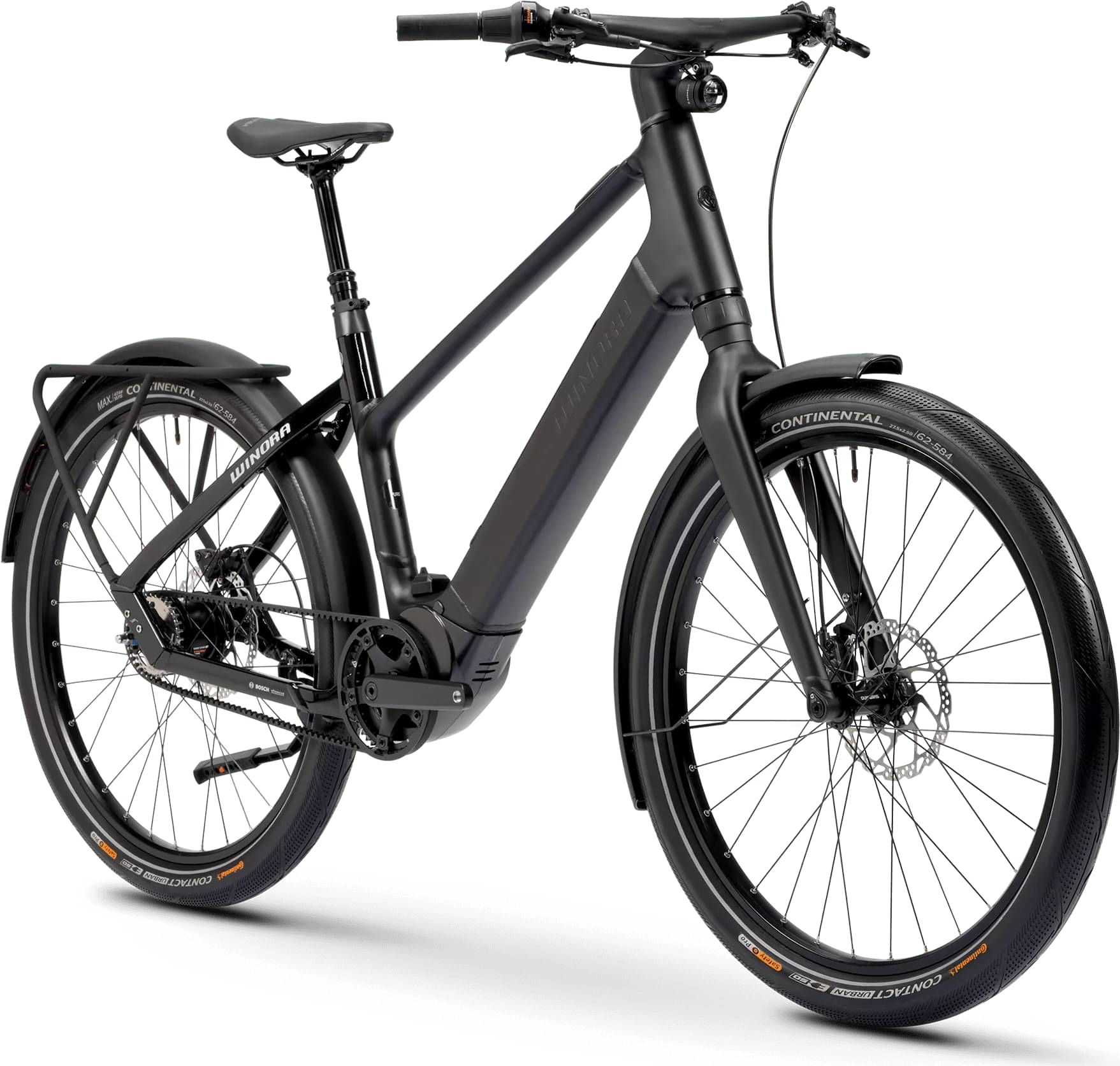

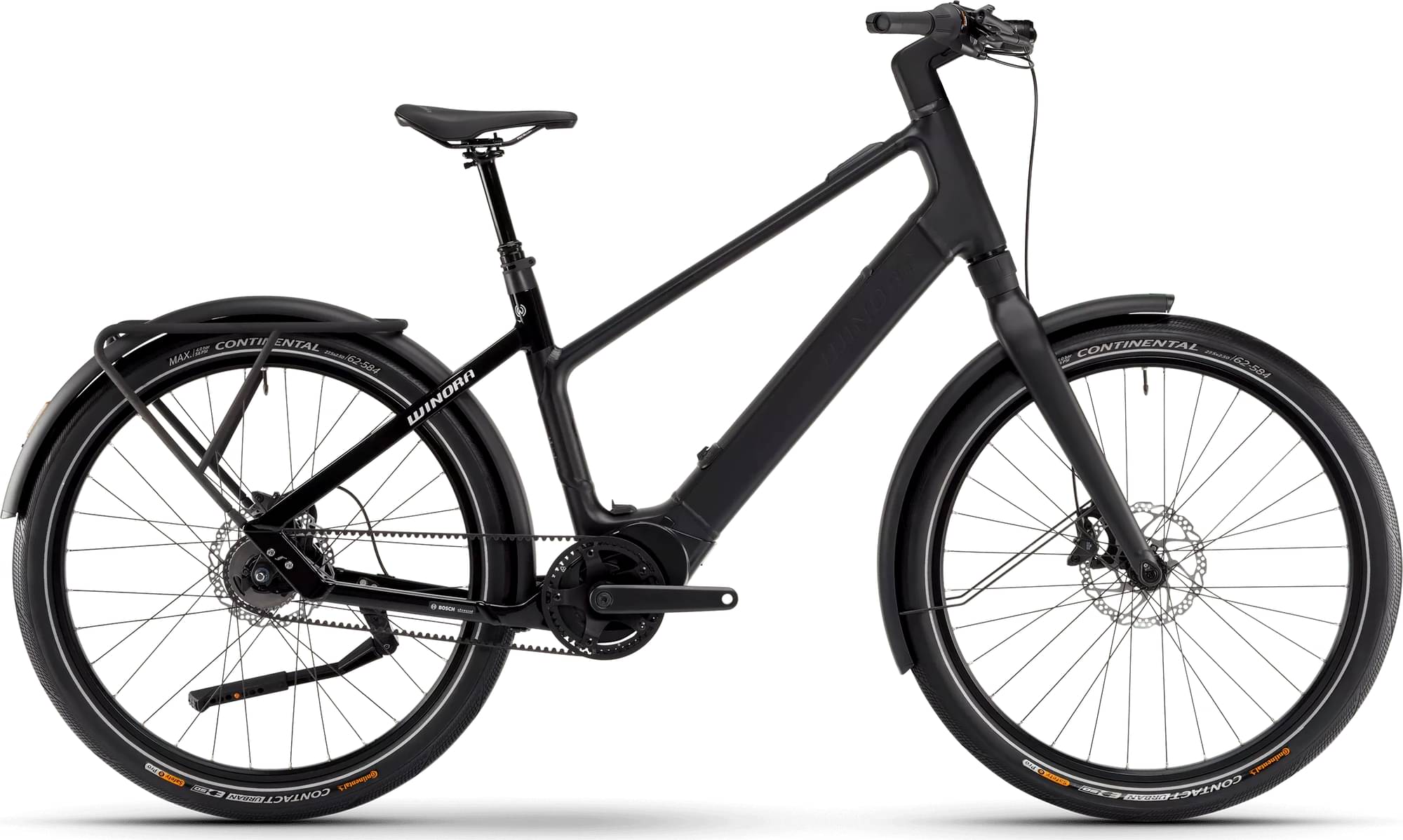

winora iRide PURE R5f 2024
2024 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 30mm -
Groupset Gates CDC, Nexus -
Suspension Hardtail -
Motor Bosch mid-drive -
Battery Bosch Li-ION InTube 400 Wh, Capacity: 400 Wh, Location: Powertube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
40cm
146cm - 157cm
42cm
155cm - 164cm
44cm
162cm - 174cm
48cm
172cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mid Aluminium Low step-through

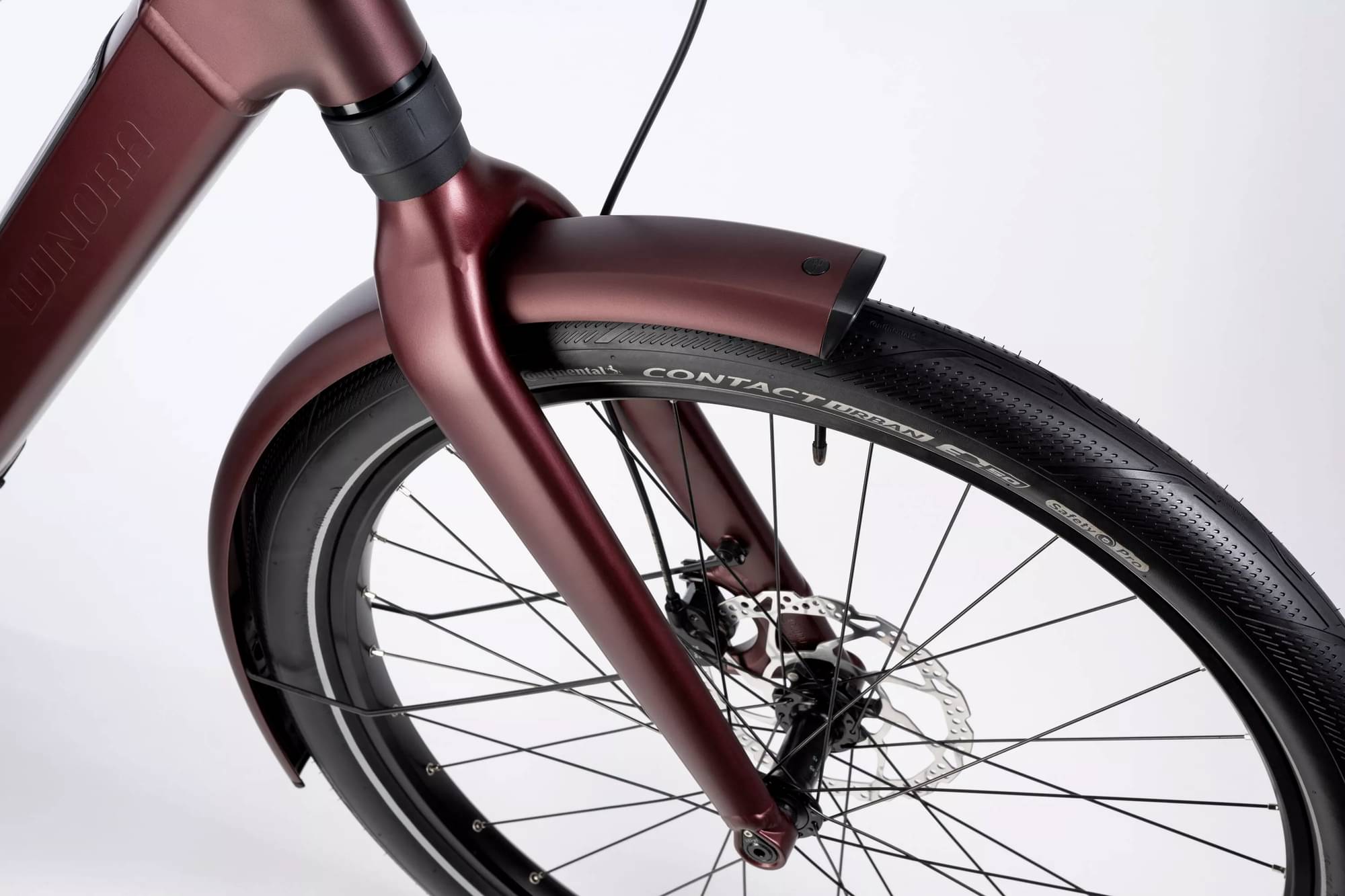

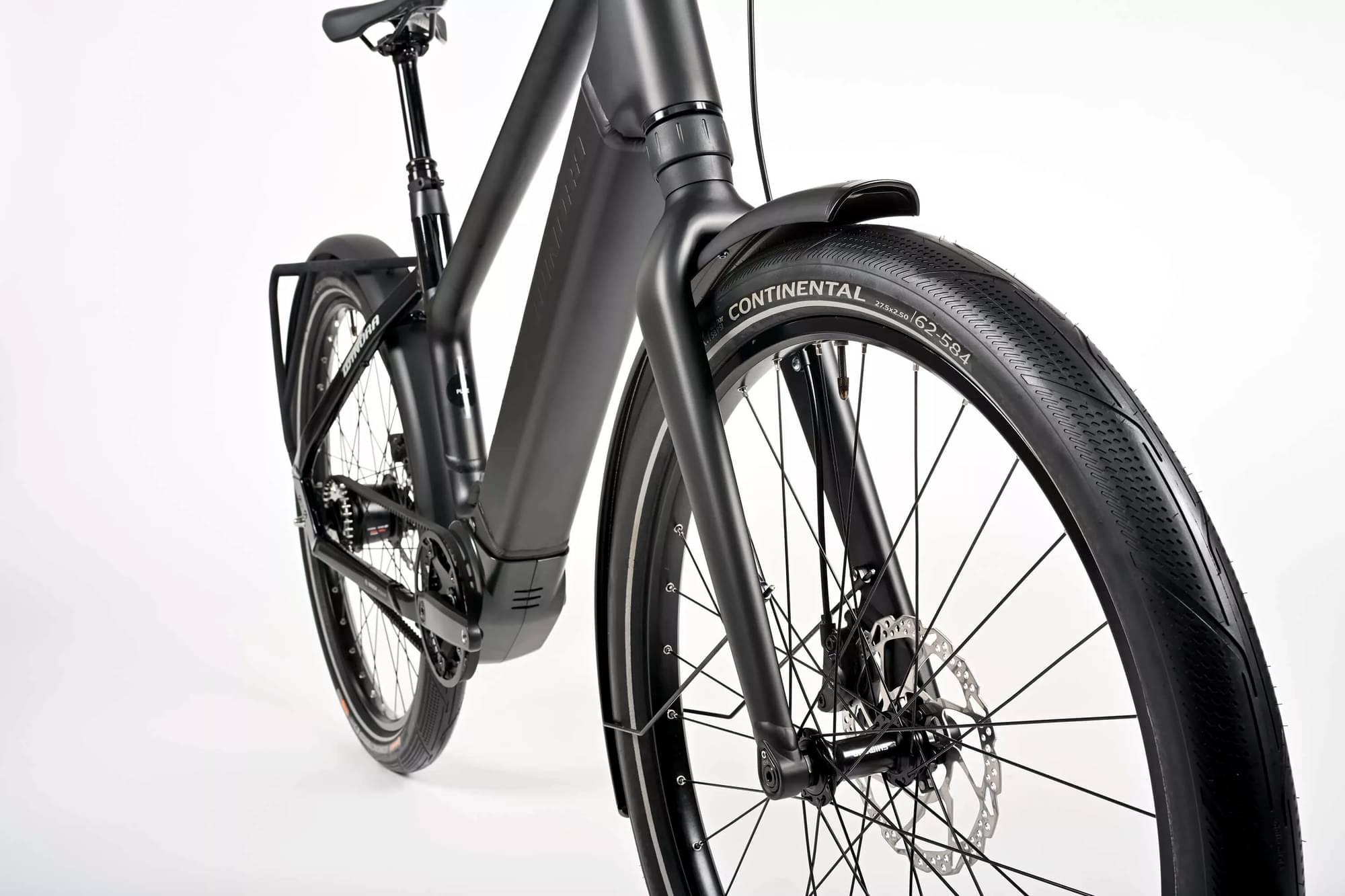

Suspension Fork
Winora Feathershock 30 mm
Drivetrain

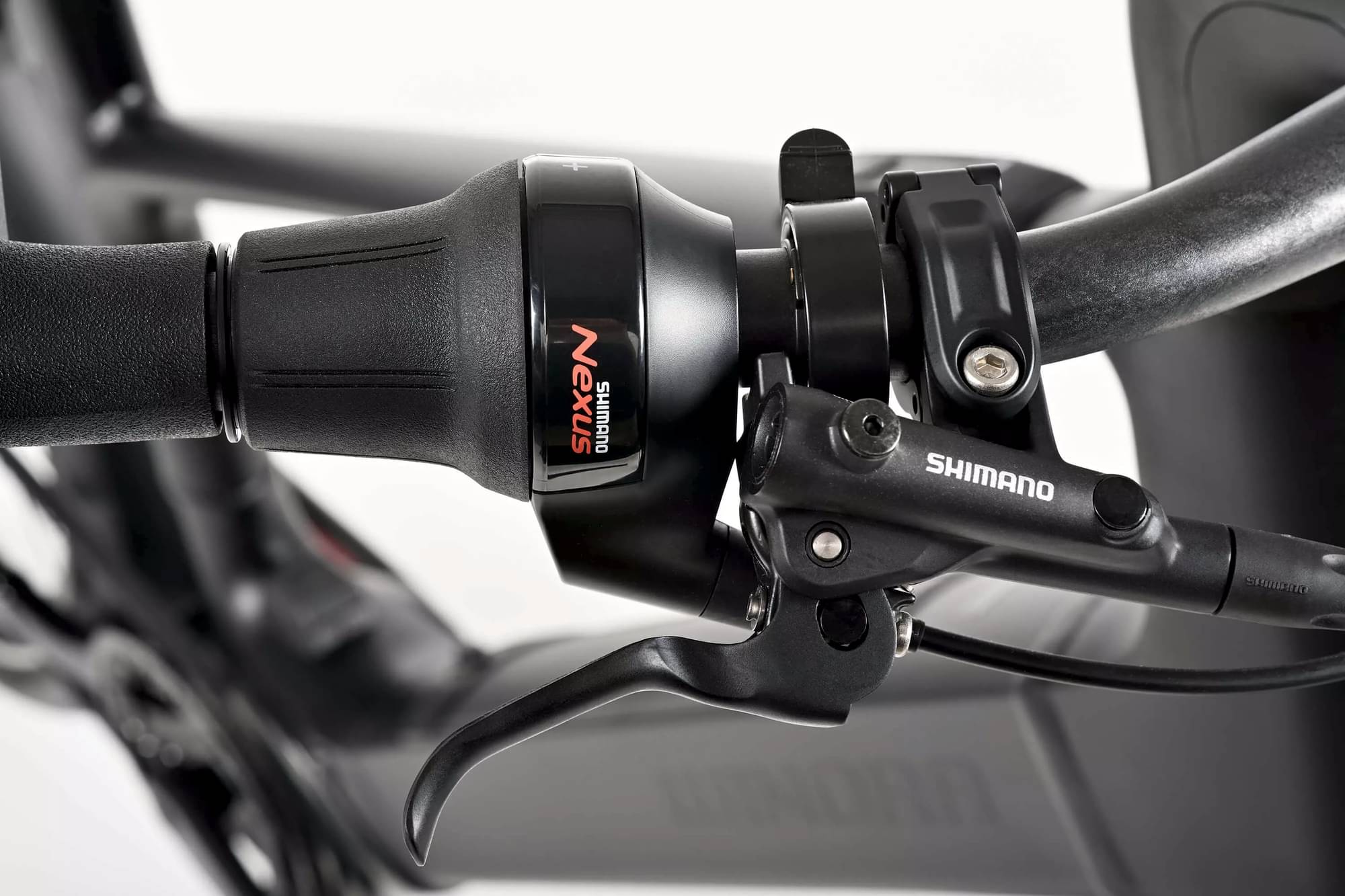

Shift Levers
Shimano Gripshift Nexus
Cassette
Gates Pulley
Crank
Gates CDC
Bottom Bracket
integrated in the motor
Chain

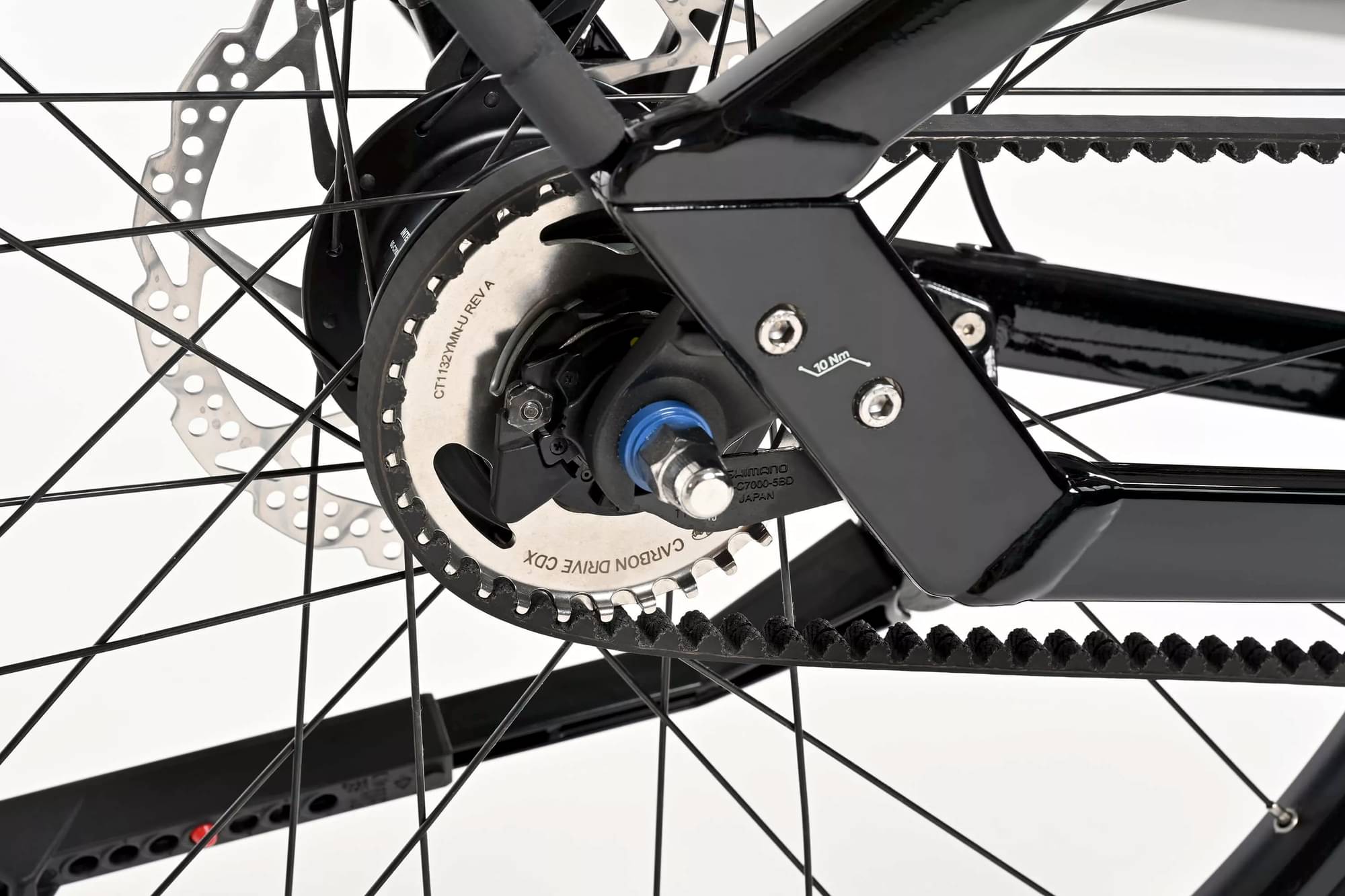

Gates Belt CarbonDrive CDC
Chain Guide
Nylon directmount
Pedals
VP E461
Wheels
Front Hub
Shimano HB-TC500 15 x 100 mm

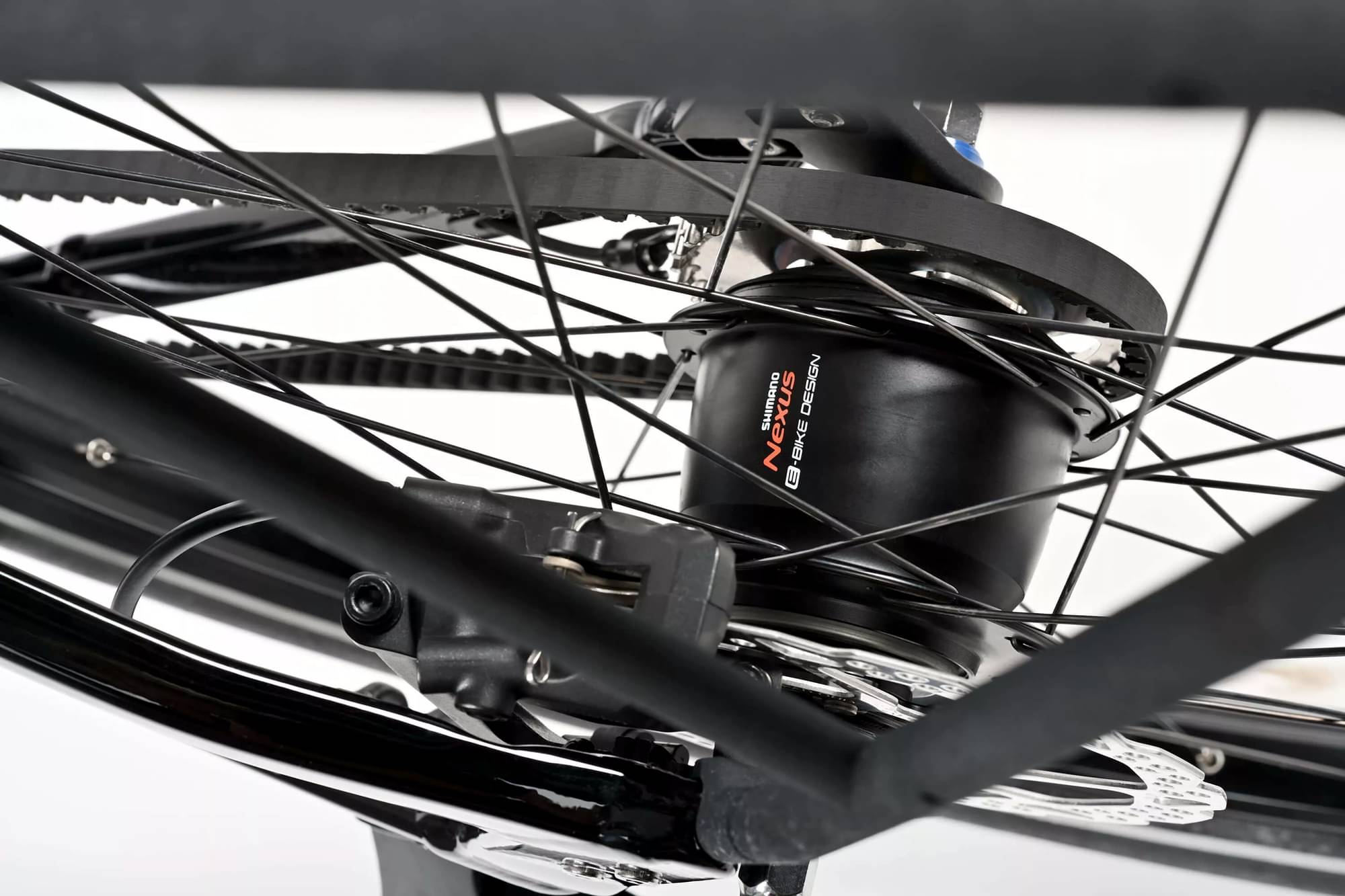

Rear Hub
Shimano Nexus 12 x 148 mm
Rims
Schürmann Hollow rim Yak25
Spokes
Sapim, Leader, Black
Tires
Continental Contact Urban 62-584
Brakes
Brakes
Shimano Hydraulic Disc brake

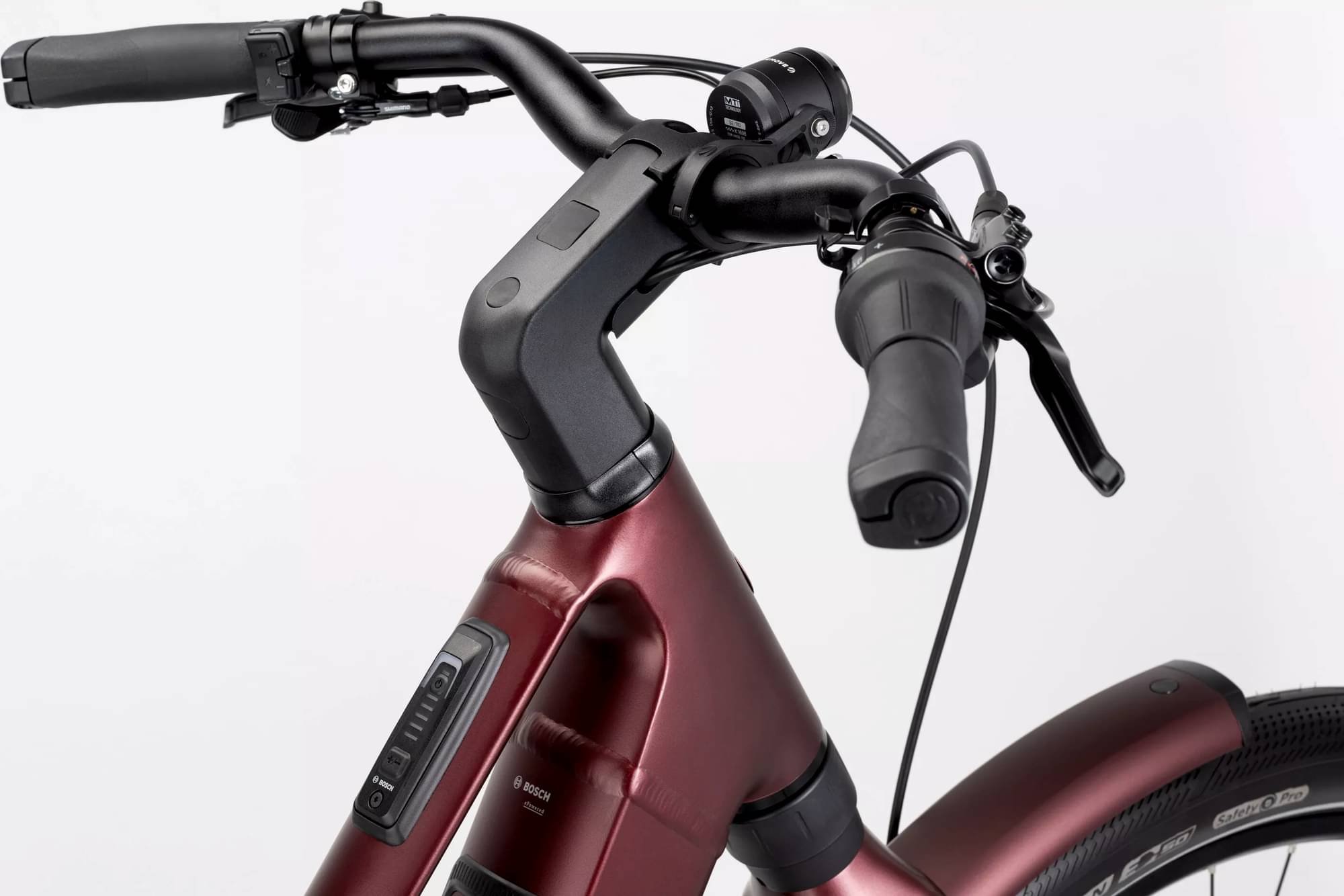

Cockpit

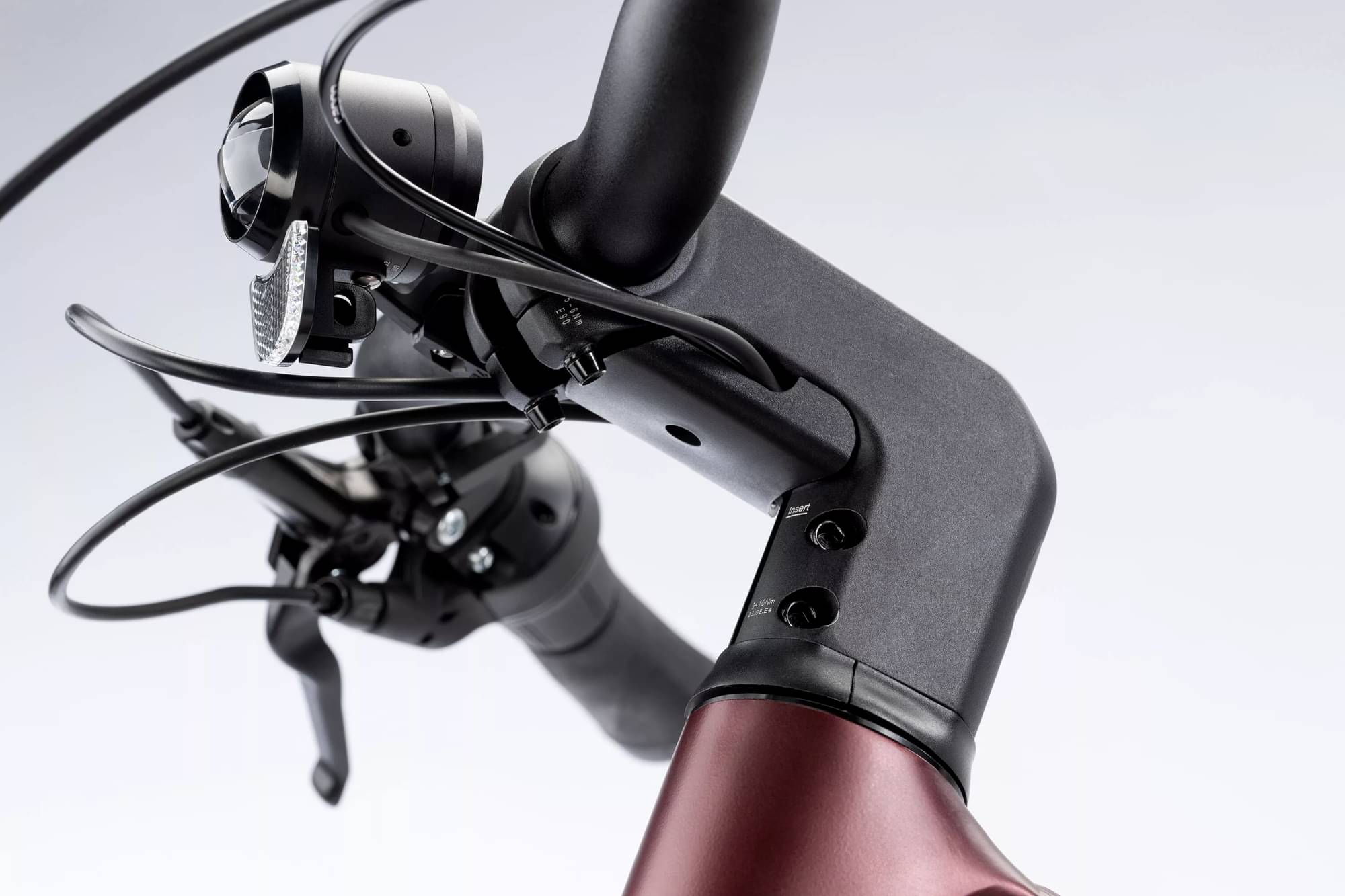

Stem
Winora Not Adjustable adjustable, integrated cable routing
Handlebar
Winora Ergobar, oversize
Headset
Glory Wheel ICR CHS1139
Seat
Saddle
Selle Italia X-Bow
Seatpost
Winora Dropperpost Teleskop, Dia. 31.6 mm
Motor & Battery

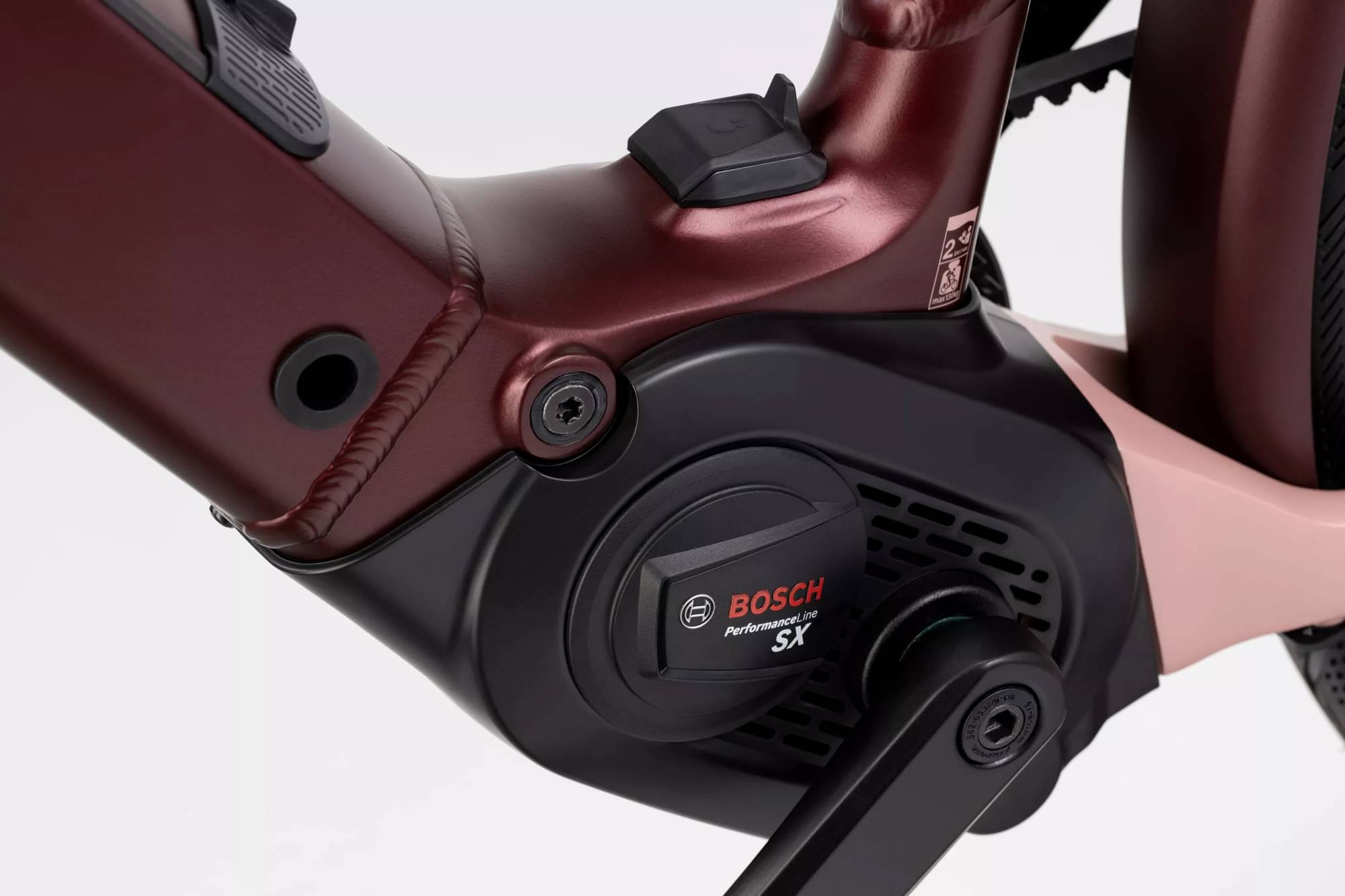

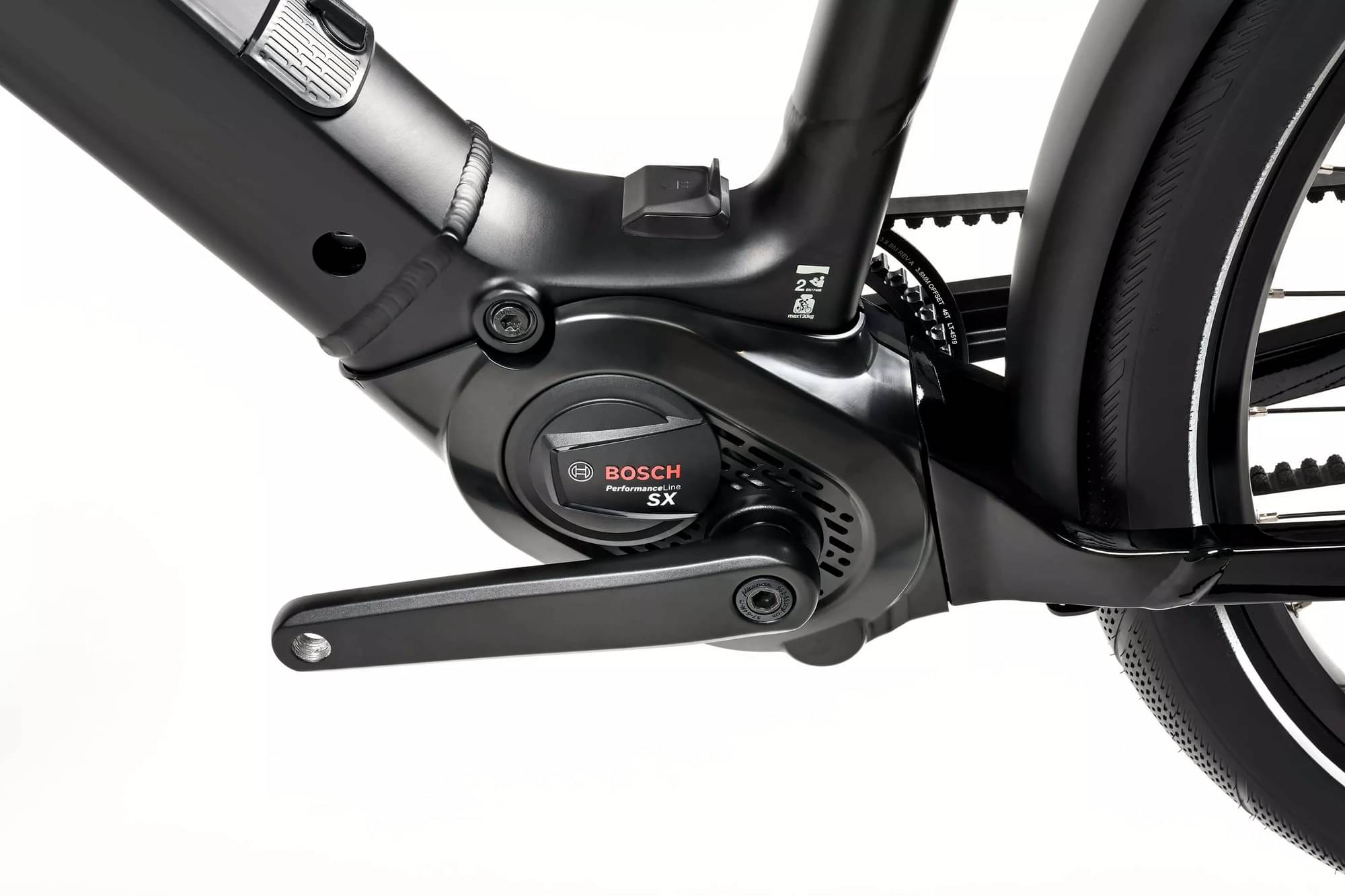

Motor
Bosch
Battery
Bosch Li-ION InTube 400 Wh, Capacity: 400 Wh, Location: Powertube
Charger
Bosch compact charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 42cm | 44cm | 48cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.711 mm | 1.474 mm | 1.483 mm | 1.425 mm |
| Front Center | 596 mm | 651 mm | 688 mm | 744 mm |
| Rake | 51 mm | 51 mm | 52 mm | 51 mm |
| Trail | 66 mm | 66 mm | 65 mm | 66 mm |
| Stack | 585 mm | 585 mm | 623 mm | 660 mm |
| Reach | 342 mm | 397 mm | 420 mm | 463 mm |
| Top Tube Length | 492 mm | 547 mm | 581 mm | 634 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 405 mm | 425 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 165 mm | 205 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1068 mm | 1123 mm | 1160 mm | 1216 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Standover Height | 800 mm | 820 mm | 850 mm | 870 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 146 cm | 155 cm | 162 cm | 172 cm |
| Rider Max Height | 157 cm | 164 cm | 174 cm | 186 cm |
