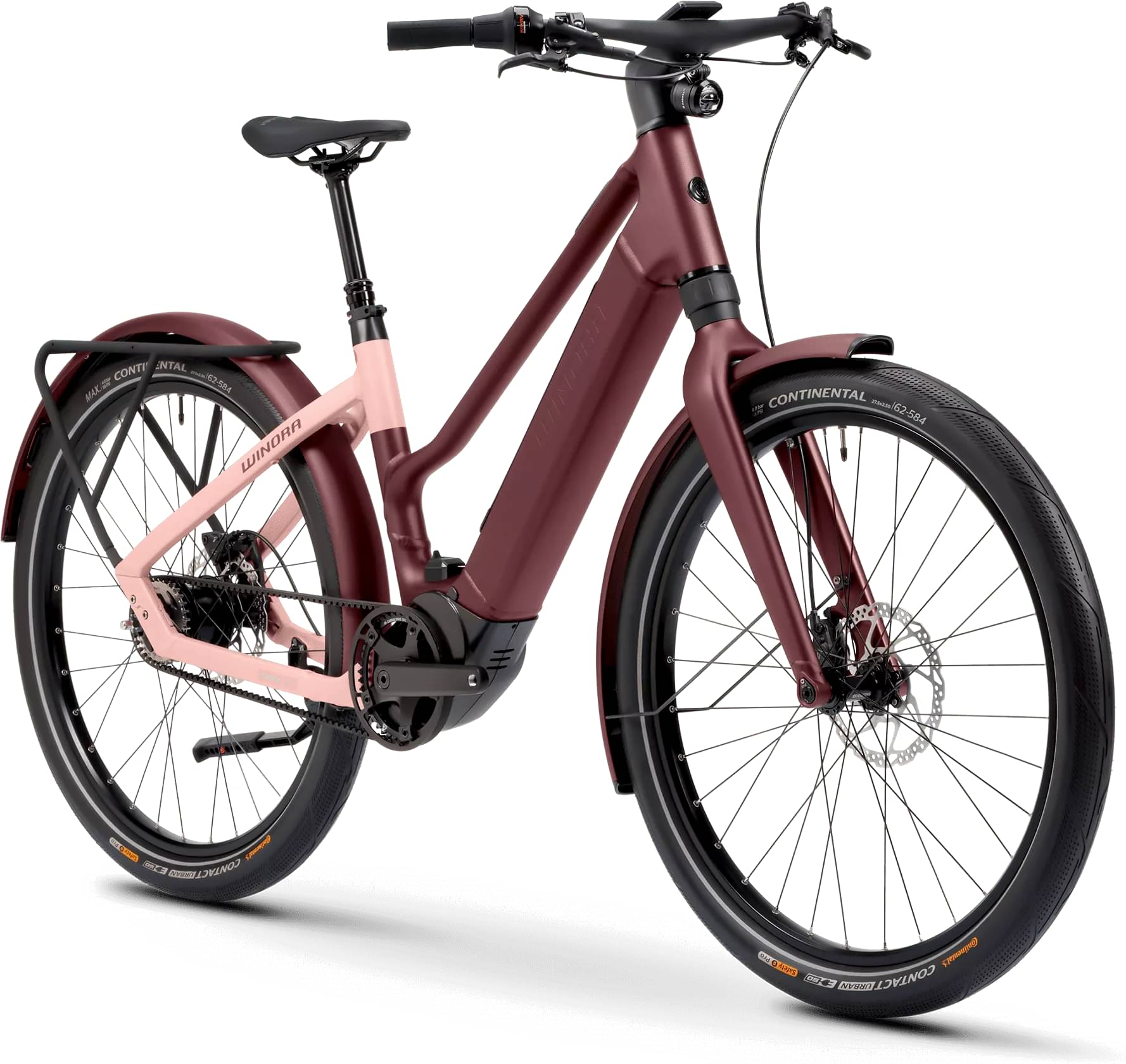

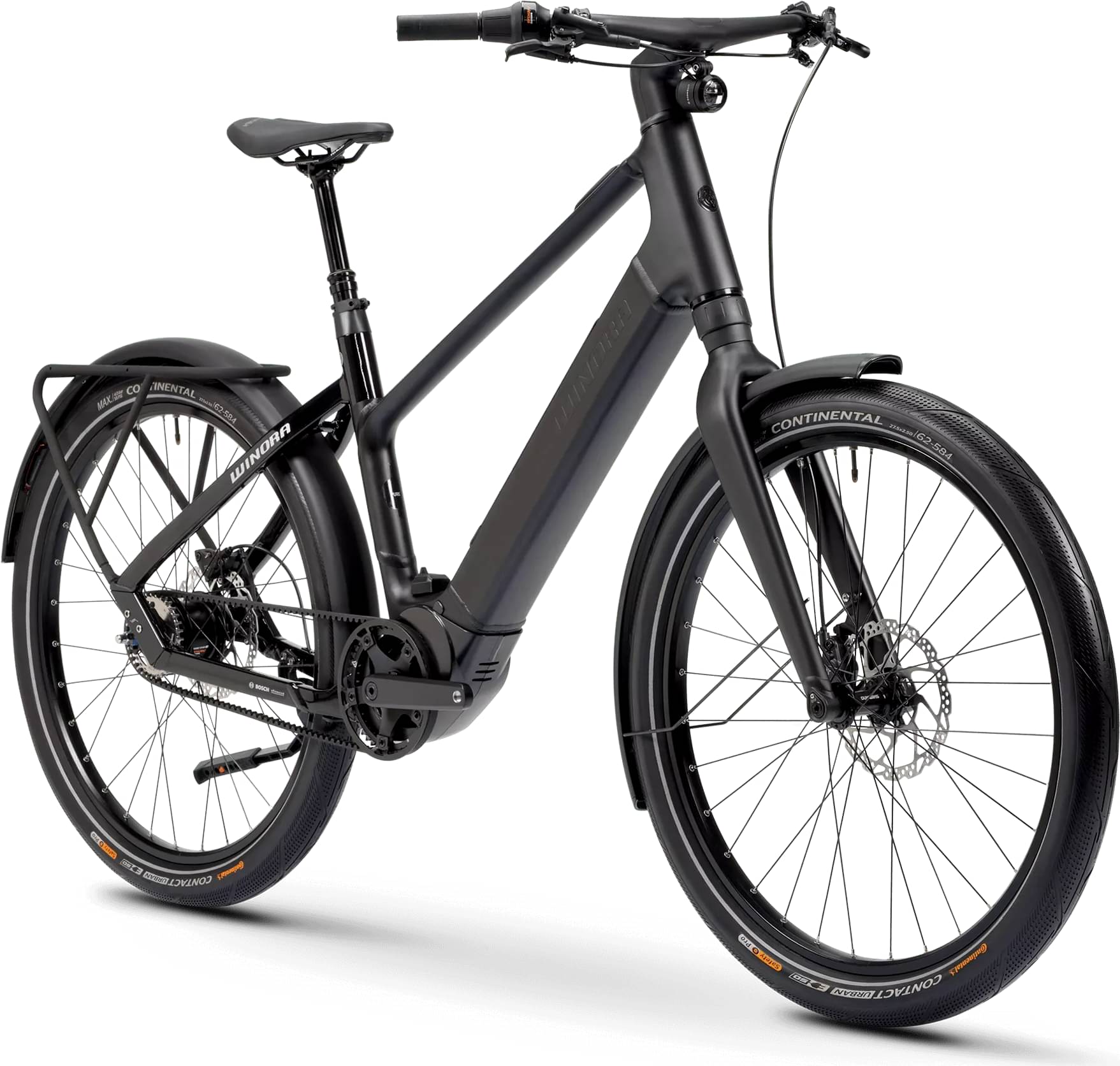

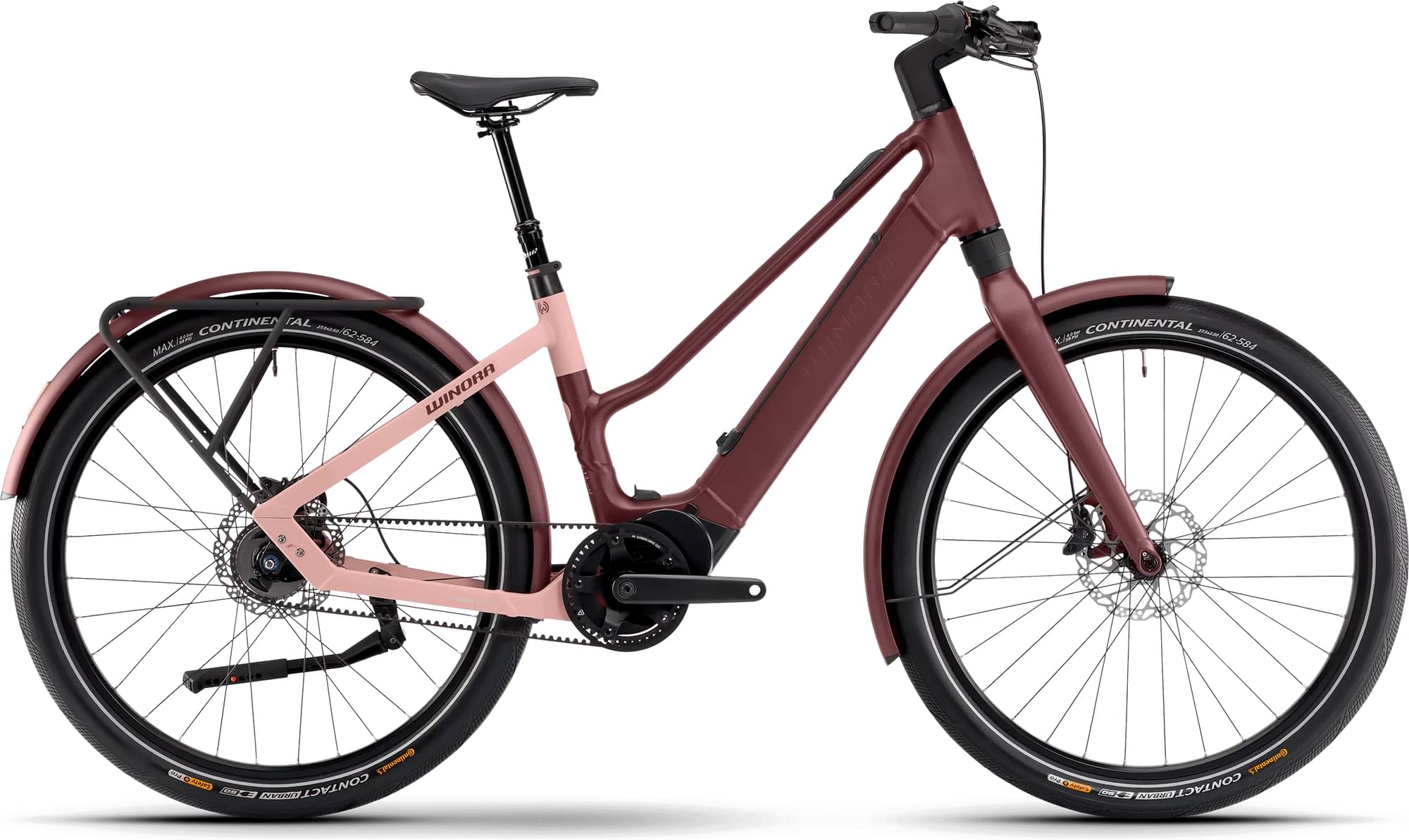

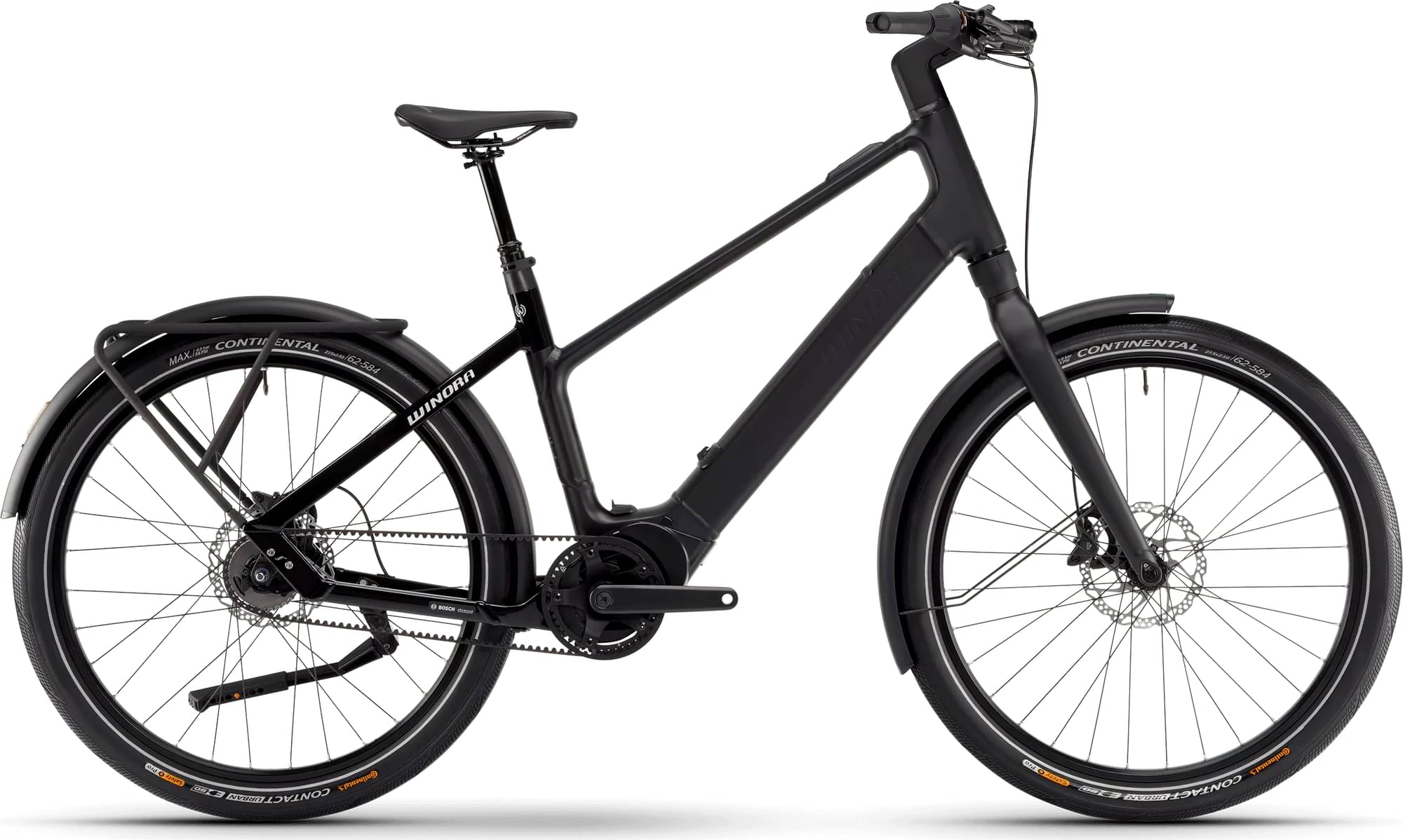

winora iRide PURE R5f 2025
2025 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 30mm -
Groupset Gates CDC, Nexus -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch Li-ION InTube 400 Wh, Capacity: 400 Wh, Location: Powertube -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
40cm
146cm - 157cm
42cm
155cm - 164cm
44cm
162cm - 174cm
48cm
172cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

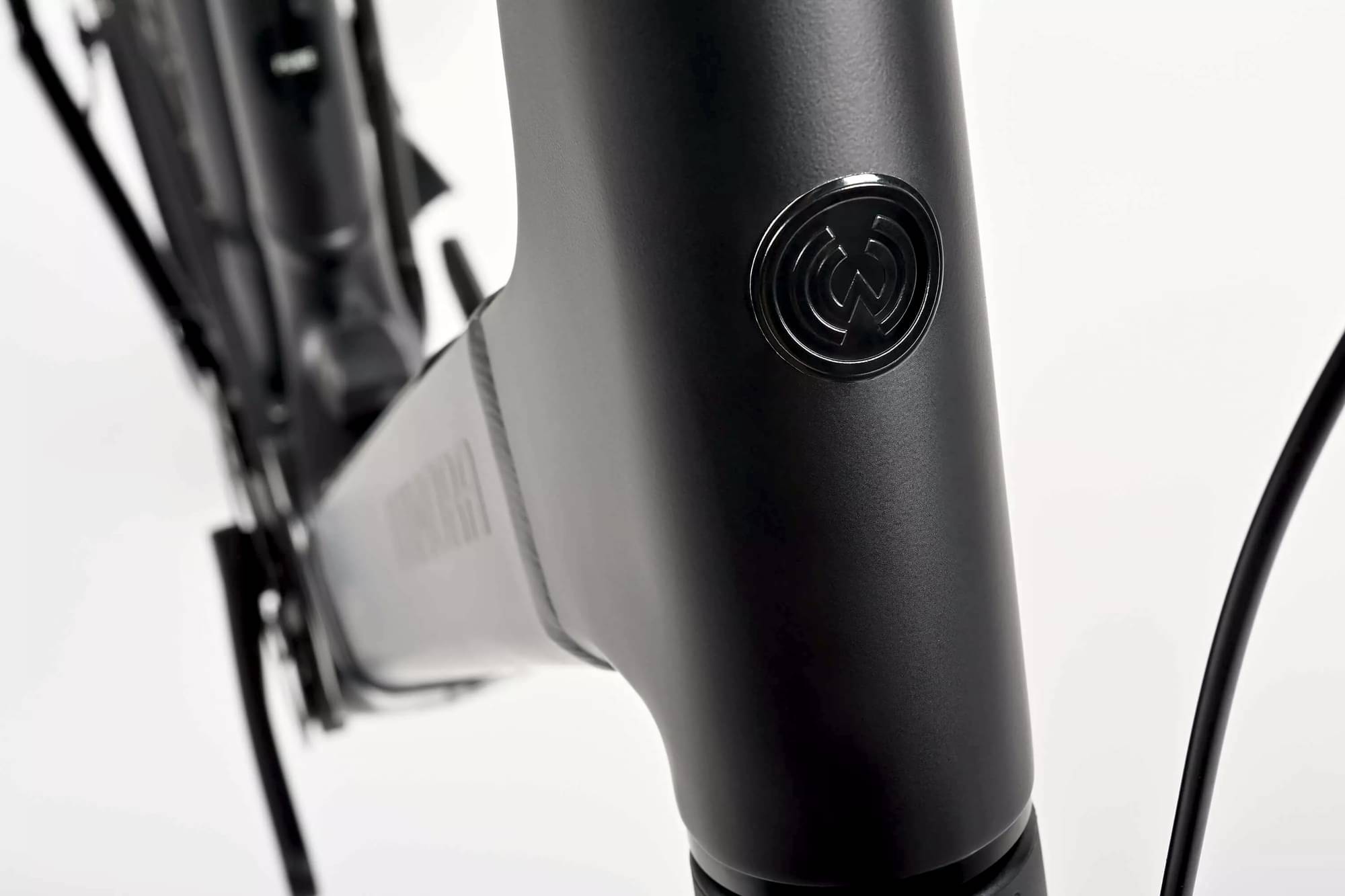

Frame
Mid Aluminium Low entry

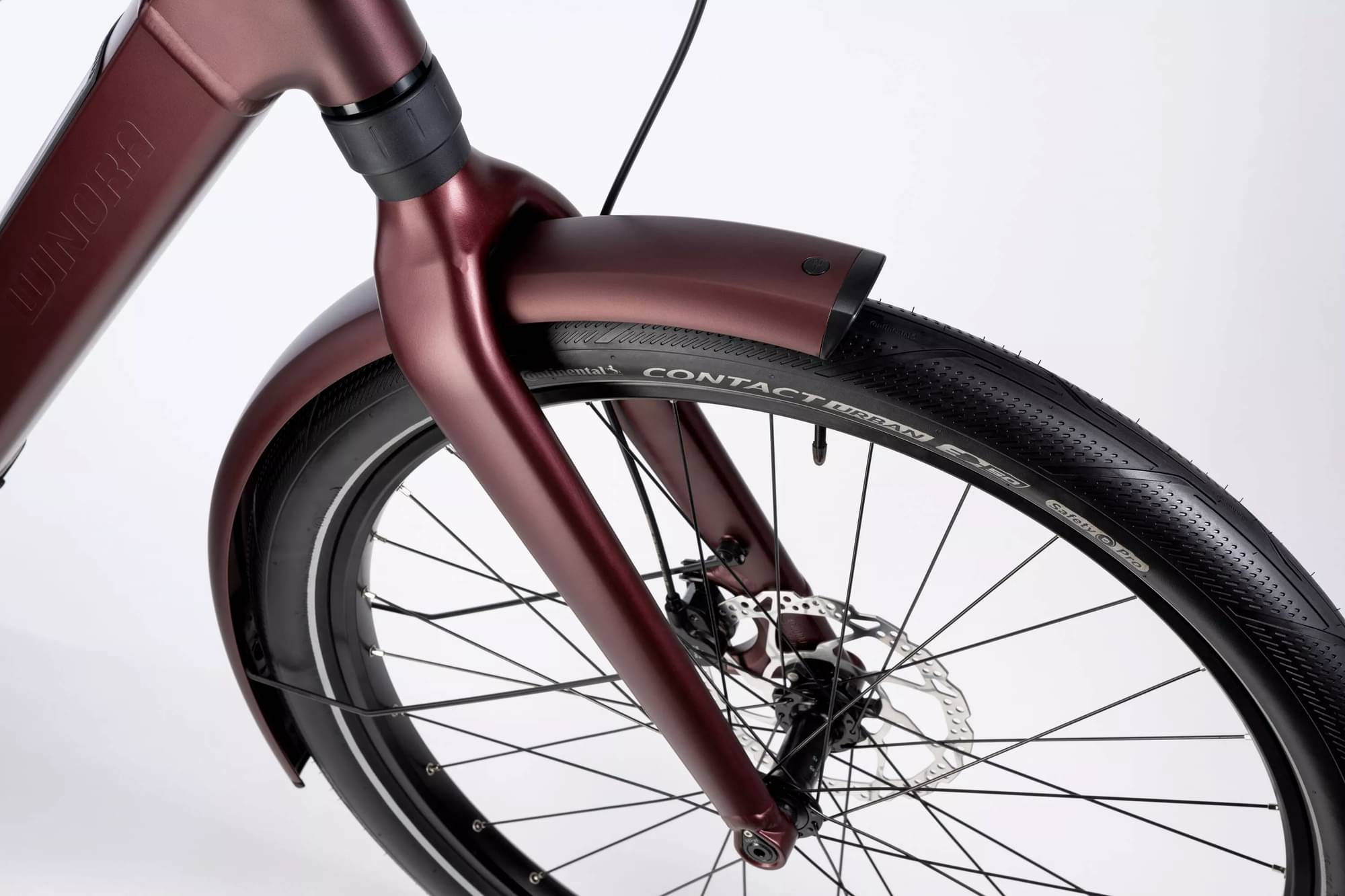

Suspension Fork
Winora Feathershock 30 mm
Drivetrain

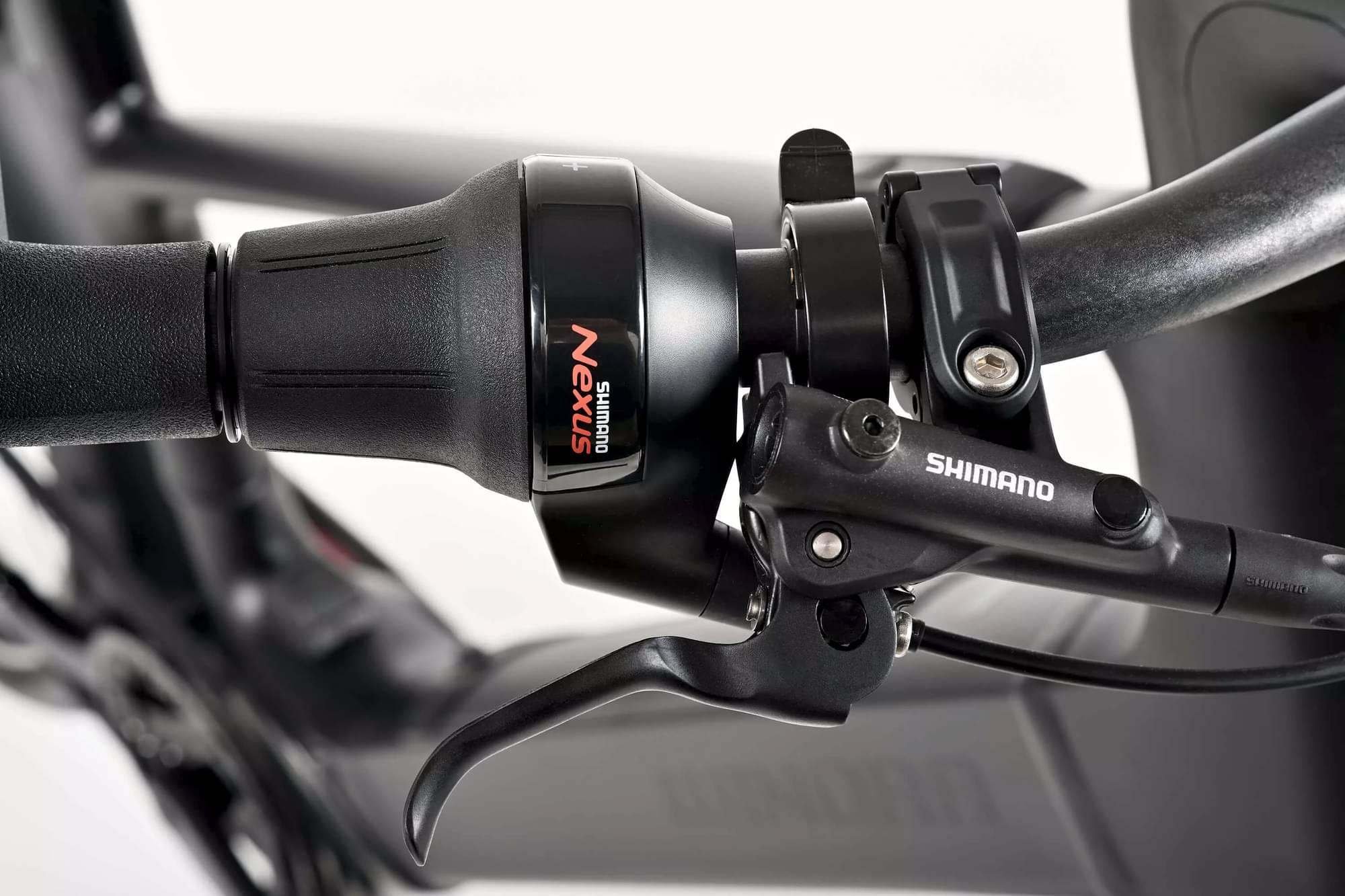

Shift Levers
Shimano Gripshift Nexus SL-C7000-5R
Cassette

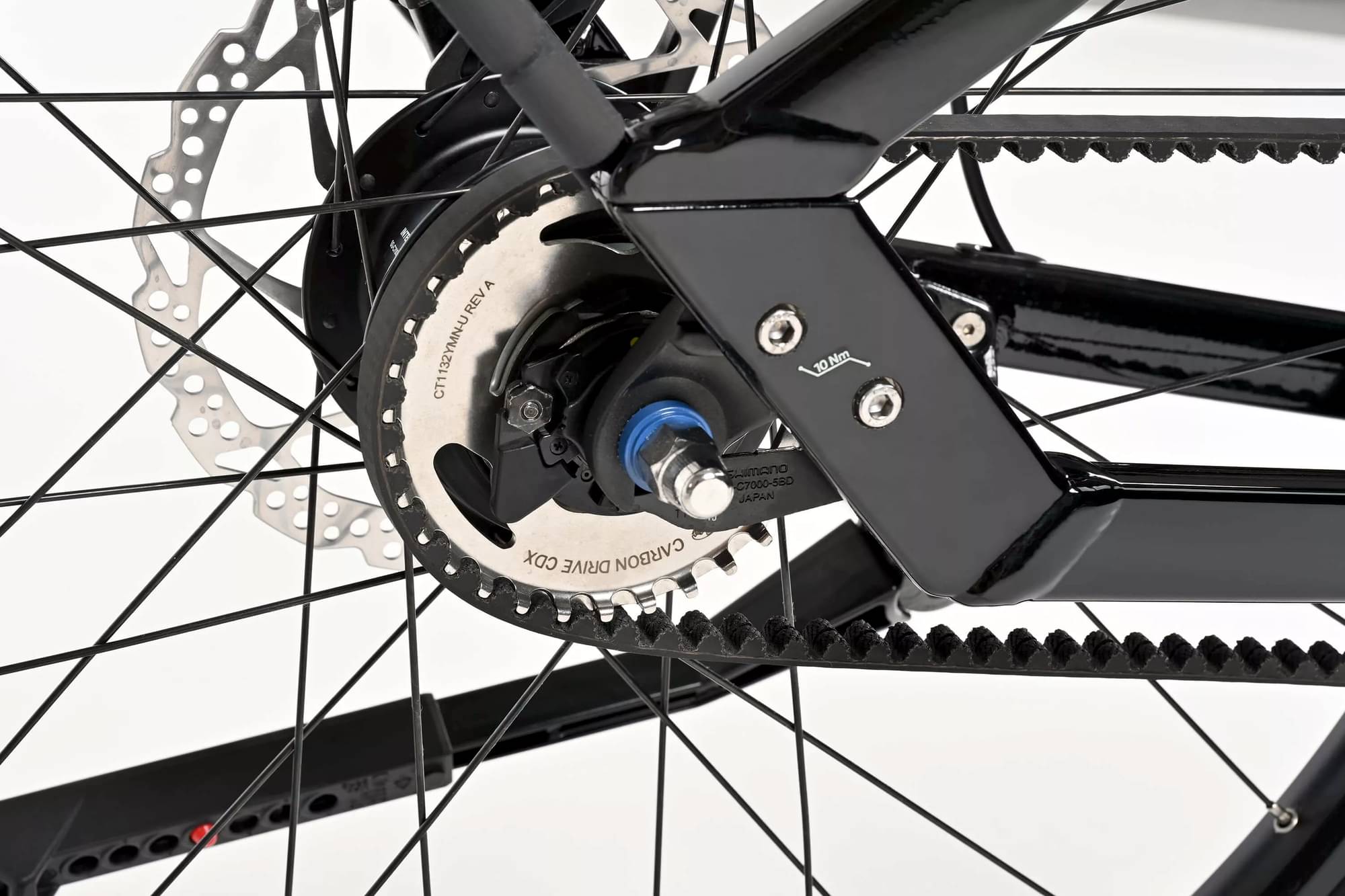

Gates Carbon Drive CDX Sprocket
Crank
Miranda ISIS Cranks 170 mm + GATES CDC Chainring
Chain
Gates Belt Carbon Drive Belt CDC, 125T
Pedals
Marwi SP-880 MTB Pedal w. Reflector
Wheels
Front Hub
Shimano HB-TC500-B 15x110 mm, Centerlock
Rear Hub

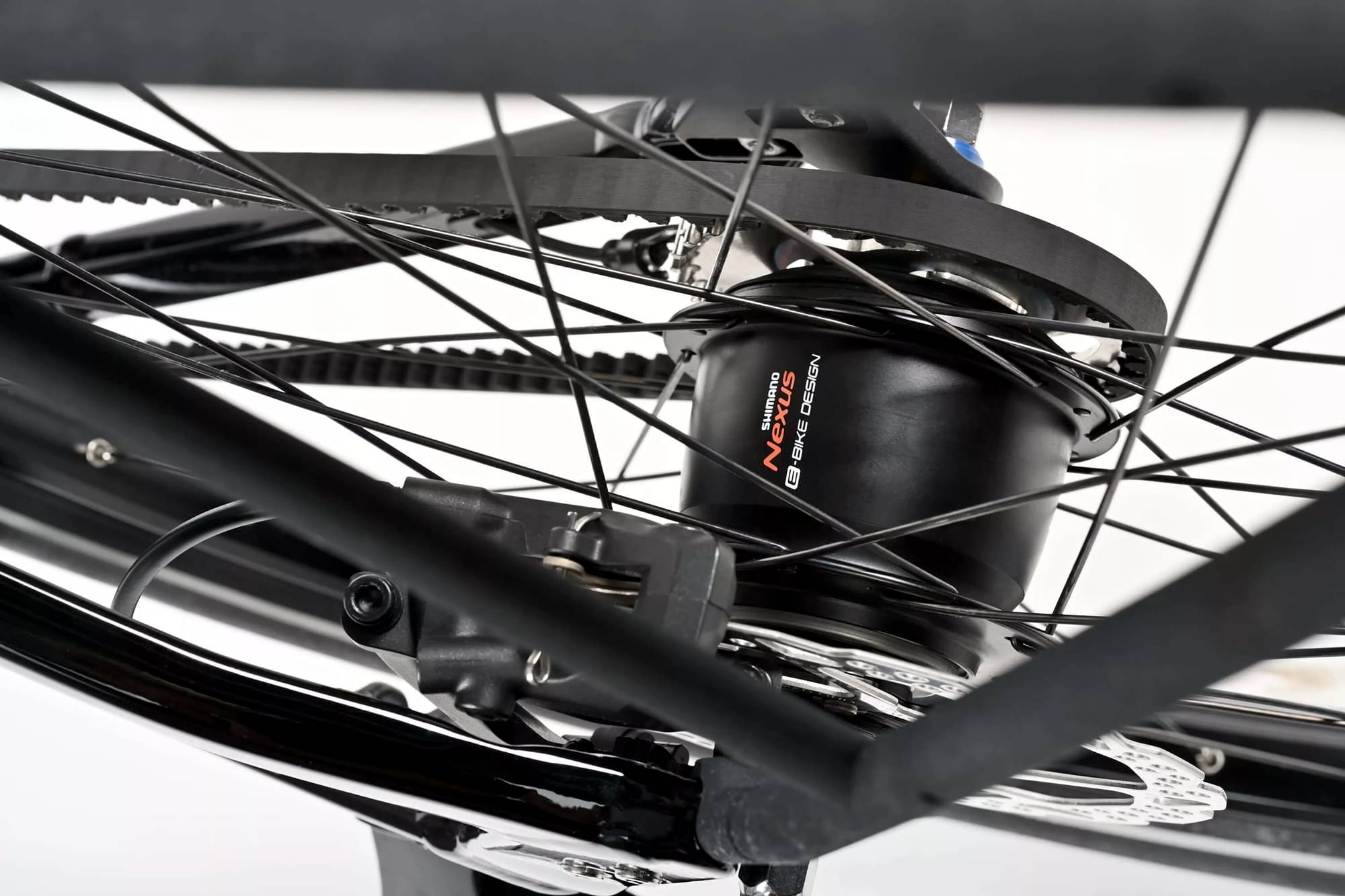

Shimano Nexus SG-C7000-5c, 10x135 mm, Centerlock
Rims
Schurmann Hollow rim YAK 25 32H with Silver Eyelets

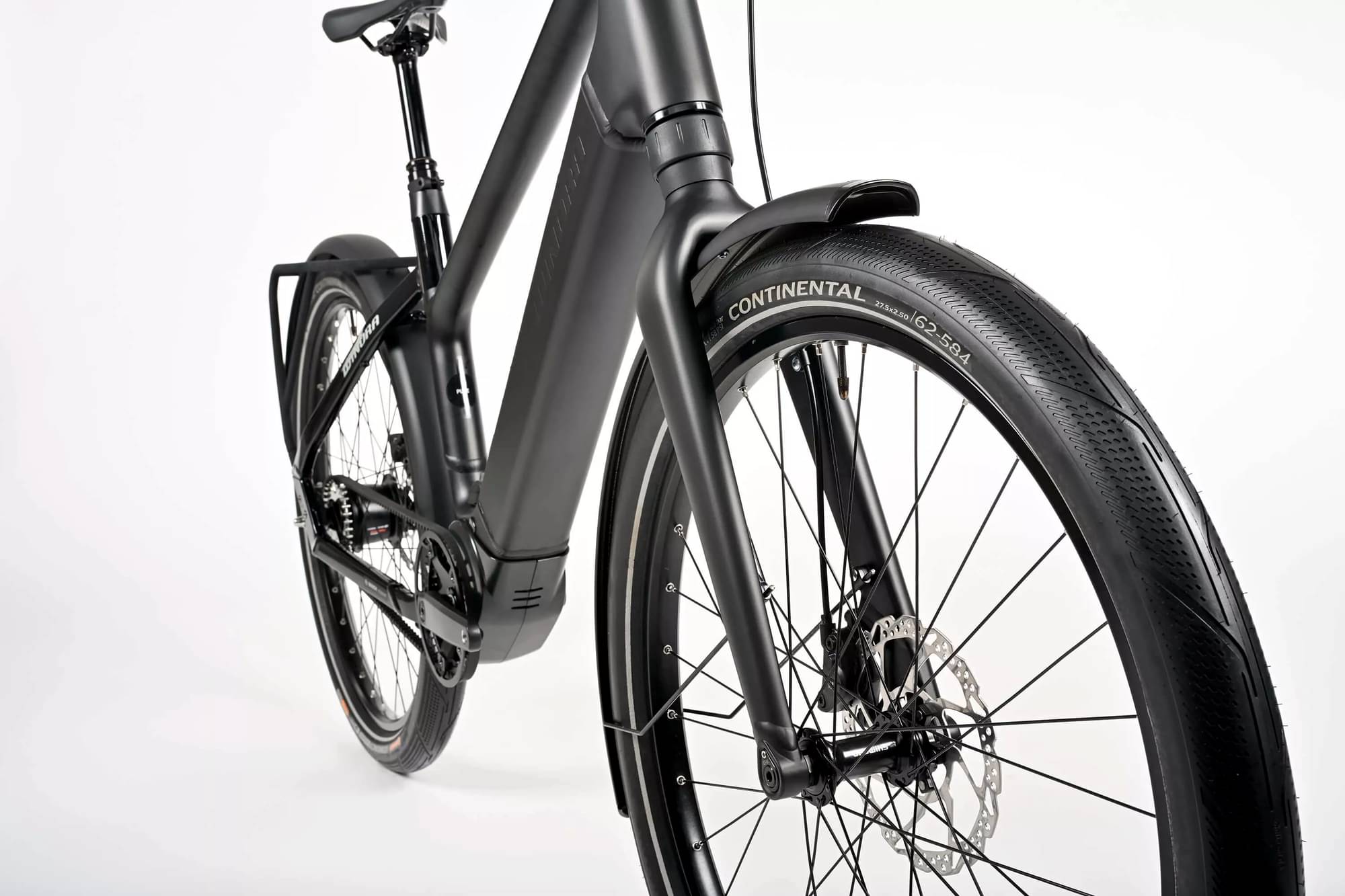

Tires
Continental Contact Urban 62-584
Brakes
Brakes
Shimano Hydraulic Disc brake

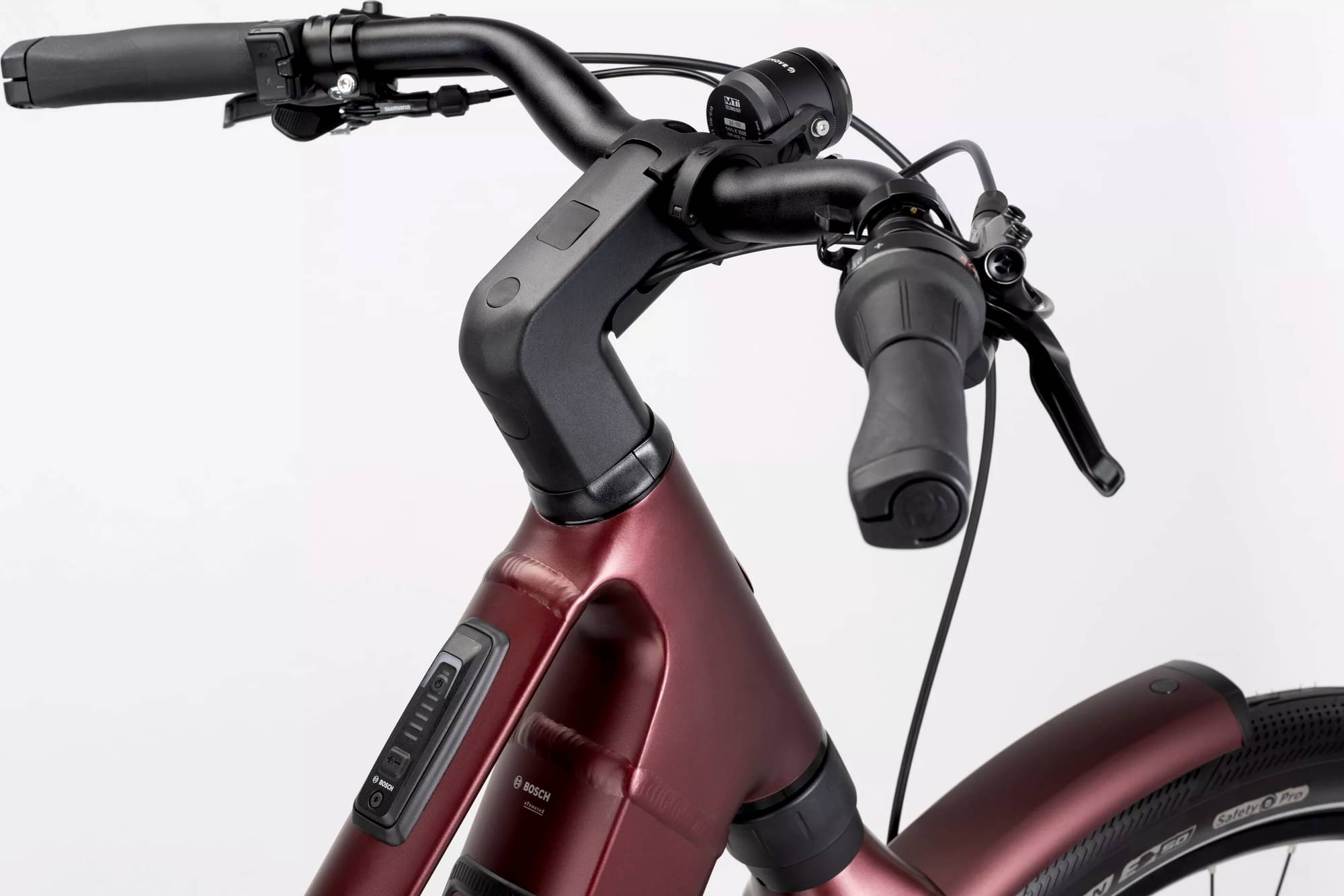

Cockpit

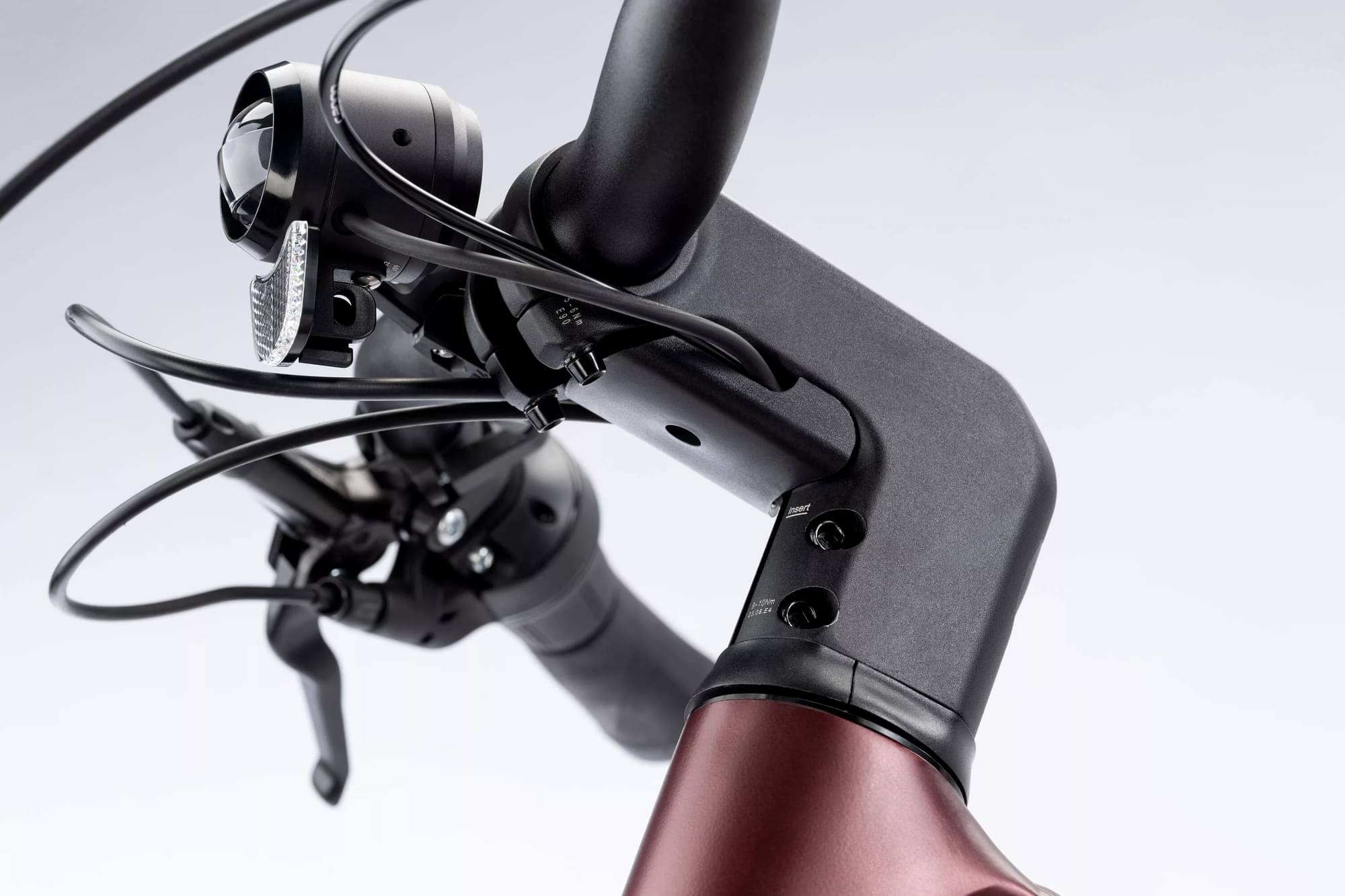

Stem
Satori Not Adjustable AIS integr., Dia. 31.8 mm, L: 90 mm
Handlebar
JD TR25AL Dia. 31.8 mm, Rise: 25 mm
Headset
Glory Wheel ICR-51.9 ZS56
Seat
Saddle
Selle Italia X-Bow
Seatpost
JD Dropperpost YSP28, Dia. 31.6 mm, Travel: 150 mm
Motor & Battery

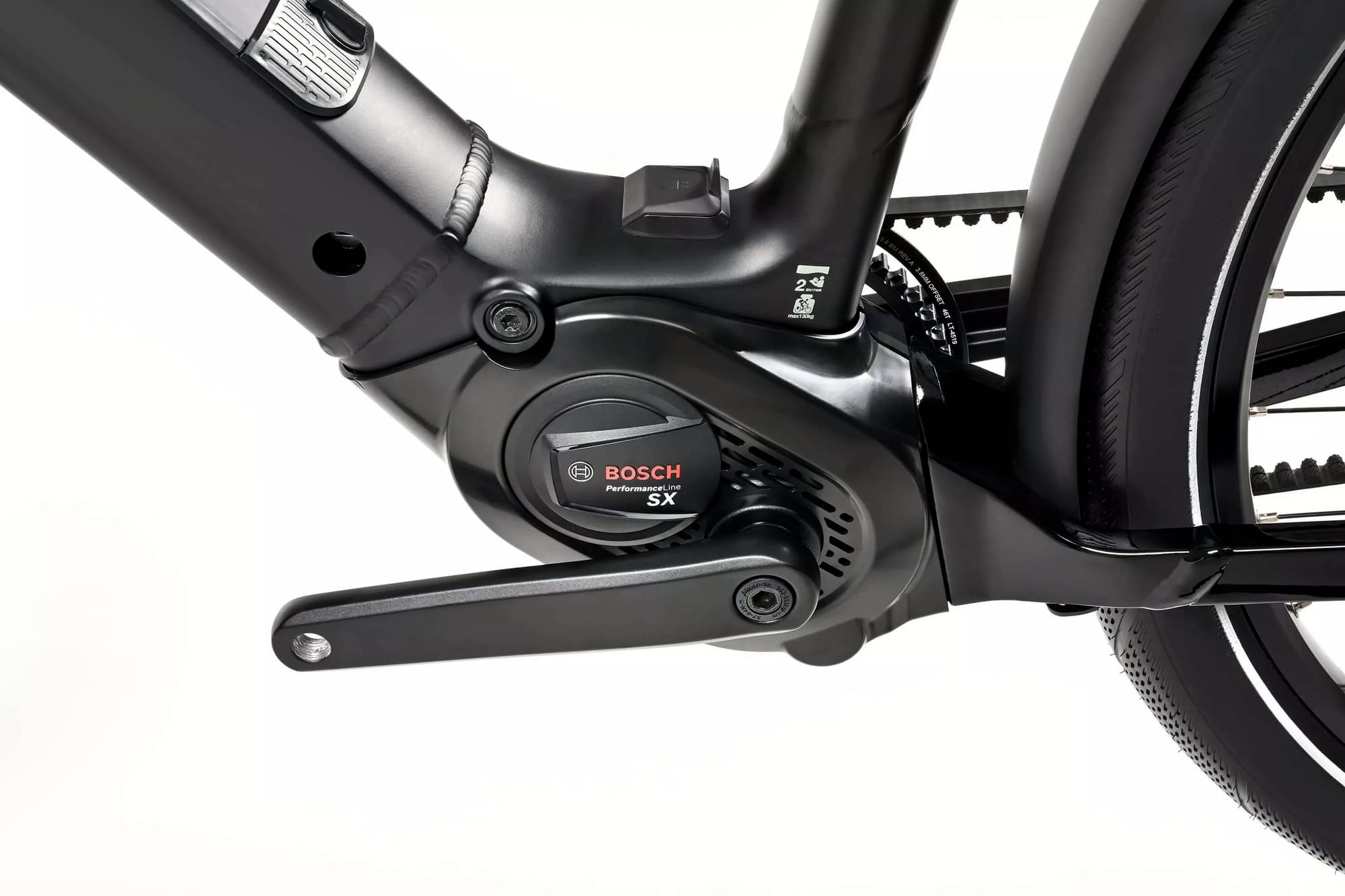

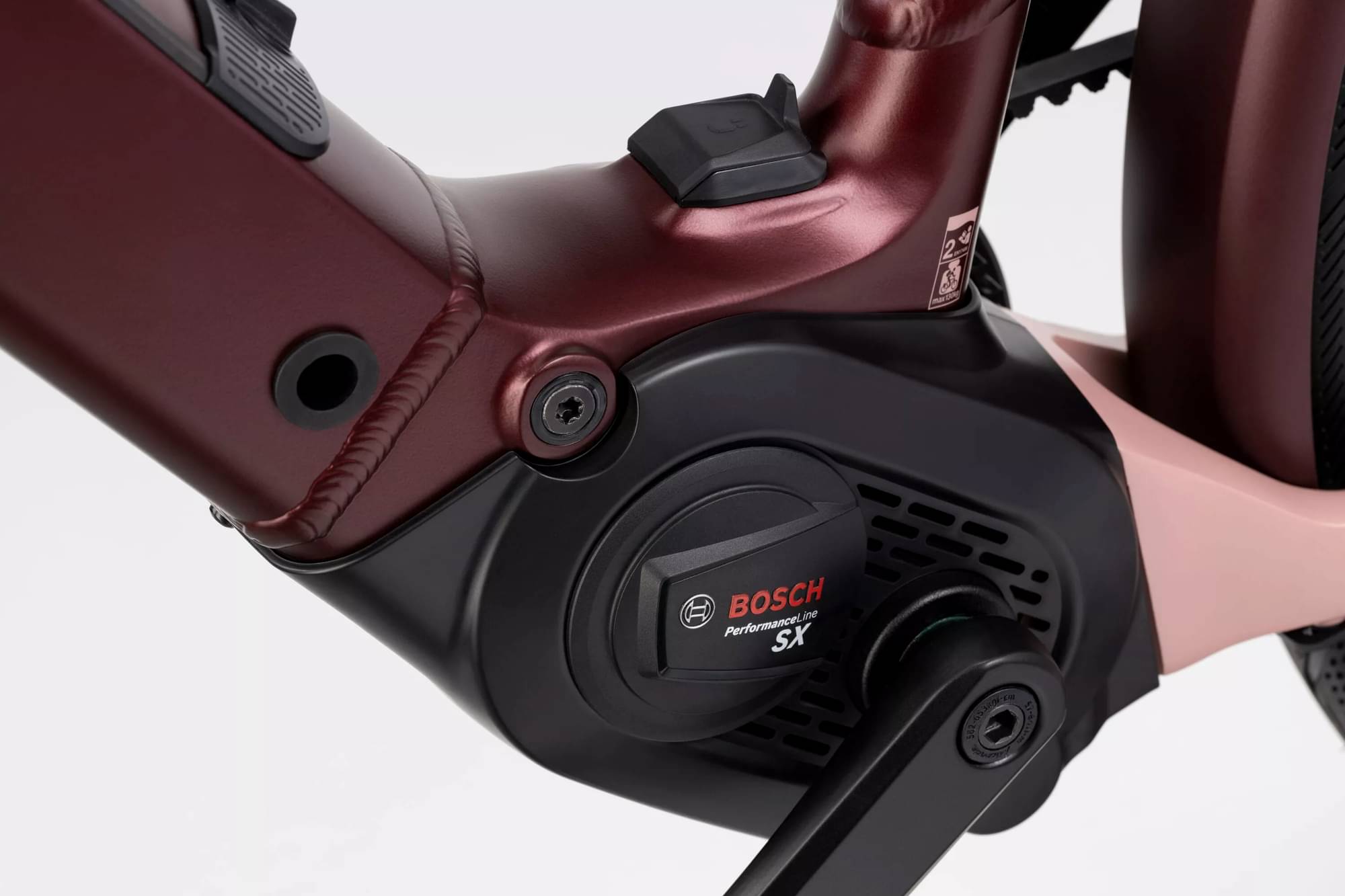

Motor
Bosch
Battery
Bosch Li-ION InTube 400 Wh, Capacity: 400 Wh, Location: Powertube
Charger
Bosch Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 42cm | 44cm | 48cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.711 mm | 1.474 mm | 1.483 mm | 1.425 mm |
| Front Center | 596 mm | 651 mm | 688 mm | 744 mm |
| Rake | 51 mm | 51 mm | 52 mm | 51 mm |
| Trail | 66 mm | 66 mm | 65 mm | 66 mm |
| Stack | 585 mm | 585 mm | 623 mm | 660 mm |
| Reach | 342 mm | 397 mm | 420 mm | 463 mm |
| Top Tube Length | 492 mm | 547 mm | 581 mm | 634 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 405 mm | 425 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 165 mm | 205 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1068 mm | 1123 mm | 1160 mm | 1216 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 146 cm | 155 cm | 162 cm | 172 cm |
| Rider Max Height | 157 cm | 164 cm | 174 cm | 186 cm |
