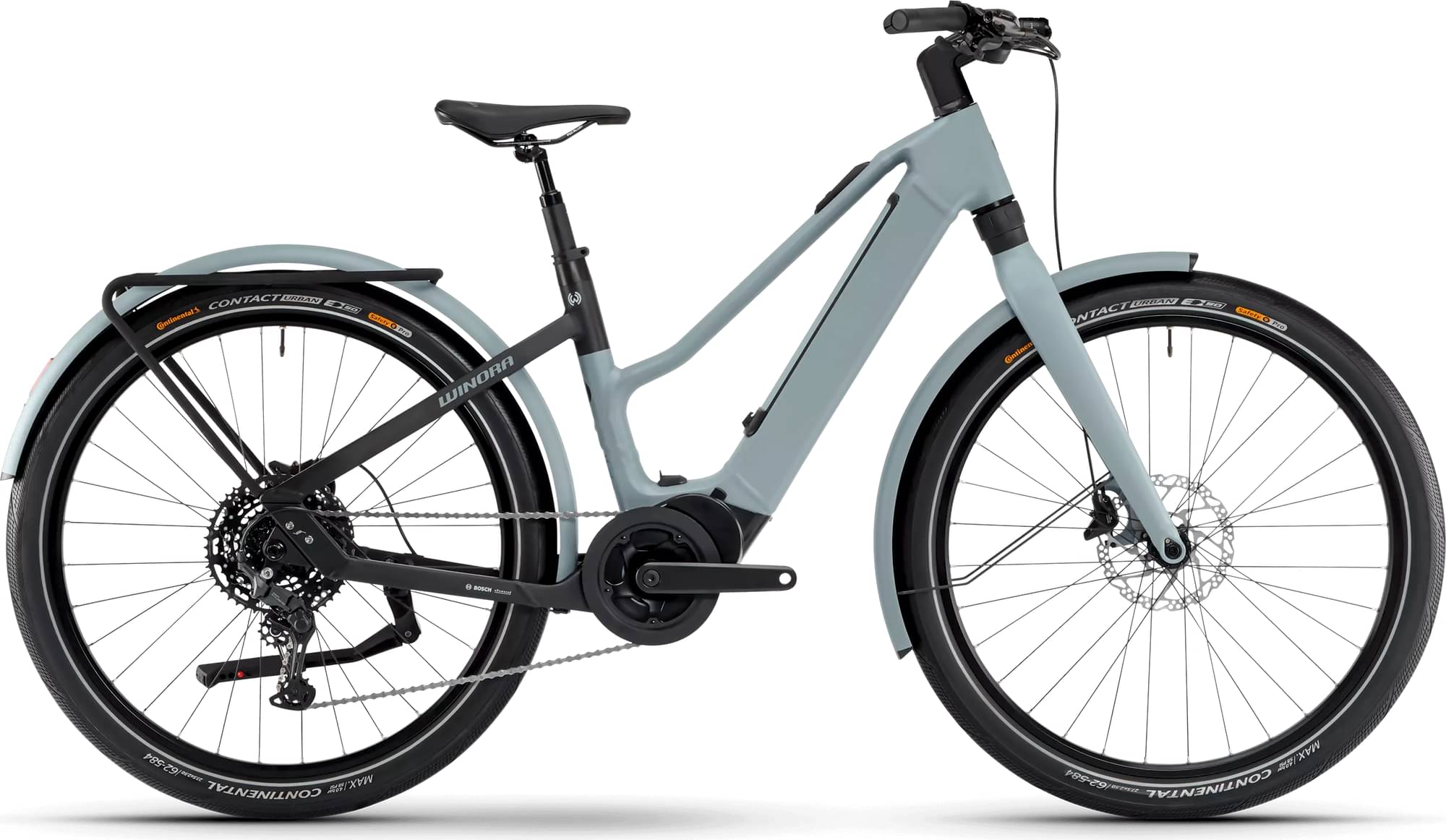

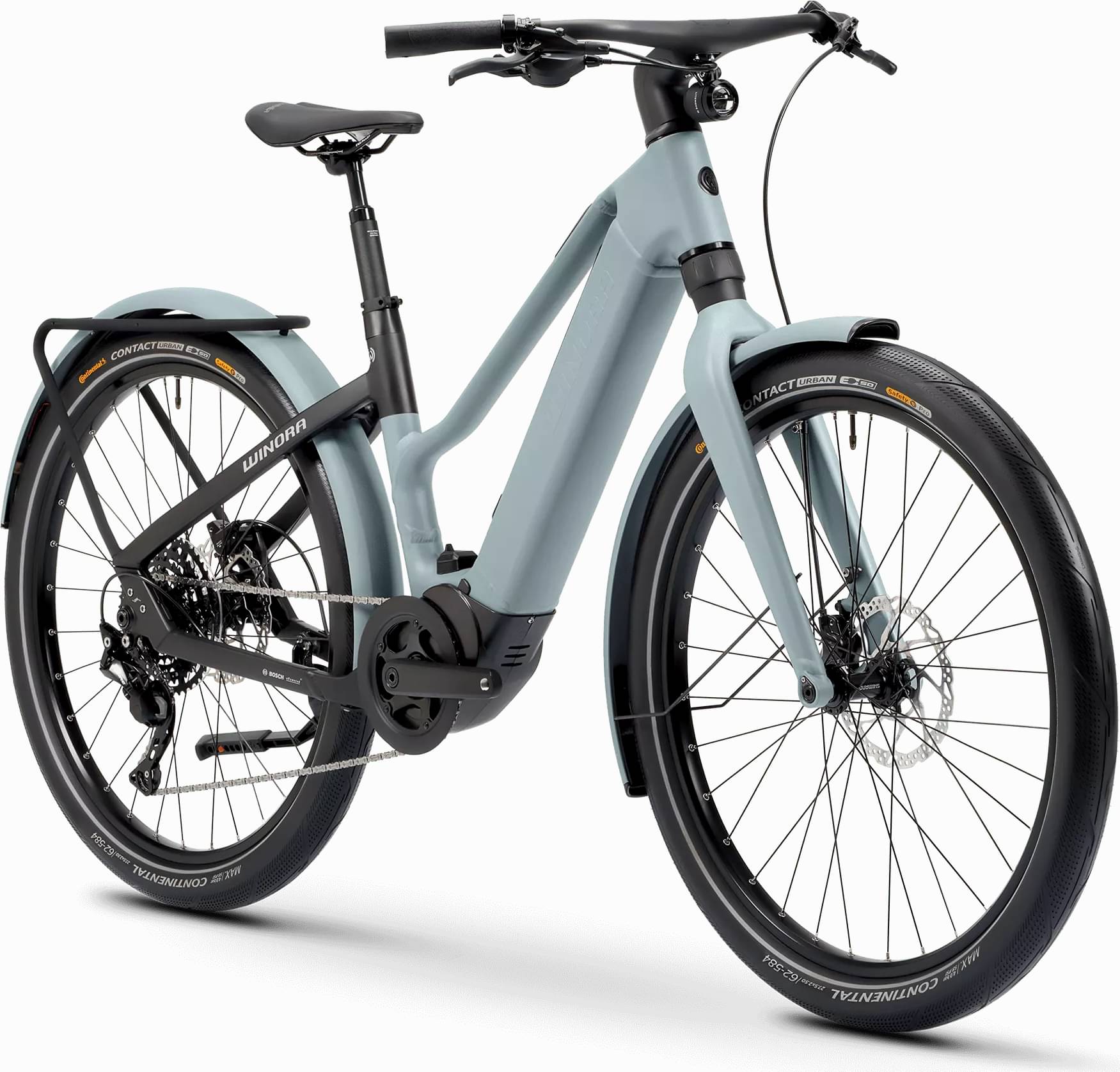

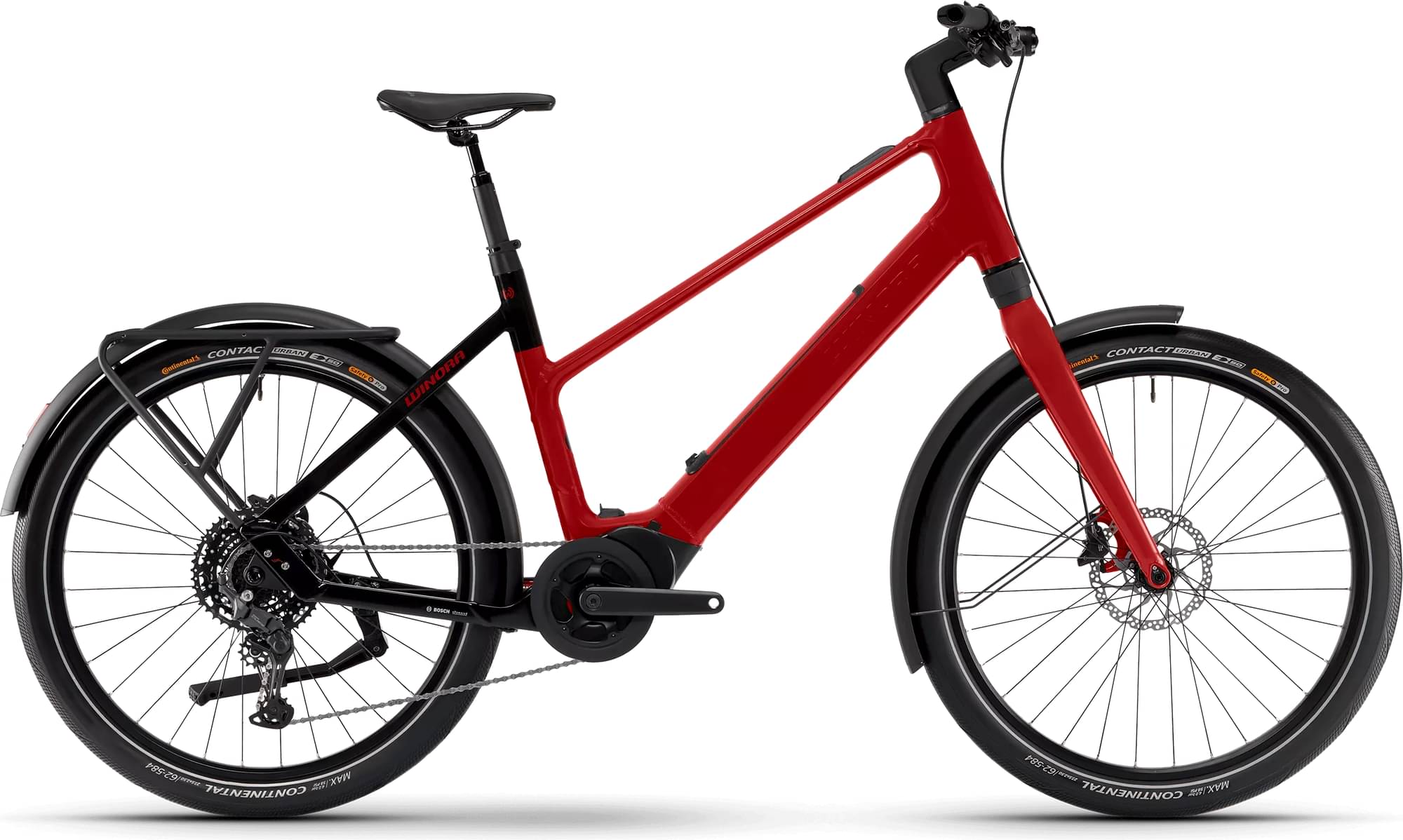

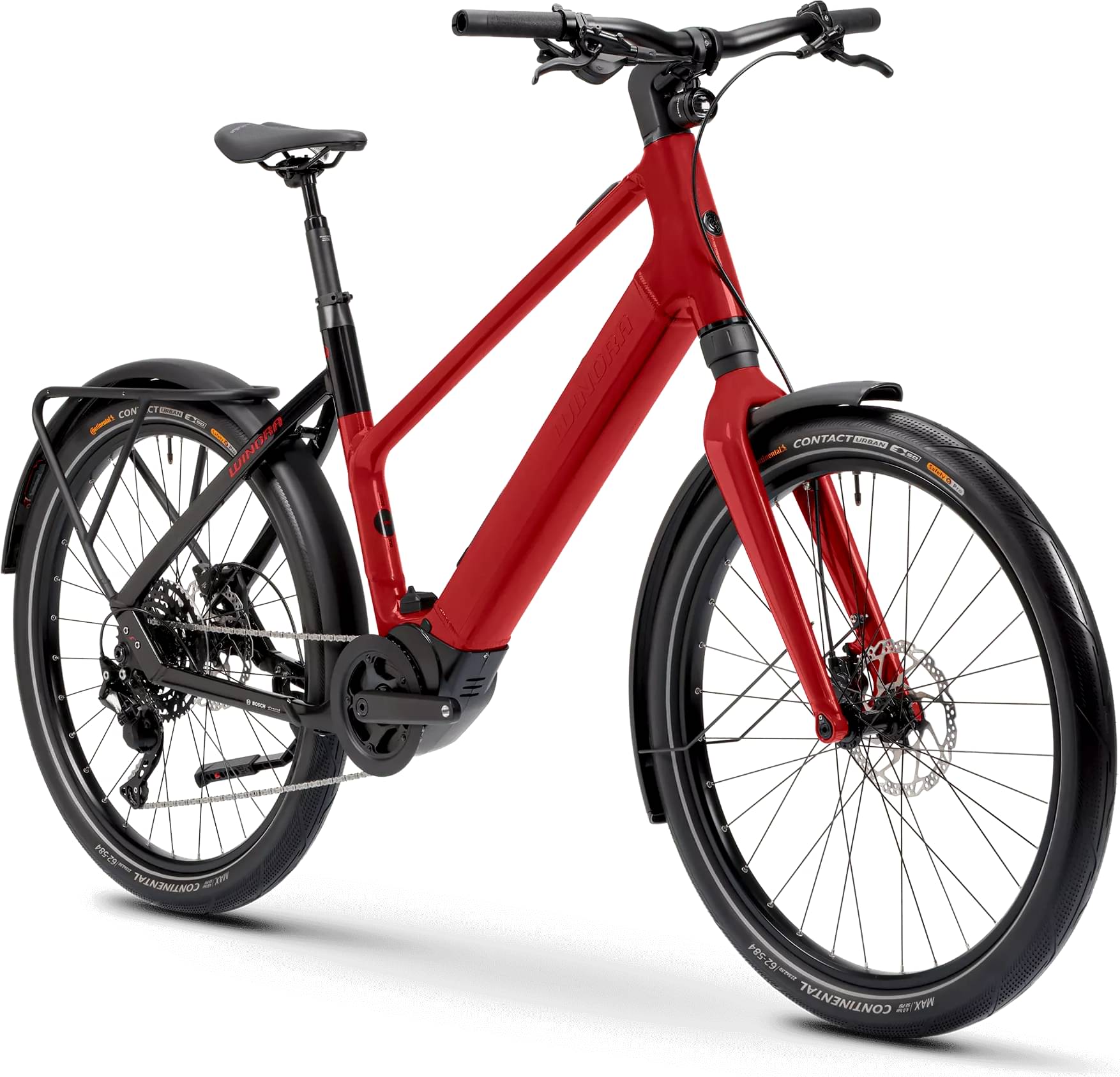

winora iRide Pure X10 2024
2024 E-bike
Estimate price |
3,898$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 30mm -
Groupset CUES -
Suspension Hardtail -

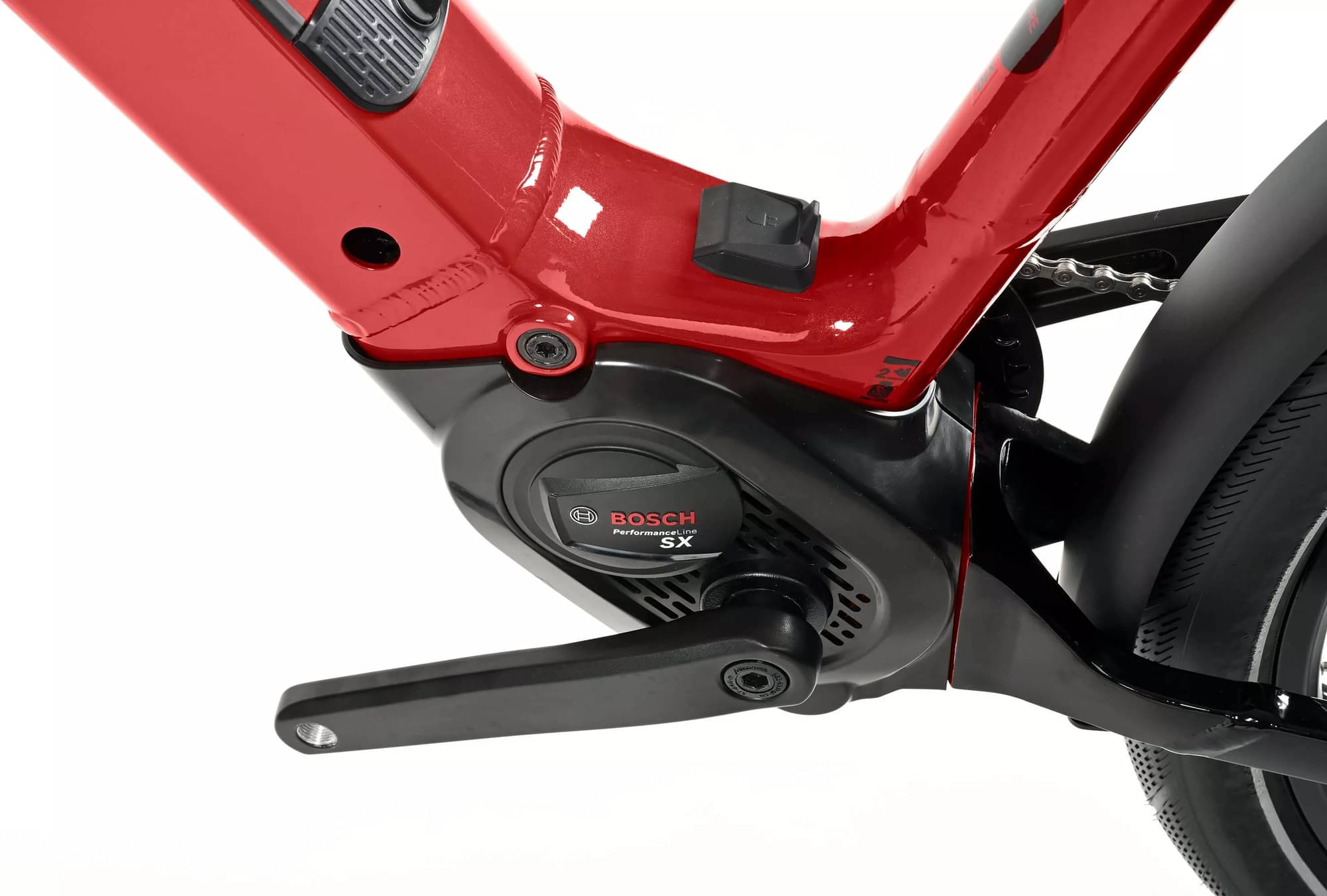

Motor Bosch mid-drive -
Battery Bosch Li-ION InTube 400 Wh, Capacity: 400 Wh, Location: Powertube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
42cm
156cm - 167cm
44cm
165cm - 176cm
48cm
174cm - 185cm
52cm
183cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Unisex
Suspension Fork
Winora Feathershock 30 mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U6000, 10s
Shift Levers
Shimano Triggershift Cues SL-U6000-11R, Rapidfire
Cassette
Shimano CS-LG300-10
Crank
Miranda aluminium crank
Bottom Bracket
integrated in the motor
Chain
Shimano Chain CN-LG500
Chain Guide
Nylon directmount
Pedals
VP E461
Wheels
Front Hub
Shimano HB-TC500 9 x 100 mm
Rear Hub
Shimano HB-MT400-B 10 x 135 mm
Rims
Schürmann Hollow rim Yak25
Spokes
Sapim, Leader, Black

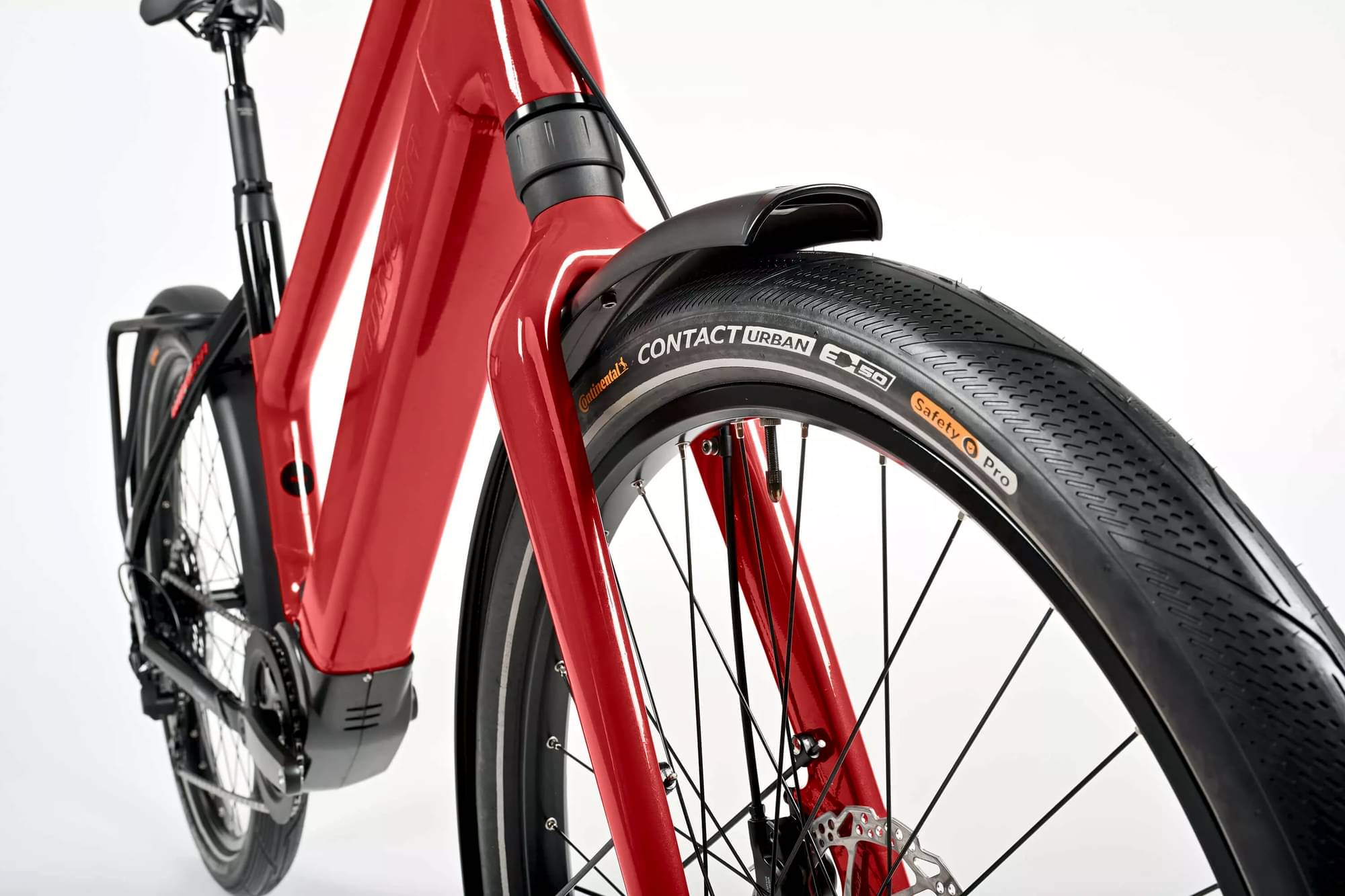

Tires

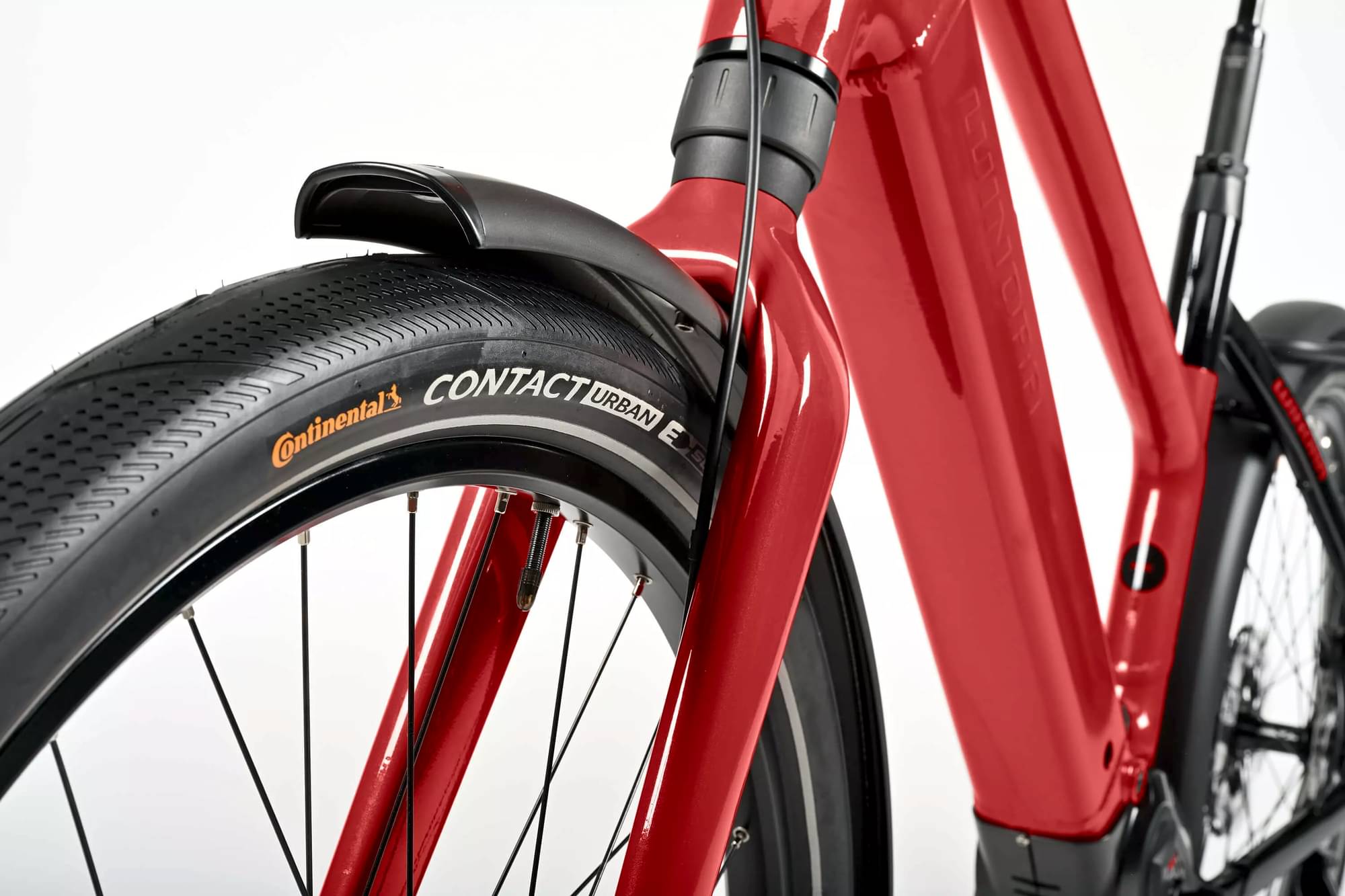

Continental Contact Urban 62-584
Brakes
Brakes
Shimano Hydraulic Disc brake

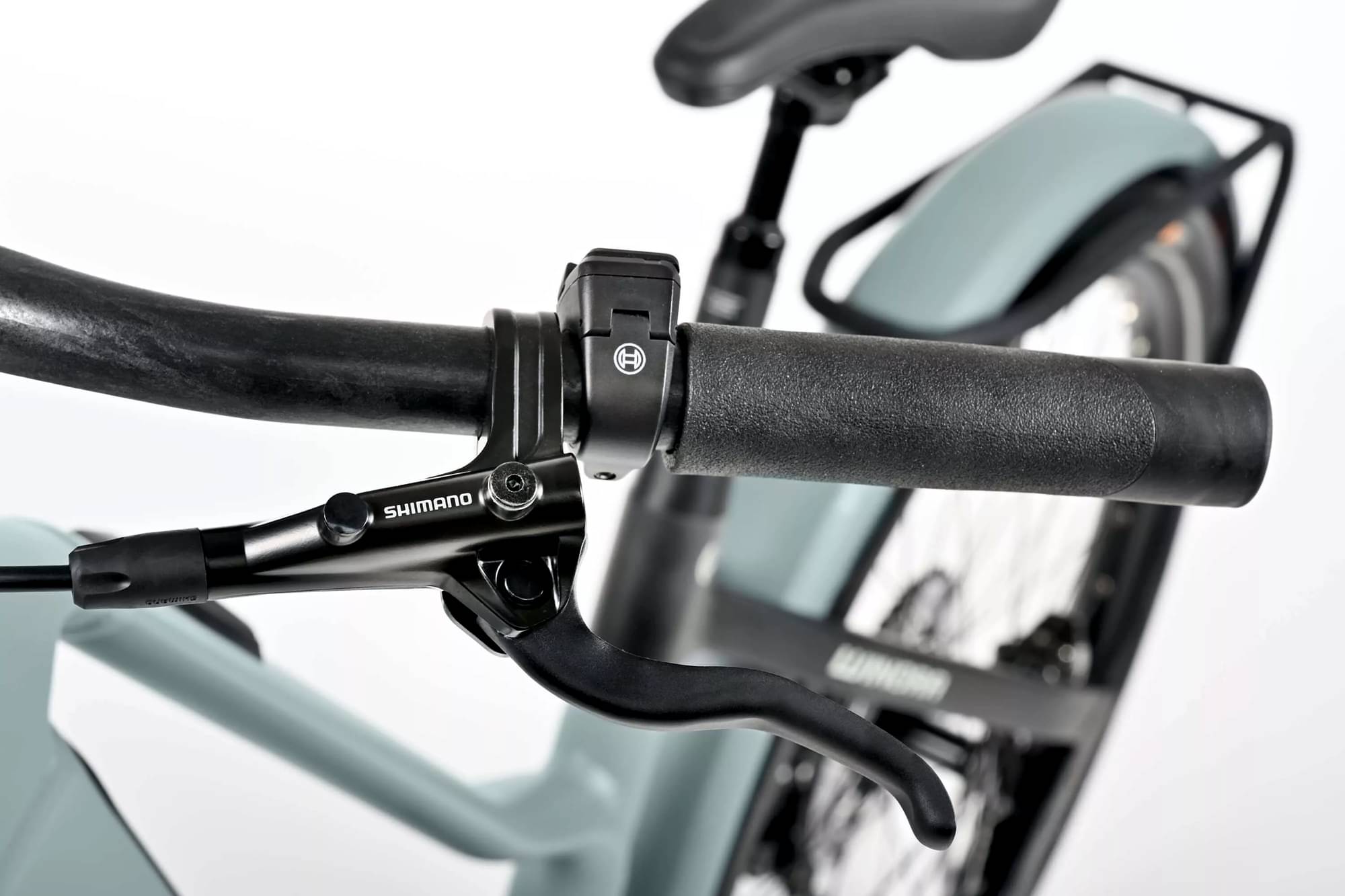

Brake Levers
Shimano, MT402, Aluminium,
Cockpit
Stem
Winora Not Adjustable adjustable, integrated cable routing
Handlebar
Winora Ergobar, oversize
Headset
Glory Wheel ICR CHS1139
Seat
Saddle
Selle Italia X-Bow
Seatpost
Winora Suspension Patent,, Dia. 31.6 mm
Motor & Battery

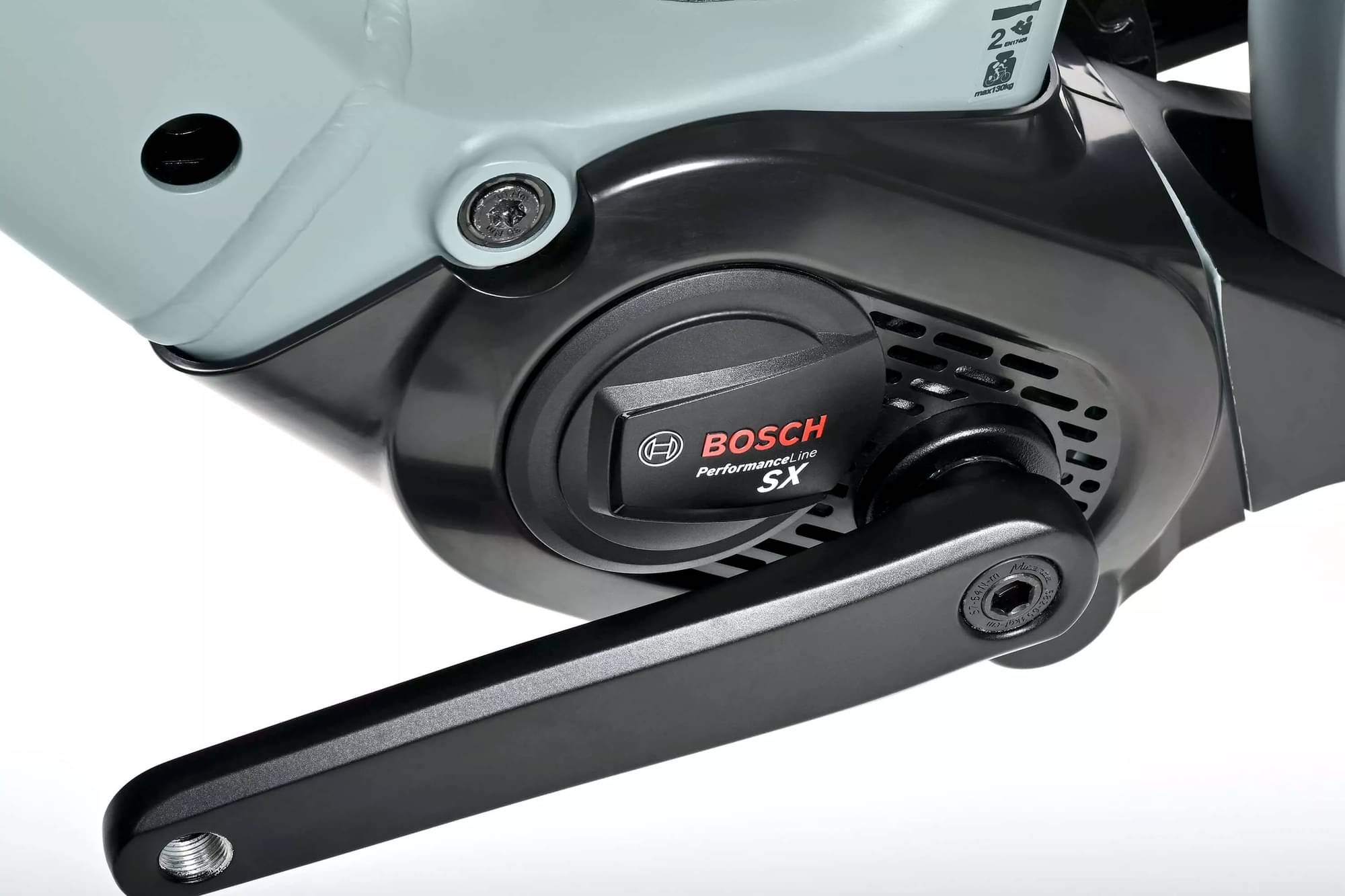

Motor
Bosch
Battery
Bosch Li-ION InTube 400 Wh, Capacity: 400 Wh, Location: Powertube
Charger
Bosch compact charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 48cm | 52cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.483 mm | 1.425 mm | 1.386 mm |
| Front Center | 651 mm | 688 mm | 744 mm | 794 mm |
| Rake | 51 mm | 52 mm | 51 mm | 52 mm |
| Trail | 66 mm | 65 mm | 66 mm | 65 mm |
| Stack | 585 mm | 623 mm | 660 mm | 693 mm |
| Reach | 397 mm | 420 mm | 463 mm | 500 mm |
| Top Tube Length | 547 mm | 581 mm | 634 mm | 679 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 425 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 165 mm | 205 mm | 240 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1123 mm | 1160 mm | 1216 mm | 1266 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Standover Height | 800 mm | 820 mm | 850 mm | 870 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 165 cm | 174 cm | 183 cm |
| Rider Max Height | 167 cm | 176 cm | 185 cm | 196 cm |
