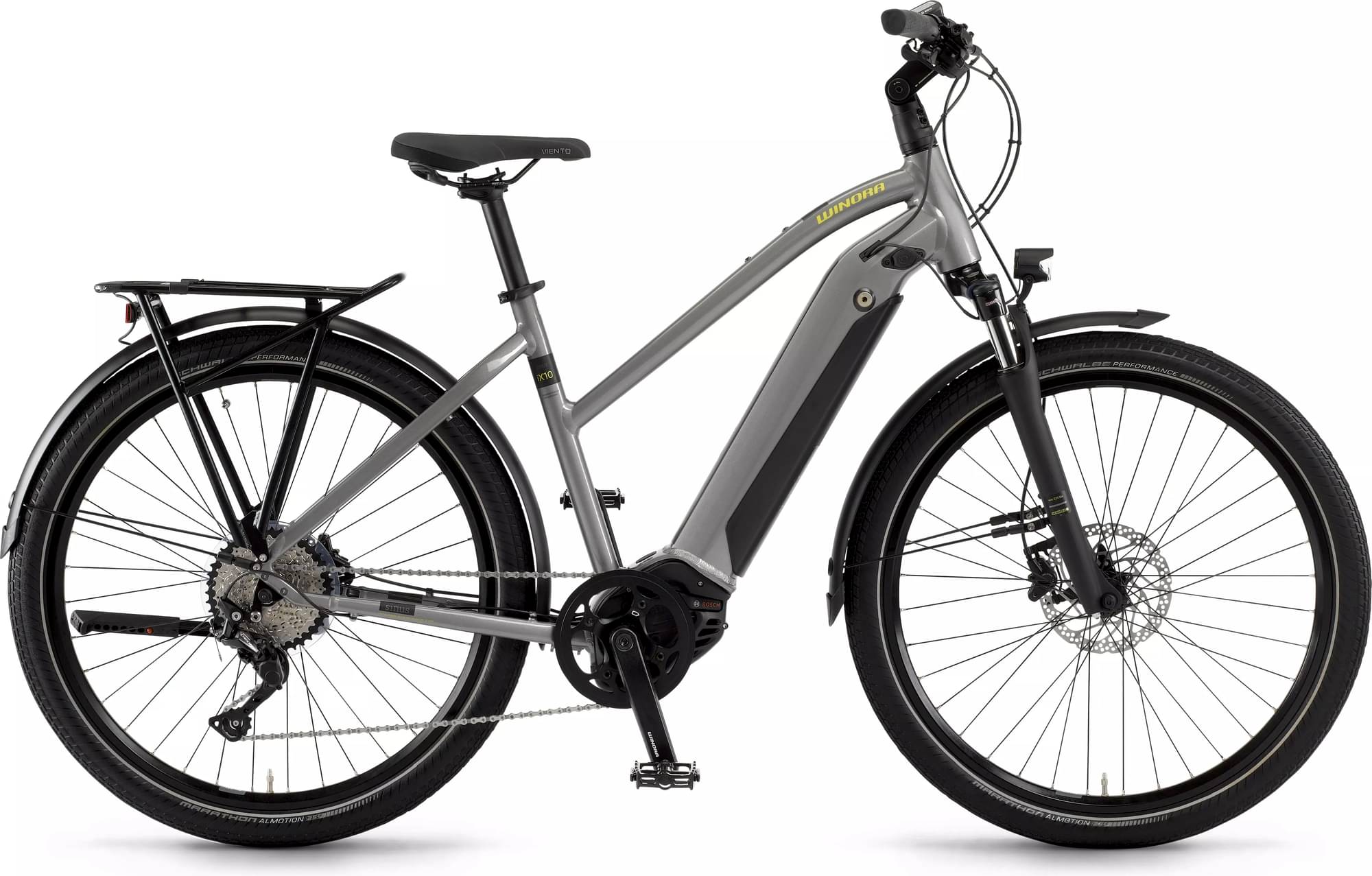

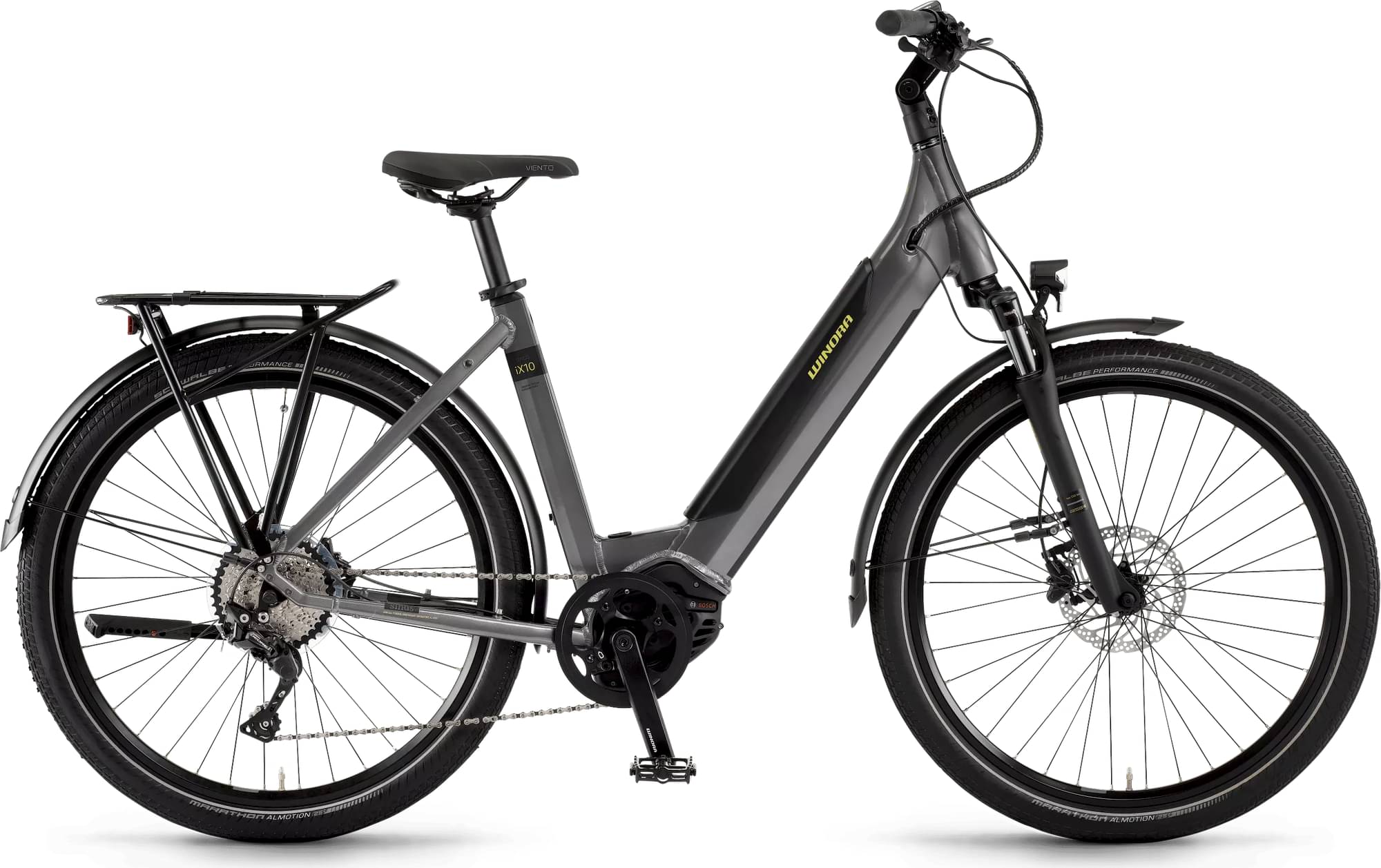

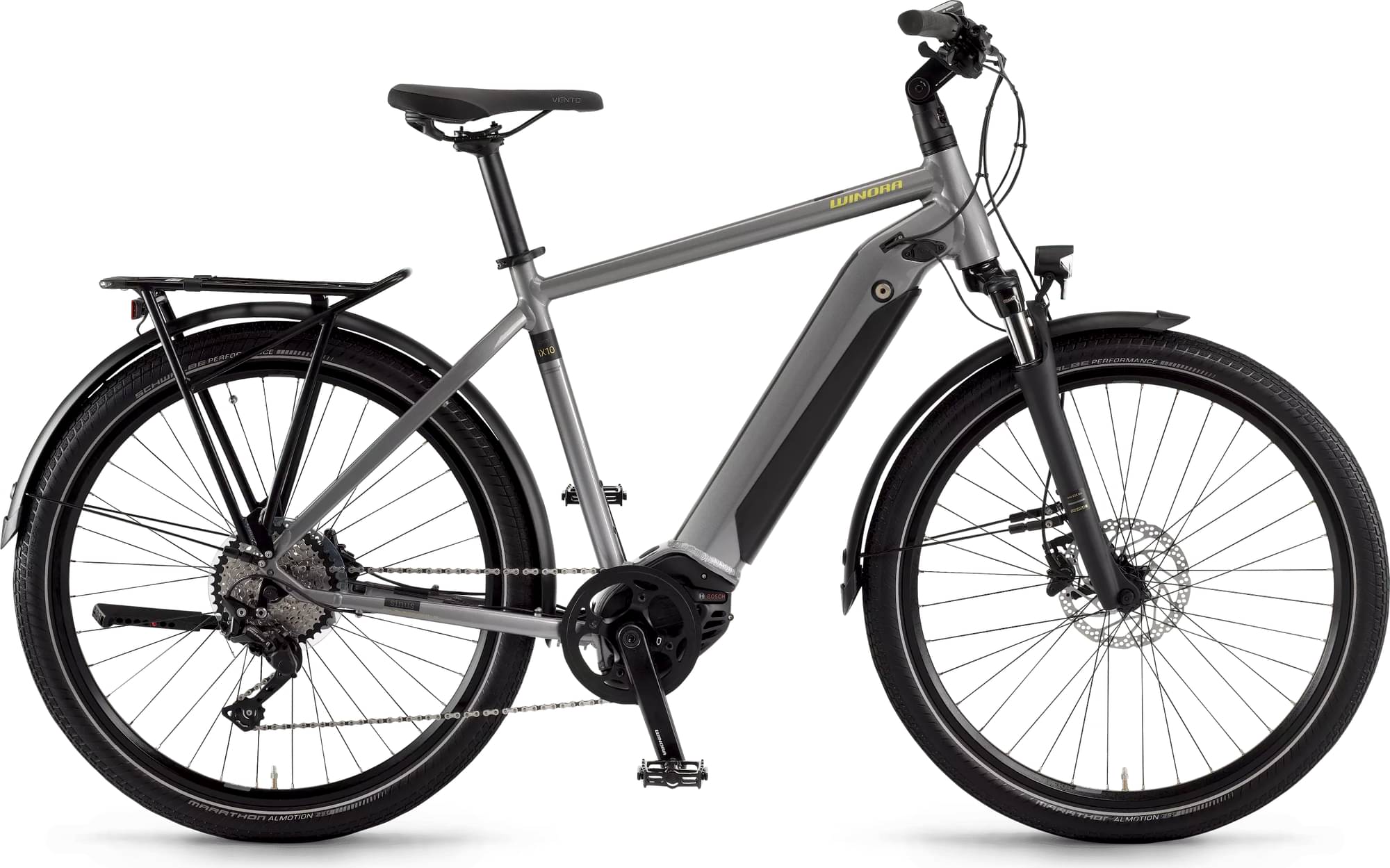

winora Sinus iX10 2025
2025 E-bike
Estimate price |
3,954$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Li-ION, Capacity: 500 Wh, Location: Powertube -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
48cm
160cm - 171cm
52cm
169cm - 178cm
56cm
176cm - 185cm
60cm
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Gents
Suspension Fork
Suntour NEX E25-HLO
Drivetrain
Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M6000
Cassette
Shimano HG500
Bottom Bracket
integrated in the motor
Chain
KMC Chain e10S
Pedals
VP E461
Wheels
Front Hub
alu hub
Rear Hub
alu hub
Rims
Ryde Hollow rim Zac421
Tires
Schwalbe Marathon Almotion 55-584
Brakes
Brakes
Shimano Hydraulic Disc brake MT400
Brake Levers
Shimano MT401-3
Cockpit
Stem
Adjustable Alu, winkelverstellbar
Handlebar
Ergoriser, oversize
Headset
Feimin A-Head Tapered
Seat
Saddle
Selle Royal Viento
Seatpost
Non Suspension
Motor & Battery
Motor
Bosch Performance Line CX Performance CX GEN4
Battery
Bosch Li-ION, Capacity: 500 Wh, Location: Powertube
Charger
Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.633 mm | 1.573 mm | 1.533 mm | 1.527 mm |
| Stack | 637 mm | 637 mm | 641 mm | 655 mm |
| Reach | 390 mm | 405 mm | 418 mm | 429 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 171 cm | 178 cm | 185 cm | 194 cm |
