Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Li-ION PowerTube, Capacity: 625 Wh, Location: Downtube -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
46cm
161cm - 172cm
50cm
170cm - 180cm
54cm
178cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Low Aluminium Low entry
Suspension Fork
Suntour NEX E25-HLO
Drivetrain
Shift Levers
Shimano Gripshift Nexus
Cassette
Shimano sprocket
Crank
Samox EC37A
Bottom Bracket
integrated in the motor
Chain
KMC Chain Z1 Narrow EPT
Chain Guide
Herrmans Slyde 38T
Pedals
VP E461
Wheels
Front Hub
Formula aluminium hub

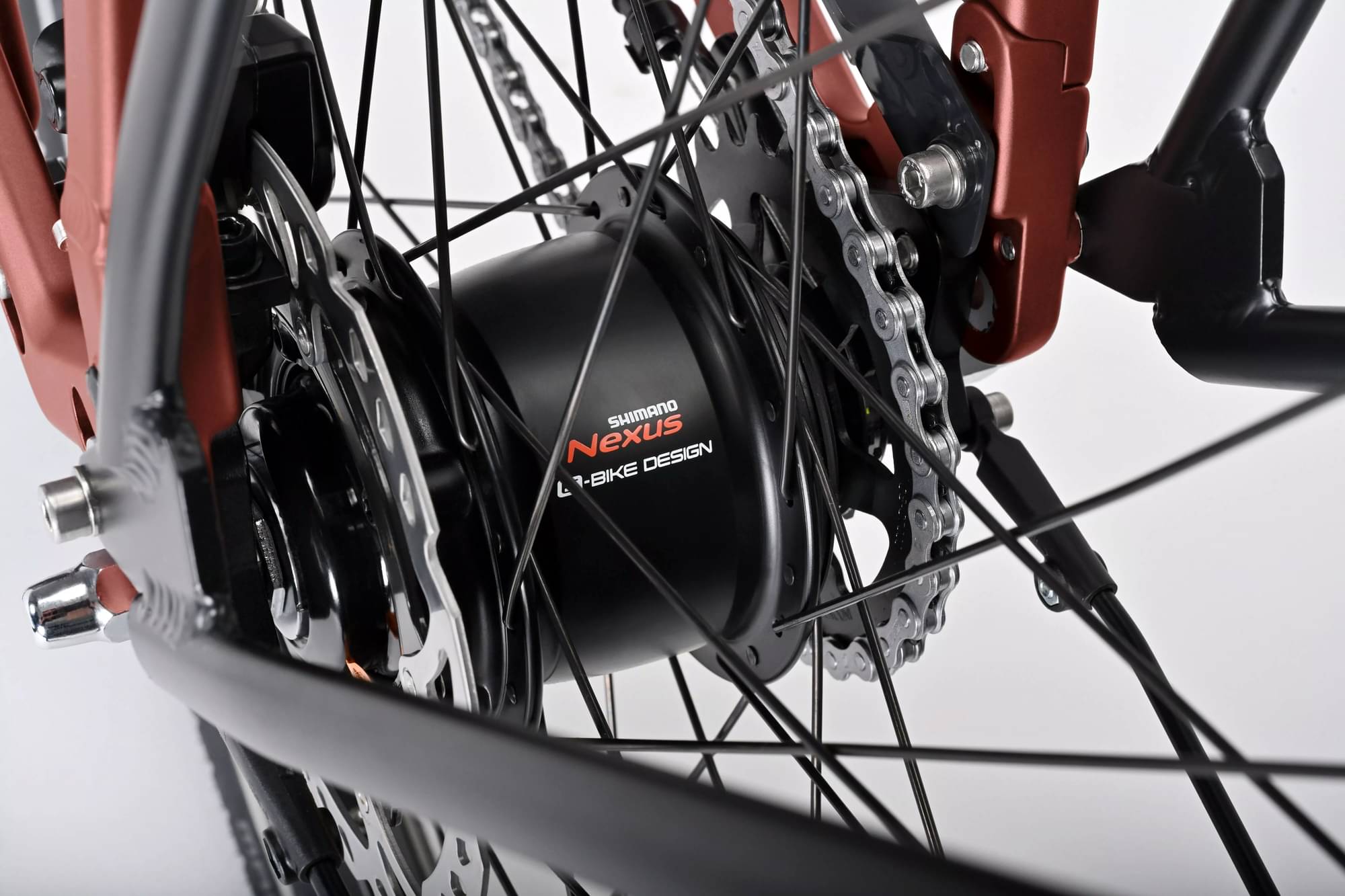

Rear Hub
Shimano Nexus
Rims
Ryde Hollow rim Zac421
Tires
Schwalbe Marathon Almotion REF 55-584
Brakes
Brakes
Shimano Hydraulic Disc brake

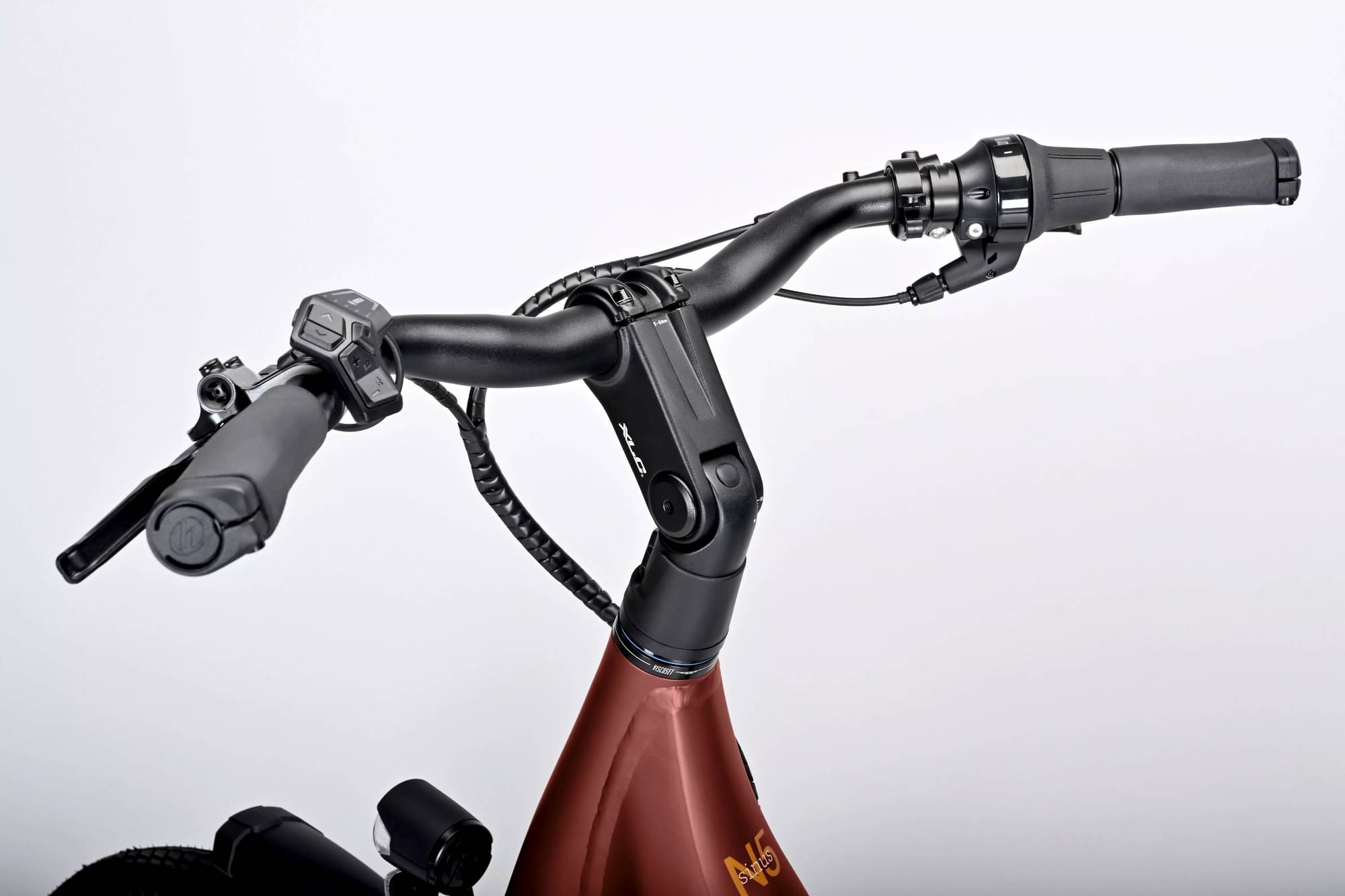

Cockpit
Stem
JD Adjustable XLC
Handlebar
JD TR25AL
Headset
Cane Creek ZS44 ViscoSet
Seat
Saddle
Selle Royal Viento
Seatpost
Satori Suspension
Motor & Battery

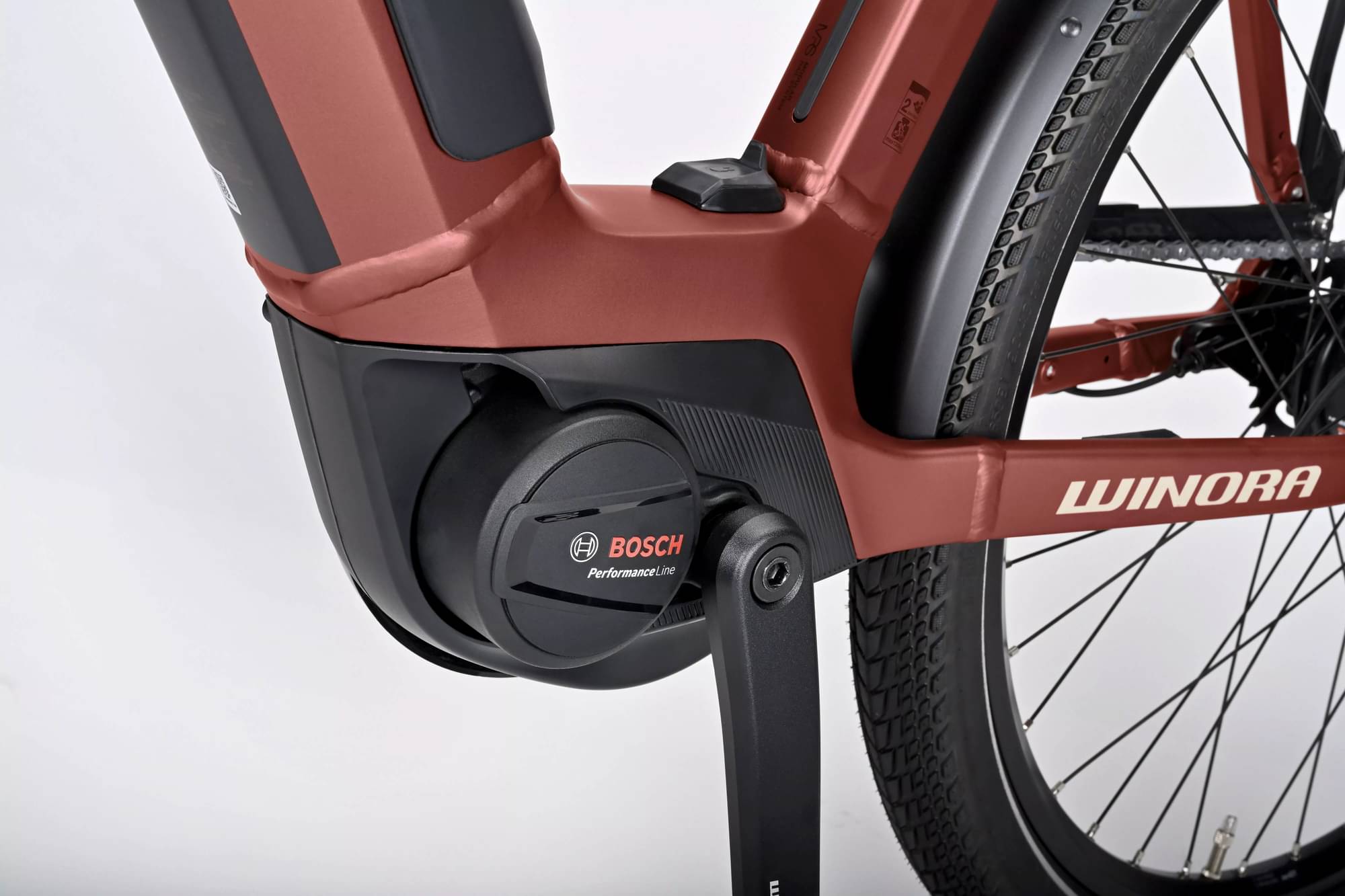

Motor
Bosch Performance Line (Smart System)
Battery
Bosch Li-ION PowerTube, Capacity: 625 Wh, Location: Downtube
Charger
Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.525 mm | 1.506 mm |
| Front Center | 700 | 710 mm | 720 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 71 mm | 72 mm |
| Stack | 668 mm | 668 mm | 673 mm |
| Reach | 428 mm | 438 mm | 447 mm |
| Top Tube Length | 652 mm | 661 mm | 671 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.6 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 190 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1169 mm | 1179 mm | 1189 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 460 mm | 450 mm | 450 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 161 cm | 170 cm | 178 cm |
| Rider Max Height | 172 cm | 180 cm | 191 cm |
